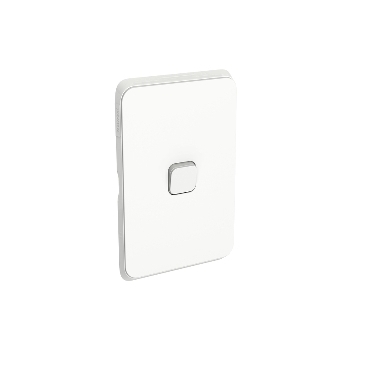

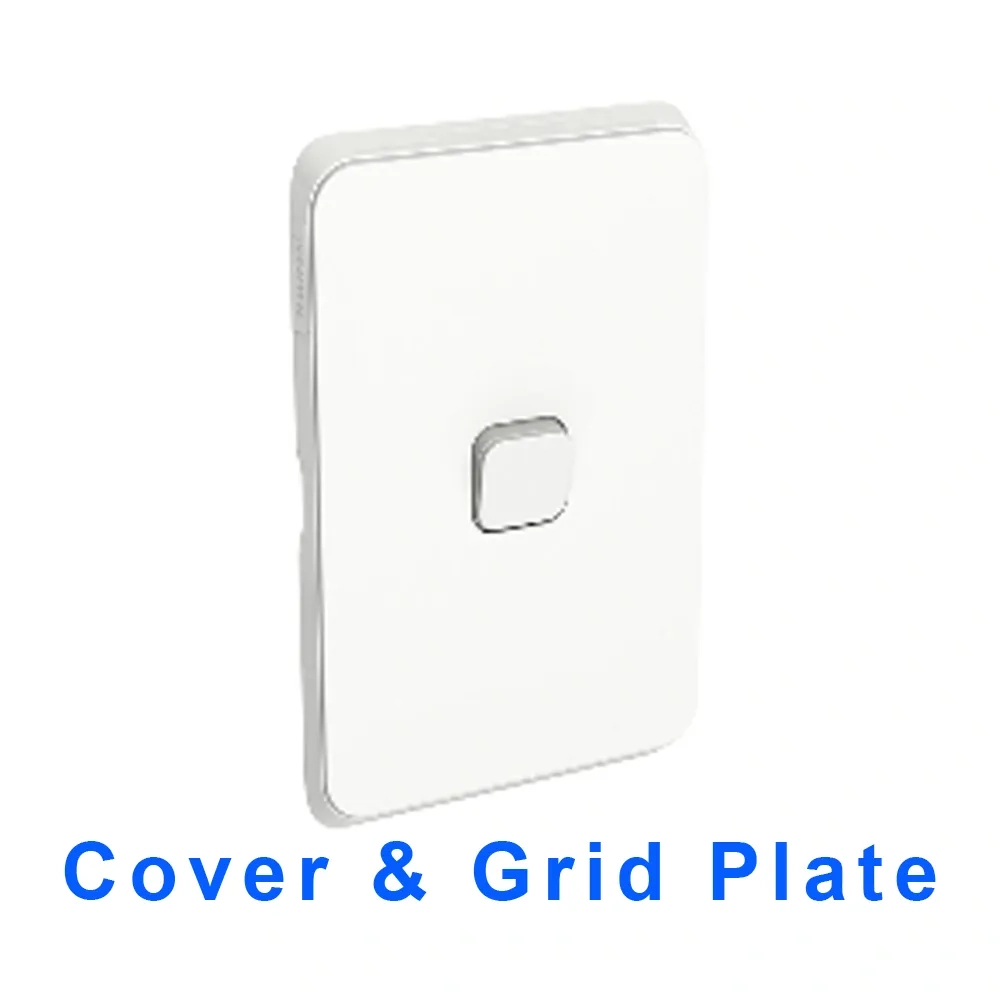

Clipsal Iconic 3041VH-VW Gridplate & Cover | 1 Gang, No Mech

SKU: cli3041vhvw

Download Data Sheet

$6.53 (ex-GST)

$7.18 (inc-GST)

$7.18

$6.53

(inc-GST)

(ex-GST)

RRP $14.00 SAVE $6.82

⚫︎ Only 3 Left!

Genuine Clipsal Iconic 3041VH-VW 1 gang gridplate and cover in Vivid White. Grid and cover included, mechanism sold separately. Reversible V/H mount, matte finish, accepts a compatible Iconic mechanism.

Fast Shipping, Trusted by Government, Easy Returns, Free Shipping over $200

Inquire here

The gridplate and cover – add the mechanism to suit.

The Clipsal Iconic 3041VH-VW is a genuine 1 gang gridplate and cover in Vivid White for the Clipsal Iconic range. The gridplate and cover are supplied together; the switch mechanism is chosen separately and clips into the grid, so you fit exactly the function the position needs.

Key Features

Gridplate and cover included – grid and decorative front together, mechanism not included
Genuine Clipsal Iconic range component in Vivid White
Single aperture, standard size
Reversible design – mounts horizontally or vertically
Accepts a compatible Clipsal Iconic mechanism (sold separately)
Screw-fix to a standard wall box; smooth matte Iconic finish

Grab the plate, add your mechanism, and finish the position your way.

Why it Matters

Grid and Cover Together, Mechanism Your Choice
This part combines the mounting grid and the decorative Iconic cover in one assembly, ready to take a single mechanism – a switch, dimmer or other Iconic function chosen to suit the room. Because the mechanism is selected separately, none is included with the plate, which keeps the choice of function up to you.

One Aperture, Both Orientations
The VH in the part number means vertical or horizontal – the plate is reversible, so a single part suits either mounting direction. The single aperture is ideal for bedrooms and offices where just one switch or function is needed in a position.

Coordinated Iconic Look
Supplied in Vivid White with the smooth matte Iconic finish, the gridplate and cover match the switches and power points around them, keeping a wall of Iconic fittings consistent.

Is a switch mechanism included with the 3041VH-VW?
No. This is the gridplate and cover only. A compatible Clipsal Iconic mechanism – such as a switch or dimmer – is sold separately and clips into the grid.

What is the difference between this and an Iconic cover on its own?
A cover on its own (such as the 3041C range) is just the decorative front that clips over an existing grid. This 3041VH part includes both the grid and the cover together, ready to accept a mechanism.

Can it be mounted horizontally or vertically?
Both. The 3041VH-VW is reversible and suits either orientation, so one part covers both mounting directions.

(cli3041vhvw)

Design
Range	Iconic
Aesthetic name	Iconic
Product or component type	skin
Colour tint	vivid white (VW)
Product destination	switch
Surface treatment	untreated
Physical
Type of packing	polybag
Quantity per set	set of 20
Range compatibility	Clipsal Iconic switch
Number of rocker	1
Installation direction	horizontal/vertical
Fixing mode	screw
Height	120 mm
Width	78 mm
Depth	7.5 mm
Net weight	0.04 kg
Ambient air temperature for storage	0...60 ??C
Ambient air temperature for operation	0...45 ??C
Relative humidity	10...95 %
Mercury free	Yes
Environmental disclosure	ENVPEP1607003EN
Material
Material	PC (polycarbonate): grid platePP (polypropylene): flapsPOM (polyoxymethylene): locking barPC (polycarbonate): skinABS (acrylonitrile butadiene-styrene): skin
Others
Legacy weee scope	In
	Outside of Europe
Weee label	N/A
Weee applicability	Component
Weee exclusion rationale	Component not in scope ??? non independent function
Average percentage of recycled plastic content	0 %
Main colour tint	vivid white
Unit type of package 1	PCE
Package 1 height	2.2 cm
Package 1 width	8.4 cm
Package 1 length	13.6 cm
Package 1 weight	68 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	0.7 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.541839825
Carbon footprint of the manufacturing phase [a1 to a3]	0.5 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.019496572
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.013826959
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Carbon footprint of the end-of-life phase [c1 to c4]	0.159546529
Carbon footprint of the end-of-life phase [c1 to c4]	0.2 kg CO2 eq.
Pvc free	No
Halogen-free status	Halogen free product
Silicone-free	No
Removable battery	N/A
Total lifecycle carbon footprint	0.734709884
Average percentage of recycled metal content	0 %
Halogen-free status	Halogen free product
Pvc free	No
Silicone-free	No
End of life manual availability	N/A
