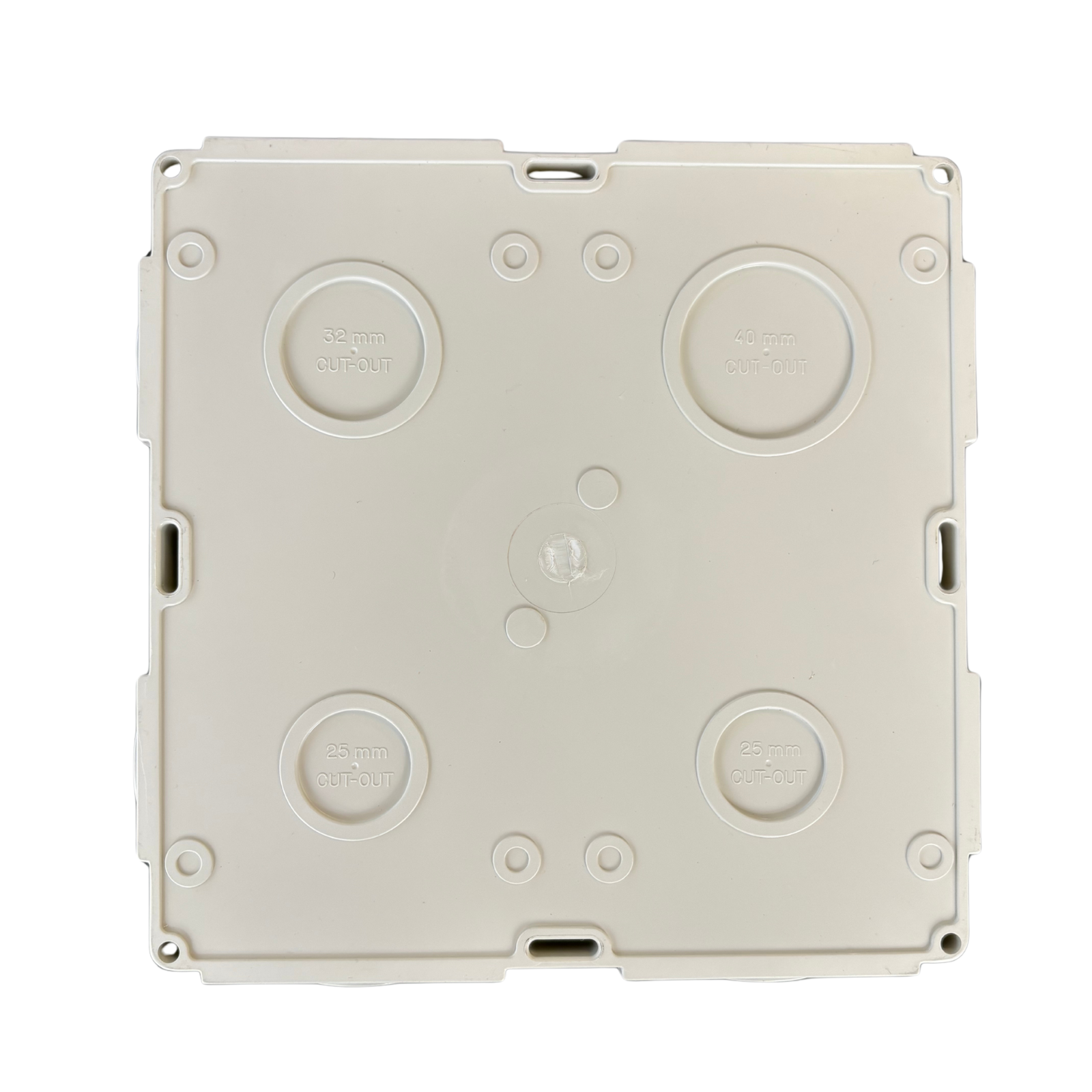

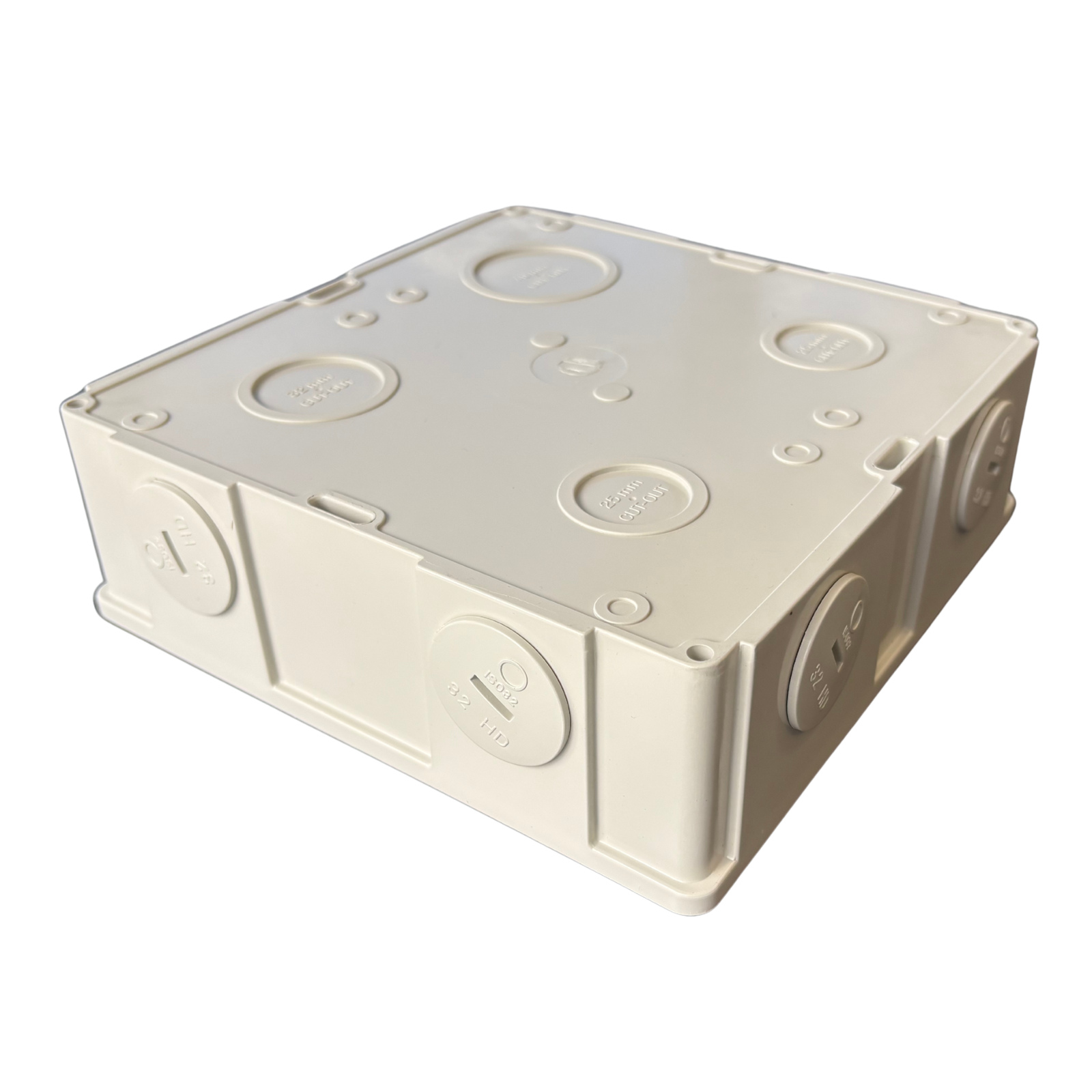

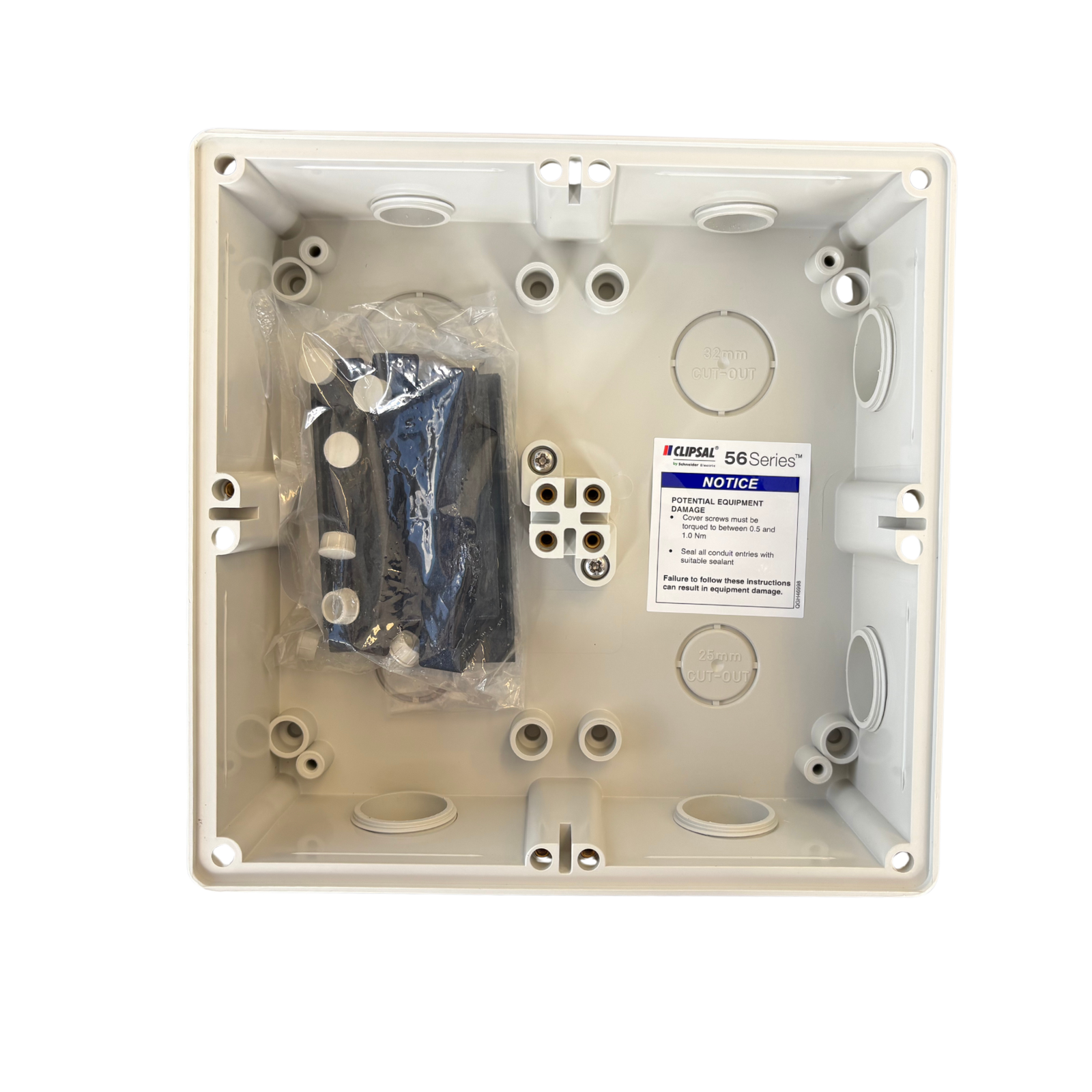

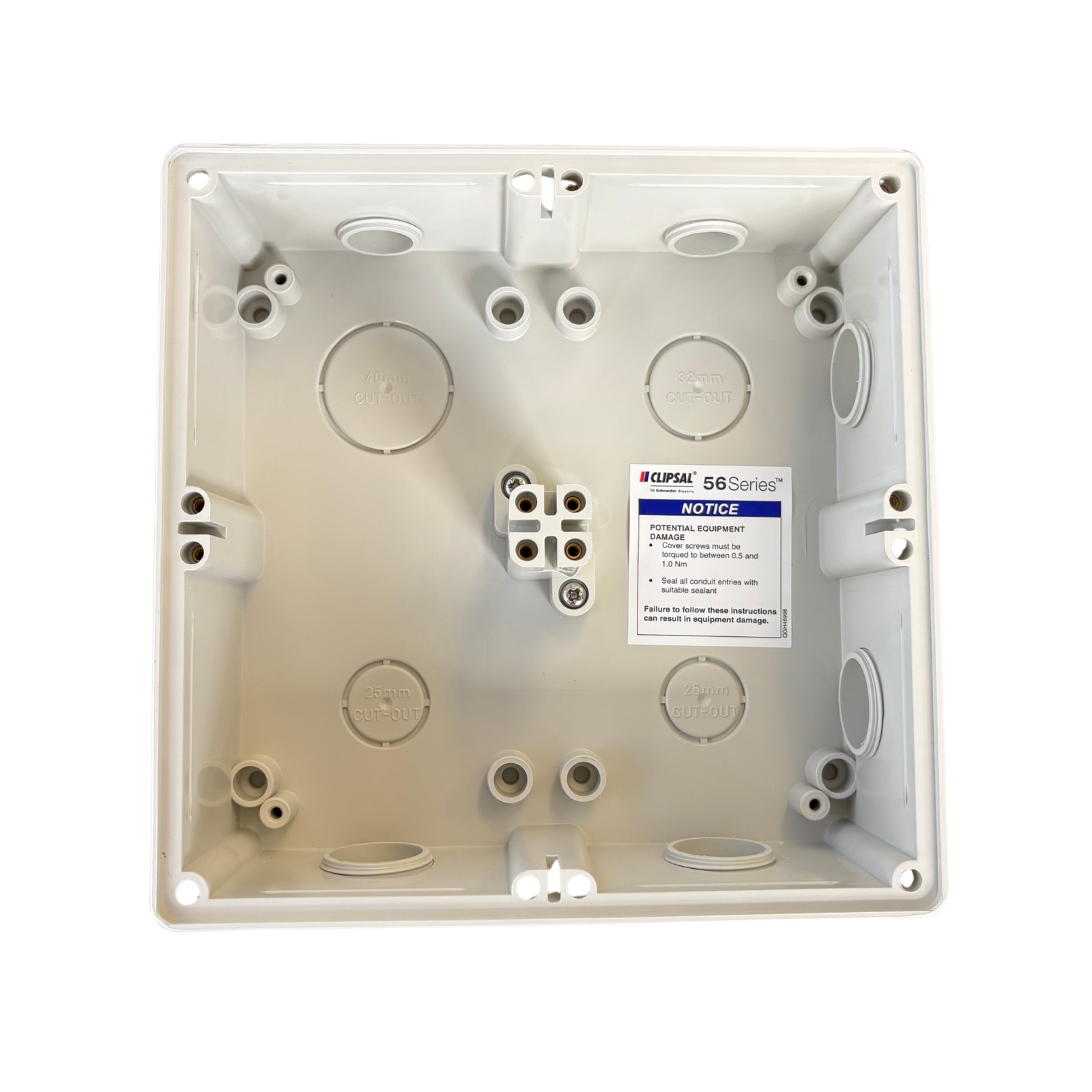

Clipsal 56E4-GY IP66 56 Series Mounting Back Box 4 Gang Grey (198 x 198 x 63mm)

Description

A square, sealed base for vertical 4 Gang runs.

The Clipsal 56E4-GY Mounting Back Box is purpose-built for vertical socket mounting across a full 4 Gang layout, giving you a sealed, IP66-rated base in a square footprint. It handles washdown areas, exposed outdoor runs and dusty job sites while keeping moisture and dust away from your wiring, so you get a stable, purpose-fit base for stacked or vertical 56 Series configurations.

• IP66 rated to AS 60529 - dust-tight and protected against powerful water jets
• 4 Gang enclosure, 198 x 198 x 63mm (W x H x D)
• Grey PVC housing built to AS 3100
• Surface, wall-mounted design with 16 mounting holes
• Vertical socket mounting layout for a full 4 Gang run
• Compatible with the full range of 56 Series covers

Secure your 56E4-GY today and get a sealed vertical-mount base for your 56 Series setup.

Why it Matters

Built for Australian Conditions
Dust, moisture and big temperature swings are part of the job on Australian sites. The 56E4-GY holds an IP66 rating and a -25°C to 75°C operating range, so it performs on coastal sites, rural properties, workshops and busy trade vans alike, and it's built to AS 3100 for Australian compliance.

A Square Footprint for Vertical Layouts
At 198 x 198mm, the 56E4-GY keeps a compact, square footprint while giving you room for a full 4 Gang run arranged vertically, which suits stacked switchgear and control layouts where a wide horizontal box won't fit. Sixteen mounting holes keep installation straightforward, and it's compatible with the full 56 Series covers range so it slots directly into your existing setup.

Durable Housing, Backed by Warranty
The grey PVC housing is built to handle the daily knocks of a working site, and it's backed by an 18-month manufacturer warranty for extra peace of mind on every install.

Also Available
Beyond the standard grey finish, the 56E4 back box is also offered in Chemical Resistant Grey, Chemical Resistant Orange, Chemical Resistant White and Woolworths Grey for sites with specific colour-coding or chemical exposure requirements.

Is the Clipsal 56E4-GY mounting back box weatherproof?
Yes, it carries an IP66 rating to AS 60529, meaning it's dust-tight and protected against powerful water jets from any direction.

What size is the Clipsal 56 Series 4 Gang mounting back box?
It measures 198 x 198 x 63mm and weighs 0.745kg, with a grey PVC housing.

What's different about the 56E4-GY compared to the other 56 Series back boxes?
The 56E4-GY is built specifically for vertical socket mounting in a square 198 x 198mm footprint, unlike the 3 Gang 56E3-GY, which is a tall, narrow 294 x 102mm format.
