Clipsal 438/20-TR Standard Series Flexible Cord Extension Socket 250V 20A 3 Flat Pin Clear

Description

Rewireable 20A socket for 2.5 mm cord.

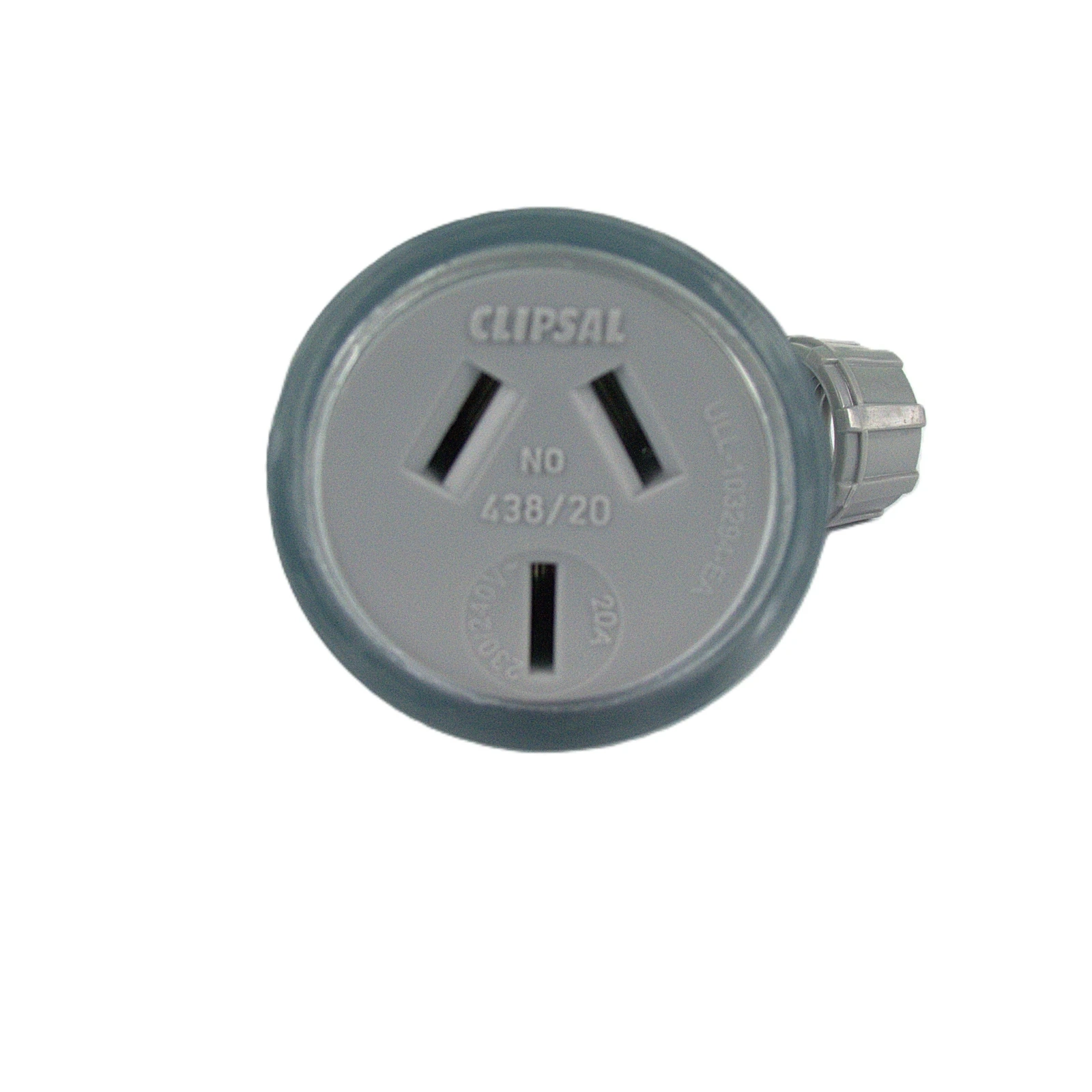

The Clipsal 438/20-TR Flexible Cord Extension Socket is a rewireable 20A, 250V AC socket for terminating 2.5 mm ordinary duty flexible cord into a 3 pin flat outlet. A 12 mm cable entry takes the heavier flex a 20 A lead needs, in transparent PVC so terminations stay visible after assembly.

Key Features

• Rated 20 A at 250 V AC
• 3 pin flat configuration
• Rewireable, for use with flexible cord
• Suits 2.5 mm ordinary duty flexible cord
• 12 mm cable entry
• Manufactured to AS/NZS 3112, AS 3100, AS 3109 and AS/NZS 3122
• Approval number S/1
• PVC construction, complete housing
• Transparent with translucent colour tint
• 43 mm diameter, 71 mm depth
• Without marking, without light indicator
• Halogen free product
• Green Premium product
• 18 month manufacturer warranty

Buy online and have it on its way.

Why it Matters

20 amps is the top of the 438 range

The 438/20 is the highest-rated socket in the 438 family, above the 10 A and 15 A models. At 20 A it takes a 12 mm cable entry sized for 2.5 mm flex, because the conductor carrying that current is physically larger. If you are making up a lead for higher-draw equipment, this is the socket rated for it.

Rewireable means you build the lead you need

A rewireable cord socket lets you terminate your own flexible cord rather than buying a fixed-length lead. Cable is landed inside the housing through a 12 mm entry and the socket closes over it, so you can make up an extension lead to whatever length the job needs, and re-terminate later if the cord is damaged. That is what separates a rewireable fitting from a moulded one: the connection is serviceable.

Built to Australian standards

The 438/20-TR is manufactured to AS/NZS 3112, AS 3100, AS 3109 and AS/NZS 3122 under approval number S/1. Transparent PVC with a translucent tint keeps the conductor terminations visible through the housing once assembled, which makes a visual check possible without opening the socket. It is a halogen free, Green Premium product covered by an 18 month manufacturer warranty.

What is the Clipsal 438/20-TR rated for?
The 438/20-TR is rated 20 amps at 250 volts AC. It uses a 3 pin flat configuration to AS/NZS 3112.

What cord does the Clipsal 438/20-TR take?
It is designed for 2.5 mm ordinary duty flexible cord, entering through a 12 mm cable entry.

What size is the Clipsal 438/20-TR?
The socket body is 43 mm in diameter and 71 mm deep, moulded in transparent PVC.
