QIXING QX834 CEE Form 5 Pin 32A Panel Mount Inlet IEC 60309 IP67

Description

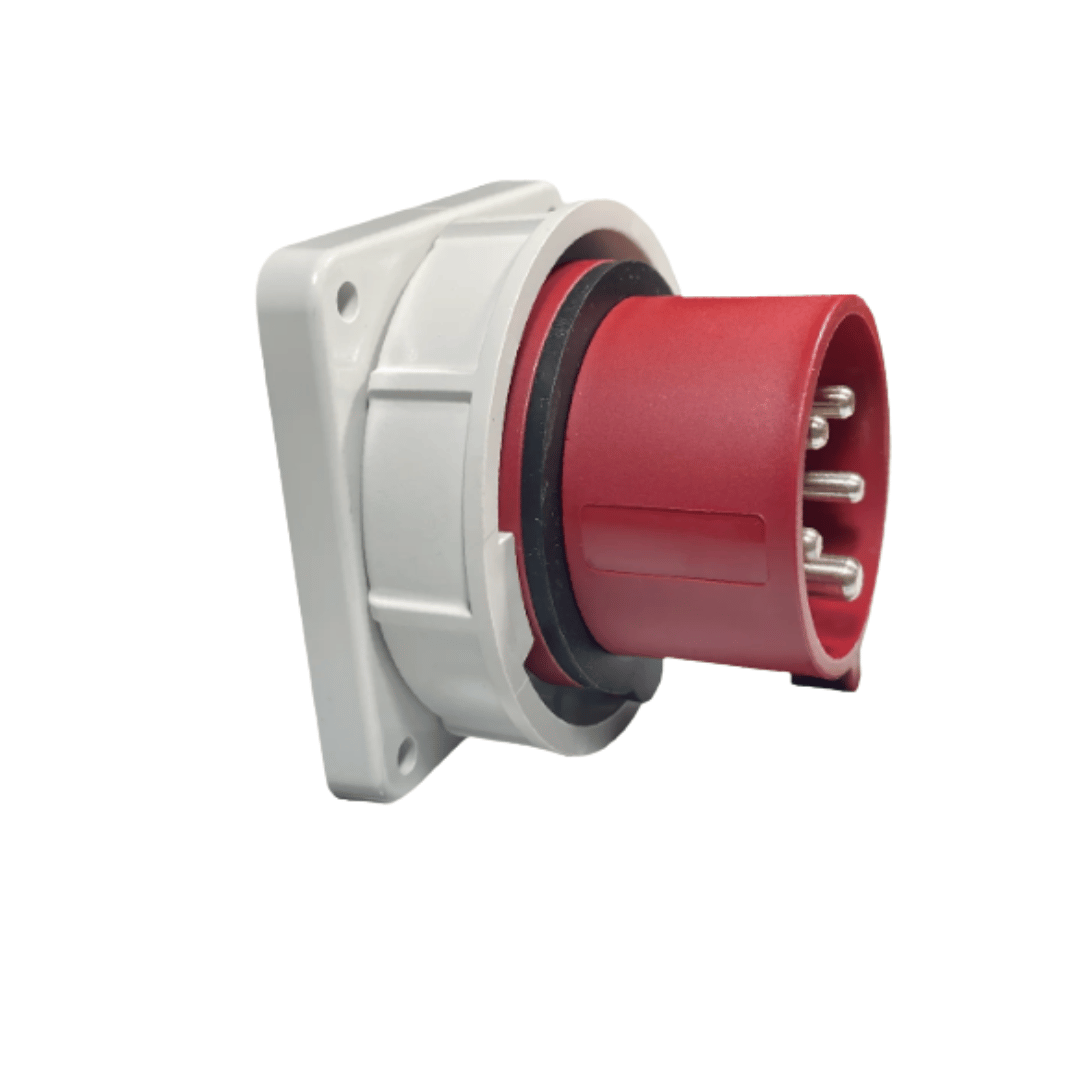

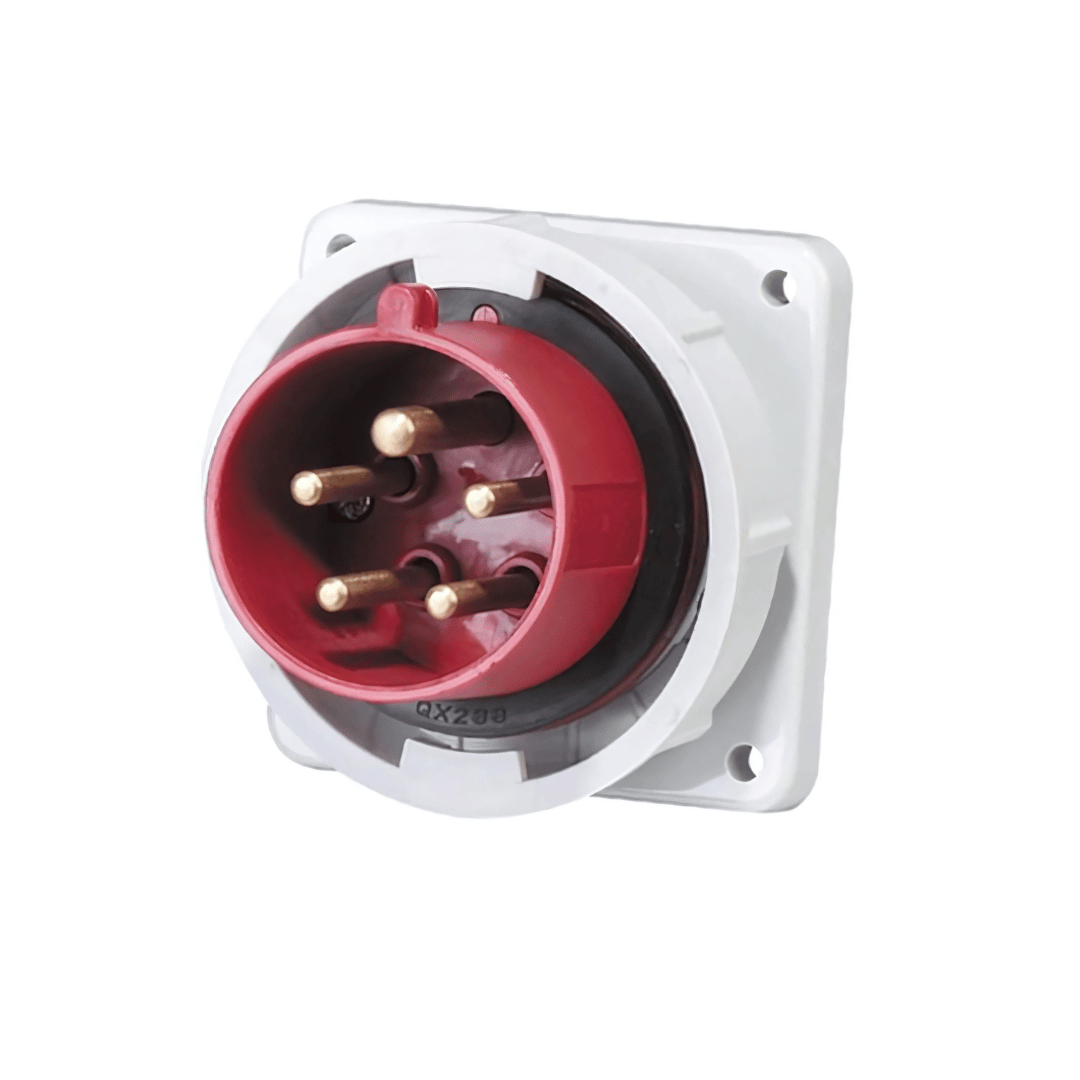

A weatherproof 5-pin three-phase panel-mount inlet.

The QIXING QX834 is a CEE Form appliance inlet rated 5 pin, 32A, 400V three phase, with an IP67 weatherproof rating. It is a panel-mounted IEC 60309-2 inlet – the connector fixed through a cut-out in an enclosure or panel so that a matching CEE Form lead or connector can be plugged in to supply power. The 5 pin configuration carries three phases, a neutral and earth, making it suited to three-phase equipment that also requires a neutral. These are European-standard industrial connectors conforming to EN/IEC 60309-2, used wherever a robust, weatherproof connection is required. The 6h clock position keys the connector to its voltage band, helping prevent connection to an incompatible supply.

Key Features

• CEE Form appliance inlet (panel mount, straight)
• 5 pin – three phase plus neutral (3 phases + neutral + earth)
• 32A rated current
• 400V
• IP67 – protected against dust and temporary immersion
• Conforms to EN/IEC 60309-2
• 6h clock position
• Robust industrial construction for demanding environments

Add to cart for fast dispatch across Australia.

What a Panel-Mount Appliance Inlet Does

An appliance inlet is the male connector mounted onto a piece of equipment, allowing a matching CEE Form lead or extension socket to be plugged in and supply power. The QX834 is the 5-pin panel-mount version: it fits through a cut-out so the body sits inside the enclosure and the connector face is flush with the panel. A surface-mount style is also available where the inlet mounts onto the outside of an enclosure.

Three Phase Plus Neutral

With five pins carrying three phases, a neutral and earth, the QX834 supplies three-phase equipment at 400V and 32A while also providing a neutral. This makes it suited to loads that need both three-phase power and a neutral-referenced supply. Rated IP67, it is protected against dust and the effects of temporary immersion in water, making it suitable for outdoor, wash-down and demanding industrial locations. As an IEC 60309-2 connector it follows the international pin-and-sleeve standard, so it interconnects reliably with other IEC 60309 equipment of the same rating and configuration.

Keyed for Safety

The 6h clock position refers to the keyed position of the earth contact under IEC 60309, which corresponds to the connector’s voltage band. This keying helps ensure the inlet only connects with a matching lead of the correct voltage rating and configuration.

Q: What is the QX834 appliance inlet used for?
A: It is the male connector fixed through an enclosure panel so a matching CEE Form lead or socket can plug in to supply power. The QX834 is the panel-mount, 5 pin 32A three-phase version.

Q: What is the difference between the QX834 and the 4 pin QX832?
A: The QX834 has 5 pins (three phases, neutral and earth), while the QX832 has 4 pins (three phases and earth, no neutral). Both are 32A 400V panel-mount inlets.

Q: What does IP67 mean for this inlet?
A: IP67 means it is fully protected against dust and can withstand temporary immersion in water, suiting outdoor and wash-down environments.
