QIXING QX1008 CEE Form 5 Pin 32A Appliance Inlet IEC 60309 IP67

Description

A weatherproof 5-pin three-phase industrial inlet.

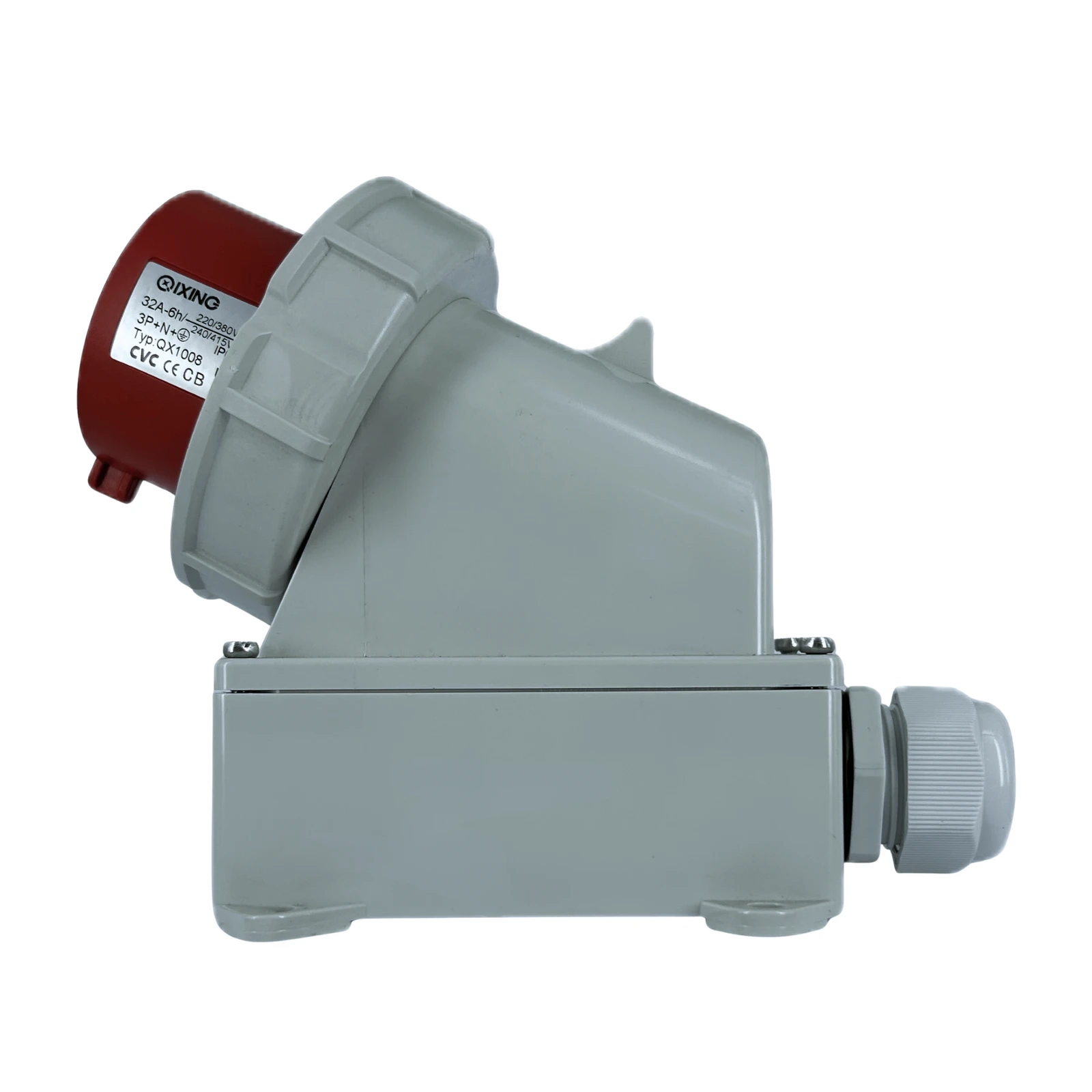

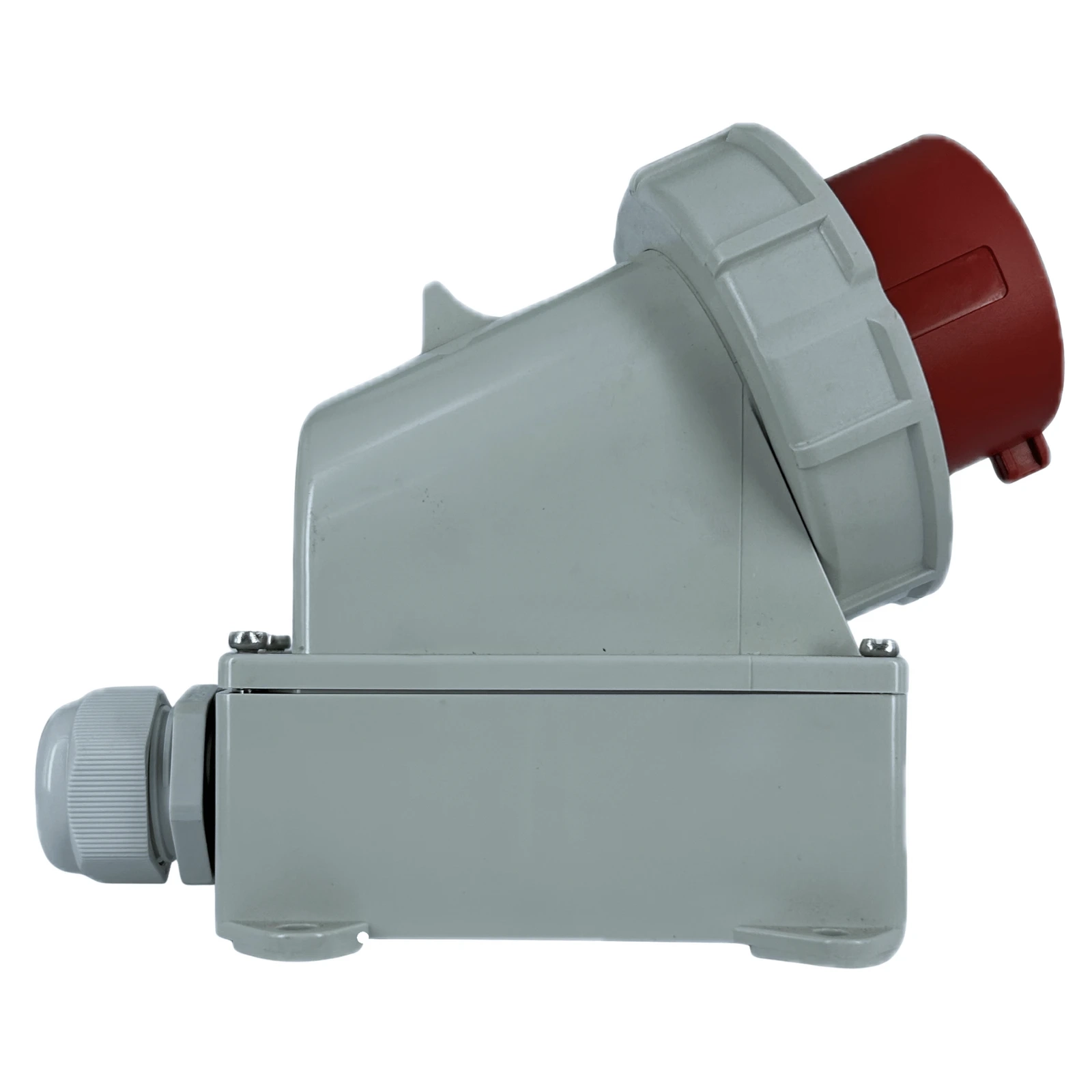

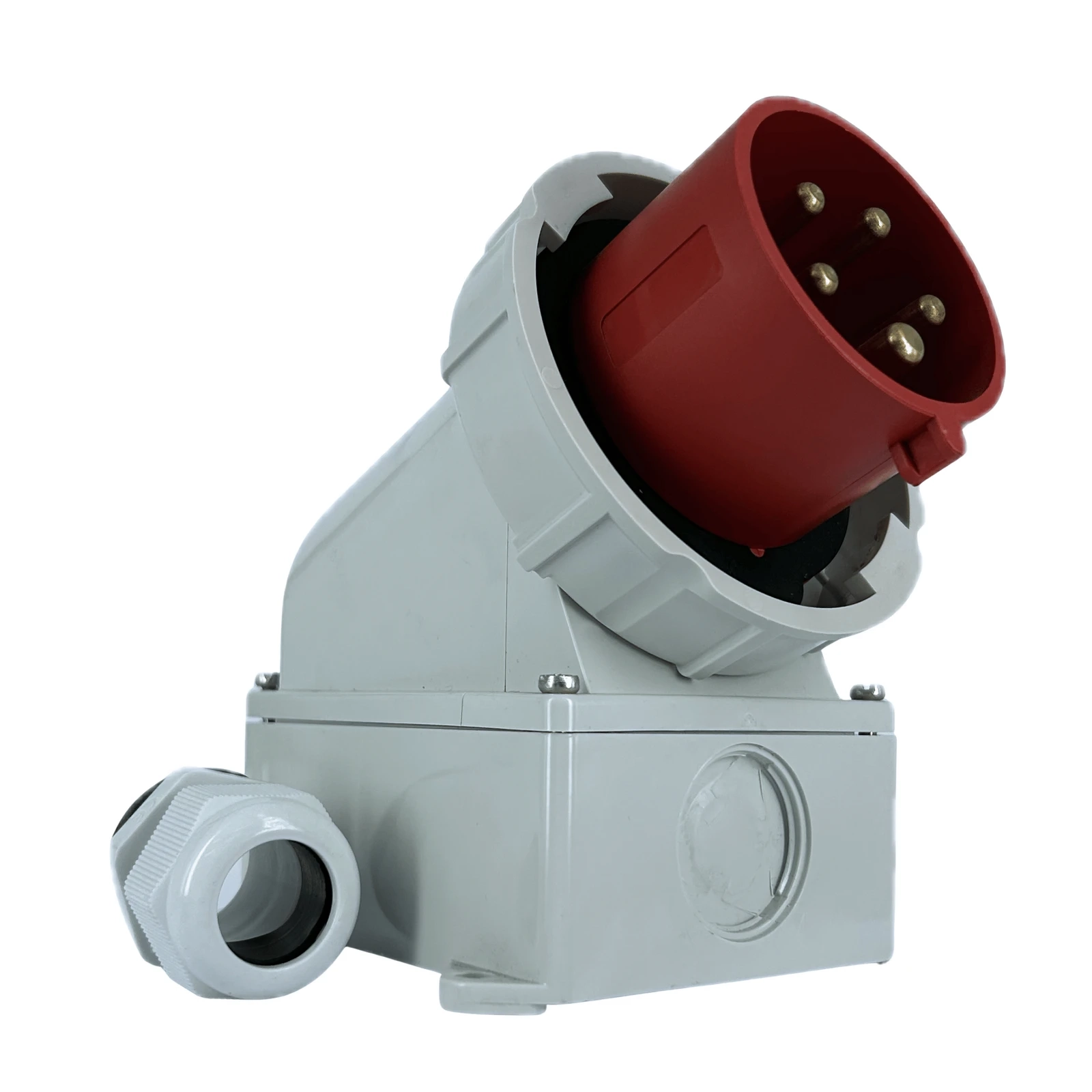

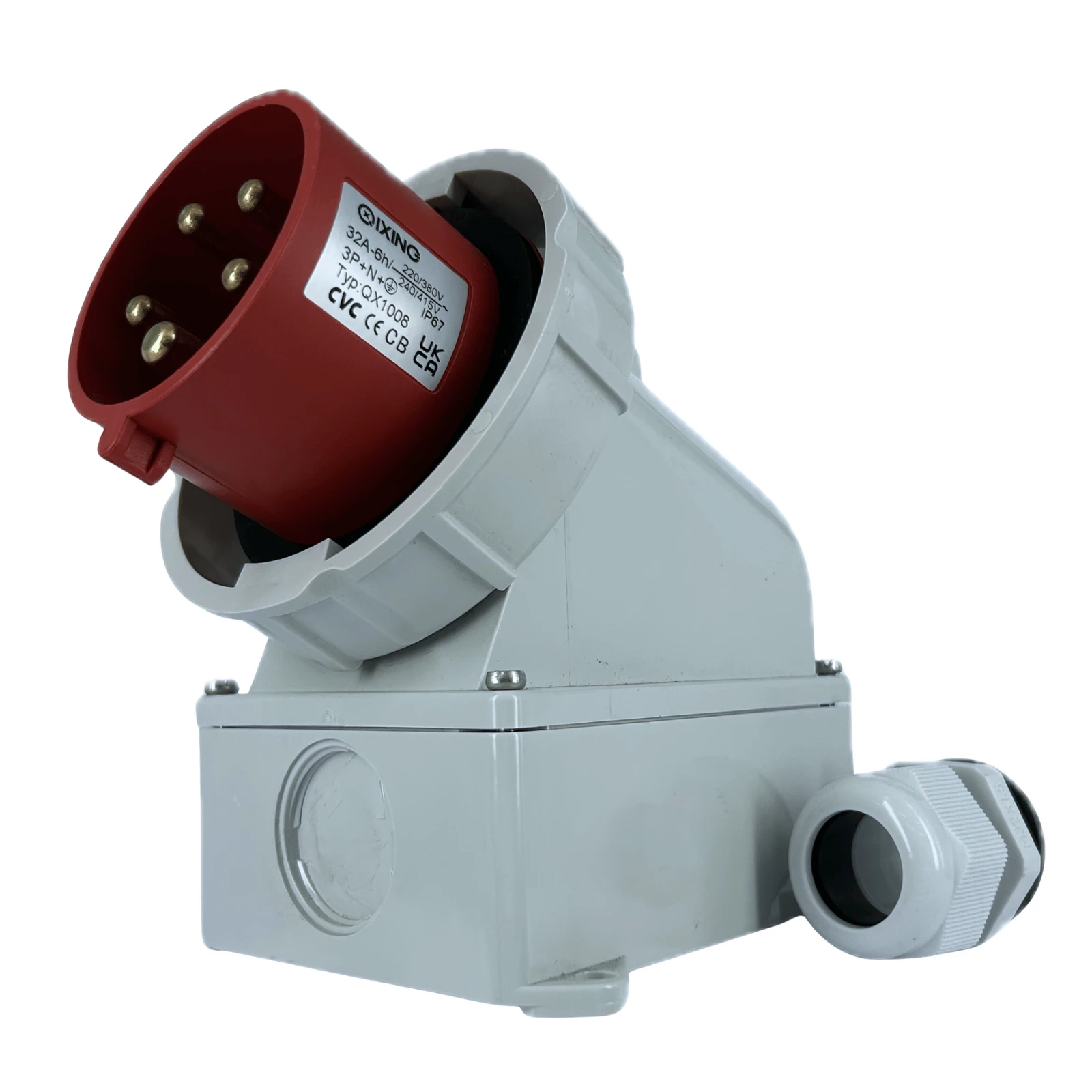

The QIXING QX1008 is a CEE Form appliance inlet rated 5 pin, 32A, 400V three phase, with an IP67 weatherproof rating. It is a surface-mounted IEC 60309-2 inlet – the connector fixed to a piece of equipment or an enclosure so that a matching CEE Form lead or connector can be plugged in to supply power. The 5 pin configuration carries three phases, a neutral and earth, making it suited to three-phase equipment that also requires a neutral. These are European-standard industrial connectors conforming to EN/IEC 60309-2, used wherever a robust, weatherproof three-phase connection is required. The 6h clock position keys the connector to its voltage band, helping prevent connection to an incompatible supply.

Key Features

• CEE Form appliance inlet (surface mount)
• 5 pin – three phase plus neutral (3 phases + neutral + earth)
• 32A rated current
• 400V
• IP67 – protected against dust and temporary immersion
• Conforms to EN/IEC 60309-2
• 6h clock position

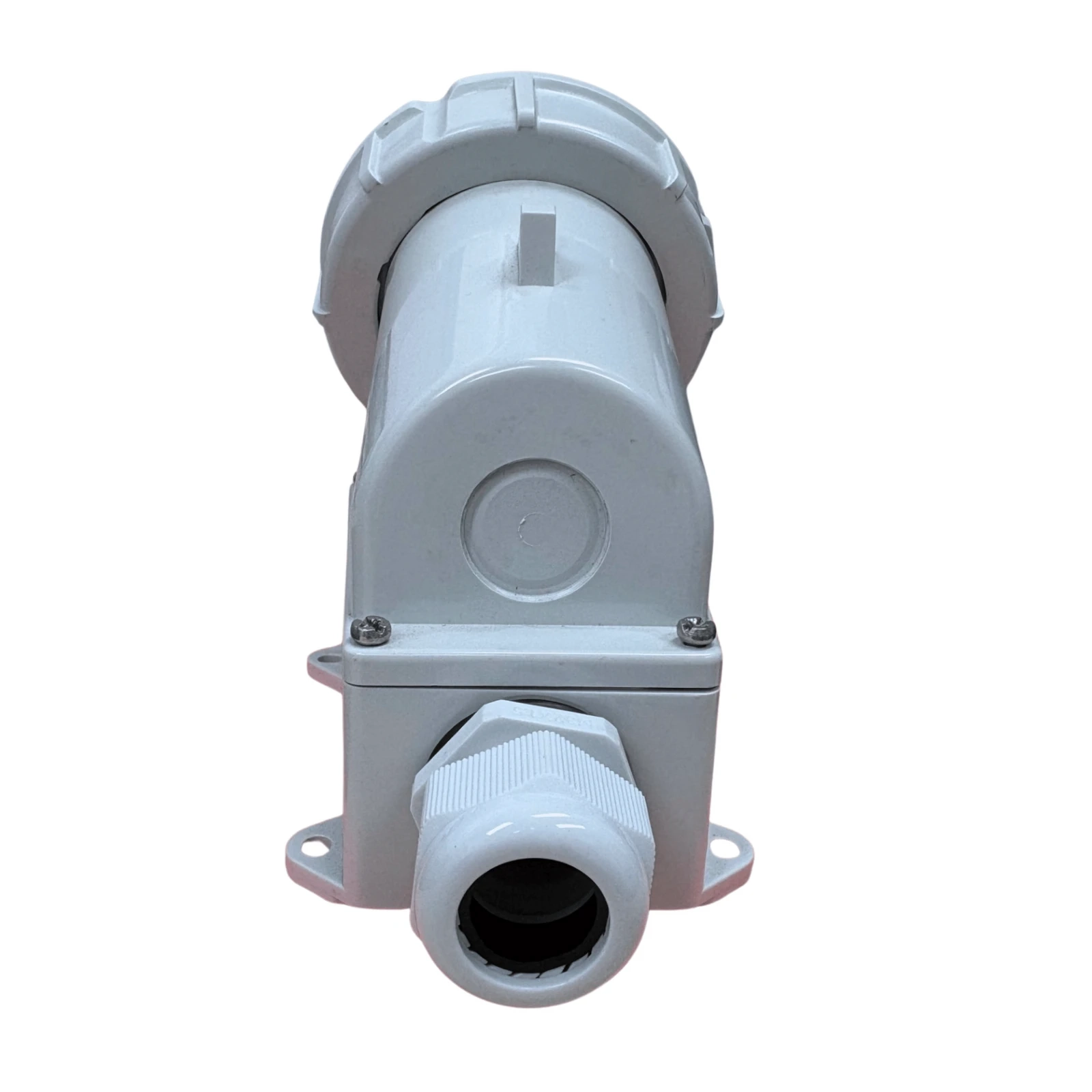

• M32 cable gland entry
• Robust industrial construction for demanding environments

Order now for fast dispatch across Australia.

What an Appliance Inlet Does

An appliance inlet is the male connector mounted onto a piece of equipment, allowing a matching CEE Form lead or extension socket to be plugged in and supply power. The QX1008 is the 5-pin three-phase 32A surface-mount version, fixing to the outside of an enclosure or chassis. A panel-mount version is also available where a flush-mounted inlet is preferred.

Three Phase Plus Neutral

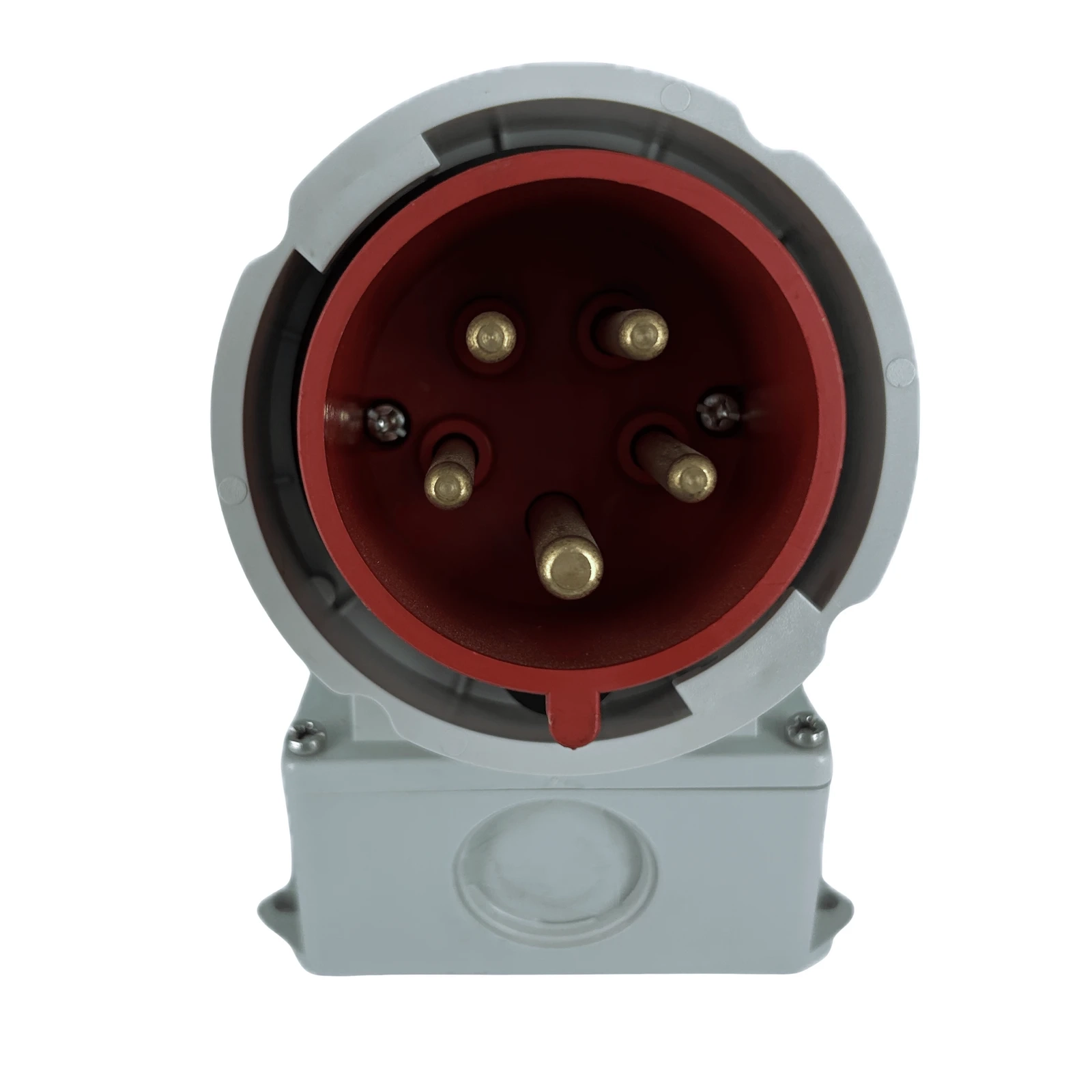

With five pins carrying three phases, a neutral and earth, the QX1008 supplies three-phase equipment at 400V and 32A while also providing a neutral. This makes it suited to loads that need both three-phase power and a neutral-referenced supply. Rated IP67, it is protected against dust and the effects of temporary immersion in water, making it suitable for outdoor, wash-down and demanding industrial locations. As an IEC 60309-2 connector it follows the international pin-and-sleeve standard, so it interconnects reliably with other IEC 60309 equipment of the same rating and configuration.

Keyed for Safety

The 6h clock position refers to the keyed position of the earth contact under IEC 60309, which corresponds to the connector’s voltage band. This keying helps ensure the inlet only connects with a matching lead of the correct voltage rating and configuration.

Q: What is the QX1008 appliance inlet used for?
A: It is the male connector fixed to a piece of equipment so a matching CEE Form lead or socket can plug in to supply power. The QX1008 is the surface-mount, 5 pin 32A three-phase version.

Q: What is the difference between the QX1008 and the 4 pin QX1007?
A: The QX1008 has 5 pins (three phases, neutral and earth), while the QX1007 has 4 pins (three phases and earth, no neutral). Both are 32A 400V surface-mount inlets.

Q: What does IP67 mean for this inlet?
A: IP67 means it is fully protected against dust and can withstand temporary immersion in water, suiting outdoor and wash-down environments.
