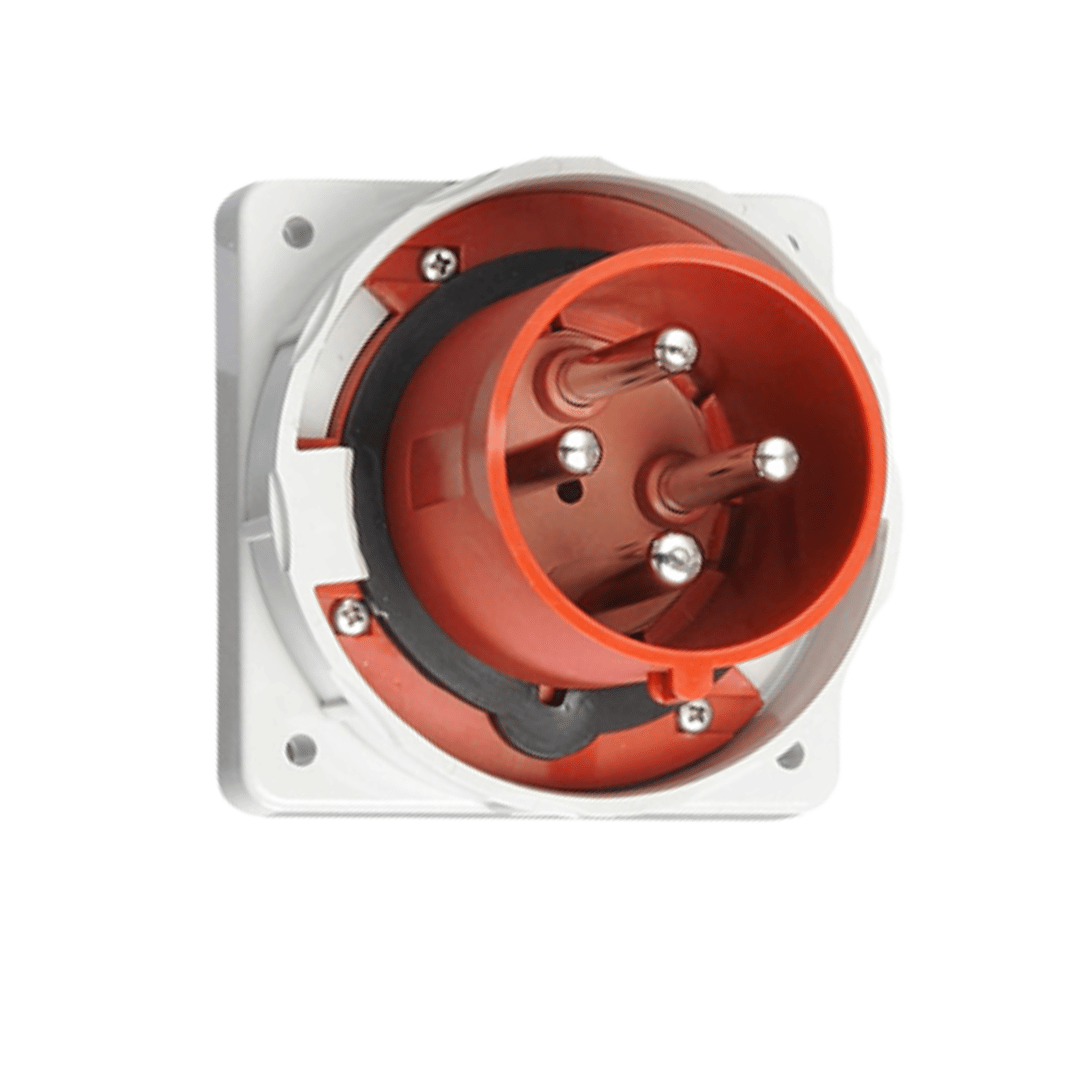

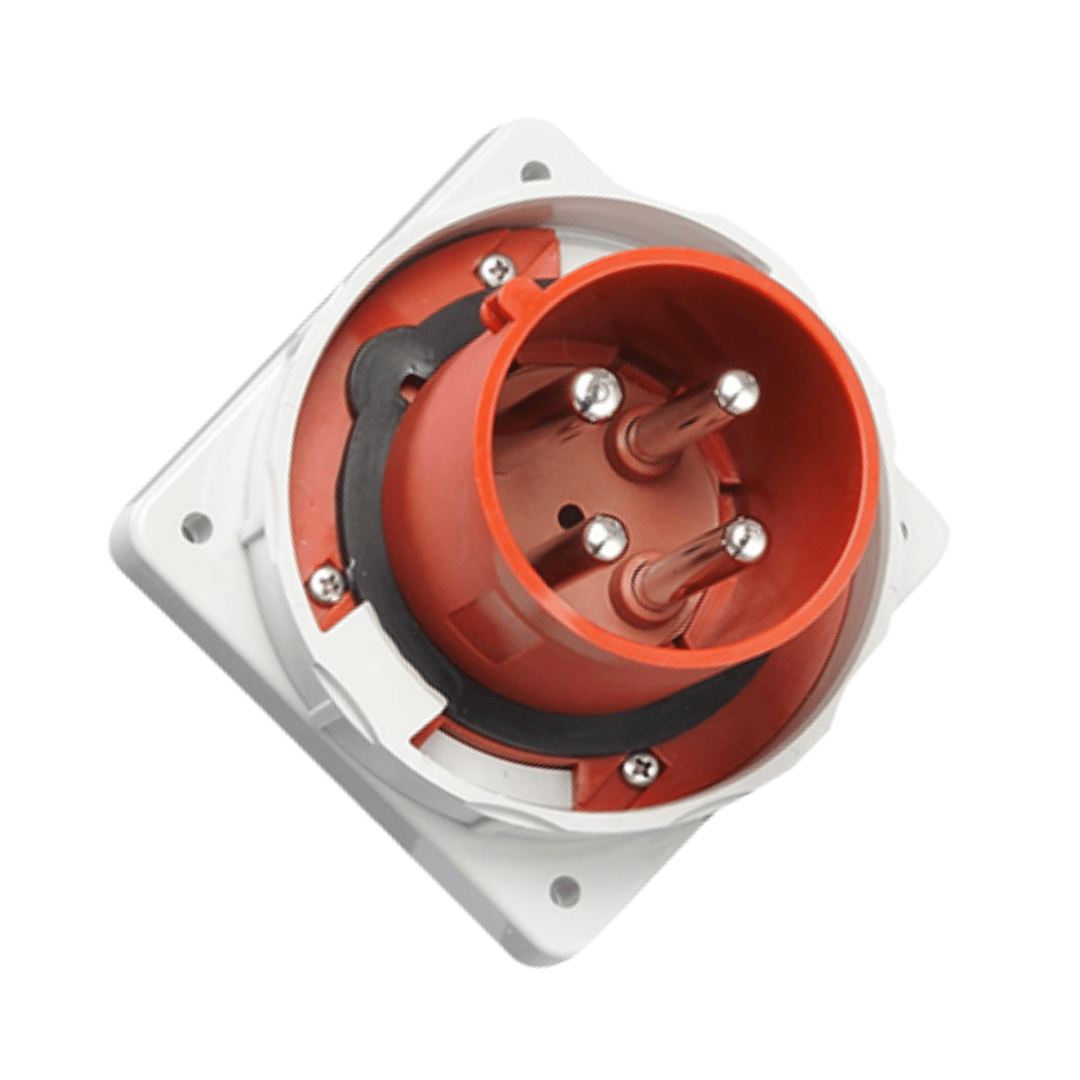

QIXING QX3583 CEE Form 4 Pin 125A Panel Mount Inlet IEC 60309 IP67

Description

A heavy-duty three-phase panel-mount inlet.

The QIXING QX3583 is a CEE Form appliance inlet rated 4 pin, 125A, 400V three phase, with an IP67 weatherproof rating. It is a panel-mounted IEC 60309-2 inlet – the connector fixed through a cut-out in an enclosure or panel so that a matching CEE Form lead or connector can be plugged in to supply power. The 4 pin configuration carries three phases plus earth, making it suited to heavy three-phase equipment. These are European-standard industrial connectors conforming to EN/IEC 60309-2, used wherever a robust, weatherproof, high-current three-phase connection is required. At 125A this is one of the highest-rated inlets in the range. The 6h clock position keys the connector to its voltage band, helping prevent connection to an incompatible supply.

Key Features

• CEE Form appliance inlet (panel mount, straight)
• 4 pin – three phase (3 phases + earth)
• 125A rated current
• 400V
• IP67 – protected against dust and temporary immersion
• Conforms to EN/IEC 60309-2
• 6h clock position
• Robust industrial construction for heavy-duty applications

Get yours online for fast dispatch across Australia.

What a Panel-Mount Appliance Inlet Does

An appliance inlet is the male connector mounted onto a piece of equipment, allowing a matching CEE Form lead or extension socket to be plugged in and supply power. The QX3583 is the panel-mount version: it fits through a cut-out so the body sits inside the enclosure and the connector face is flush with the panel. It suits switchboards, generators and large machinery where a fixed high-current three-phase inlet is required.

Built for Heavy-Duty Three-Phase Use

With four pins carrying three phases plus earth, the QX3583 supplies three-phase equipment at 400V and 125A. Rated IP67, it is protected against dust and the effects of temporary immersion in water, making it suitable for outdoor, wash-down and demanding industrial locations. As an IEC 60309-2 connector it follows the international pin-and-sleeve standard, so it interconnects reliably with other IEC 60309 equipment of the same rating and configuration.

Keyed for Safety

The 6h clock position refers to the keyed position of the earth contact under IEC 60309, which corresponds to the connector’s voltage band. This keying helps ensure the inlet only connects with a matching lead of the correct voltage rating and configuration.

Q: What is the QX3583 appliance inlet used for?
A: It is the male connector fixed through an enclosure panel so a matching CEE Form lead or socket can plug in to supply power. The QX3583 is the panel-mount, 4 pin 125A three-phase version.

Q: Is the QX3583 single phase or three phase?
A: Three phase. The 4 pin configuration carries three phases plus earth at 400V. The 5 pin version (QX1983) adds a neutral.

Q: What does IP67 mean for this inlet?
A: IP67 means it is fully protected against dust and can withstand temporary immersion in water, suiting outdoor and wash-down environments.
