Adapter Lead 4 Pin 32 Amp Reefer Straight Plug to 4 Pin 32 Amp Australian Socket Three Phase 1m Standard Duty 4mm lead

Description

• Adapter Lead 4 Pin 32 Amp Reefer Plug to 4 Pin 32 Amp Australian Socket Three Phase
• 24 month warranty on all products. Warranty does not extend to misuse.
• Please consult with a qualified electrician or engineer about the suitability of this product for your intended purpose.
• All Electrotraders Adapters Leads are assembled, tested and tagged in-house by our Licenced Electricians.

Lead Time:

• Standard: 1-4 days dispatch from order. We will advise if outside of this range.
• Expedited: prioritised for assembly and dispatched within 24 hours. If you need this service, select "expedited shipping" at the checkout.

Choose your Adapter Lead Configuration:

• Plug: Straight or Angled 45 degree (available only on some plug types) Extension Plug on an H07 rubber lead - see below for cable specifications
• Lead length: A variety of lengths available from 1 metre up to 20 metres.
• Cable Specifications: cross-sectional area (CSA in mm2), Nominal Sheath Thickness (NST in mm), Max DC Resistance @20øC (MaxR in ohms/KM), Nominal Diameter (NOD in mm), Amperage rating (in accordance with AS/NZS 3008.1.1.2009 Table 14)
  • Standard: CSA 4mm2, NST 2.1mm, MaxR 5.09, NOD 14.9mm, Amps 36
  • Heavy Duty: CSA 6mm2, NST 2.3mm, MaxR 3.39, NOD 16.9mm, Amps 46
  • Extra Heavy Duty: CSA 10mm2, NST 3.4mm, MaxR 1.95, NOD 23.3mm, Amps 66
• Actual product layout may differ from the displayed image, depending on your chosen options. Be assured that components and specifications will match the description here.

IMPORTANT: Avoid extra costs and fees of ordering the wrong adapter. Before you order: confirm the compatibility of the plug and sockets. i.e. 5 Pin 32A, 5 Pin 20A, 5 Pin 10A etc. If you aren't sure, contact us, we are happy to help.

Switch Gear:

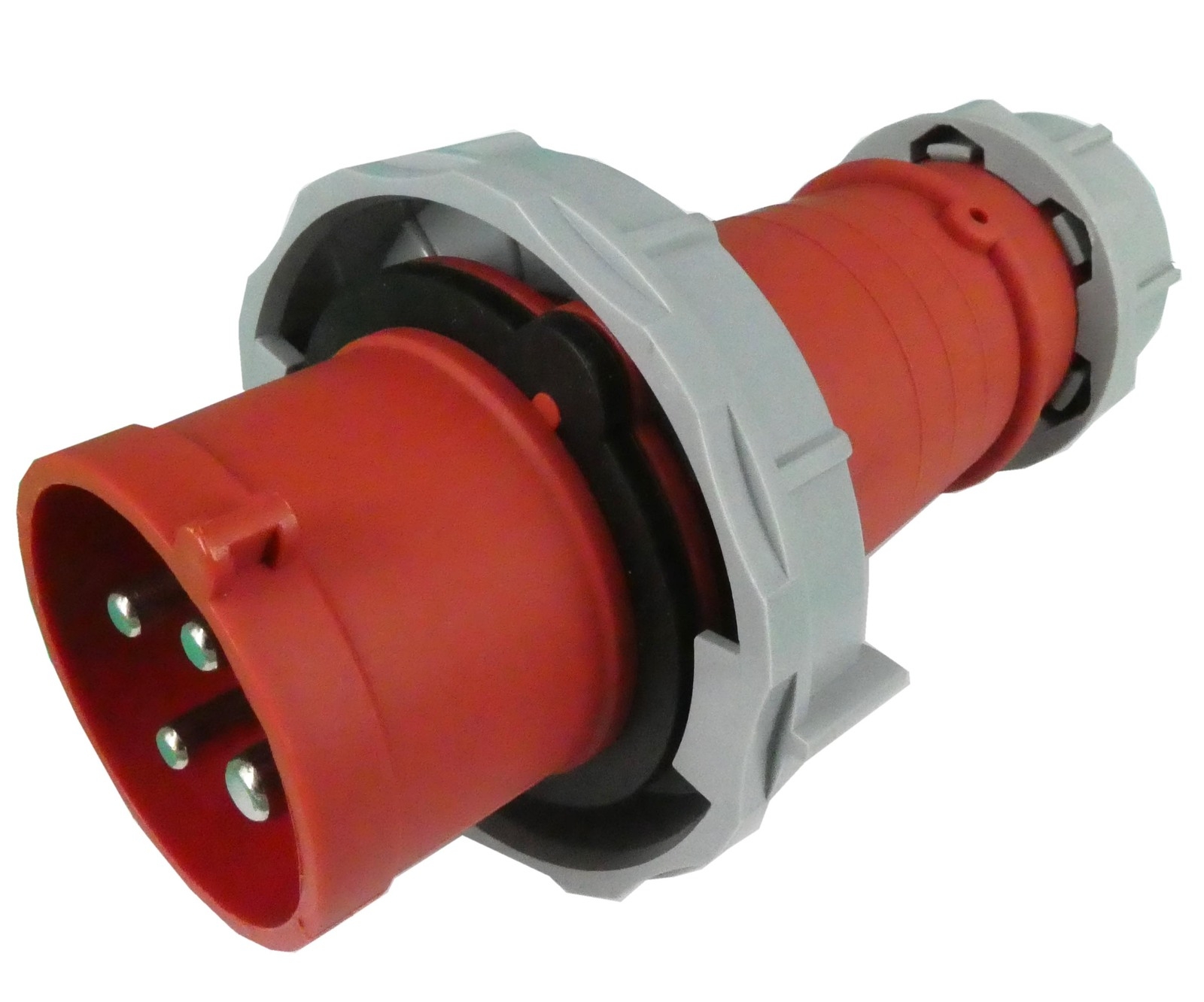

• Plug:
  • CEE Form switch gear are source from high quality reputable Australian and Global brands, comply with European Standards (IEC 60309), are IP67 rated and interchangeable with other brands including Mennekes.

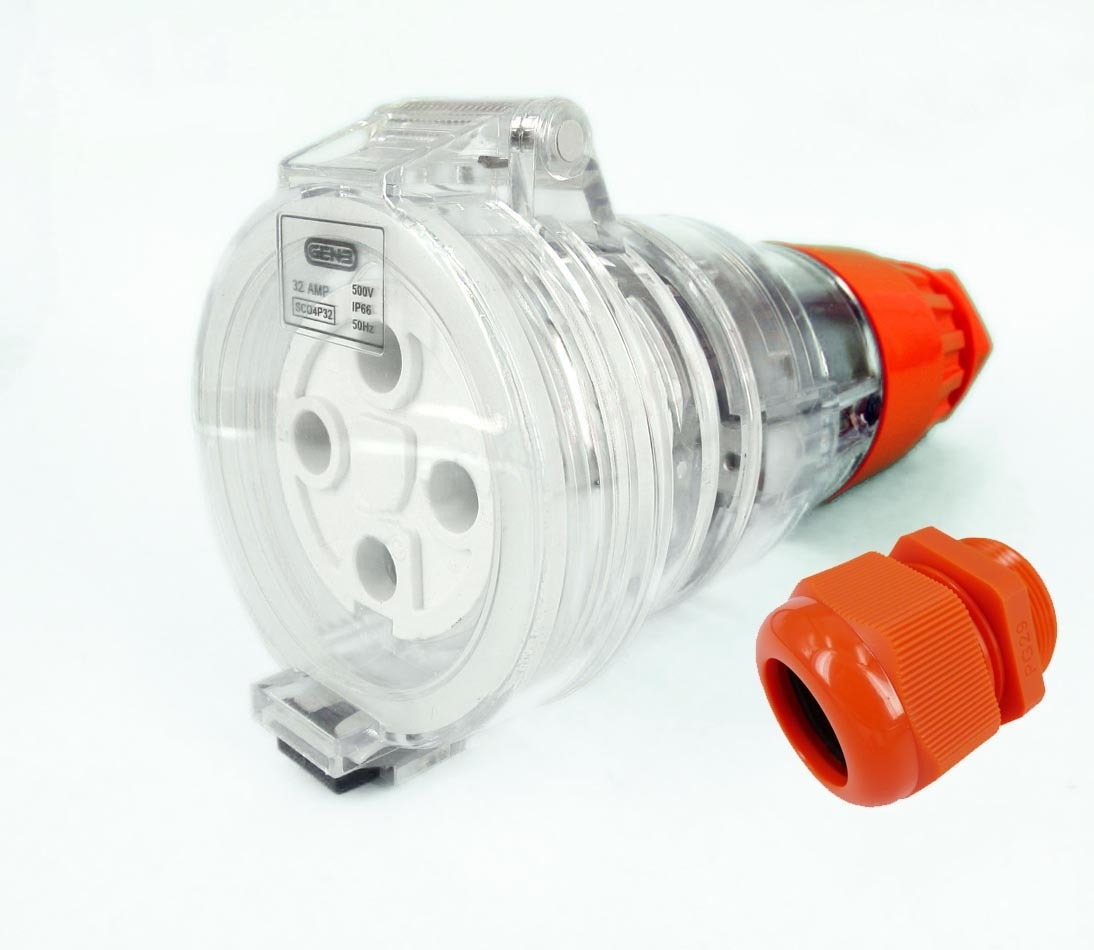

• Socket:
  • All GEN3 Industrial Switch Gear and power board module bases are Series 56 style IP66 Rated sourced from high quality reputable Australian brands, and are compatible with all leading Australian switch gear.
  • All GEN3 plastics are PCA18 virgin grade (No regrind)
  • All GEN3 products use 316 Stainless Steel Springs and Mounting Screws.
  • All Brass internal components are greater than 85% copper.
  • All GEN3 products have Australian/NZ Approval Certificates.
  • All GEN3 products are interchangeable with other major brands including Clipsal 56 Series.

Cable:

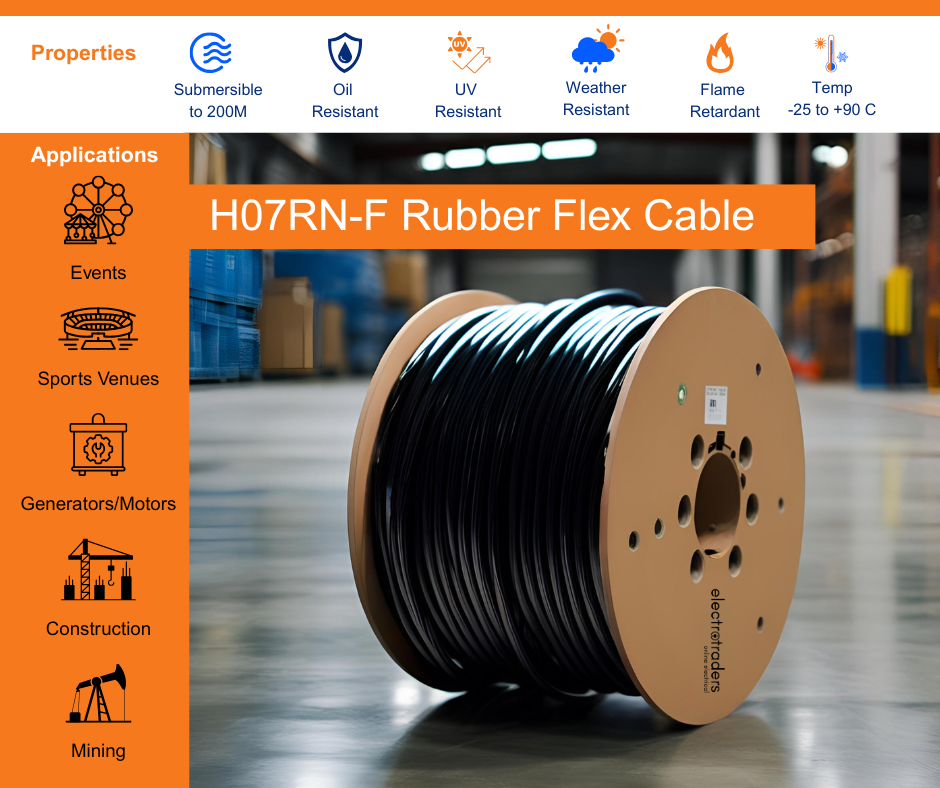

• Leads use Multi Core Rubber Insulated and Sheathed Flexible Power Cable insulated with Ethylene-propylene rubber (EPR) R-EP-90 90 deg C Conductor
• Please consult with a qualified electrician or engineer about the suitability of this power board for your intended purpose.
• Conductors are Class 5 tinned copper according to AS/NZS 1125,IEC 60228
• H07 Grade Rubber Flex cable has a submersible rating of 200m (suitable for fresh water, salt water, sewage/contaminated water), is UV sunlight / oil / weather resistant and flame retardant to IEC 0332-1-2:2004,EN60332-1-2-2004.
• Outer jacket (black colour) made of Chlorinated Polyethylene, CPE rubber compound
• Rated Voltage 0.6/1kV
