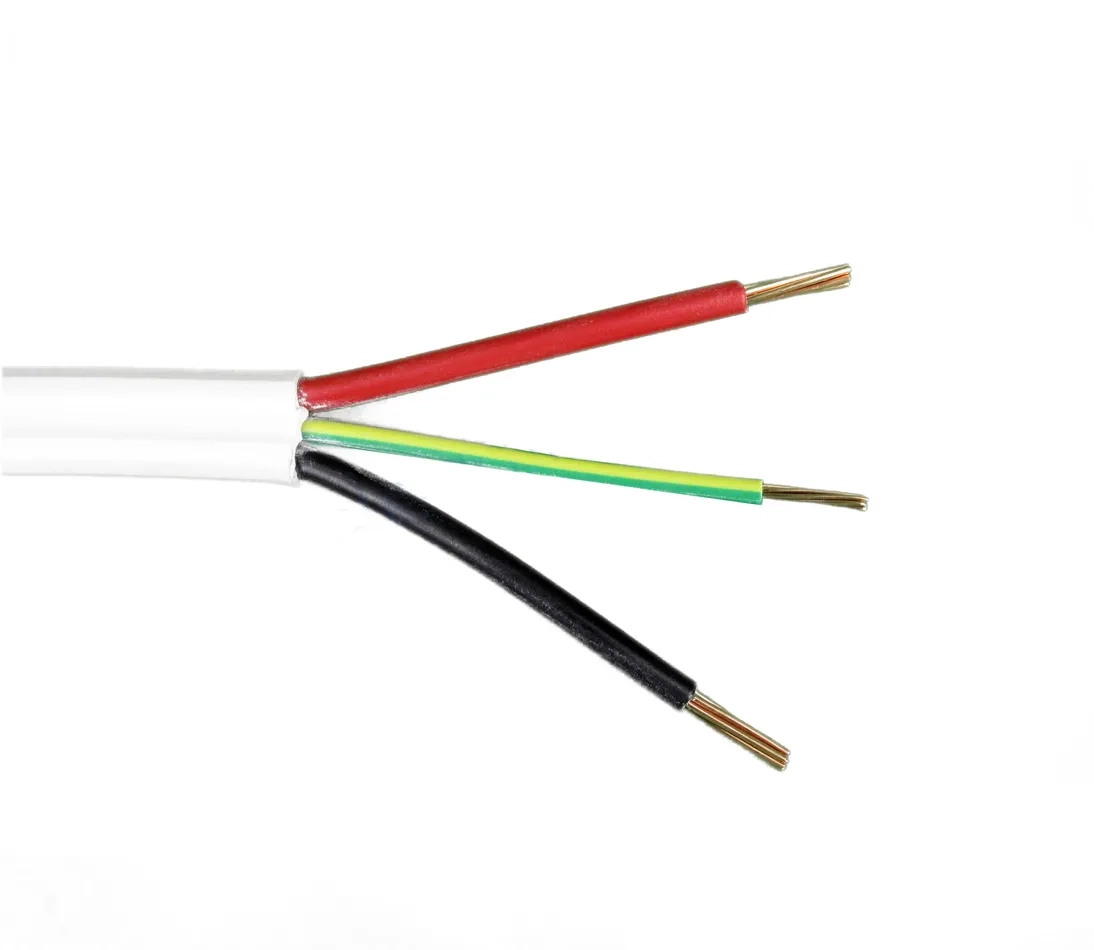

6mm Twin and Earth TPS Electrical Cable White 2C+E 450/750V - 10m Cut

Description

Heavy-duty TPS cable, cut to the length you need.

Buying a full drum for a single circuit run wastes money and leaves offcuts on the shelf. This 6mm Twin and Earth TPS cable is cut to order from a continuous drum, so you pay for the metres the job needs and every cut arrives as one unbroken length.

Key Features

• 6mm² 2 Core + Earth flat TPS construction with a 2.5mm² earth conductor
• 450/750V rated with V-90 PVC insulation and a 90°C temperature rating
• 7/1.04mm annealed copper stranding for dependable conductivity and easy termination
• Easy-tear 3V-90 PVC sheath in white for fast, clean stripping on site
• Made to AS/NZS 5000.2, the Australian standard for cables rated up to 450/750V
• Choose your length - cuts from 10m to a full 100m, each supplied as one continuous run
• Please choose your cable type and length carefully - no refunds or exchanges on cut cable
• Cable orders may attract a delivery surcharge depending on your area

Add to cart and have your cut length on its way to site.

Why it Matters

Sized for High-Current Sub-Circuits
With a 6mm² active and neutral and a 2.5mm² earth, this is the cable size commonly specified for demanding fixed-wiring runs in Australian homes and businesses - think stoves, ovens, hot water systems and air conditioners. Final cable selection always comes down to load, route and installation method, worked out by a licensed electrician to AS/NZS 3000 and AS/NZS 3008.

Built for Australian Installations
Made to AS/NZS 5000.2 with V-90 insulation rated to 90°C, the flat profile runs neatly through wall frames and ceiling spaces, while the easy-tear white sheath strips quickly without nicking cores. Suited to general wiring installed unenclosed, in conduit, buried direct or in underground ducts where the cable is not subject to mechanical damage.

Buy the Length, Not the Drum
Every order is cut fresh from a continuous drum, so a 30m order arrives as one 30m run - no joins, no short ends. That means fewer junctions in your installation and no leftover half-drums tying up your budget. Because each length is cut to order, cut cable cannot be returned or exchanged, so double-check your measurements before ordering.

What is 6mm twin and earth cable used for?
It is commonly specified for higher-current fixed-wiring sub-circuits such as stoves, ovens, hot water systems and air conditioning. The correct cable for any circuit depends on load, route and installation method under AS/NZS 3000 and AS/NZS 3008, so confirm sizing with a licensed electrician.

Is the cable supplied in one continuous length?
Yes. Every cut from 10m up to 100m is supplied as a single unbroken length taken straight off the drum, so there are no joins anywhere in your run.

Can I install this cable myself?
No. In Australia, fixed electrical wiring must be installed and connected by a licensed electrician. Anyone can purchase the cable, but the installation work itself is restricted to licensed trades.
