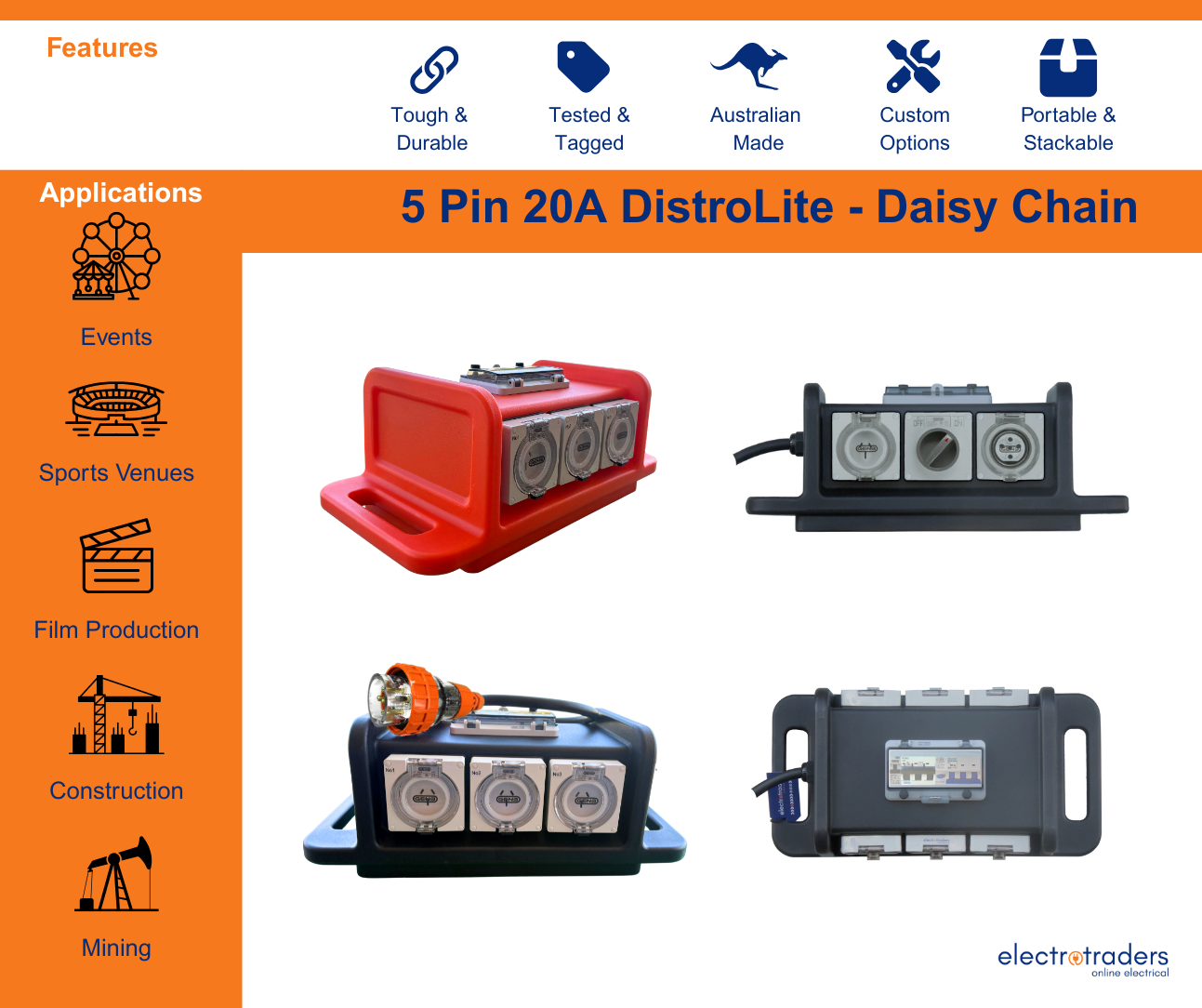

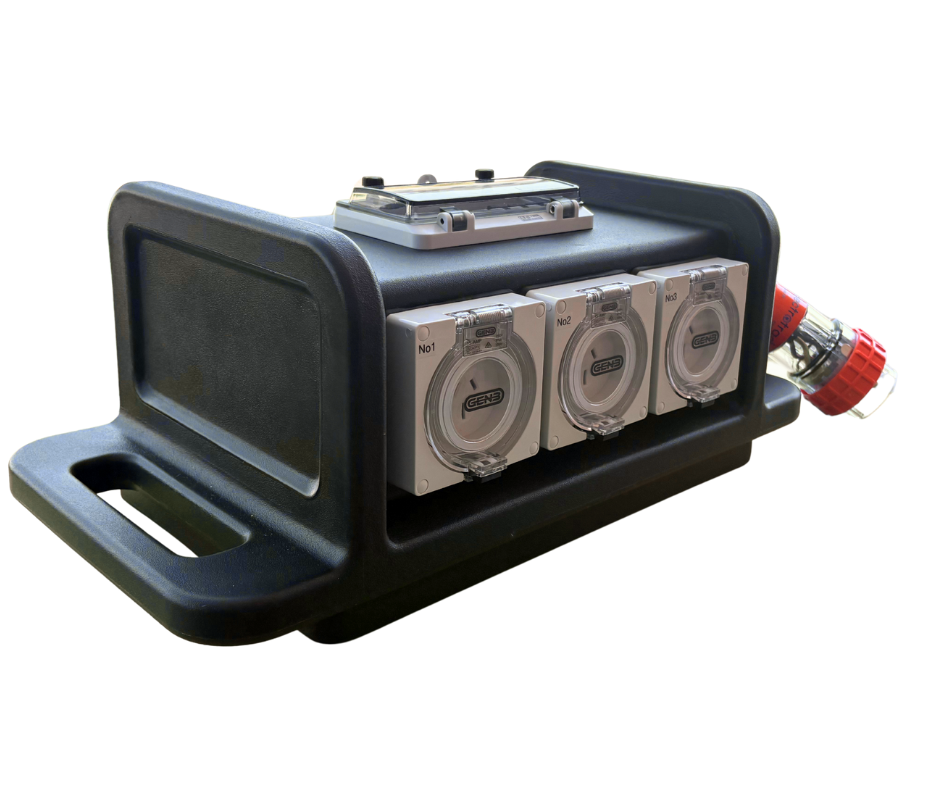

5 Pin 20A Power Distribution Board Lite - Daisy Chain 20A, Black
SKU: disl520rx315d520b
Product Image Gallery
Product Pricing
$840.00 (ex-GST)
$924.00 (inc-GST)
$924.00
$840.00
Stock and Availability
- ⚫︎ Only 1 Left!
DistroLite power distribution board assembled, tested and tagged by our licensed electricians in Australia. Featuring 5 RCBO protected sockets (4 x 15A, 1 x 3 phase 20A) in a portable stackable enclosure.
Electrotraders USPs
Description
The all new DistroLite by Electrotraders, a stackable medium size distribution box providing both single and three phase sockets from a three phase supply, to power your work or event site.
Lead Time
- Standard: 1-4 days dispatch from order. We will advise if outside of this range.
- Expedited: prioritised for assembly and dispatched within 24 hours. If you need this service, select expedited shipping at the checkout.
5 Pin 20A Power Distribution Board Lite - Daisy Chain 20A
- 4 x 15A single phase socket outlets plug 1 x 20A 5 pin three phase socket outlet from a three-phase 20A inlet
- Stackable robust plastic shell is lightweight and easy to transport
- Daisy-chainable / pass-through inlet for multi-board feeds.
- Made with GEN3 or equivalent high quality switch gear, carrying Australian/NZ Approval Certificates.
- Construction & Demolition Site Compliant: PSOAs comply with AS/NZS 3190 and AS/NZS 3012.
- Built, tested and tagged by our qualified electricians at Electrotraders
- Get in touch to discuss your custom configuration needs
- Please consult with a qualified electrician or engineer about the suitability of this product for your intended purpose
- Actual product layout may differ from the displayed image, depending on your chosen options. Be assured that components and specifications will match the description here.
IMPORTANT: Avoid extra costs and fees of ordering the wrong product. Before you order: confirm the compatibility of the plug and sockets on this product. i.e. 5 Pin 32A, 5 Pin 20A, 5 Pin 10A etc. If you aren't sure, contact us, we are happy to help.
Configuration
- Three-phase 20A IP66 rated extension plug on a 2m H07 rubber lead

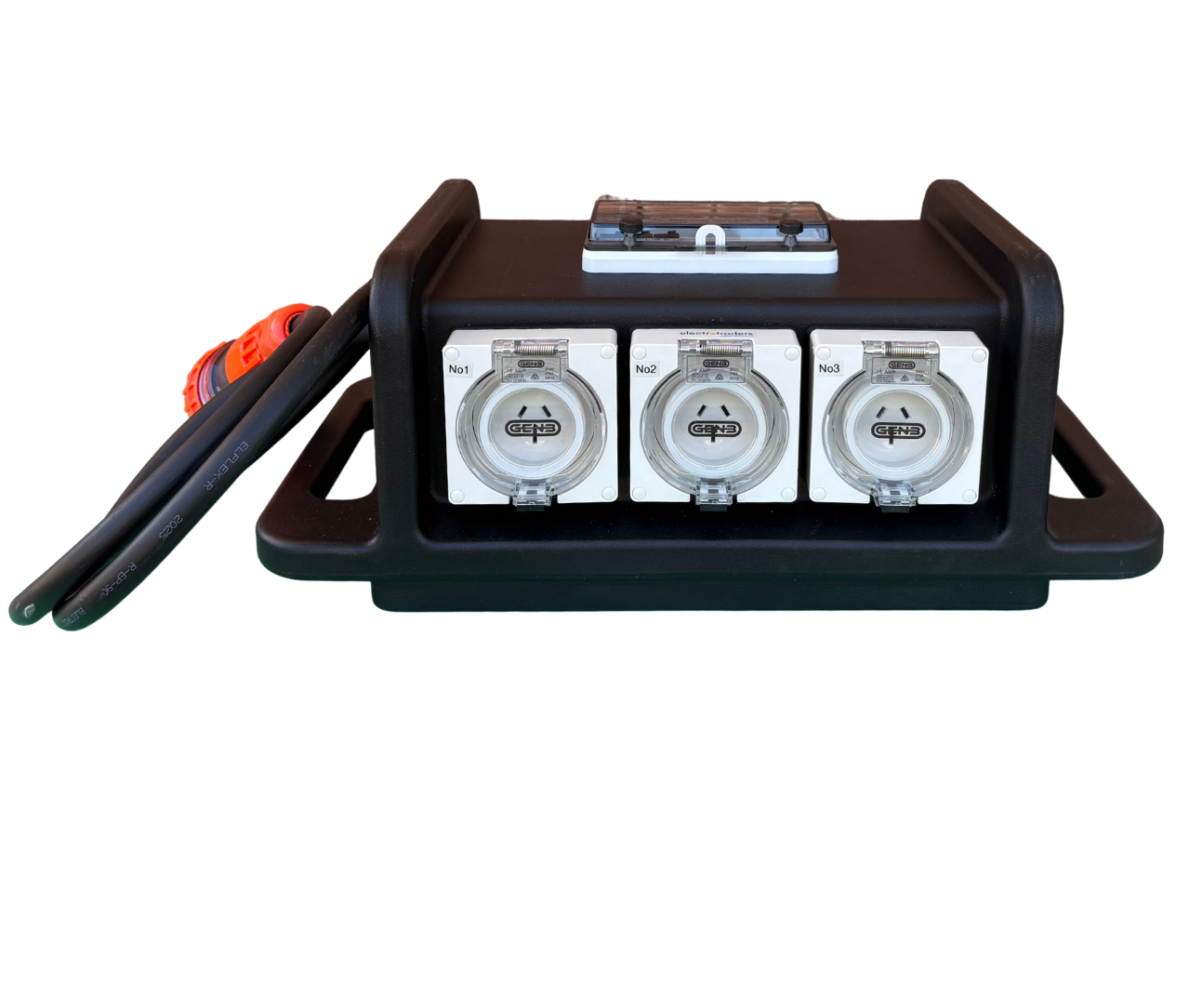

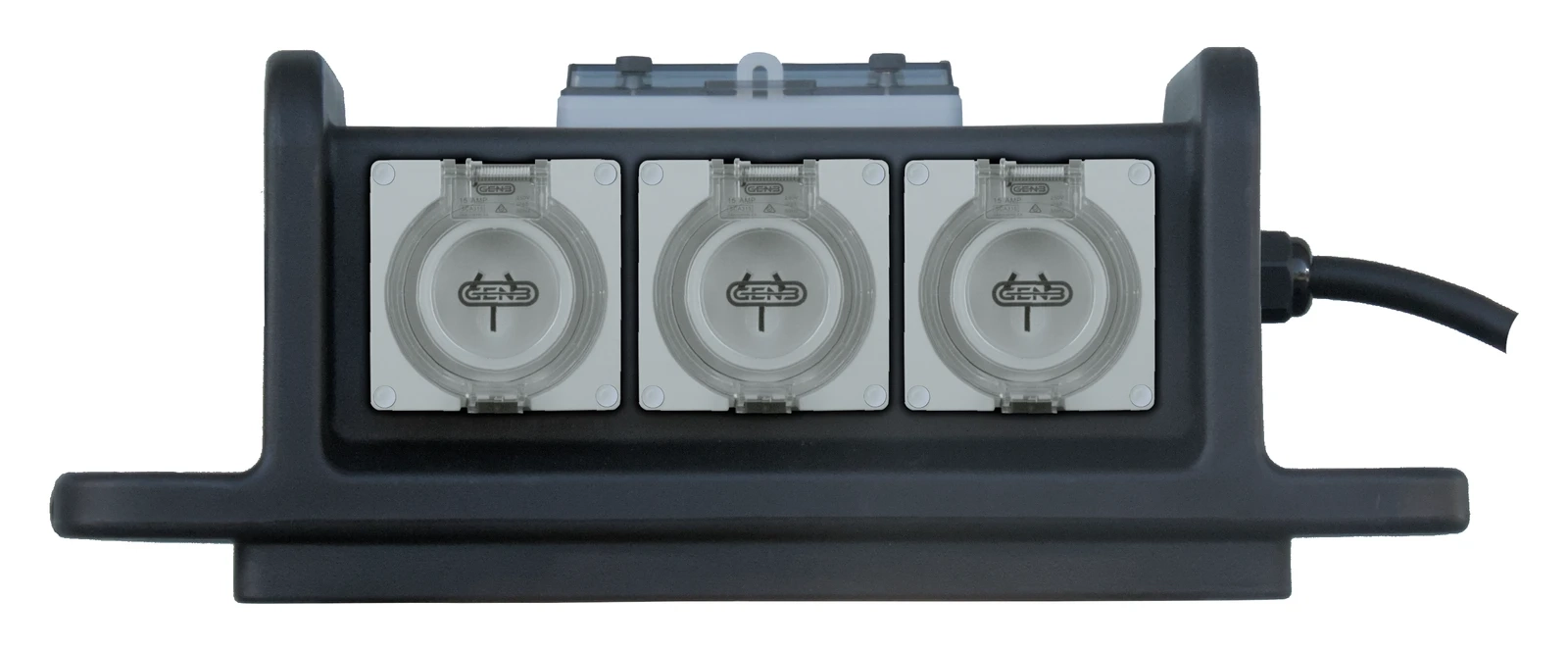

- 4 single-phase auto-switched 15A IP66 rated sockets

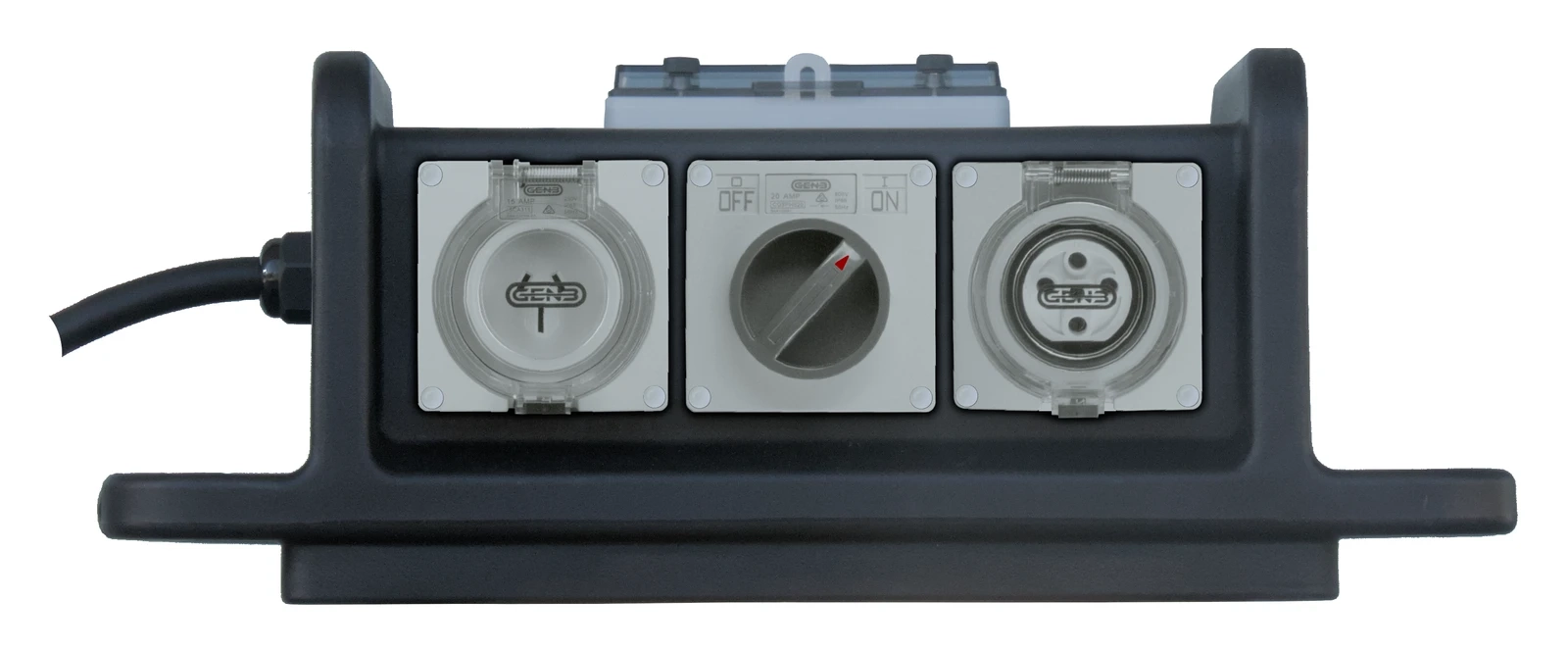

- 1 three-phase 20A IP66 rated socket with surface mounted switch

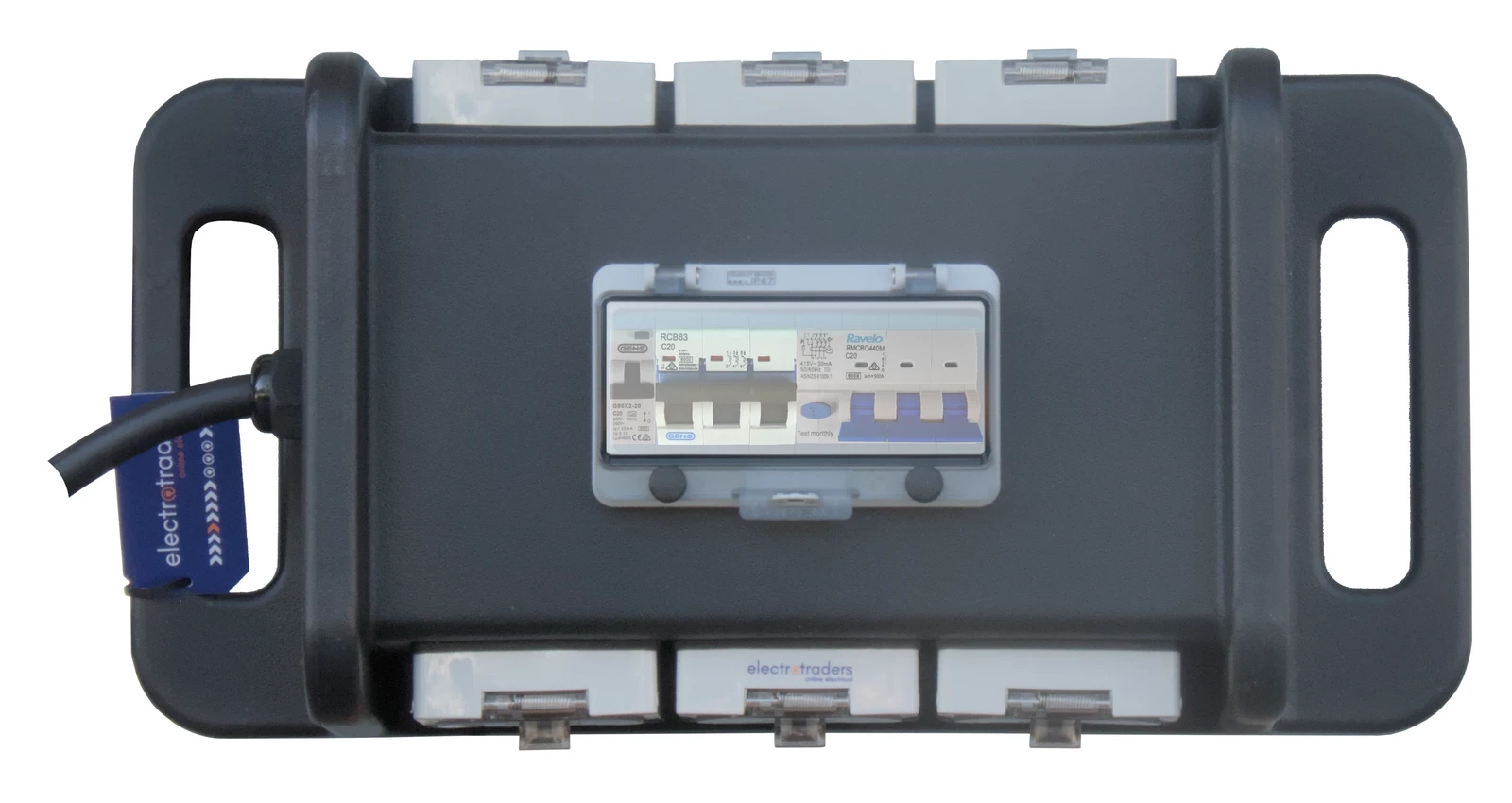

- Protected by 20A Three Pole MCB (circuit breaker) with sockets protected by 1 x 20A Double Pole or 1 x 20A four pole RCBOs
- Hand-assembled and inspected by our experienced, licensed electricians; each unit is tested & tagged according to AS/NZS 3760
- Available colours: orange or black
(disl520rx315d520b)
Specifications
| General Specifications | |
| Warranty | 24 months (misuse excluded) |
| Assembly/Testing | Assembled, tested, and tagged in-house by licensed electricians |
| Test/Tag Standard | AS/NZS 3760 |
| Compliance | AS/NZS 3190 & AS/NZS 3012 |
| Customisable | Yes |
| Dimensions | 490 x 290 x 255mm |
| Materials | |
| Colour | Black |
| Alternate Colours Available | Yes |
| Housing | Lightweight robust plastic shell |
| Stackable | Yes |
| Configuration | |
| Plug | Three-phase 20A IP66 rated extension plug |
| Sockets | 4 x single-phase auto-switched 15A IP66 rated |
| Sockets | 1 x three-phase 5 pin 20A IP66 rated with switch |
| Circuit Breakers | 20A Three Pole MCB |
| RCBOs | 1 x 20A Double Pole RCBO |
| RCBOs | 1 x 20A Four Pole RCBO |
| SKU | disl520rx315d520b |
| Manfacturer Part Number | disl520rx315d520b |
| Brand | Electrotraders |
