190 Amps Rated Red 1 B&S Auto Battery Starter Cable 05m Cut

SKU: cabbatsta2r.5m

Product Image Gallery

Product image thumbnail for SKU cabbatsta2r.5m

Product Pricing

$100.87 (ex-GST)

$110.96 (inc-GST)

$110.96

$100.87

(inc-GST)
(ex-GST)

Stock and Availability

  • ⚫︎ 5 In Stock

Electrotraders USPs

Fast Shipping, Trusted by Government, Easy Returns, Free Shipping over $200

Select Your Product Options



Description

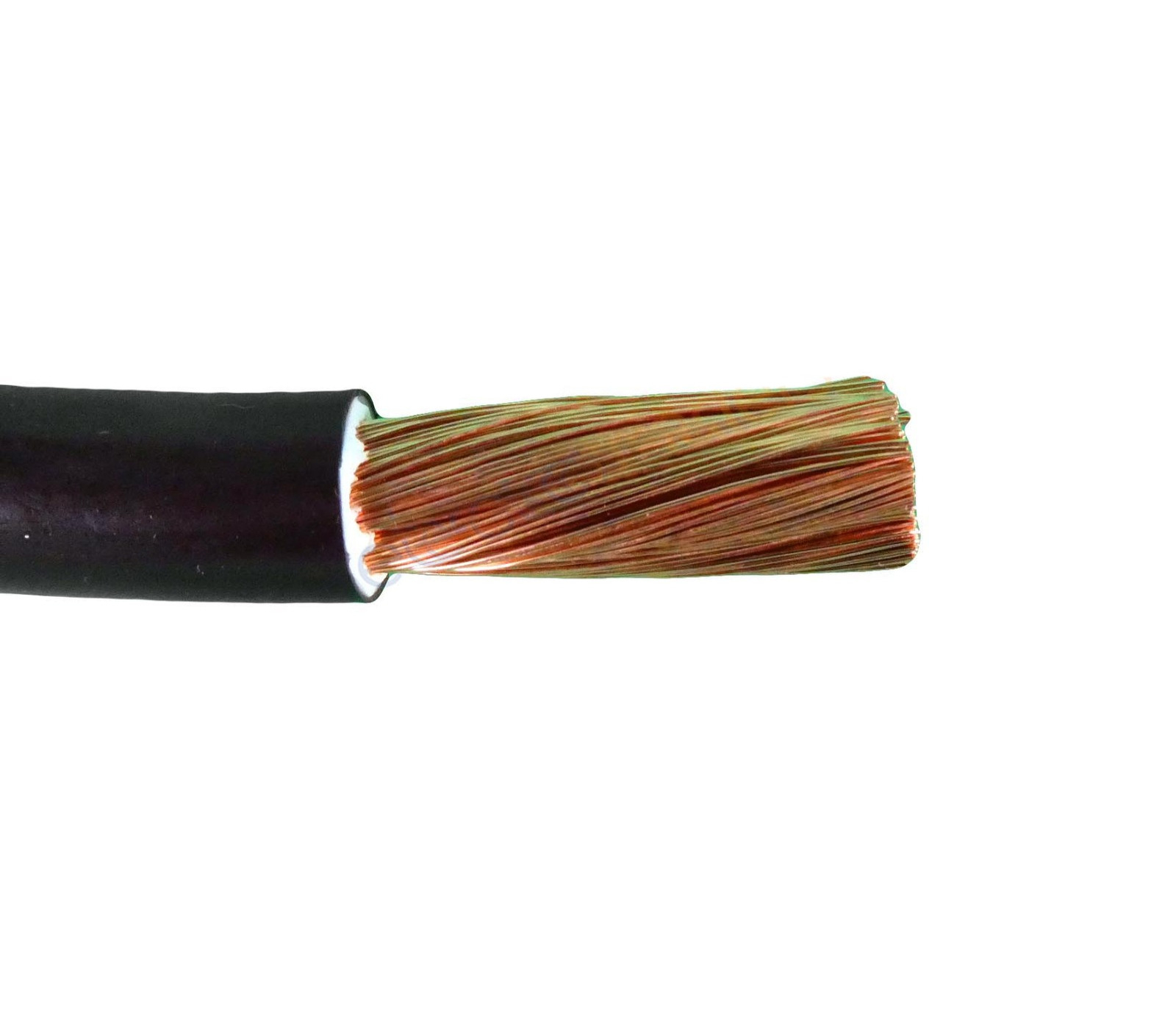

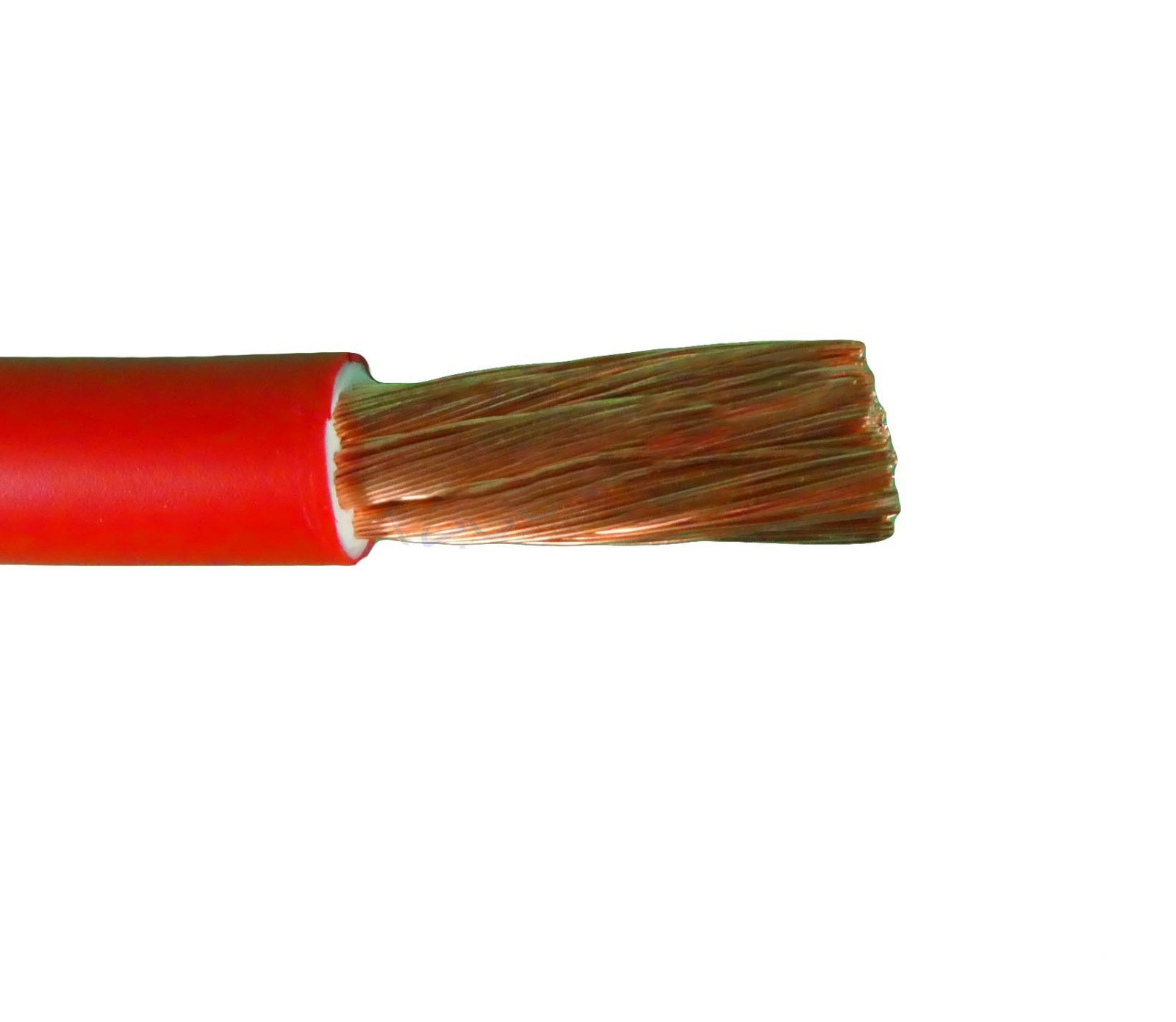

2 B&S Battery Cable – 190A Rated, Australian Made for RV, Marine & Solar DC Systems

This 2 B&S battery cable is Australian made and engineered for high-current DC power distribution in RVs, 4WDs, caravans, and marine applications. Rated to 190 Amps and built with flexible plain annealed copper conductors, it’s ideal for connecting DC-DC chargers, inverters, and battery banks in off-grid setups.

Insulated with UV-stabilised V90HT PVC and compliant with AS/NZS standards, this cable is durable, easy to install, and suited for harsh outdoor conditions.

Key Features:

  • Nominal Area: 32.15 mm²

  • Conductor: 455 strands of 0.3mm copper (PCW to AS/NZS1125)

  • Voltage Rating: 50V AC / 120V DC

  • Rated Current: 190 Amps

  • Insulation: V90HT UV-stabilised PVC, 1.70mm thick

  • Max DC Resistance @ 20°C: 0.58 Ω/km

  • Outer Diameter: Approx. 10.7mm

  • Australian Made

Compatible 35mm lugs available: Click here to view.

Available in red or black – select your cut length to suit.

(cabbatsta2)

Specifications

Product Details
Product Code ABS2
Nominal Area 32.15 mm²
Strands 455/0.30 mm
Nominal OD 10.70 mm
Mass 35.70 kg/100m
Electrical Properties
Amperage Rating** 190.0 A
Max DC Resistance @ 20°C 0.58 Ω/km
Insulation
Type V90HT
Thickness 1.70 mm
Construction
Conductor Type Plain Annealed Copper (PCW) to AS/NZS1125
Features
Voltage Rating AC 50V / DC 120V
Temperature Rating +90°C
RoHS Compliant Yes
UV Resistant Yes
Application Note
Note Not suitable for connections to mains power
Standards
Standards Based on JASO D609:2001 at 30°C ambient
SKU cabbatsta2
Manfacturer Part Number ABS2
Brand Generic
