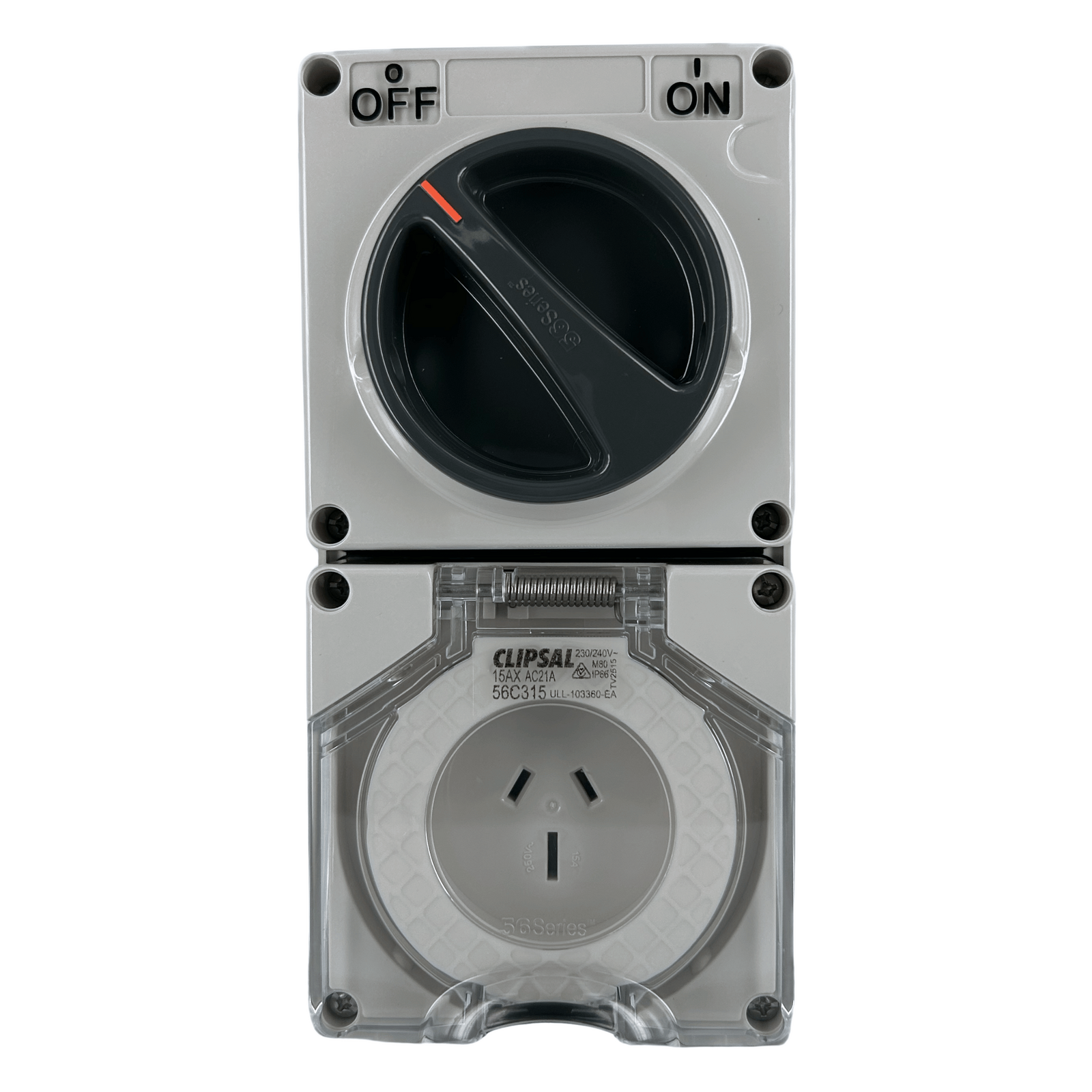

IP66 Clipsal 56 Series - Switched Socket Outlet - 250V 15A 3 Flat PIN 1 Pole - Grey - 56C315-GY
SKU: cliswisoc315
Product Image Gallery
Product Pricing
$75.99 (ex-GST)
$83.59 (inc-GST)
$83.59
$75.99
(inc-GST)
(ex-GST)
Stock and Availability
- ⚫︎ In Stock
Clipsal - World-class design, premium materials, and precision engineering come together.
Electrotraders USPs
Description
High-performance switched socket outlet suitable for industrial power needs.
- 250V, 15A with 3 flat pins and 1 pole
- IP66 rating for outdoor use
- Grey housing suited to commercial settings
- Supplier Item Code: 56C315-GY
- Handling Time: 3 - 5 Days***
(cliswisoc315)
Specifications
| Design | |
| Range of product | Series 56 |
| Range | Clipsal - 56 Series |
| Product brand | Clipsal |
| Product or component type | socket-outlet |
| Device application | power supply |
| Market segment | industryutilitysmall commercial |
| Physical | |
| Number of poles | 3 |
| Number of power socket outlets | 1 protective cover |
| [in] rated current | 15 A |
| [ue] rated operational voltage | 250 V AC 50 Hz |
| Protection type | without protection |
| Device mounting | surface |
| Connections - terminals | screw terminals cable(s) 1.5-6 mm² |
| Depth | 83 mm |
| Width | 101 mm |
| Height | 204 mm |
| Standards | AS/NZS 3123AS/NZS 3133 |
| Ambient air temperature for operation | -25...75 °C |
| Ip degree of protection | IP66 conforming to AS 60529 |
| Mercury free | Yes |
| Material | |
| Material | ABS (acrylonitrile butadiene-styrene): cover |
| Contacts material | pins: phosphor bronze |
| Others | |
| Commercial status history | SESA65076Tue Aug 13 23:03:00 EDT 2024From Unitary LocalFrom 20 to 08 |
| Plug, socket category | low voltage |
| Outlet standard deviation | Australian/New Zealand |
| Plug, socket, control station shape | straight |
| Number of modules | 1 |
| Poles description | 1P + N + E |
| Electrical connection | industrial connector |
| Targeted country | Australia |
| Unit type of package 1 | PCE |
| Package 1 height | 9.0 cm |
| Package 1 width | 10.0 cm |
| Package 1 length | 20.5 cm |
| Package 1 weight | 719.0 g |
| Removable battery | N/A |
| Minimum percentage of recycled plastic content | 0 |
| SKU | cliswisoc315 |
| Manfacturer Part Number | 56C315-GY |
| Barcode # | 9311554198480 |
| Brand | Clipsal |
