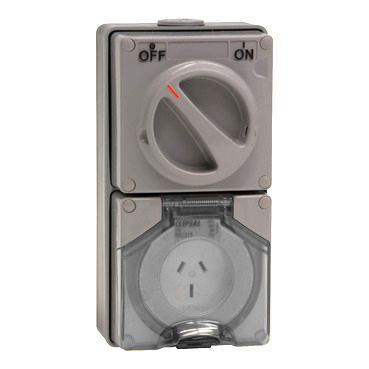

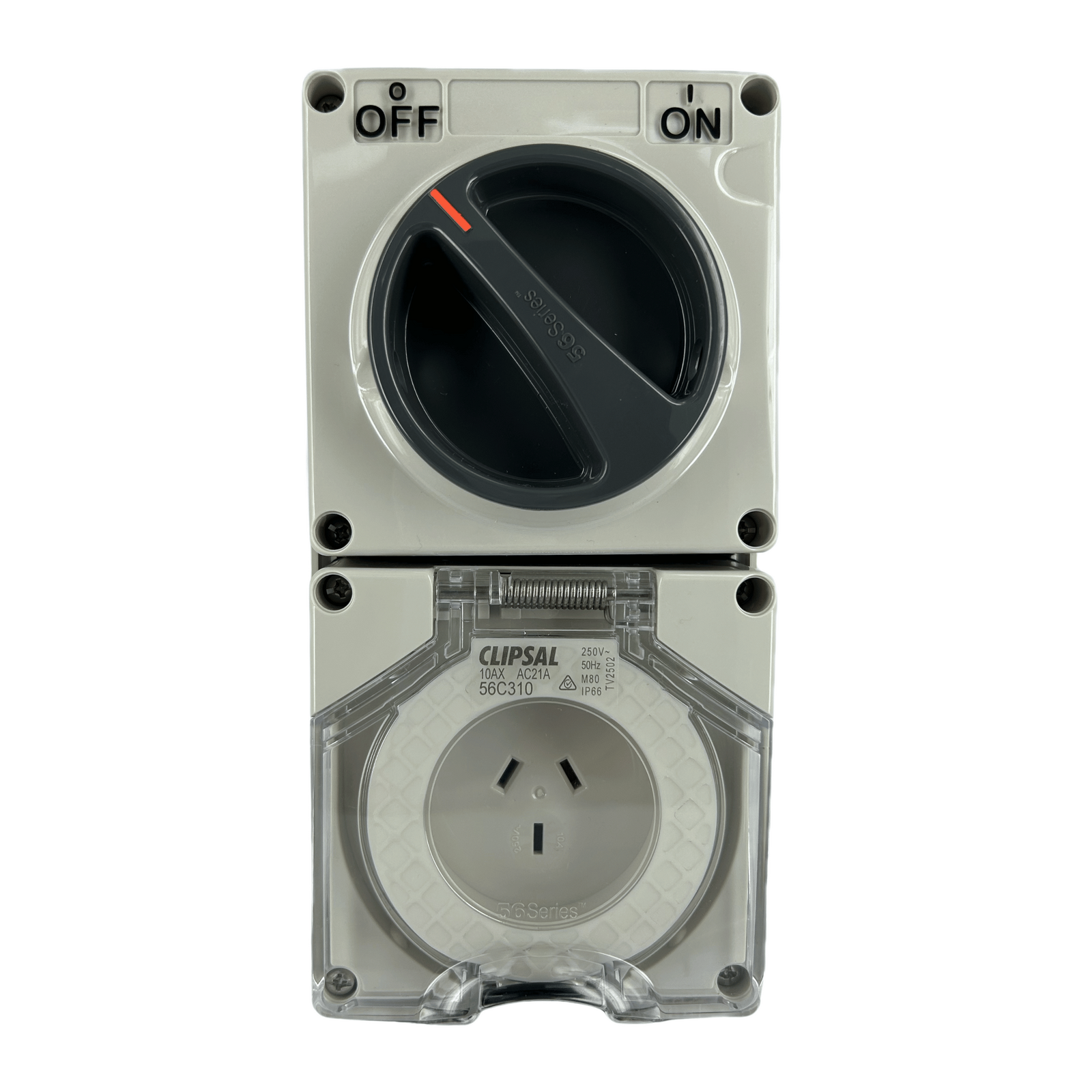

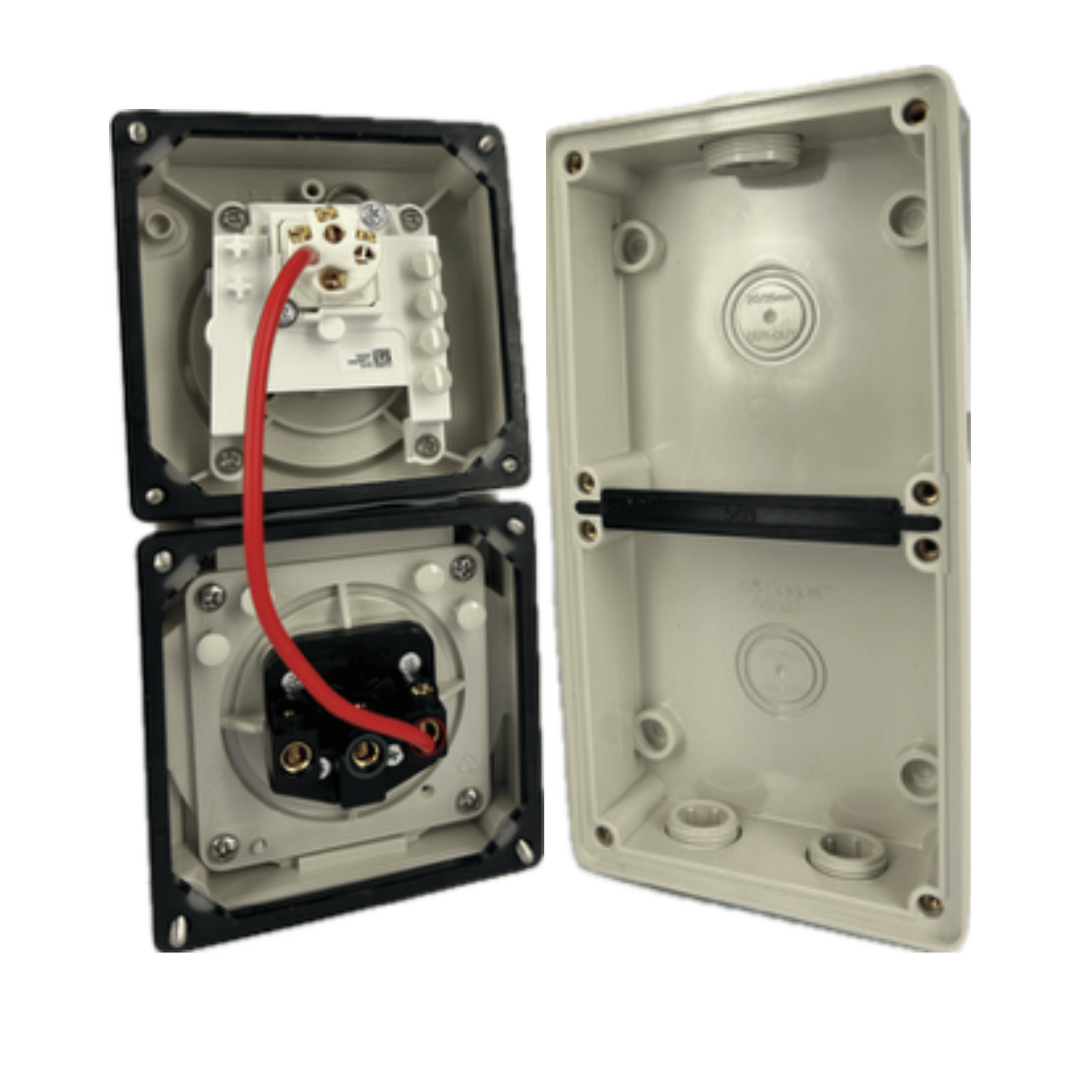

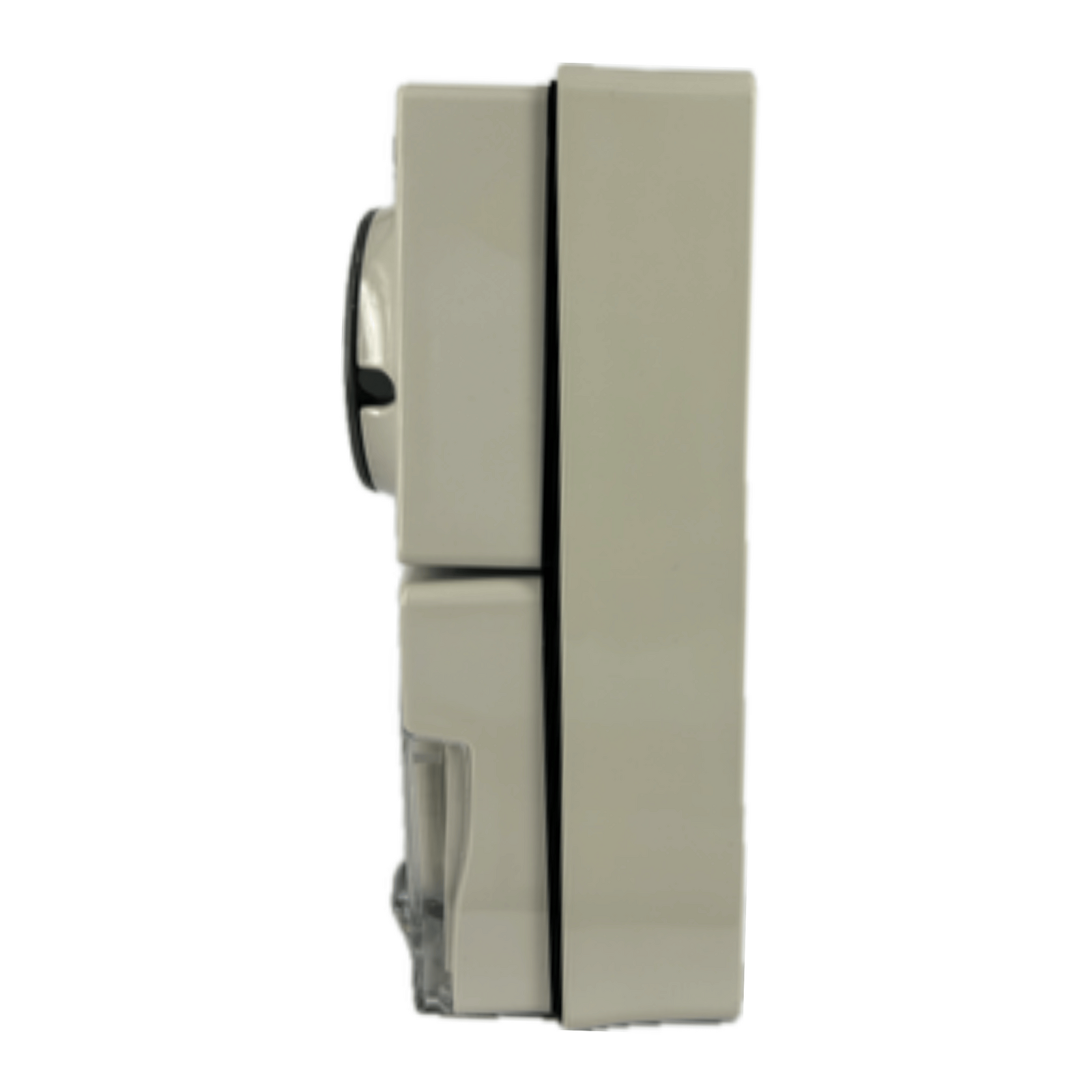

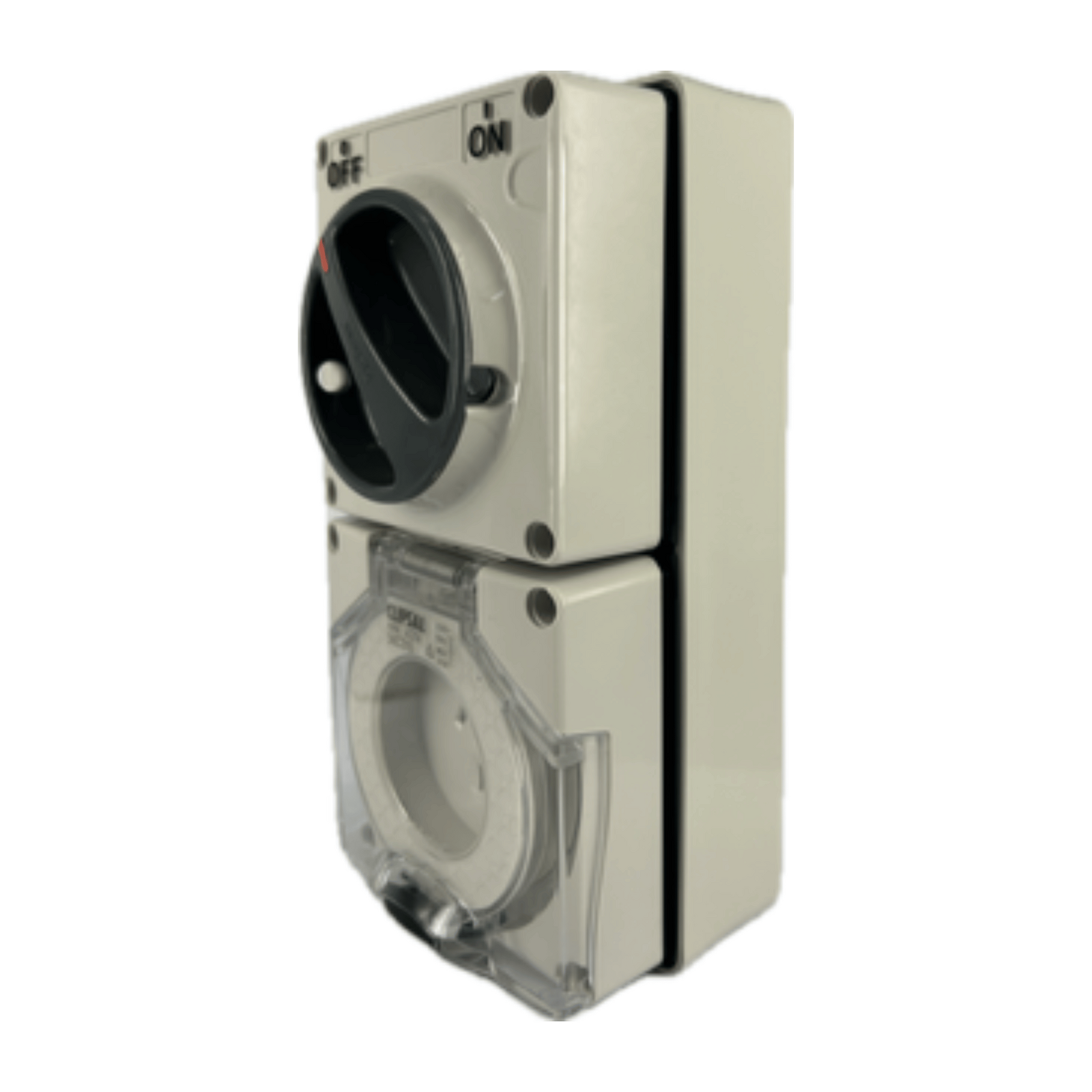

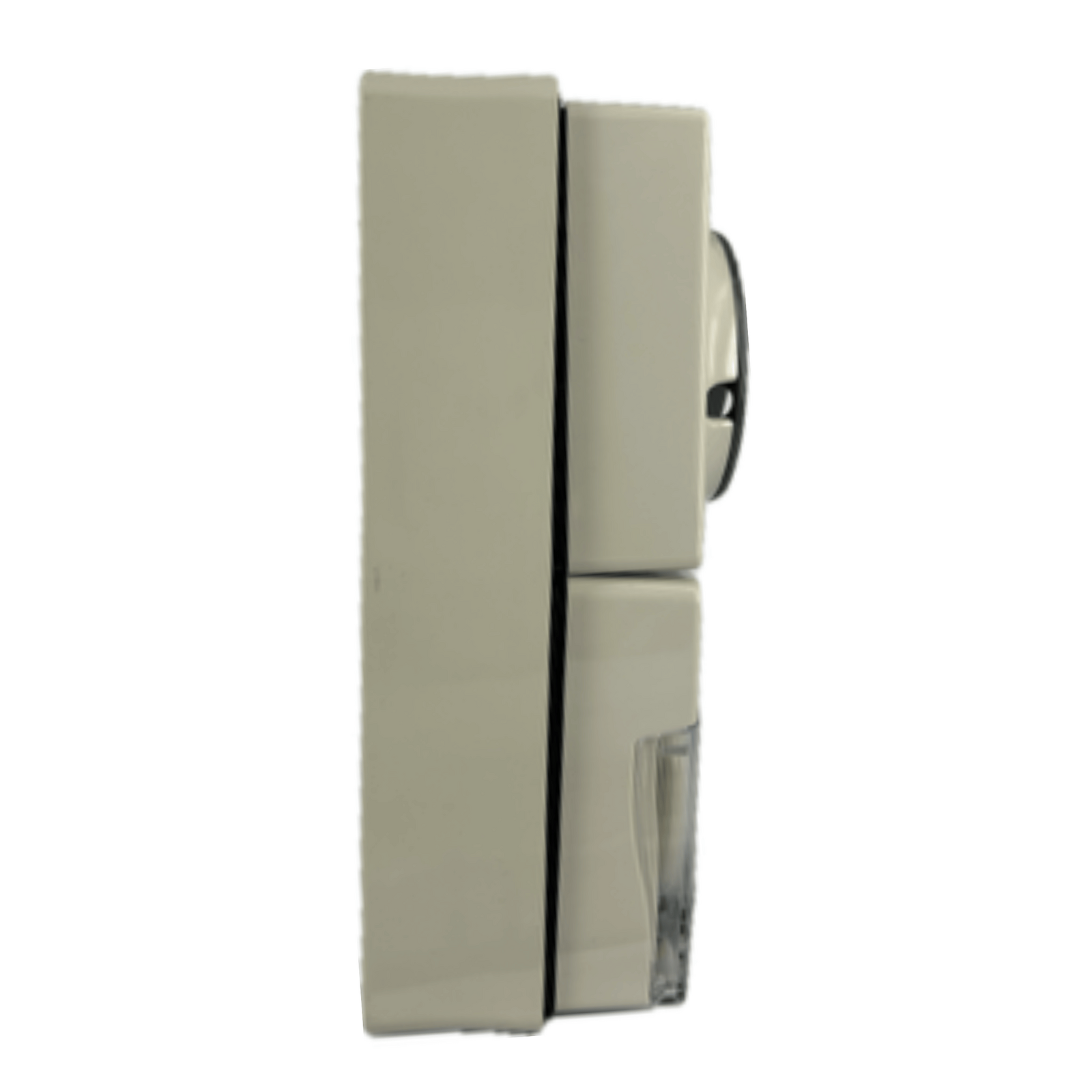

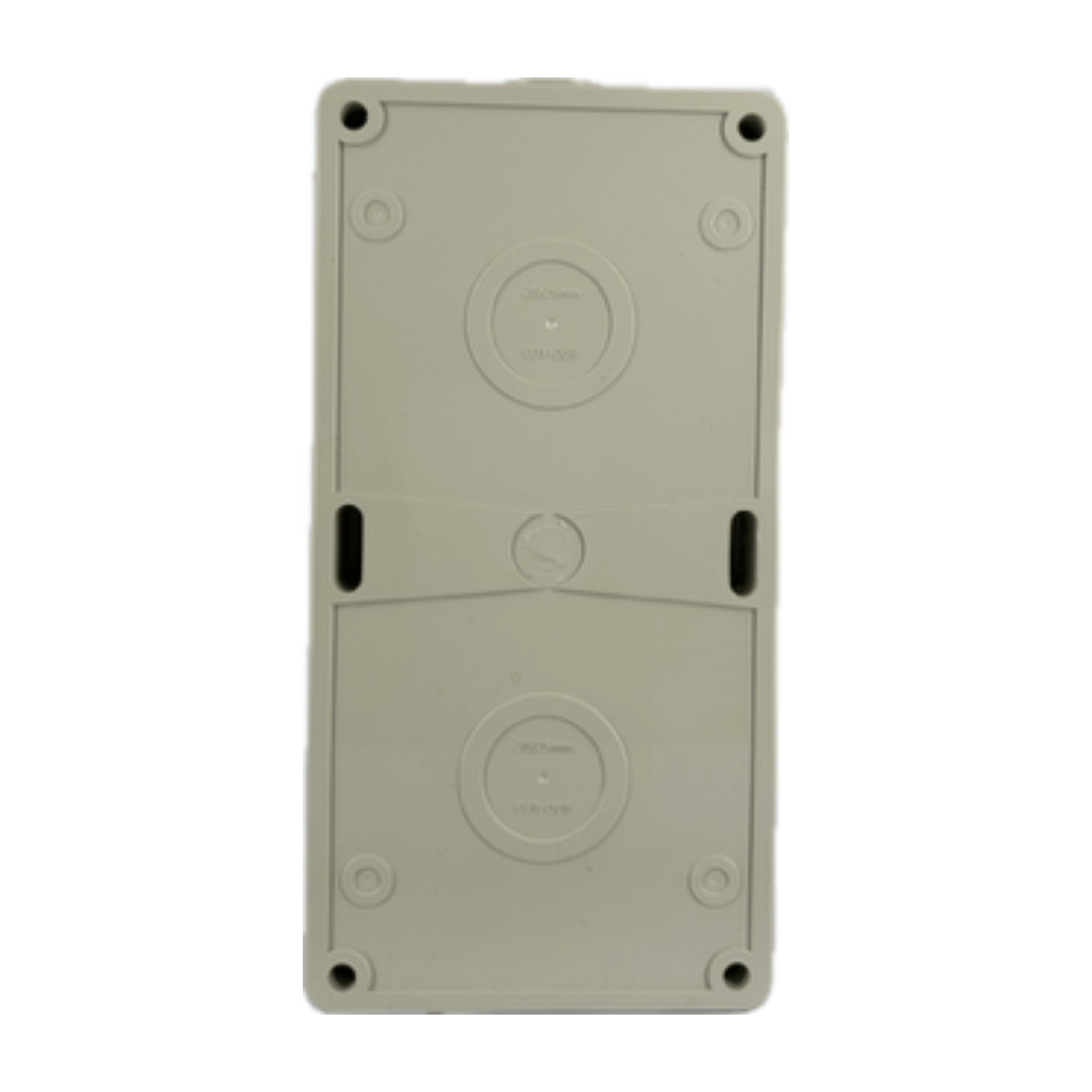

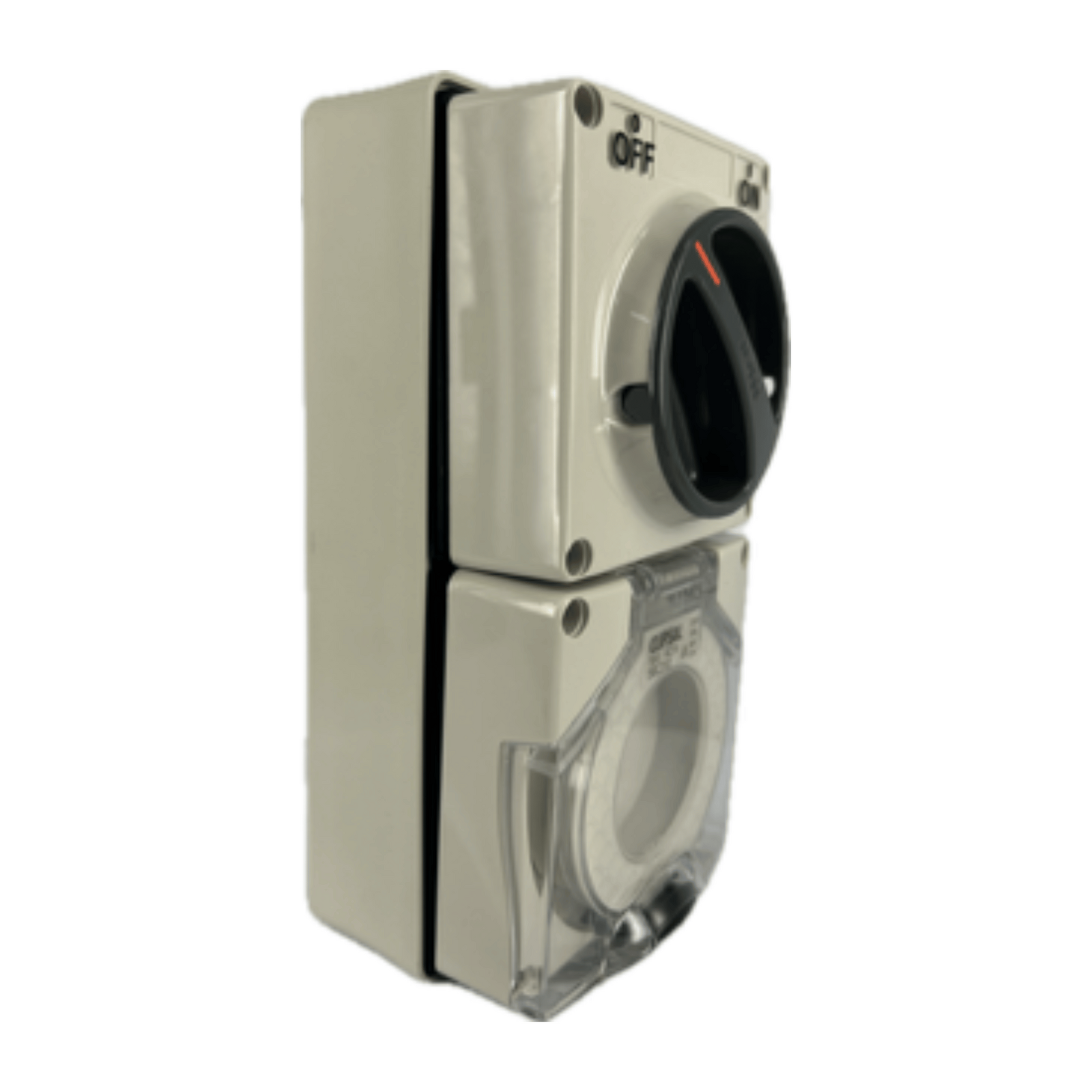

IP66 Clipsal 56 Series - Switched Socket Outlet - 250V 10A 3 Flat Pin - Grey - 56C310-GY
SKU: cliswisoc310
Product Image Gallery
Product Pricing
$65.96 (ex-GST)
$72.56 (inc-GST)
$72.56
$65.96
(inc-GST)
(ex-GST)
Stock and Availability
- ⚫︎ In Stock
Clipsal - World-class design, premium materials, and precision engineering come together.
Electrotraders USPs
Description
A durable switched socket outlet ideal for outdoor and industrial environments.
- Rated 250V, 10A with 3 flat pins
- Weatherproof IP66 rating for harsh conditions
- Grey chemical-resistant housing
- Supplier Item Code: 56C310-GY
- Handling Time: 3 - 5 Days***
(cliswisoc310)
Specifications
| Design | |
| Range of product | Series 56 |
| Range | Clipsal - 56 Series |
| Product brand | Clipsal |
| Product or component type | socket-outlet |
| Device application | power supply |
| Market segment | small commercialutilityindustry |
| Physical | |
| Number of poles | 3 |
| Number of power socket outlets | 1 protective cover |
| [in] rated current | 10 A |
| [ue] rated operational voltage | 250 V AC 50 Hz |
| Protection type | without protection |
| Device mounting | surface |
| Connections - terminals | screw terminals cable(s) 1.5-6 mm² |
| Depth | 83 mm |
| Width | 101 mm |
| Height | 204 mm |
| Standards | AS/NZS 3133AS/NZS 3123 |
| Ambient air temperature for operation | -25...75 °C |
| Ip degree of protection | IP66 conforming to AS 60529 |
| Mercury free | Yes |
| Environmental disclosure | ENVPEP2407007EN |
| Circularity profile | N/A |
| Material | |
| Material | ABS (acrylonitrile butadiene-styrene): cover |
| Contacts material | pins: phosphor bronze |
| Others | |
| Commercial status history | SESA65076Tue Aug 13 22:52:00 EDT 2024From Unitary LocalFrom 20 to 08 |
| Plug, socket category | low voltage |
| Outlet standard deviation | Australian/New Zealand |
| Plug, socket, control station shape | straight |
| Number of modules | 1 |
| Poles description | 1P + N + E |
| Electrical connection | industrial connector |
| Targeted country | Australia |
| Unit type of package 1 | PCE |
| Package 1 height | 8.85 cm |
| Package 1 width | 10.35 cm |
| Package 1 length | 20.65 cm |
| Package 1 weight | 720.0 g |
| Removable battery | N/A |
| Global warming ; total life cycle​ | 1 kg CO2 eq. |
| Minimum percentage of recycled plastic content | 0 |
| SKU | cliswisoc310 |
| Manfacturer Part Number | 56C310-GY |
| Barcode # | 9311554198459 |
| Brand | Clipsal |
