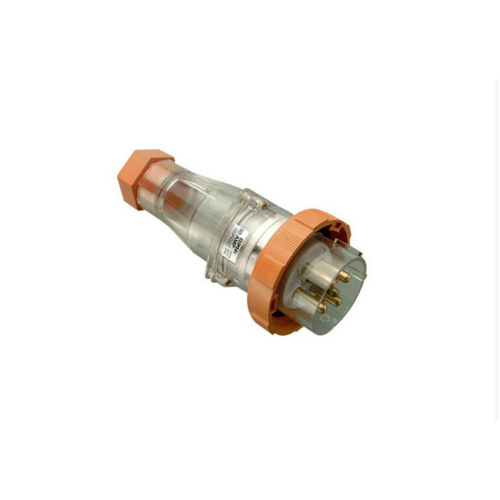

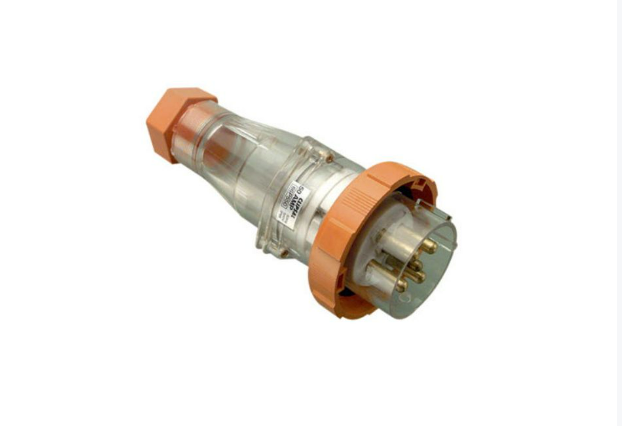

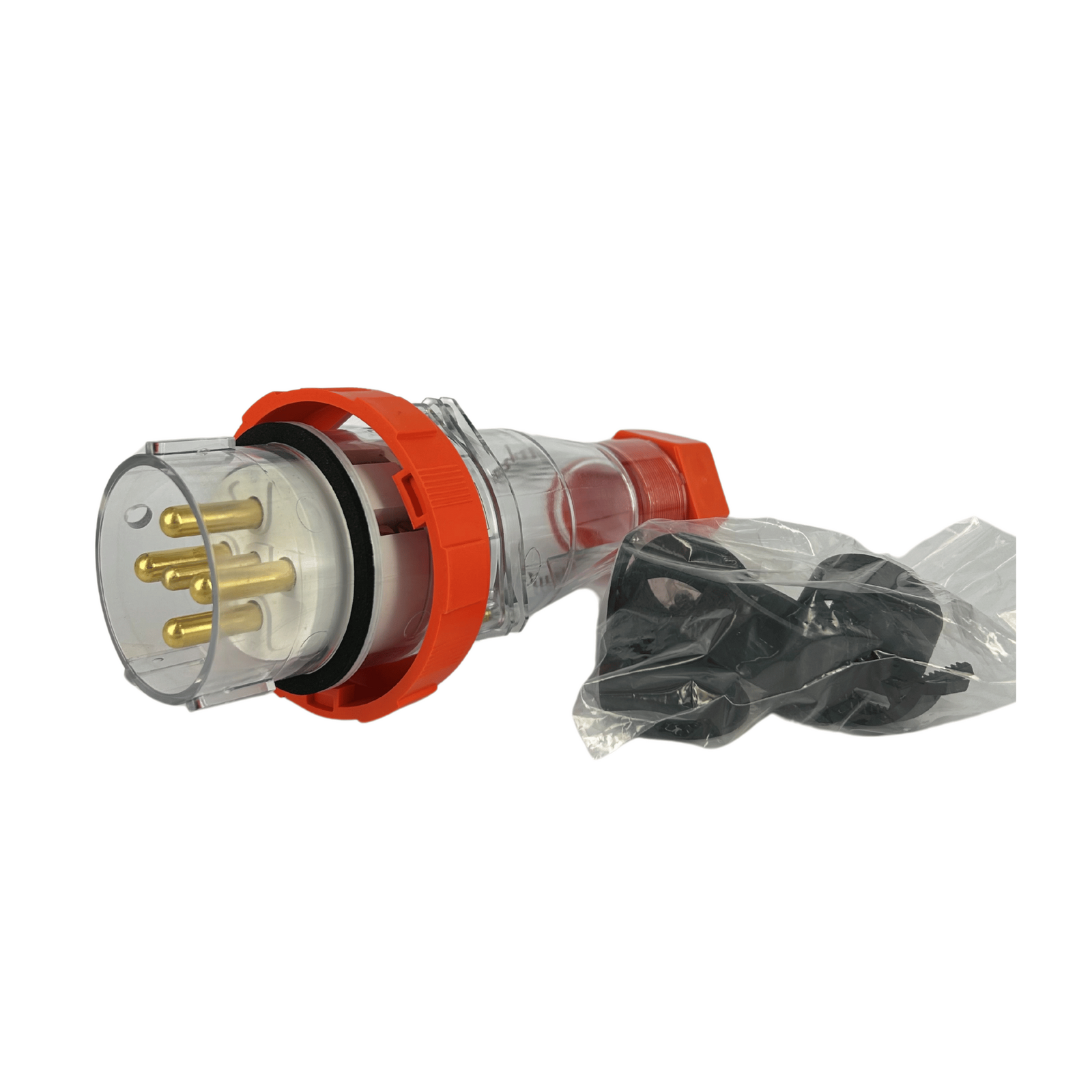

Clipsal 66P563-EO 66 Series Heavy Duty Straight Plug IP66 500V 63A 5 Pin Orange

Description

Heavy duty five-pin capacity, sealed for site.

The Clipsal 66 Series 66P563-EO Heavy Duty Straight Plug carries 63 amps at 500 volts through a 5 round pin configuration, rated IP66. Cable terminates at screw terminals and enters through a cable gland, in a high-visibility Electric Orange body.

Key Features

• Rated 63 A at 500 V 50/60 Hz conforming to EN 60309-2

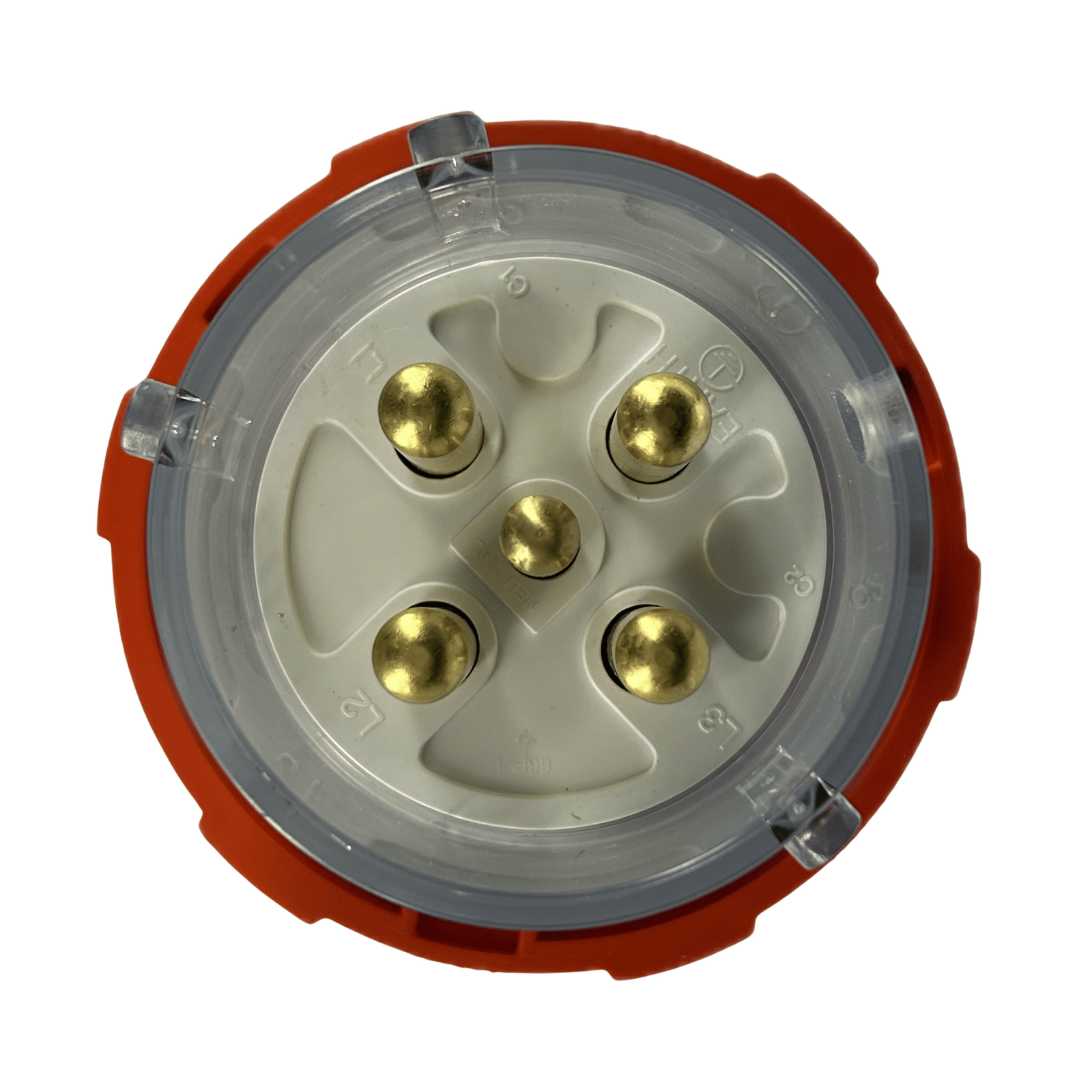

• 5 round pins
• IP66 degree of protection
• Screw terminal connections
• Cable gland entry, 50 mm gland size
• Accepts cable of 40–66 mm outer diameter

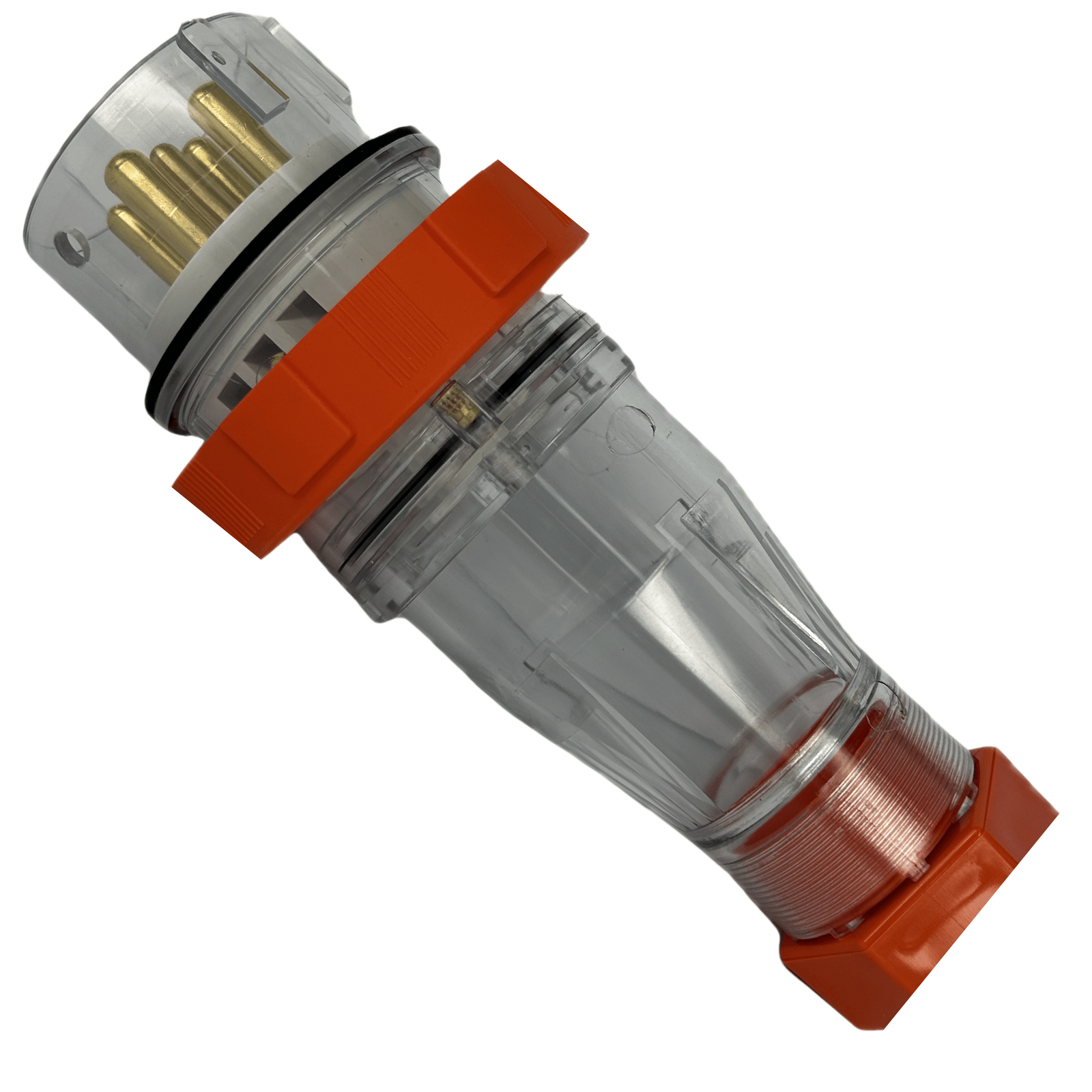

• Straight plug body
• Electric Orange housing
• Plastic construction
• Mercury free
• Halogen free product
• 18 month manufacturer warranty

Secure yours online today.

Why it Matters

63 amps at 500 volts in the heavy duty 66P range

The 66P563-EO is rated 63 A at 500 V, 50/60 Hz, conforming to EN 60309-2. That pin standard is keyed, so the plug mates only with correspondingly rated equipment — a 5-pin plug will not go into a 4-pin outlet. For high-draw plant that keying is the safety mechanism: the connection is either correct or it does not go together.

IP66 sealing keeps a heavy duty connection reliable

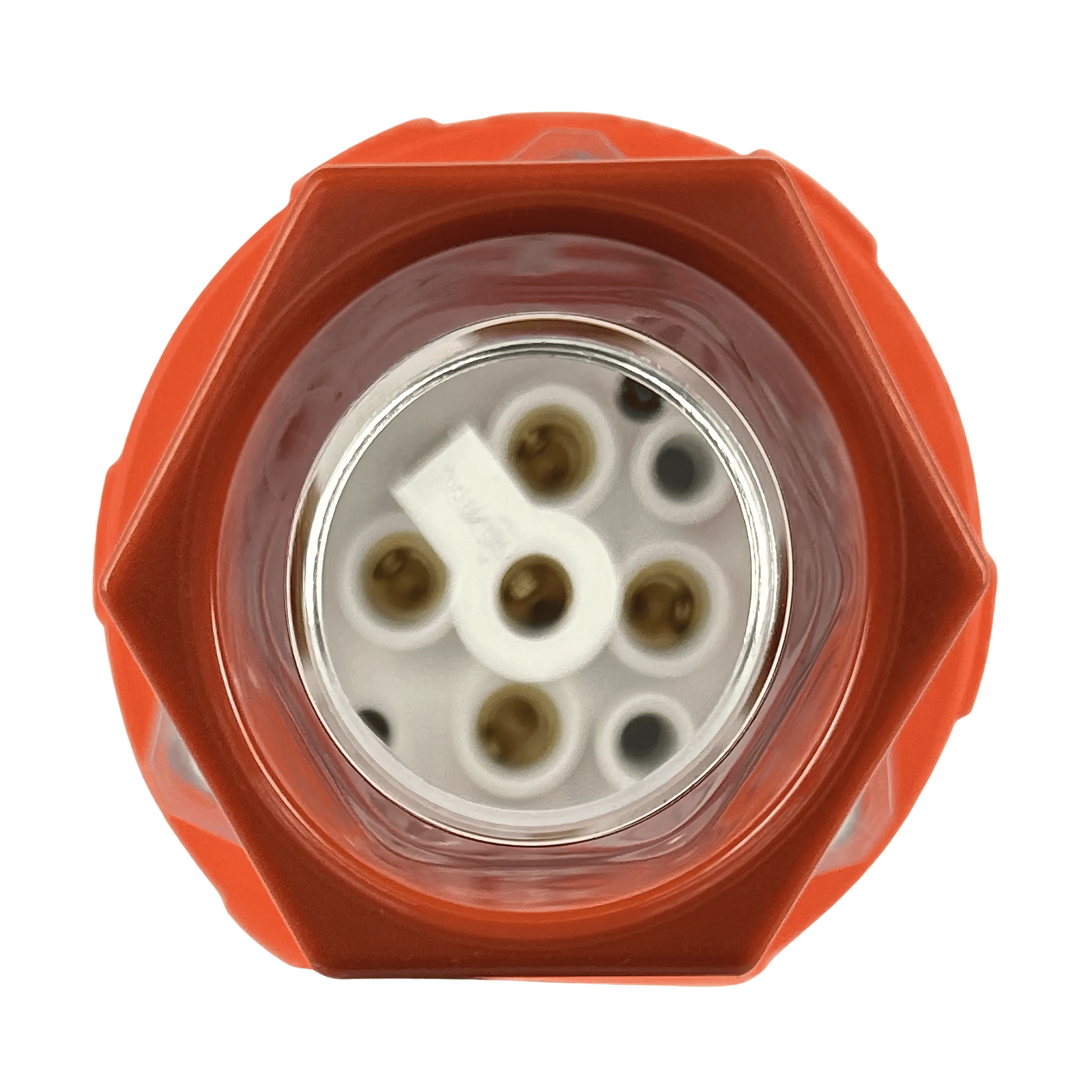

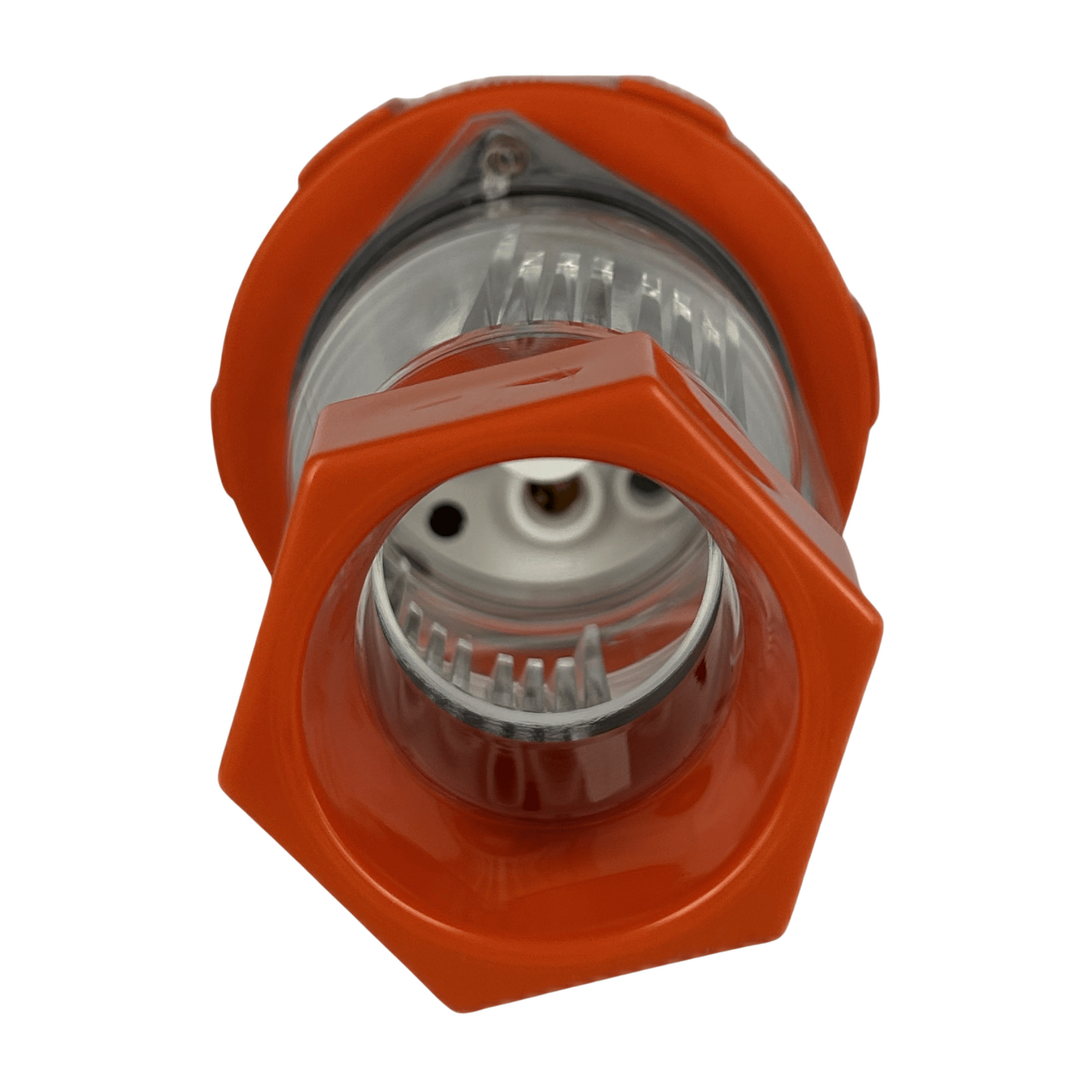

An IP66 degree of protection means the plug is dust-tight and protected against powerful water jets. On sites where the connection sits outdoors, in a washdown zone, or in a dusty yard, that seal is what stops moisture and grit reaching the contacts. The 50 mm cable gland maintains that seal at the point where cable enters the body, and accepts cable from 40 mm to 66 mm outer diameter.

Screw terminals and Electric Orange, built for the field

Screw terminal connections mean terminations can be made and re-made with hand tools on site, without specialised crimping equipment. Electric Orange gives high visibility in a busy switchroom or on a cluttered site. The 66P563 is covered by an 18 month manufacturer warranty and is a halogen free product.

What is the Clipsal 66P563-EO rated for?
It is rated 63 amps at 500 volts, 50/60 Hz, conforming to EN 60309-2. It uses a 5 round pin configuration.

Is the Clipsal 66P563-EO weatherproof?
Yes. The 66P563-EO carries an IP66 degree of protection, meaning it is dust-tight and protected against powerful water jets from any direction.

What size cable does the Clipsal 66P563-EO accept?
Cable enters through a 50 mm cable gland sized for cable of 40 mm to 66 mm outer diameter, and terminates at screw terminals inside the plug body.
