Power Board 5 Pin 32A to 3 Pin 15A RCBO Protected 7 Switched Outlets 2m Lead

Description

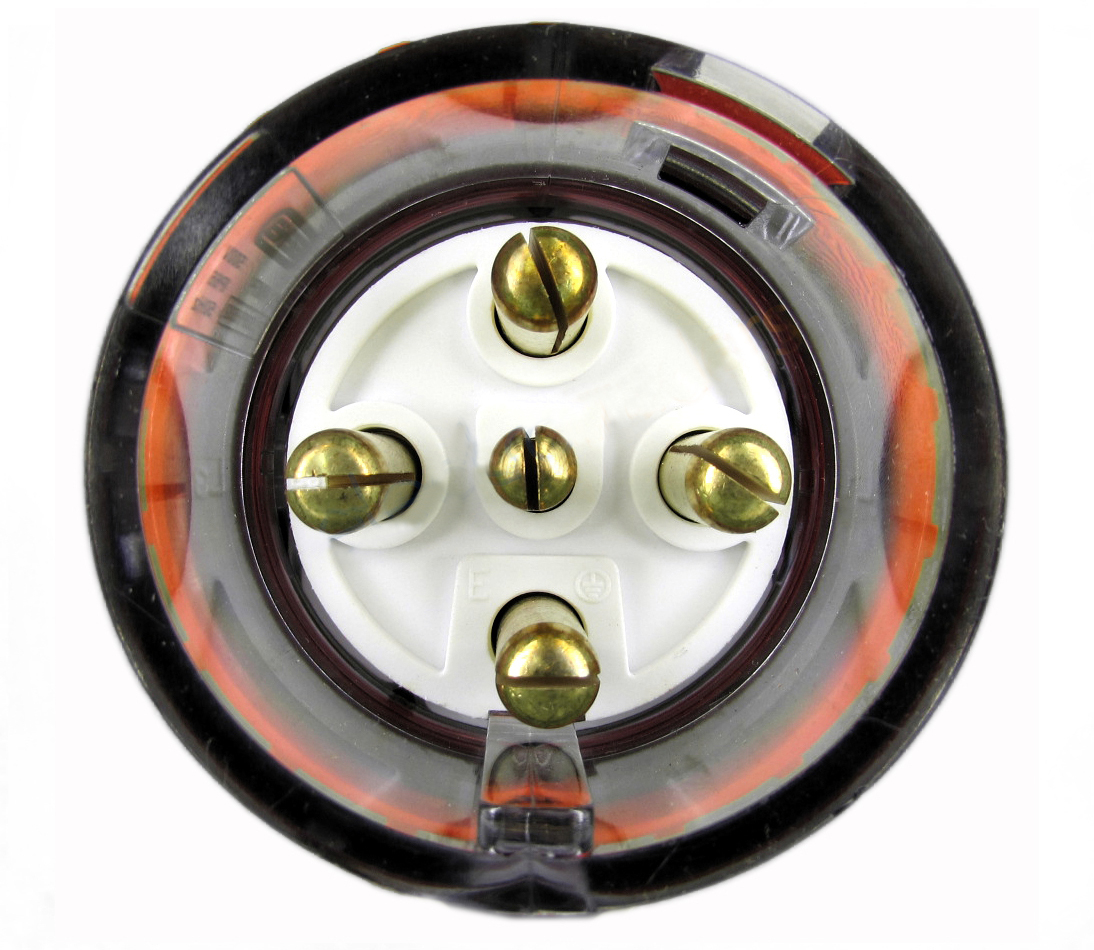

• Power Board 5 Pin 32A Jumbo to 3 Pin 15A RCBO Protected
• 24 month warranty on all products. Warranty does not extend to misuse.
• Please consult with a qualified electrician or engineer about the suitability of this product for your intended purpose.
• All Electrotraders Power Boards are assembled, tested and tagged in-house by our Licenced Electricians.

Lead Time:

• Standard: 1-2 days dispatch from order. We will advise if outside of this range.
• Expedited: prioritised for assembly and dispatched within 24 hours. If you need this service, select ""expedited shipping"" at the checkout.

Choose your configuration:

• Socket configurations available:

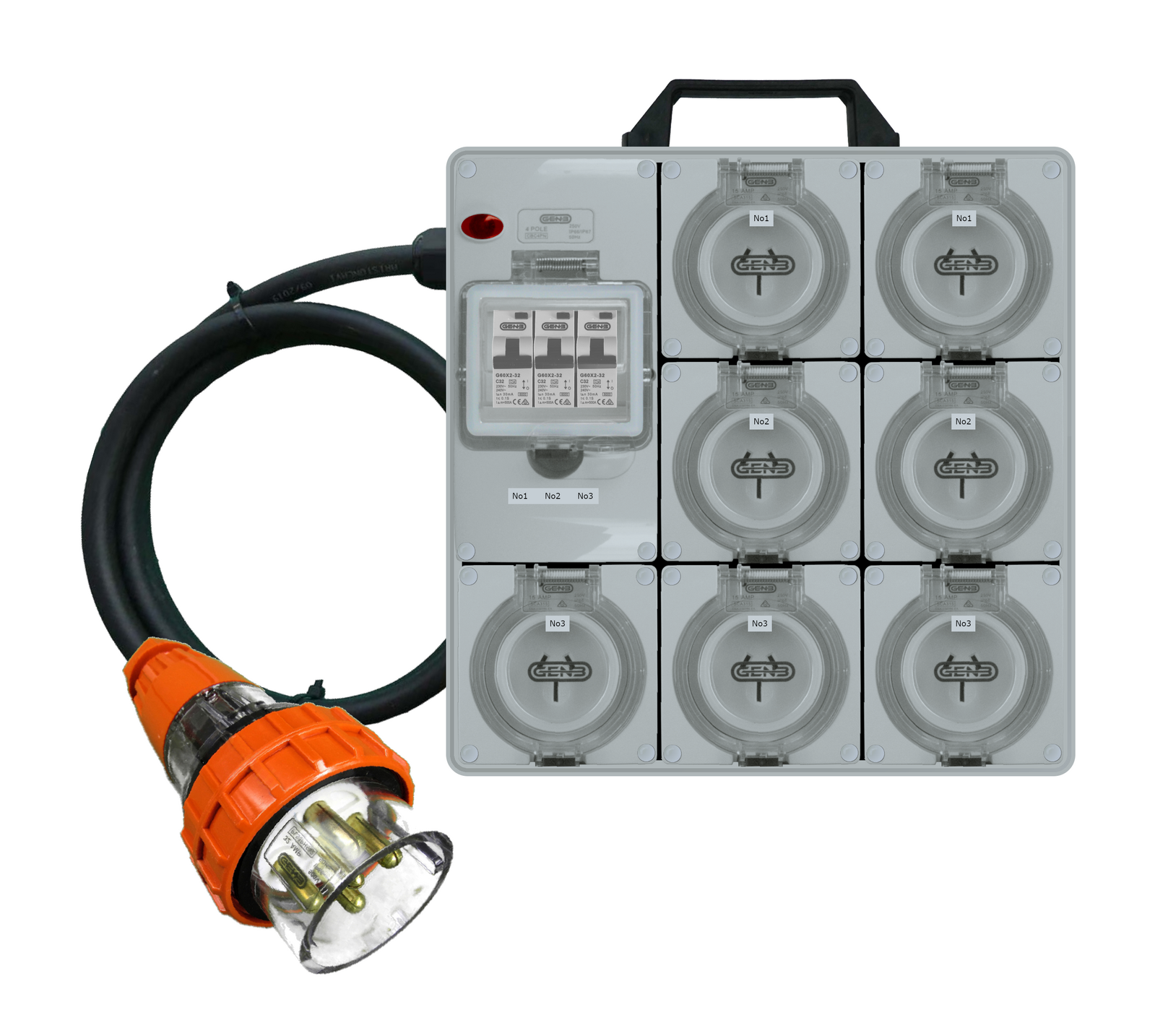

  • 7 Socket option:
    • 7 x 3 Pin 15 Amp (Auto Switched) Single Phase 240 Volt Outlets from a 5 Pin 32 Amp Three Phase supply
    • Circuit Protected by 3 x Double Pole GEN3 32 Amp 6kA RCBO (two each protecting two 15A sockets and the other protects three 15A sockets)
    • Mounted inside a 9 Module Base with approx dimensions (mm) 300w x 300h x 100d
    • Plug lead is Five Core: Cross-Sectional Area (CSA) = 4mm2, Nominal Sheath Thickness (NST) = 2.2mm, Max DC Resistance @20degC = 5.09 ohms/KM, Nominal Diameter (NOD) = 15.9mm, Amperage rating = 36 (in accordance with AS/NZS 3008.1.1.2009 Table 14), Weight 421 Kg/Km
  • 10 Socket option:
    • 10 x 3 Pin 15 Amp (Auto Switched) Single Phase 240 Volt Outlets from a 5 Pin 32 Amp Three Phase supply
    • Circuit Protected by 3 x Double Pole GEN3 32 Amp 6kA RCBO (two each protecting three 15A sockets and the other protects four 15A sockets)
    • Mounted inside a 12 Module Base with approx dimensions (mm) 400w x 300h x 100d
    • Plug lead is Five Core: Cross-Sectional Area (CSA) = 4mm2, Nominal Sheath Thickness (NST) = 2.2mm, Max DC Resistance @20degC = 5.09 ohms/KM, Nominal Diameter (NOD) = 15.9mm, Amperage rating = 36 (in accordance with AS/NZS 3008.1.1.2009 Table 14), Weight 421 Kg/Km
  • Lead: choose from a range of lead (cable) lengths to suit your needs.
  • Hanging Bracket: Optional fitted stainless steel hanging bracket (not available on some configurations).
  • Handle: Insulated handle (140mm) is included with all boards.
  • Actual product layout may differ from the displayed image, depending on your chosen options. Be assured that components and specifications will match the description here.

  IMPORTANT: Avoid extra costs and fees of ordering the wrong product. Before you order: confirm the compatibility of the plug and sockets on the power board. i.e. 5 Pin 32A, 5 Pin 20A, 5 Pin 10A etc. If you aren't sure, contact us, we are happy to help.

  Switch Gear:

  GEN3:

  • Switch Gear and power board module bases are Series 56 style IP66 Rated sourced from high quality reputable Australian brands, and are compatible with all leading Australian switch gear.
  • Plastics are PCA18 virgin grade (No regrind)
  • Products use 316 Stainless Steel Springs and Mounting Screws.
  • Brass internal components are greater than 85% copper.
  • Products have Australian/NZ Approval Certificates.
  • Products are interchangeable with other major brands.

  Clipsal:

  • Switchgear and enclosures are IP66 Rated
  • Constructed from high-quality, UV-stabilized polycarbonate for durability and resistance to harsh environments
  • Products use 316 Stainless Steel screws and are covered by retaining caps
  • Products utilize high-quality brass and copper components in their internal mechanisms
  • Products have Australian/NZ Approval Certificates and comply with relevant standards such as AS/NZS 3123 and AS/NZS 3133
  • A broad range of modular components, allowing for flexible configurations and interchangeability

  Note: Automatic Switched sockets are used for Single Phase 3 Pin 10A and 15A sockets (no separate switch required), all other sockets contain a surface switch in the form of a combined socket & switch module

  Cable Properties:

  • Leads use Multi Core Rubber Insulated and Sheathed Flexible Power Cable insulated with Ethylene-propylene rubber (EPR) R-EP-90 90 deg C Conductor
  • Please consult with a qualified electrician or engineer about the product for your intended purpose.
  • Conductors are Class 5 tinned copper according to AS/NZS 1125,IEC 60228
  • H07 Grade Rubber Flex cable has a submersible rating of 200m (suitable for fresh water, salt water, sewage/contaminated water), is UV sunlight / oil / weather resistant and flame retardant to IEC 0332-1-2:2004,EN60332-1-2-2004.
  • Outer jacket (black colour) made of Chlorinated Polyethylene, CPE rubber compound
  • Rated Voltage 0.6/1kV
