$99.00
- 25 In Stock
- 0 Reviews

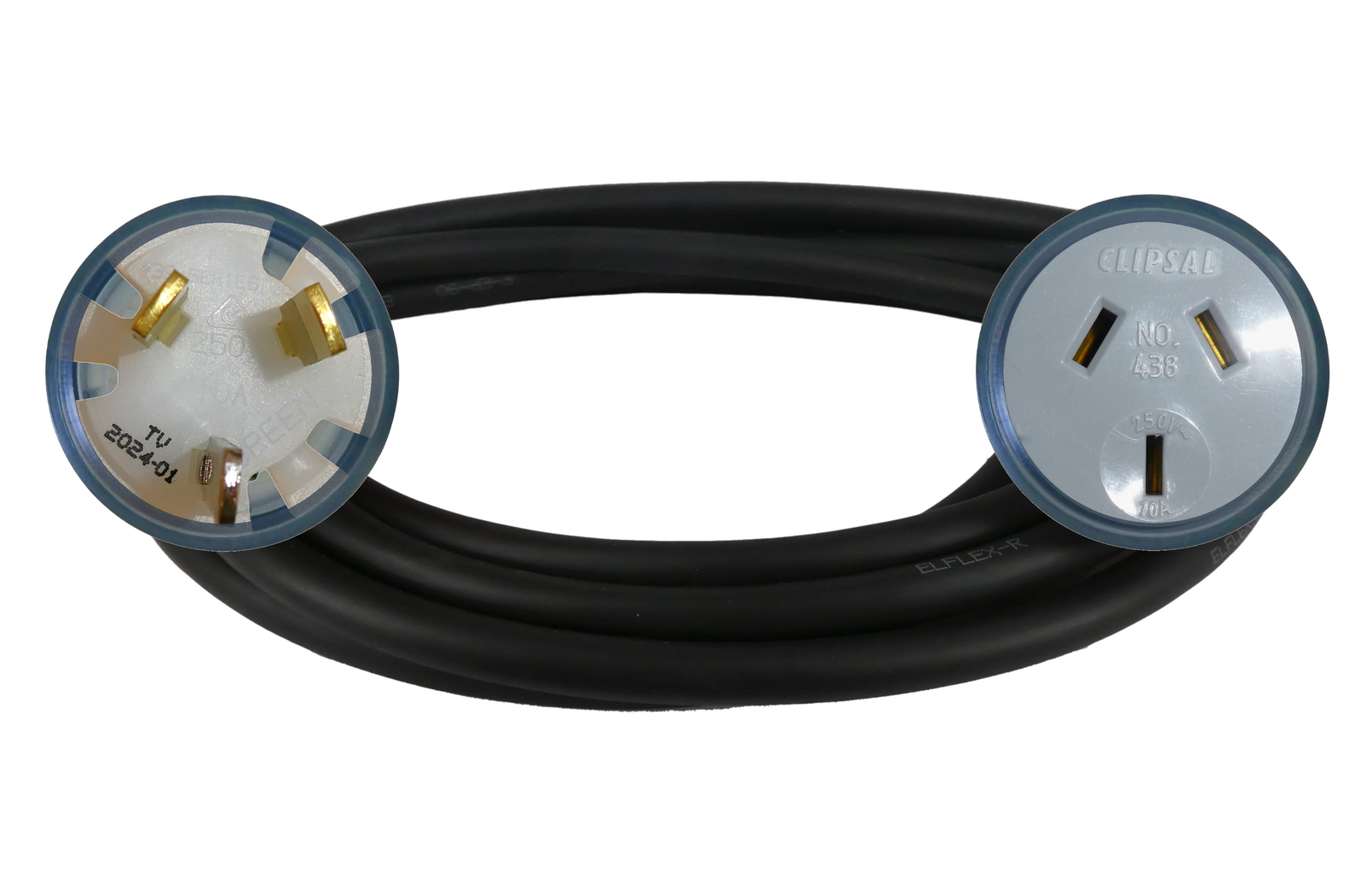

High quality extension lead assembled, tested and tagged by our licensed electricians in Australia. Extension Lead 3 Pin 10 Amp Straight Domestic Plug 2 metre Extra Heavy Duty 1.5mm rubber cable 240V
Why a Rubber Extension Lead is ideal for Home EV Charging?
Our 10 amp domestic extension leads are designed for high performance and safety, making them ideal for home EV charging. Here??s why rubber extension leads are a strong choice:
Hand-Made to Industrial Standards: Each lead is hand-made in Australia, with screwed connections and conductors crimped with boot lace pins, ensuring durability and safety. Unlike cheap machine-pressed PVC leads, which can fail and overheat, our leads are built for long-term reliability and safety. All assembled leads are made by licenced Electricians with test and tag included.
Superior Materials: H07 rubber is a superior insulator to PVC. Our rubber cable uses tinned copper, which offers a higher amp rating and heat resistance compared to standard copper in a cheap PVC extension lead. H07 rubber and tinned copper help prevent dangerous heat buildup during extended EV charging.
Exceptional Durability: Known for their flexibility, flame retardancy, and resistance to brittleness, H07 rubber cables remain easy to handle and coil over time.
>>>>>>>>>>>>>>>>>>>>

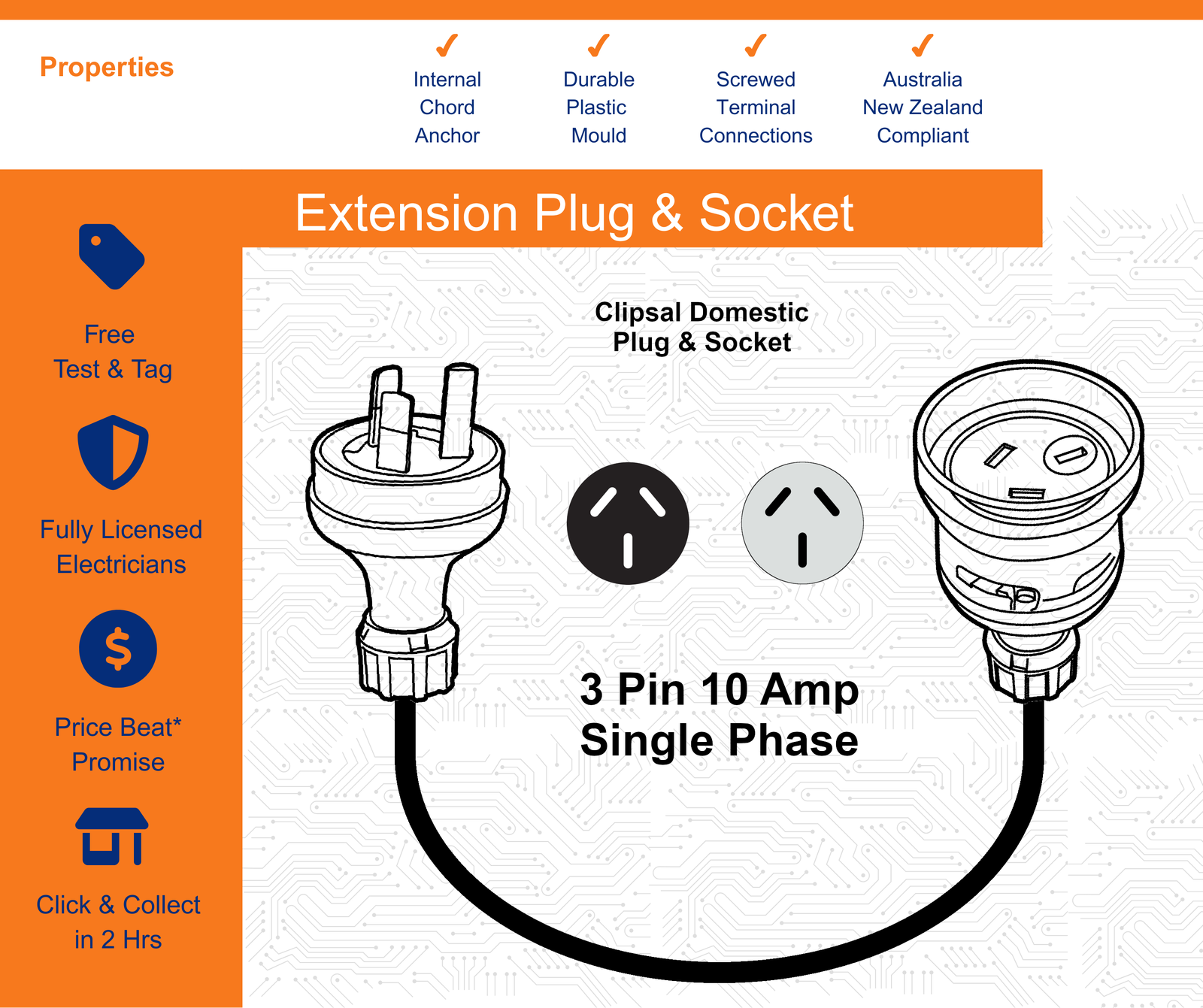

- Extension Lead 3 Pin 10 Amp Domestic 240V
- 24 month warranty on all product. Warranty does not extend to misuse.
- All Electrotraders Extension Leads are assembled, tested and tagged in-house by our Licenced Electricians.
- All Plugs and Sockets are source from high quality reputable Australian brands and are compatible with all leading Australian switch gear.
- Leads are assembled using Multi Core Rubber Insulated and Sheathed Flexible Power Cable insulated with Ethylene-propylene rubber (EPR) R-EP-90 90 deg C Conductor
- Conductors are Class 5 tinned copper according to AS/NZS 1125,IEC 60228

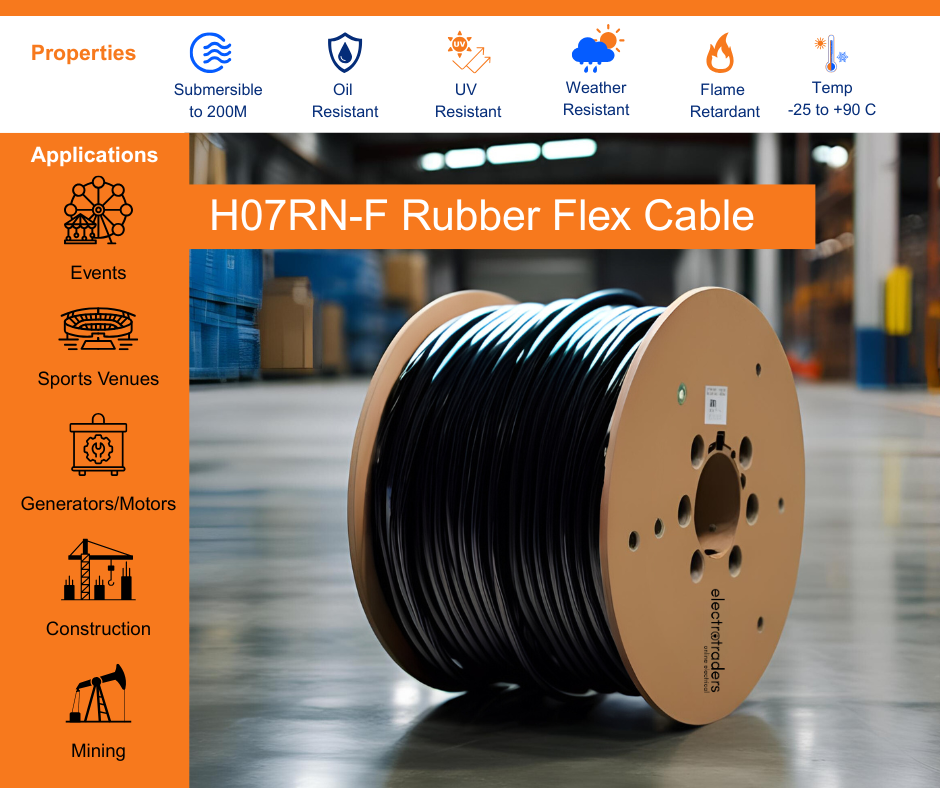

- H07 Grade Rubber Flex cable has a submersible rating of 200m (suitable for fresh water, salt water, sewage/contaminated water), is UV sunlight / oil / weather resistant and flame retardant to IEC 0332-1-2:2004,EN60332-1-2-2004.
- Outer jacket (black colour) made of Chlorinated Polyethylene, CPE rubber compound
- Cable Specifications: cross-sectional area (CSA in mm2), Nominal Sheath Thickness (NST in mm), Max DC Resistance @20?øC (MaxR in ohms/KM), Nominal Diameter (NOD in mm), Amperage rating (in accordance with AS/NZS 3008.1.1.2009 Table 14)
- Standard: CSA 0.75mm2, NST 0.9mm, MaxR 26.7, NOD 6.9mm, Amps 10, Weight 75 Kg/Km
- Heavy Duty: CSA 1mm2, NST 1.4mm, MaxR 20, NOD 9mm, Amps 16, Weight 123 Kg/Km
- Extra Heavy Duty: CSA 1.5mm2, NST 1.6mm, MaxR 13.7, NOD 10.3mm, Amps 20, Weight 158 Kg/Km
- Rated Voltage 0.6/1kV
- Suitable for both domestic and commercial use, these quality extension leads use rubber insulated cable for maximum reliability and durability.
- Ideal for indoor usage, the plugs and sockets are compatible with standard outlets and due to standard sizing, will not take us excessive space on a double power point or power board (as some more industrial plugs might).
- Use if for your caravan and camping activities due to the high quality rubber cable. Or around the house including EV Charging, knowing that the quality materials will stand the test of time and weather.
- Please consult with a qualified electrician or engineer about the suitability of this cable for your intended purpose.
- Prior to ordering your product check and confirm the compatibility of the plug and socket on the lead. ie 5 Pin 32A, 5 Pin 20A, 5 Pin 10A etc. If you are unsure contact us and we will be happy to help. This will avoid the inconvenience and extra cost should the incorrect lead be purchased.
(ext3p10ad)
SKU | ext3p10ad |
Manfacturer Part Number | ext3p10ad |
Brand | Electrotraders |
