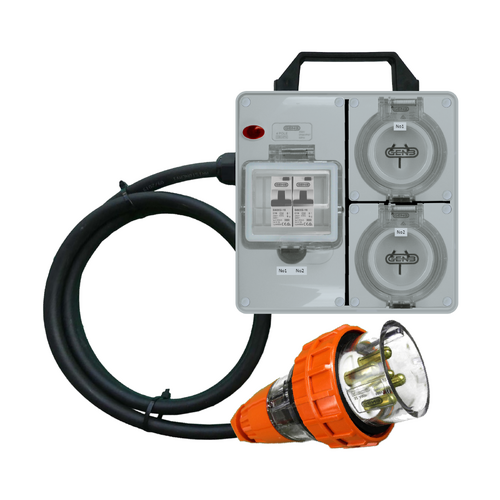

High quality power board assembled, tested and tagged by licensed electricians in Australia. Power Board 5 Pin 32A to 3 Pin 15A RCBO Protected 2 Switched Outlets 2m Lead
- Power Board 5 Pin 32A to 3 Pin 15A RCBO Protected
- 24 month warranty on all products. Warranty does not extend to misuse.
- Please consult with a qualified electrician or engineer about the suitability of this product for your intended purpose.
- All Electrotraders Power Boards are assembled, tested and tagged in-house by our Licenced Electricians.
Lead Time:
- Standard: 1-2 days dispatch from order. We will advise if outside of this range.
- Expedited: prioritised for assembly and dispatched within 24 hours. If you need this service, select expedited shipping at the checkout.
Choose your configuration:
- Socket configurations available:

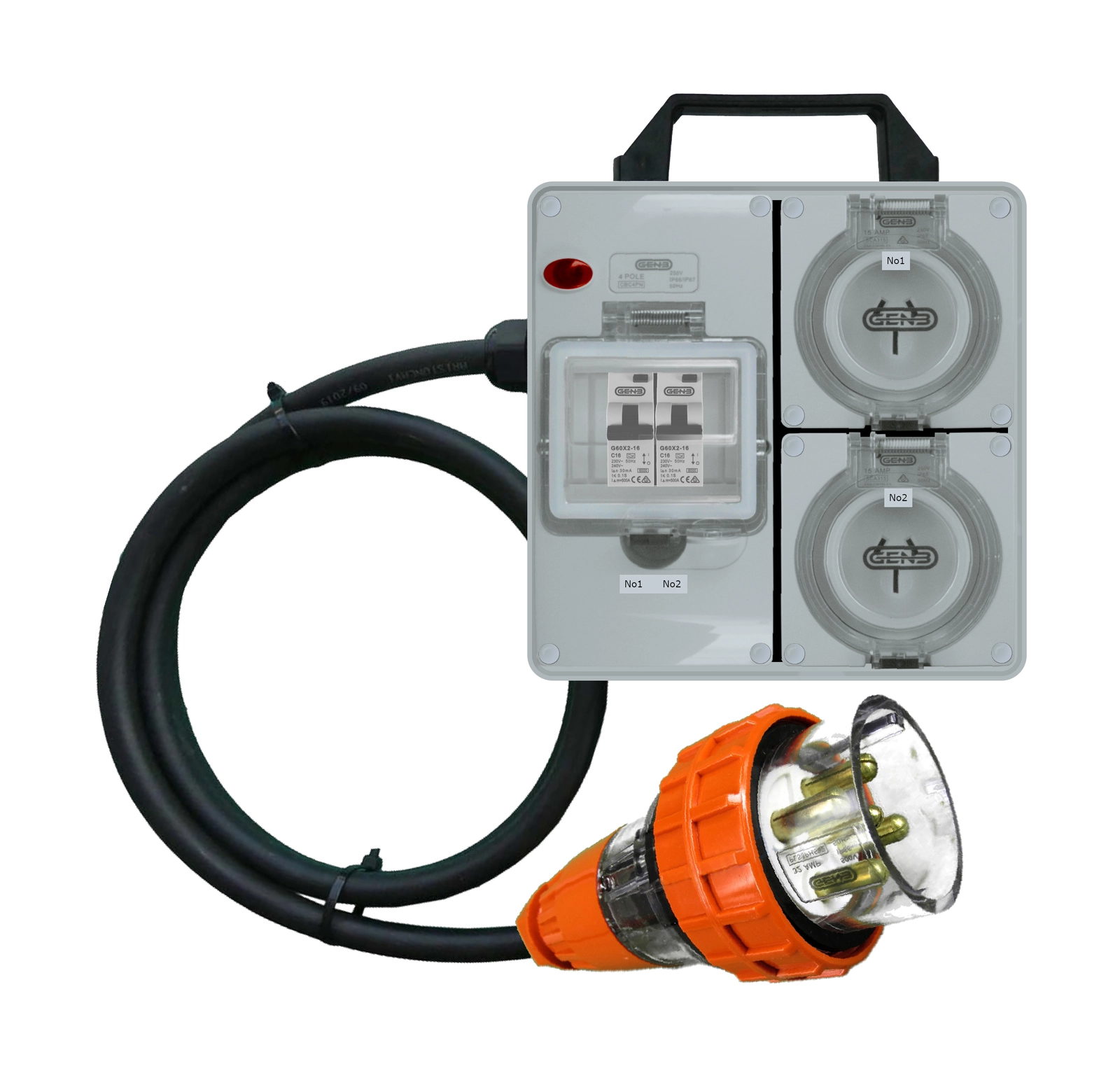

- 2 Socket option:

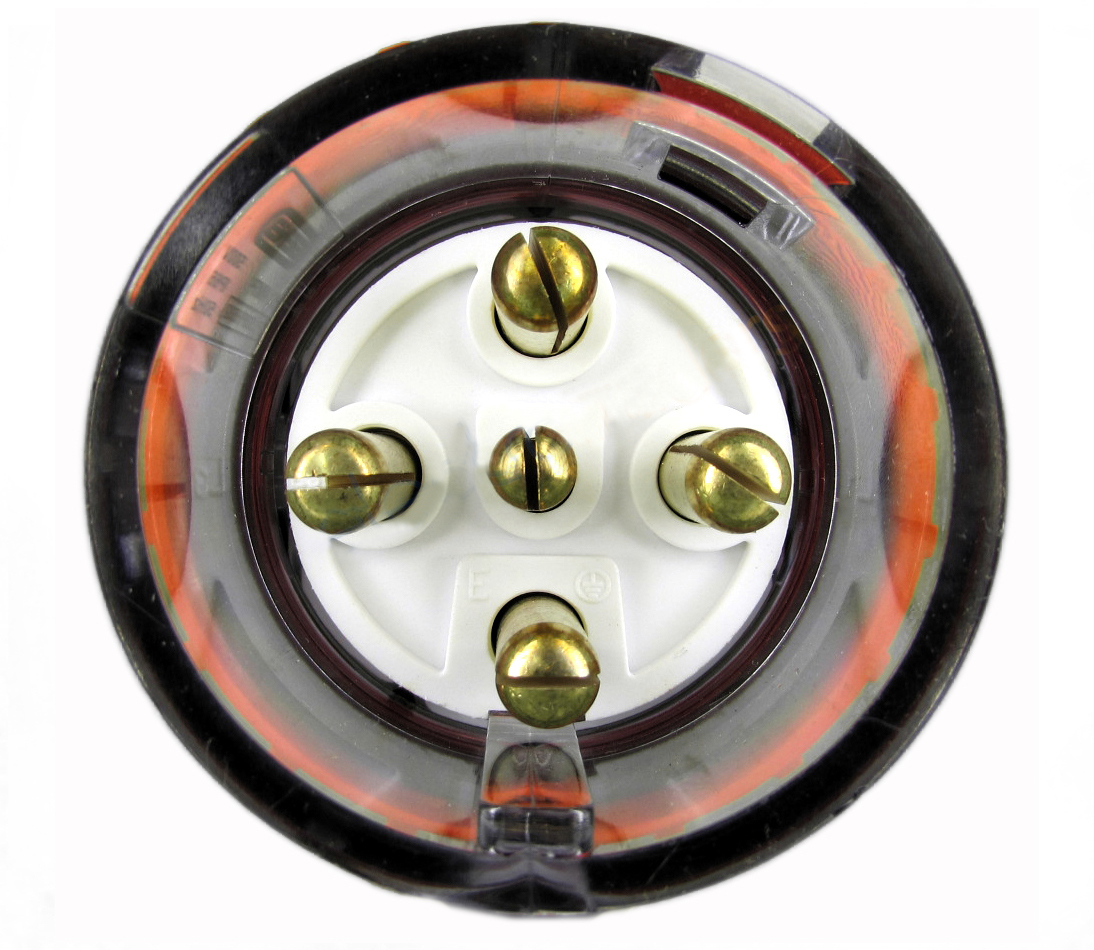

- 2 x 3 Pin 15 Amp (Auto Switched) Single Phase 240 Volt Outlets from a 5 Pin 32 Amp Three Phase supply
- Circuit Protected by 2 x Double Pole GEN3 16 Amp 6kA RCBOs
- Mounted inside a 4 Module Base with approx dimensions (mm) 200w x 200h x 100d
- Plug lead is Four Core: Cross-Sectional Area (CSA) = 4mm2, Nominal Sheath Thickness (NST) = 2.1mm, Max DC Resistance @20degC = 5.09 ohms/KM, Nominal Diameter (NOD) = 14.9mm, Amperage rating = 36 (in accordance with AS/NZS 3008.1.1.2009 Table 14), Weight 368 Kg/Km
- 4 Socket option:
- 4 x 3 Pin 15 Amp (Auto Switched) Single Phase 240 Volt Outlets from a 5 Pin 32 Amp Three Phase supply
- Circuit Protected by 2 x Double Pole GEN3 16 Amp 6kA RCBOs (each protecting one 15A sockets) and 1 x Double Pole GEN3 32 Amp 6kA RCBO (protecting two 15A sockets)
- Mounted inside a 6 Module Base with approx dimensions (mm) 300w x 200h x 100d
- Plug lead is Five Core: Cross-Sectional Area (CSA) = 4mm2, Nominal Sheath Thickness (NST) = 2.2mm, Max DC Resistance @20degC = 5.09 ohms/KM, Nominal Diameter (NOD) = 15.9mm, Amperage rating = 36 (in accordance with AS/NZS 3008.1.1.2009 Table 14), Weight 421 Kg/Km
- 6 Socket option:
- 6 x 3 Pin 15 Amp (Auto Switched) Single Phase 240 Volt Outlets from a 5 Pin 32 Amp Three Phase supply
- Circuit Protected by 3 x Double Pole GEN3 32 Amp 6kA RCBOs (each protecting two 15A sockets)
- Mounted inside an 8 Module Base with approx dimensions (mm) 400w x 200h x 100d
- Plug lead is Five Core: Cross-Sectional Area (CSA) = 4mm2, Nominal Sheath Thickness (NST) = 2.2mm, Max DC Resistance @20degC = 5.09 ohms/KM, Nominal Diameter (NOD) = 15.9mm, Amperage rating = 36 (in accordance with AS/NZS 3008.1.1.2009 Table 14), Weight 421 Kg/Km
- 6 Socket option (back-to-back module bases):
- 6 x 3 Pin 15 Amp (Auto Switched) Single Phase 240 Volt Outlets from a 5 Pin 32 Amp Three Phase supply
- Circuit Protected by 3 x Double Pole GEN3 32 Amp 6kA RCBOs (each protecting two 15A sockets)
- Mounted inside two back-to-back 4 Module Bases with combined approx dimensions (mm) 200w x 200h x 200d
- Plug lead is Five Core: Cross-Sectional Area (CSA) = 4mm2, Nominal Sheath Thickness (NST) = 2.2mm, Max DC Resistance @20degC = 5.09 ohms/KM, Nominal Diameter (NOD) = 15.9mm, Amperage rating = 36 (in accordance with AS/NZS 3008.1.1.2009 Table 14), Weight 421 Kg/Km
- 10 Socket option:
- 10 x 3 Pin 15 Amp (Auto Switched) Single Phase 240 Volt Outlets from a 5 Pin 32 Amp Three Phase supply
- Circuit Protected by 3 x Double Pole GEN3 32 Amp 6kA RCBOs (one protects four 15A sockets and other two each protect three 15A sockets)
- Mounted inside two back-to-back 6 Module Bases with combined approx dimensions (mm) 300w x 200h x 200d
- Plug lead is Five Core: Cross-Sectional Area (CSA) = 4mm2, Nominal Sheath Thickness (NST) = 2.2mm, Max DC Resistance @20degC = 5.09 ohms/KM, Nominal Diameter (NOD) = 15.9mm, Amperage rating = 36 (in accordance with AS/NZS 3008.1.1.2009 Table 14), Weight 421 Kg/Km
- 2 Socket option:
- Lead: choose from a range of lead (cable) lengths to suit your needs.
- Hanging Bracket: Optional fitted stainless steel hanging bracket (not available on some configurations).
- Handle: Insulated handle (140mm) is included with all boards.
- Actual product layout may differ from the displayed image, depending on your chosen options. Be assured that components and specifications will match the description here.
IMPORTANT: Avoid extra costs and fees of ordering the wrong product. Before you order: confirm the compatibility of the plug and sockets on the power board. i.e. 5 Pin 32A, 5 Pin 20A, 5 Pin 10A etc. If you aren't sure, contact us, we are happy to help.
Switch Gear:
- All GEN3 Industrial Switch Gear and power board module bases are Series 56 style IP66 Rated sourced from high quality reputable Australian brands, and are compatible with all leading Australian switch gear.
- All GEN3 plastics are PCA18 virgin grade (No regrind)
- All GEN3 products use 316 Stainless Steel Springs and Mounting Screws.
- All Brass internal components are greater than 85% copper.
- All GEN3 products have Australian/NZ Approval Certificates.
- All GEN3 products are interchangeable with other major brands.
- Automatic Switched sockets are used for Single Phase 3 Pin 10A and 15A sockets (no separate switch required), all other sockets contain a surface switch in the form of a combined socket & switch module
Cable Properties:
- Leads use Multi Core Rubber Insulated and Sheathed Flexible Power Cable insulated with Ethylene-propylene rubber (EPR) R-EP-90 90 deg C Conductor
- Please consult with a qualified electrician or engineer about the product for your intended purpose.
- Conductors are Class 5 tinned copper according to AS/NZS 1125,IEC 60228
- H07 Grade Rubber Flex cable has a submersible rating of 200m (suitable for fresh water, salt water, sewage/contaminated water), is UV sunlight / oil / weather resistant and flame retardant to IEC 0332-1-2:2004,EN60332-1-2-2004.
- Outer jacket (black colour) made of Chlorinated Polyethylene, CPE rubber compound
- Rated Voltage 0.6/1kV
(pob532x315)
SKU | pob532x315 |
Manfacturer Part Number | pob532x315 |
Brand | Electrotraders |
