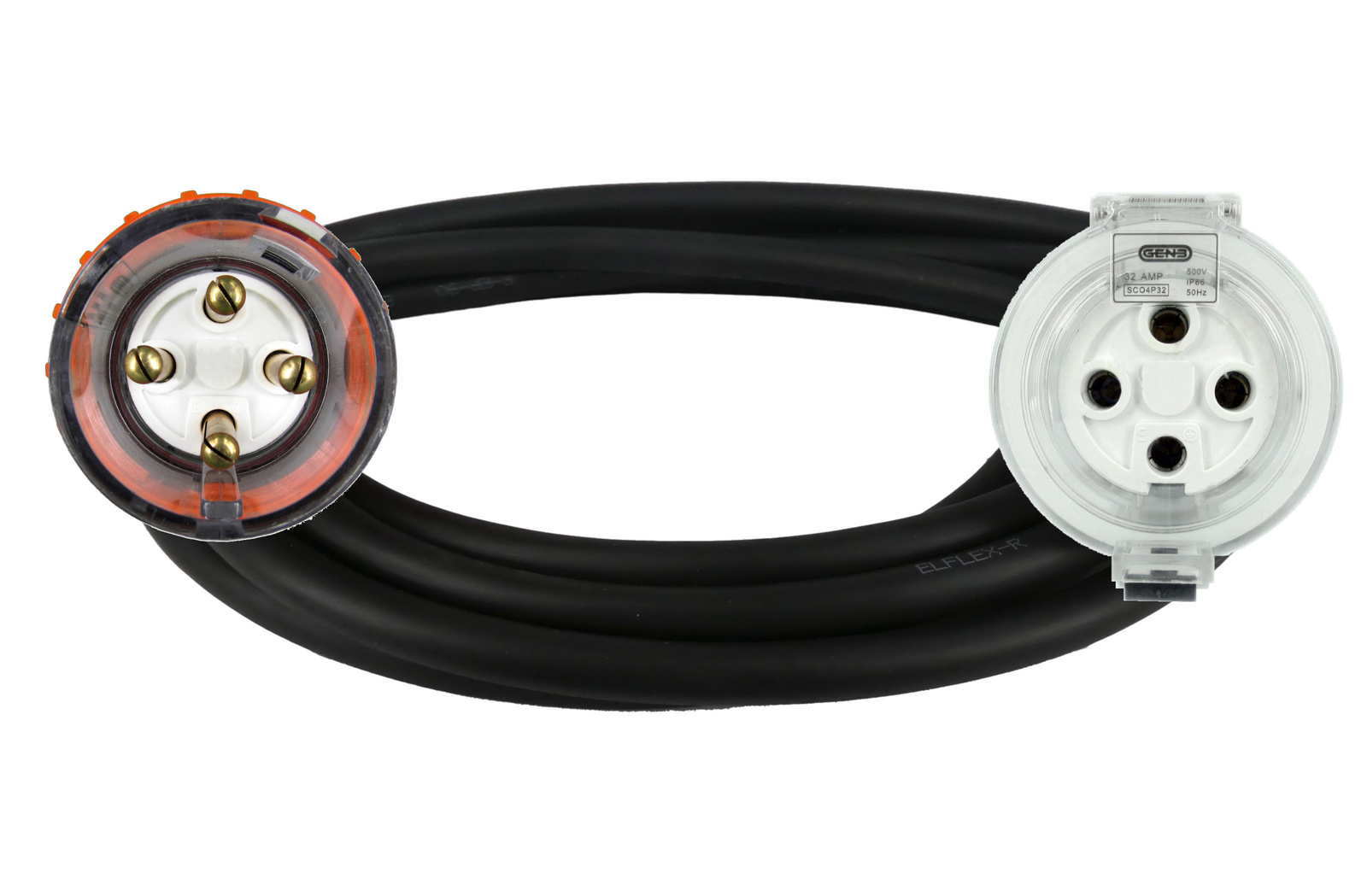

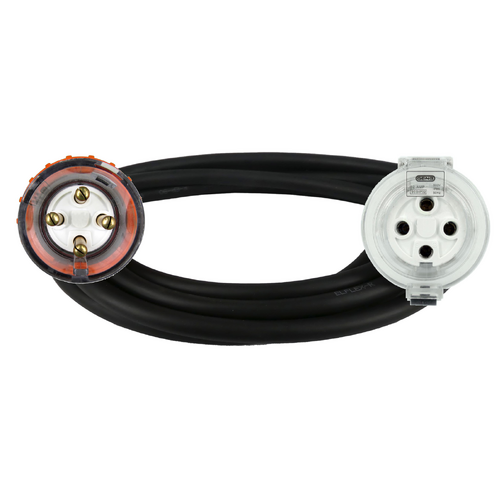

Extension Lead 4 Pin 32 Amp Round Pin Angled Plug 2m Standard Duty 4mm cable

Description

Site ready 32 Amp three phase power, made to order.

A 4 pin round 32 Amp extension lead sends 415V three phase power through three actives and an earth. Standard 4mm² and Heavy Duty 6mm² cable grades span lengths of 2m to 60m, and every lead is tested and tagged before it leaves the workshop.

High quality extension lead:

• Extension Lead 4 Pin Round 32 Amp 415V
• 24 month warranty on all products. Warranty does not extend to misuse.
• Please consult with a qualified electrician or engineer about the suitability of this product for your intended purpose.
• All Electrotraders Extension Leads are assembled, tested and tagged in-house by our Licenced Electricians.

Choose your configuration:

• Available in lengths (m): 2, 3, 5, 10, 15, 20, 25, 30, 40, 50, 60 (Note: configurations may not offer all length options due to component availability or electrical characteristics)
• Cable Specifications: cross-sectional area (CSA in mm2), Nominal Sheath Thickness (NST in mm), Max DC Resistance @20°C (MaxR in ohms/KM), Nominal Diameter (NOD in mm), Amperage rating (in accordance with AS/NZS 3008.1.1.2009 Table 14)
  • Standard: CSA 4mm2, NST 2.1mm, MaxR 5.09, NOD 14.9mm, Amps 36
  • Heavy Duty: CSA 6mm2, NST 2.3mm, MaxR 3.39, NOD 16.9mm, Amps 46
  • Extra Heavy Duty: Not available (due to plug / socket neck size limitation)
• Typically used at events & temporary cabling, fairgrounds, sporting venues, for generators / motors / compressors / construction applications including portable equipment such as concrete cutting.

IMPORTANT: Avoid extra costs and fees of ordering the wrong product. Before you order: confirm the compatibility of the plug and sockets i.e. 4 Pin 32A, 4 Pin 20A, 4 Pin 10A etc. If you aren't sure, contact us, we are happy to help.

Switch Gear:

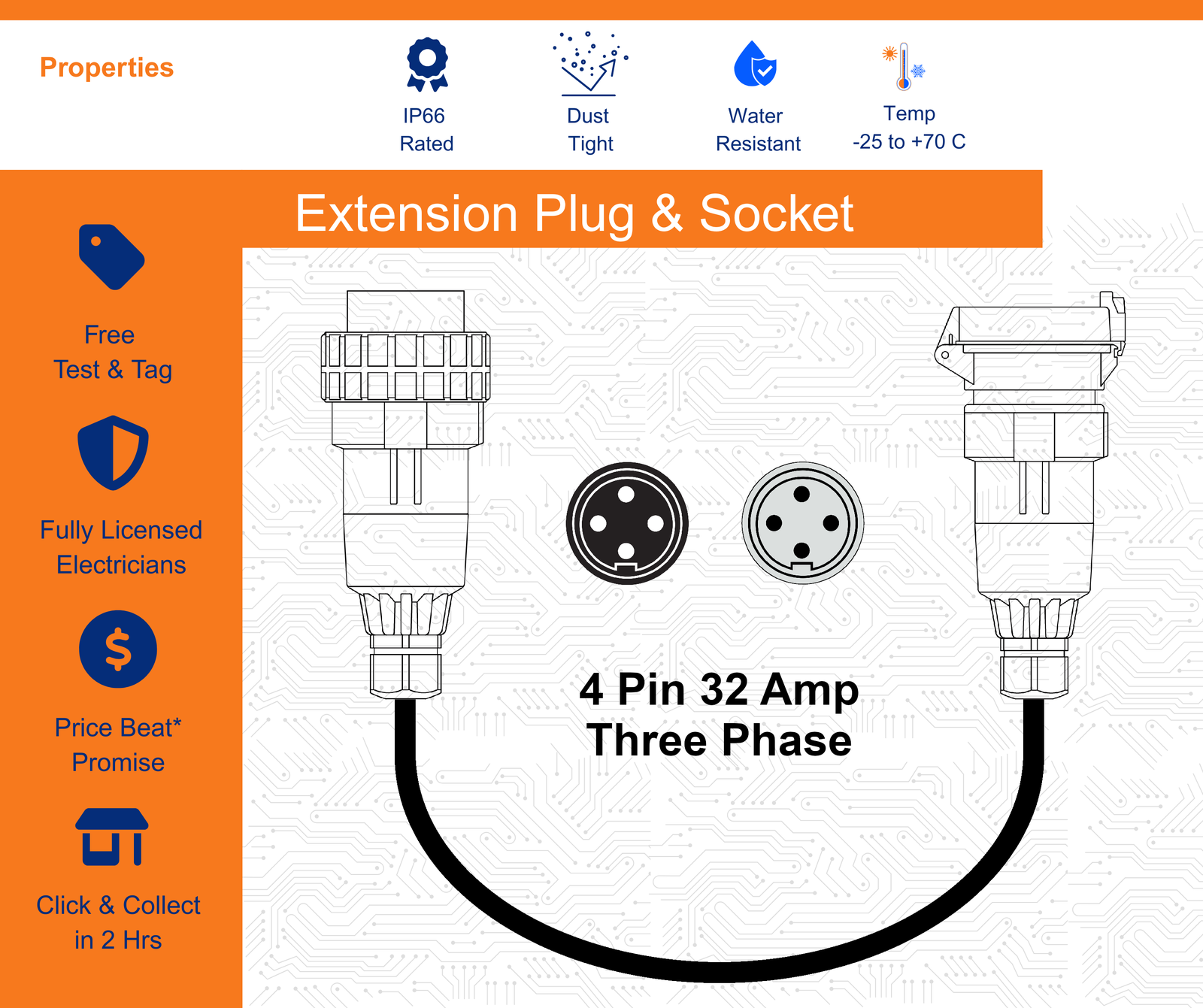

• All Plugs and Sockets are source from high quality reputable Australian brands, are IP66 rated and are compatible with all leading Australian switch gear.
• Choose from our regular high quality GEN3 plugs and sockets, or upgrade to industry leading Clipsal gear (available on some product options only)

Cable Properties:

• Leads are assembled using Multi Core Rubber Insulated and Sheathed Flexible Power Cable insulated with Ethylene-propylene rubber (EPR) R-EP-90 90 deg C Conductor
• Conductors are Class 5 tinned copper according to AS/NZS 1125,IEC 60228
• H07 Grade Rubber Flex cable has a submersible rating of 200m (suitable for fresh water, salt water, sewage/contaminated water), is UV sunlight / oil / weather resistant and flame retardant to IEC 0332-1-2:2004,EN60332-1-2-2004.
• Outer jacket (black colour) made of Chlorinated Polyethylene, CPE rubber compound
• Rated Voltage 0.6/1kV

Add yours to cart for fast dispatch Australia-wide.

Proven across Australian industries. Concrete cutters, generators, motors and compressors on construction jobs, temporary cabling through events, fairgrounds and sporting venues: this is the territory the 4 core H07 grade rubber flex was made for, resisting UV, oil and weather, staying flame retardant, and carrying a 200m submersible rating, with IP66 rated plugs and sockets shutting out dust and water jets at each end.

Standard or Heavy Duty for your run? Both grades clear the 32 Amp rating of this lead under AS/NZS 3008.1.1.2009 Table 14: Standard 4mm² carries 36 Amps and covers everyday distances, while Heavy Duty 6mm² carries 46 Amps and cuts maximum DC resistance from 5.09 to 3.39 ohms/KM. At a full 32 Amp draw that lower resistance pays off, so go Heavy Duty on 40m to 60m runs or where stable supply voltage is critical.

Assembled, tested and tagged in Rochedale QLD. Every lead is put together in our Brisbane workshop by licensed Australian electricians, test tagged before dispatch and covered by a 24 month warranty. Delivery reaches every corner of Australia, click and collect suits local pickups, and 1300 017 197 handles custom lengths and bulk order quotes.

Q: What is a 4 pin 32 amp extension lead used for?
A: It feeds 415V three phase power to equipment carrying a 4 pin round 32A plug, typically generators, motors, compressors and construction machinery such as concrete cutting equipment, plus temporary cabling runs at events, fairgrounds and sporting venues.

Q: Can I get a 60m three phase extension lead?
A: Yes, this lead is available up to 60m in both Standard 4mm² and Heavy Duty 6mm² grades. For the longest runs, Heavy Duty is recommended because its 3.39 ohms/KM resistance keeps voltage drop lower at full 32 Amp load.

Q: Can I get this extension lead with Clipsal plugs and sockets?
A: Yes. Selected configurations offer Clipsal fittings through the Switch Gear option, alongside our standard GEN3 gear. Both choices are IP66 rated and compatible with Australian switch gear.
