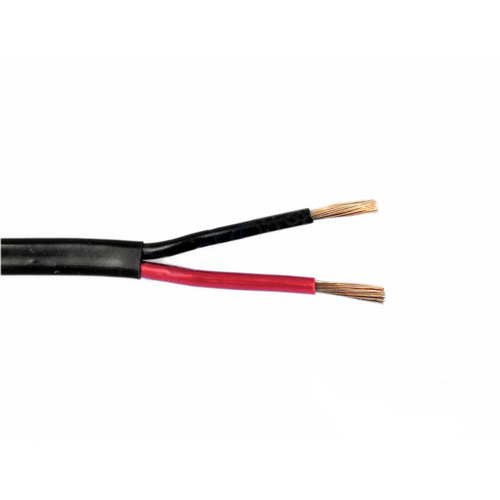

5mm Automotive Cable Twin Sheath Red Black 2 Core 30m Roll
SKU: cabtwiaut5.30m
Product Image Gallery
Product Pricing
$90.00 (ex-GST)
$99.00 (inc-GST)
$99.00
$90.00
Stock and Availability
- ⚫︎ Only 1 Left!
5mm Automotive Cable Twin Sheath Red Black 2 Core Per Metre
Electrotraders USPs
Description
5mm Twin Core Automotive Cable – Red/Black Sheath, 30m Roll (29A Rated)
This 5mm 2 core automotive cable is the ideal solution for powering high-draw 12V and 24V accessories in trailers, RVs, solar systems, and off-road builds. The 30m roll offers the right balance of flexibility and length for small-to-medium scale installations, repairs, or mobile setups.
With finely stranded, oxygen-free copper conductors and UV-resistant V90HT insulation, this cable delivers excellent current capacity and long-lasting performance in harsh Australian conditions. Colour-coded red and black cores ensure fast polarity identification during install.
Product Features:
-
Cable Type: Twin sheath – red/black 2 core
-
Conductor Size: 2.90 mm²
-
Construction: 41/0.30 plain annealed copper (AS/NZS1125)
-
Rated Current: 29 Amps
-
Voltage Rating: 50V AC / 120V DC (AS/NZS 3000:2000)
-
Outer Diameter: Approx. 4.60 x 8.0mm
-
Insulation: UV-stabilised V90HT PVC, 90°C rated
-
Material: 99.9% OFHC (oxygen-free high conductivity) copper
-
RoHS Compliant
-
Supplied as: 30m roll – ideal for compact or mobile installs
Trusted by professionals for high-reliability DC wiring in transport, solar, and custom power systems.
(cabtwiaut5.30m)
Specifications
| Product Details | |
| Product Code | ATS24103 |
| Strands | 41/0.30 mm |
| Nominal Area | 2.90 mm² |
| Industry Equivalent | 5.0 mm |
| Amperage Rating | 29 A |
| Sheath Thickness | 0.65 mm |
| Max DC Resistance @ 20°C | 6.43 Ω/km |
| Nominal OD | 4.60 × 8.0 mm |
| Mass | 8.40 kg/100m |
| Construction | |
| Conductor Type | Plain Annealed Copper (PCW) to AS/NZS1125 |
| Insulation | |
| Type | PVC V90HT (UV Stabilised) to AS3808:2000 |
| Features | |
| Voltage Rating | Automotive AC 50V / DC 120V |
| Temperature Rating | +90°C |
| RoHS Compliant | Yes |
| UV Resistant | Yes |
| Application Note | |
| Note | Not suitable for connections to mains power |
| Standards | |
| Standards | JASO D609:2001 @ 30°C ambient |
| SKU | cabtwiaut5.30m |
| Colour | Black |
| Brand | Generic |
| Shipping Weight | 2.5200kg |
