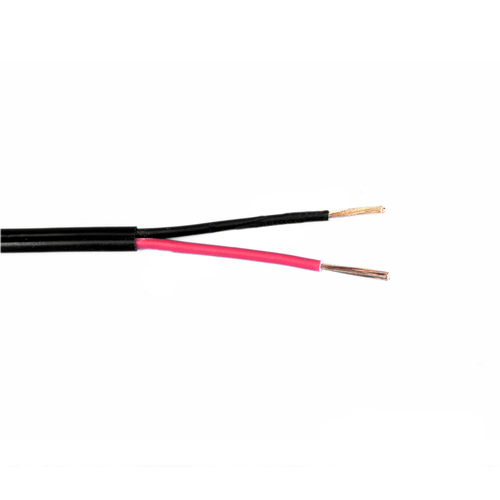

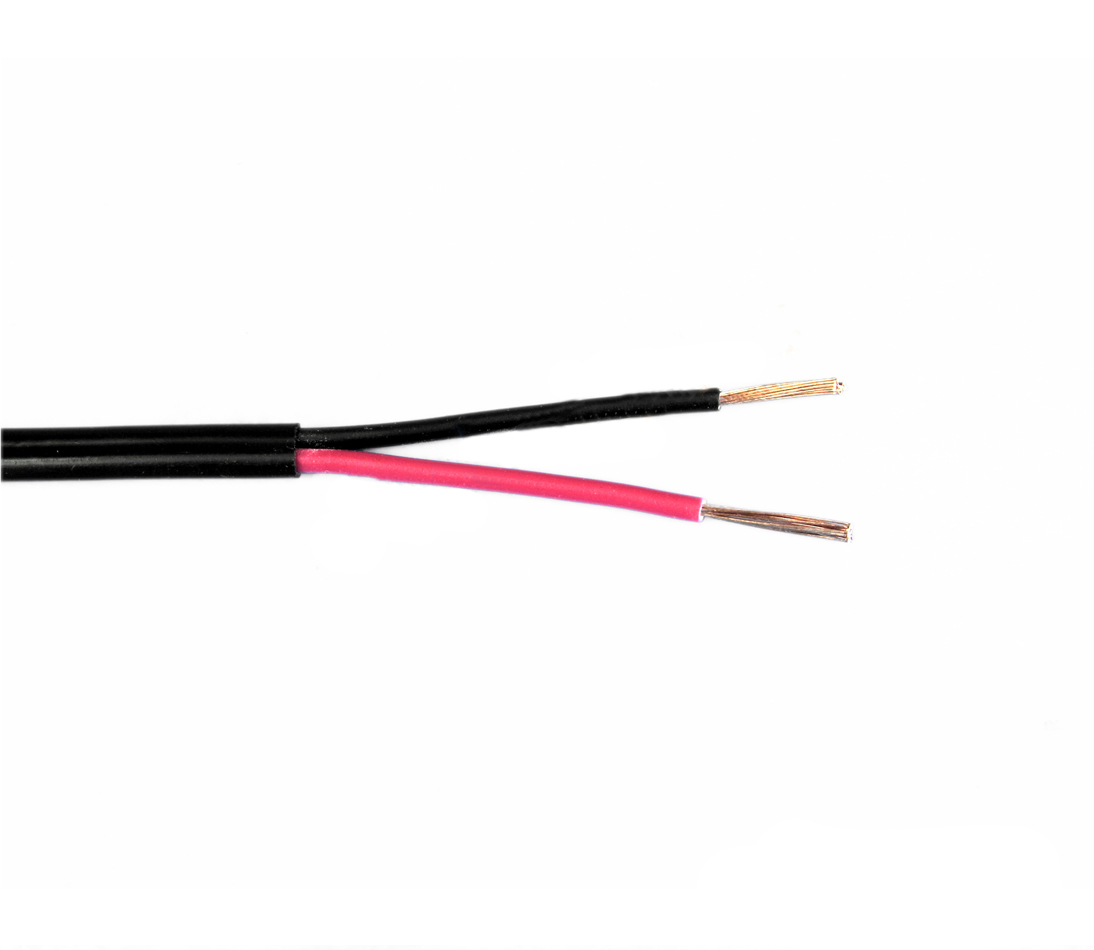

3mm Auto Cable Twin Sheath Red Black 2 Core 100m Roll

SKU: cabtwiaut3.100m

Product Image Gallery

Product image thumbnail for SKU cabtwiaut3.100m

Product Pricing

$122.73 (ex-GST)

$135.00 (inc-GST)

$135.00

$122.73

(inc-GST)
(ex-GST)

Stock and Availability

  • ⚫︎ Sold Out - Backorder Available

3mm Auto Cable Twin Sheath Red Black 2 Core Per Metre

Electrotraders USPs

Fast Shipping, Trusted by Government, Easy Returns, Free Shipping over $200

Product on Back order More Stock Available in 1-7 Days

Description

3mm Twin Core Auto Cable – Red/Black Sheath, 100m Roll (16A Rated)

This 3mm 2 core automotive cable is built for dependable power delivery in 12V and 24V DC electrical systems across trailers, caravans, solar setups, and lighting installations. Its 100m continuous roll is ideal for workshops, installers, and larger projects requiring extended cable runs.

Constructed with oxygen-free copper for high conductivity and flexibility, it features a twin sheath design with clearly marked red and black cores, UV-stabilised insulation, and compliance with AS/NZS standards.

Key Specifications:

  • Cable Type: Twin sheath – red and black

  • Conductor Size: 1.13 mm²

  • Construction: 16/0.30 plain annealed copper (AS/NZS1125)

  • Current Rating: 16 Amps

  • Voltage Rating: 50V AC / 120V DC (AS/NZS 3000:2000)

  • Outer Dimensions: Approx. 3.40mm x 6.8mm

  • Insulation: V90HT UV-stabilised PVC

  • Temperature Rating: 90°C

  • Roll Length: 100 metres

  • Roll Weight: 4.09kg

  • Material: 99.9% OFHC copper

  • RoHS Compliant

Ideal for full vehicle rewiring, trailer builds, or off-grid lighting systems, this heavy-duty roll provides flexibility, strength, and value for bulk users.

(cabtwiaut3.100m)

Specifications

Product Details
Product Code ATS21603
Nominal Area 1.13 mm²
Strands 16/0.30 mm
Industry Equivalent 3.0 mm
Amperage Rating** 16 A
Sheath Thickness 0.45 mm
Max DC Resistance @ 20°C 16.50 mΩ/m
Nominal OD 3.40 x 6.8 mm
Mass 4.09 kg/100 m
Construction
Conductor Type Plain Copper Wire (PCW) to AS/NZS 1125
Insulation V90HT PVC
Sheath V90HT PVC
Features
Voltage Rating AC 50V / DC 120V
Temperature Rating +90°C
UV Resistant Yes
RoHS Compliant Yes
Standards Based on JASO D609:2001 @ 30°C ambient
SKU cabtwiaut3.100m
Colour Black
Brand Generic
Shipping Weight 4.0900kg
