5mm Automotive Cable Twin Sheath Red Black 2 Core 100m Roll
SKU: cabtwiaut5.100m
Product Image Gallery
Product Pricing
$263.64 (ex-GST)
$290.00 (inc-GST)
$290.00
$263.64
Stock and Availability
- ⚫︎ Only 1 Left!
5mm Automotive Cable Twin Sheath Red Black 2 Core Per Metre
Electrotraders USPs
Description

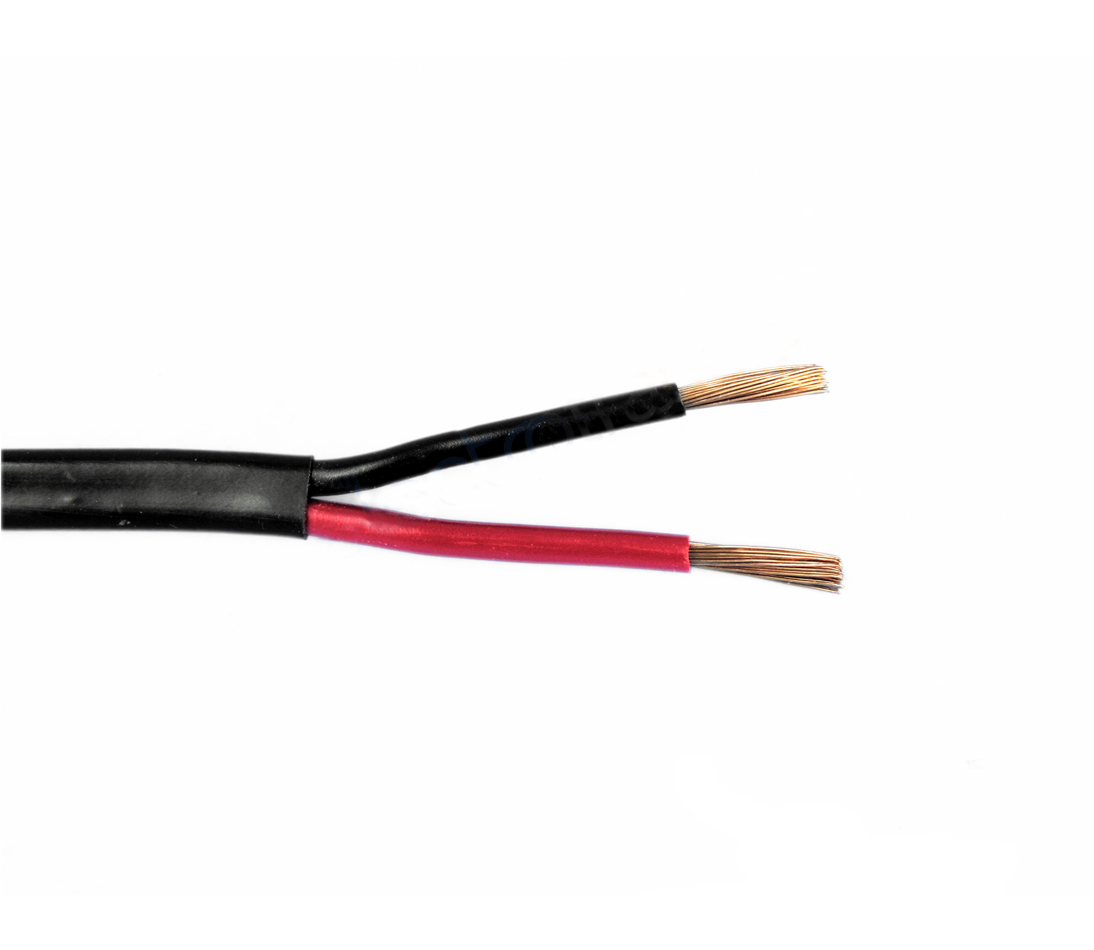

5mm Twin Core Auto Cable – Red/Black Sheath, 100m Roll (29A Rated)
This 5mm twin sheath automotive cable is built for higher current 12V and 24V DC systems commonly found in trailers, off-grid solar, 4WD accessory installs, and heavy-duty LED lighting circuits. Supplied as a 100m roll, it’s ideal for professionals requiring length, reliability, and durability in demanding environments.
The cable features red and black twin cores made from 99.9% oxygen-free copper, offering excellent conductivity with low voltage drop. The UV-stabilised V90HT PVC sheath ensures long-term resistance to heat, abrasion, and Australian outdoor conditions.
Product Features:
-
Cable Configuration: Twin sheath – red/black 2 core
-
Nominal Conductor Area: 2.90 mm²
-
Stranding: 41/0.30 plain annealed copper (AS/NZS1125)
-
Current Rating: 29 Amps
-
Voltage Rating: 50V AC / 120V DC (AS/NZS 3000:2000)
-
Outer Diameter: Approx. 4.60 x 8.0mm
-
Insulation: V90HT UV-stabilised PVC, rated to 90°C
-
Material: 99.9% OFHC (oxygen-free high conductivity) copper
-
RoHS Compliant
-
Supplied as: 100 metre continuous roll
Ideal for dual battery systems, DC distribution, and high-load 12V applications where durability and consistent current flow are essential.
(cabtwiaut5.100m)
Specifications
| Product Details | |
| Product Code | ATS24103 |
| Strands | 41/0.30 mm |
| Nominal Area | 2.90 mm² |
| Industry Equivalent | 5.0 mm |
| Amperage Rating | 29 A |
| Sheath Thickness | 0.65 mm |
| Max DC Resistance @ 20°C | 6.43 Ω/km |
| Nominal OD | 4.60 × 8.0 mm |
| Mass | 8.40 kg/100m |
| Construction | |
| Conductor Type | Plain Annealed Copper (PCW) to AS/NZS1125 |
| Insulation | |
| Type | PVC V90HT (UV Stabilised) to AS3808:2000 |
| Features | |
| Voltage Rating | Automotive AC 50V / DC 120V |
| Temperature Rating | +90°C |
| RoHS Compliant | Yes |
| UV Resistant | Yes |
| Application Note | |
| Note | Not suitable for connections to mains power |
| Standards | |
| Standards | JASO D609:2001 @ 30°C ambient |
| SKU | cabtwiaut5.100m |
| Colour | Black |
| Brand | Unbranded |
| Shipping Weight | 8.4000kg |
