3mm Auto Cable Twin Sheath Red Black 2 Core 30m Roll

SKU: cabtwiaut3.30m

Product Image Gallery

Product image thumbnail for SKU cabtwiaut3.30m

Product Pricing

$38.18 (ex-GST)

$42.00 (inc-GST)

$42.00

$38.18

(inc-GST)
(ex-GST)

Stock and Availability

  • ⚫︎ Only 4 Left!

3mm Auto Cable Twin Sheath Red Black 2 Core Per Metre

Electrotraders USPs

Fast Shipping, Trusted by Government, Easy Returns, Free Shipping over $200


Description

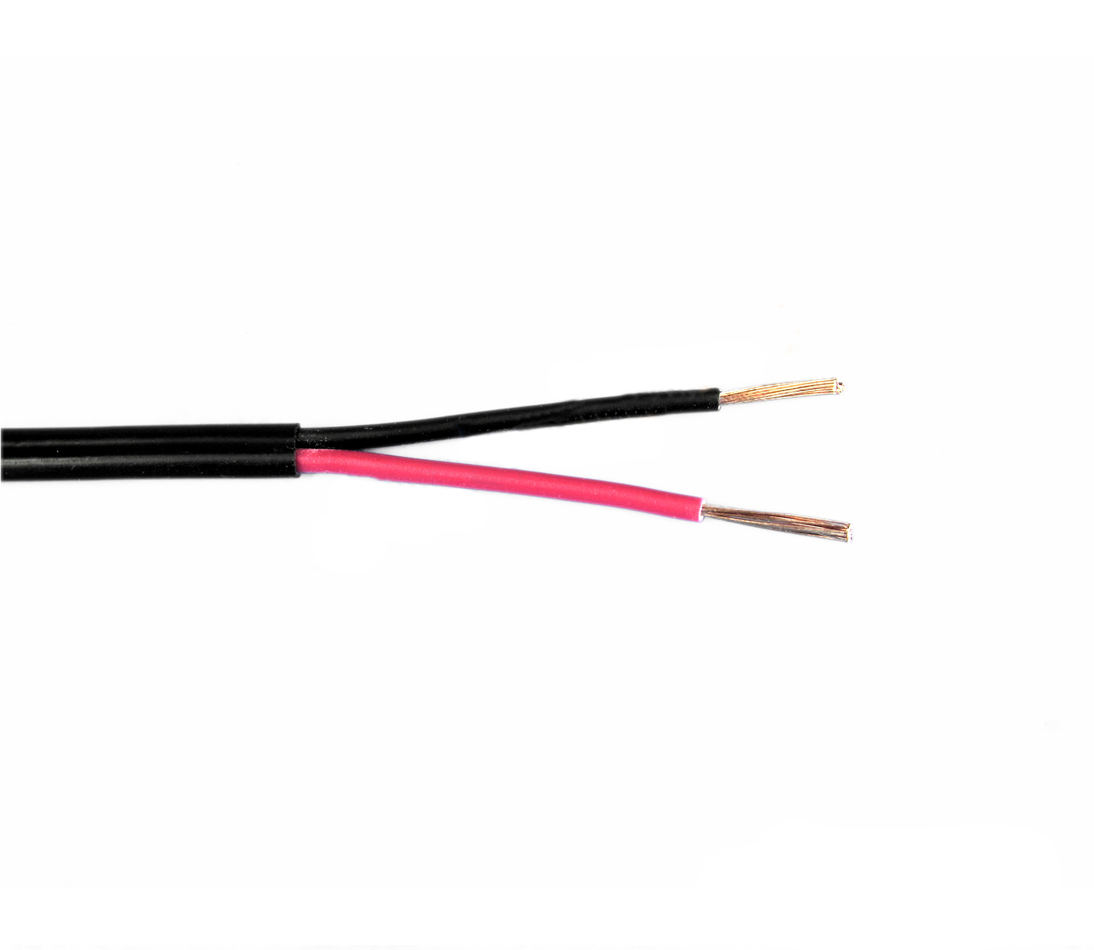

3mm Twin Core Automotive Cable – Red/Black Sheath, 30m Roll (16A Rated)

This 3mm twin auto cable is designed for medium-current 12V and 24V DC applications, including trailer wiring, auxiliary lighting, caravan systems, and garden installations. Featuring a flexible red and black twin sheath for easy polarity ID, this cable is supplied in a convenient 30m roll — ideal for smaller projects or on-site use.

Manufactured with 99.9% oxygen-free copper to AS/NZS1125 standards, it offers high conductivity and reliability in demanding outdoor and automotive environments.

Product Features:

  • Cable Type: Twin sheath – red and black

  • Nominal Conductor Area: 1.13 mm²

  • Stranding: 16/0.30 plain annealed copper

  • Rated Current: 16 Amps

  • Voltage Rating: 50V AC / 120V DC (AS/NZS 3000:2000)

  • Insulation: UV-stabilised V90HT PVC to AS3808:2000

  • Temperature Rating: 90°C

  • Outer Diameter: Approx. 3.40 x 6.8mm

  • Roll Length: 30m

  • Roll Weight: 1.23kg

  • Material: OFHC (Oxygen-Free High Conductivity) copper

  • RoHS Compliant

Reliable and easy to work with, this cable is ideal for moderate-load 12V and 24V circuits in automotive, marine, trailer, and solar systems.

(cabtwiaut3.30m)

Specifications

Product Details
Product Code ATS21603
Nominal Area 1.13 mm²
Strands 16/0.30 mm
Industry Equivalent 3.0 mm
Amperage Rating** 16 A
Sheath Thickness 0.45 mm
Max DC Resistance @ 20°C 16.50 mΩ/m
Nominal OD 3.40 x 6.8 mm
Mass 4.09 kg/100 m
Construction
Conductor Type Plain Copper Wire (PCW) to AS/NZS 1125
Insulation V90HT PVC
Sheath V90HT PVC
Features
Voltage Rating AC 50V / DC 120V
Temperature Rating +90°C
UV Resistant Yes
RoHS Compliant Yes
Standards Based on JASO D609:2001 @ 30°C ambient
SKU cabtwiaut3.30m
Colour Black
Brand Unbranded
Shipping Weight 1.2270kg
