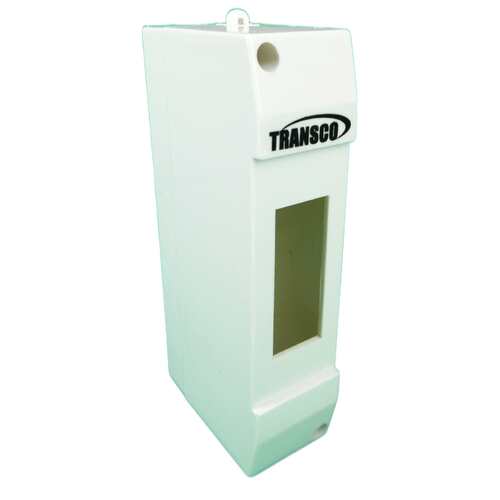

Transco ENC01 1 Way DIN Rail Enclosure MCB RCD RCBO IP30

Description

Single Pole DIN Rail Enclosure. Compact. Circuit Protection Ready.

The Transco ENC01 is a 1 way DIN rail enclosure — the compact single-position housing for a circuit breaker, RCD, RCBO, or other single DIN rail mounted protection device. Rated up to 63A at 240/415V AC, with a UV and fire resistant ABS body. The smallest option in the Transco enclosure range, it provides a clean, protected housing for a single circuit protection device in applications where a full multi-way switchboard is not required. Sold as enclosure only — circuit protection device sold separately.

• Transco — 1 way DIN rail enclosure for circuit breakers, RCDs, RCBOs
• UV and fire resistant ABS construction
• 1 DIN rail module capacity
• Suits MCBs, RCBOs, RCDs, and standard DIN rail mounted devices
• Rated up to 63A at 240/415V AC, 50/60Hz
• IP30 ingress protection
• Dimensions: L34 mm x W130 mm x H60 mm
• Standard: IEC60439-3
• Also available in 2, 4, 6, 8, 12, and 18 way configurations
• Enclosure only — circuit protection device sold separately

Order online now for fast dispatch Australia-wide.

Where the ENC01 Fits — Single Device Circuit Protection in a Clean Enclosure

The ENC01 is the most compact option in the Transco DIN rail enclosure range — a single module position for one circuit breaker, RCBO, RCD, or main switch. It is the right specification for applications where a single protection device needs a dedicated housing rather than being mounted in a larger multi-way switchboard — a single RCBO at an outdoor power point, a dedicated circuit breaker for a specific piece of equipment, or a main isolation switch in a secondary distribution location. The compact L34mm length keeps the enclosure footprint minimal.

The UV and fire resistant ABS body provides the structural integrity and material safety required for electrical enclosures housing live circuit protection devices. The IP30 rating provides protection against solid objects greater than 2.5mm — appropriate for indoor and sheltered installations where full weatherproofing is not required. For outdoor or exposed installations, the weatherproof SB range (IP55) or the weatherproof IP66 switchboard range is the appropriate specification.

The ENC01 is the 1 way option at the bottom of the Transco enclosure range. The same enclosure is available in 2 way (ENC02), 4 way (ENC04), 6 way (ENC06), 8 way (ENC08), 12 way (ENC12), and 18 way (ENC18) for installations requiring more module positions. All variants share the same 130mm width, 60mm height, UV and fire resistant ABS construction, and IEC60439-3 standard compliance. Sold as enclosure only — specify the circuit protection device separately.

Q: What circuit protection devices are compatible with the Transco ENC01?
A: The ENC01 accommodates any standard single-module DIN rail mounted circuit protection device — including single-pole MCBs, RCBOs, RCDs, and main switches. The device is sold separately. Confirm the module width of the specific device before ordering to ensure it fits the 1 way capacity.

Q: What is the IP30 rating of the Transco ENC01 enclosure?
A: IP30 means the ENC01 provides protection against solid objects greater than 2.5mm in diameter. It is not rated for water ingress and is suitable for indoor and sheltered installations only. For outdoor or exposed locations, the Transco weatherproof switchboard range (SB04WP, SB12WP — IP55) is the appropriate specification.

Q: What is the difference between the ENC01 and the larger ENC range?
A: The ENC01 accommodates 1 DIN rail module position (L34mm). The ENC02 (L52mm) accommodates 2 modules, ENC04 (L87mm) 4 modules, ENC06 (L123mm) 6 modules, ENC08 (L160mm) 8 modules, ENC12 (L260mm) 12 modules, and ENC18 (L365mm) 18 modules. All share the same W130 x H60mm cross-section and ABS construction.
