Red Smoke Professional RFMDUAL Dual Power Flush Mount Smoke Alarm
SKU: rerpfmdual
Product Image Gallery
Product Pricing
$56.27 (ex-GST)
$61.90 (inc-GST)
$61.90
$56.27
Bulk Carton size
10Stock and Availability
- ⚫︎ 5 In Stock
Approved for QLD Government Housing Installation
Electrotraders USPs
Description
Red Smoke RFMDUAL Dual Power Flush Mount Smoke Alarm
The Red Smoke RFMDUAL is a versatile photoelectric smoke alarm offering dual power options—connect to 240V mains power or operate solely on a sealed 10-year lithium battery. Its flush mount design ensures a discreet appearance, blending seamlessly with modern interiors.
Key Features:
-
Dual Power Options: Operate via 240V mains with a 10-year lithium battery backup or solely on the battery for areas without mains power.
-
Photoelectric Sensor: Provides early detection of smouldering fires, enhancing safety.
-
Interconnectivity: Supports both wired and wireless interconnection (with optional RF module), allowing up to 40 alarms to be linked for comprehensive coverage.
-

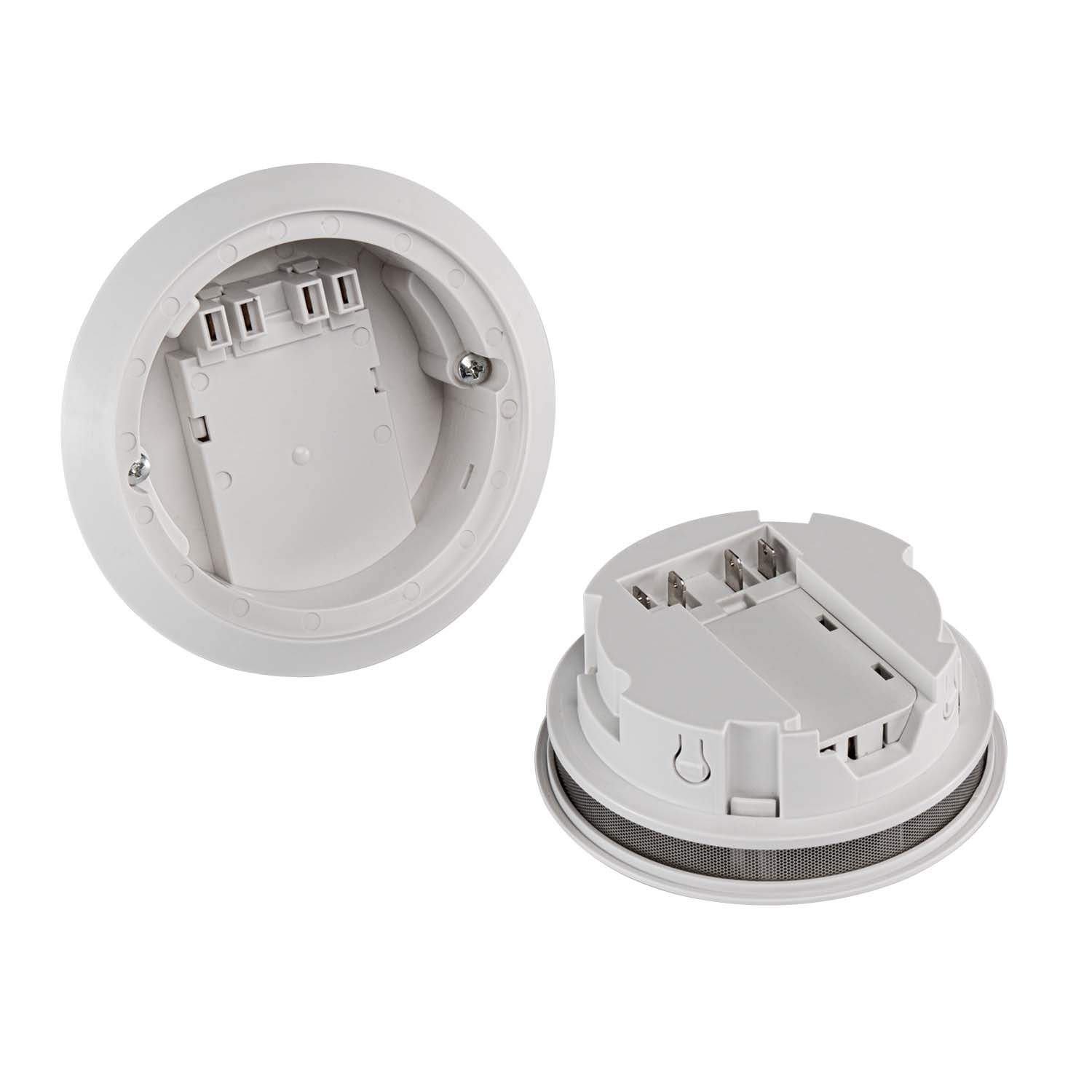

Flush Mount Design: Fits into a standard 90mm cut-out, offering a sleek, unobtrusive installation.
-
Compliance: Certified to AS3786:2014 and meets Queensland 2022 smoke alarm legislation.
-
Easy Installation: Designed for straightforward setup; however, installation by a licensed electrician is recommended.
Why Choose the RFMDUAL?
Ideal for homeowners, landlords, and property managers seeking a reliable, long-term fire detection solution that complies with Queensland's stringent 2022 legislation. Its dual power capability and interconnectivity options make it a flexible choice for various property types.
Equip your property with the Red Smoke RFMDUAL for dependable fire safety and peace of mind.
(rerpfmdual)

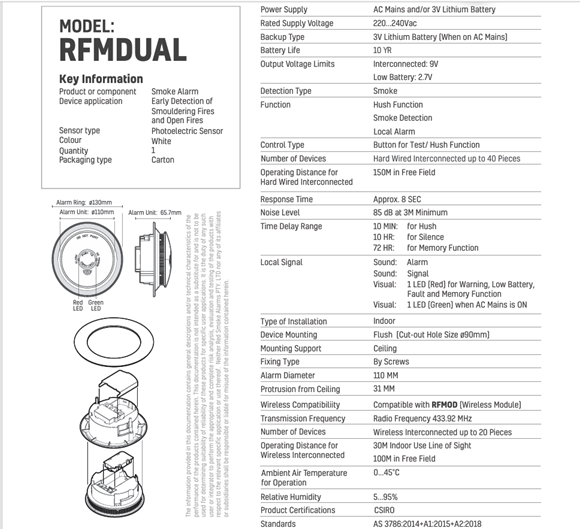

Specifications
| Product Details | |
| Product Name | RFMDUAL |
| Product Type | Smoke Alarm |
| Application | Early Detection of Smouldering and Open Fires |
| Sensor Type | Photoelectric Sensor |
| Colour | White |
| Quantity per Pack | 1 |
| Packaging Type | Carton |
| Power & Battery | |
| Power Supply | AC Mains and/or 3V Lithium Battery |
| Rated Supply Voltage | 220–240 Vac |
| Backup Battery Type | 3V Lithium Battery (when on AC mains) |
| Battery Life | 10 Years |
| Output Voltage Limits | Interconnected: 9V; Low Battery: 2.7V |
| Functionality | |
| Control | Test/Hush Button |
| Interconnect Capability | Hard Wired up to 40 Devices |
| Wireless Compatibility | Compatible with RFMOD Wireless Module |
| Wireless Interconnect Limit | Up to 20 Devices |
| Operating Distance (Wired) | 150 m Free Field |
| Operating Distance (Wireless) | 30 m Indoors; 100 m Free Field |
| Response Time | Approx. 8 Seconds |
| Alarm Sound Level | ≥ 85 dB at 3 m |
| Delay Timers | Hush: 10 min; Silence: 10 hr; Memory: 72 hr |
| Visual Indicators | |
| Red LED | Warning, Low Battery, Fault, Memory Function |
| Green LED | AC Mains ON |
| Installation | |
| Mounting | Ceiling |
| Mounting Support | Flush (Cut-out Hole Ø90 mm) |
| Fixing Method | Screws |
| Alarm Diameter | Ø110 mm |
| Protrusion from Ceiling | 31 mm |
| Alarm Ring Diameter | Ø130 mm |
| Environmental Specifications | |
| Operating Temperature | 0 to 45°C |
| Relative Humidity Range | 5–95% |
| Standards & Certifications | |
| Product Certification | CSIRO |
| Compliance Standard | AS 3786:2014 + A1:2015 + A2:2018 |
| SKU | rerpfmdual |
| Brand | Red Smoke |
