Clipsal 56 Series 56P310-EO Plug Top Straight 3 Flat Pin 10A 250V IP66 Electric Orange
SKU: cliextplu310.56
Product Image Gallery
Product Pricing
$25.77 (ex-GST)
$28.35 (inc-GST)
$28.35
$25.77
(inc-GST)
(ex-GST)
Stock and Availability
- ⚫︎ Only 1 Left!
Weatherproof Clipsal 56 Series plug top rated 10A 250V with 3 flat pins in a 1P+N+E setup. IP66 rated polycarbonate housing in Electric Orange, built to AS/NZS 3112 for industrial and outdoor use.
Electrotraders USPs
Description
A rugged IP66 plug top that takes a standard flat-pin plug into tough environments.

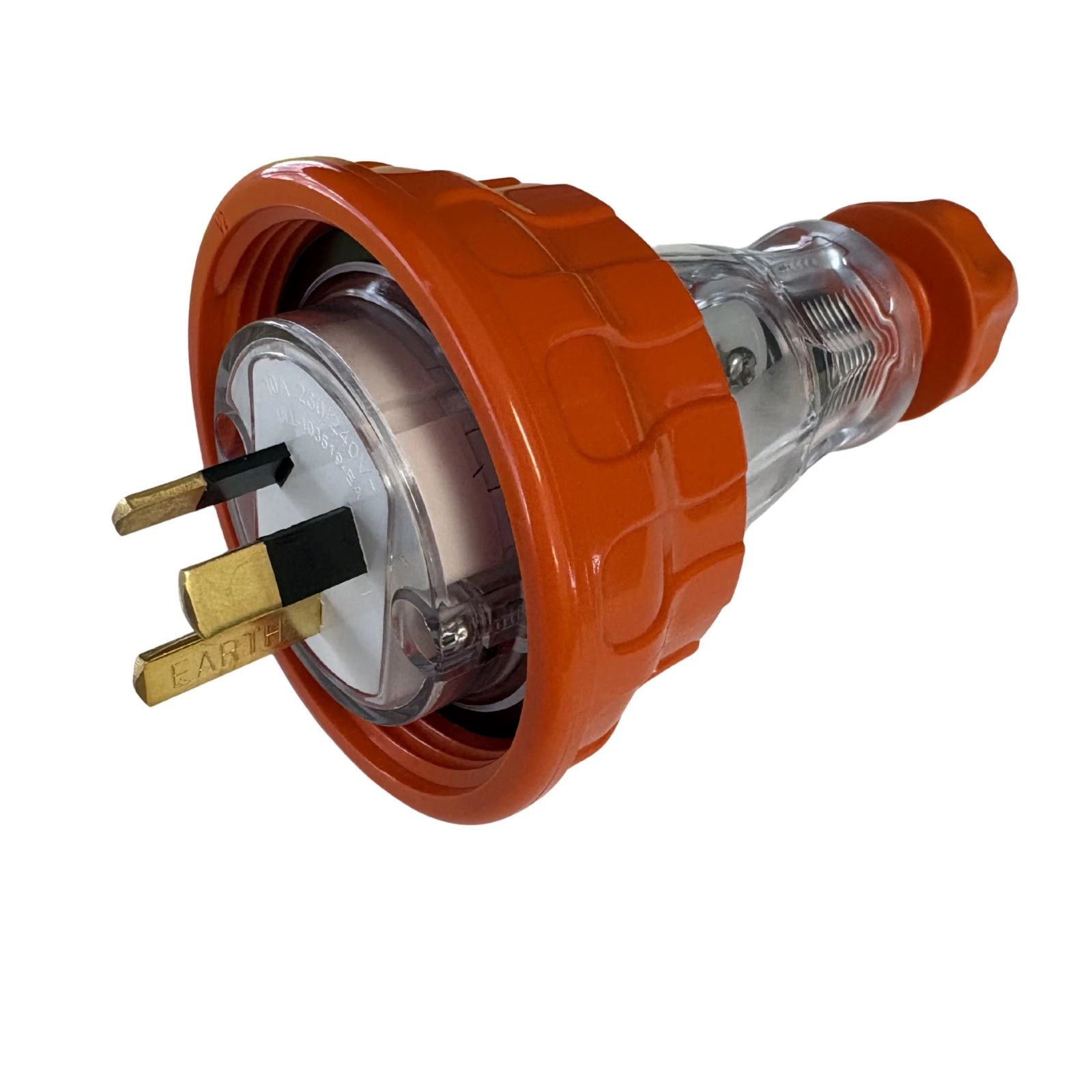

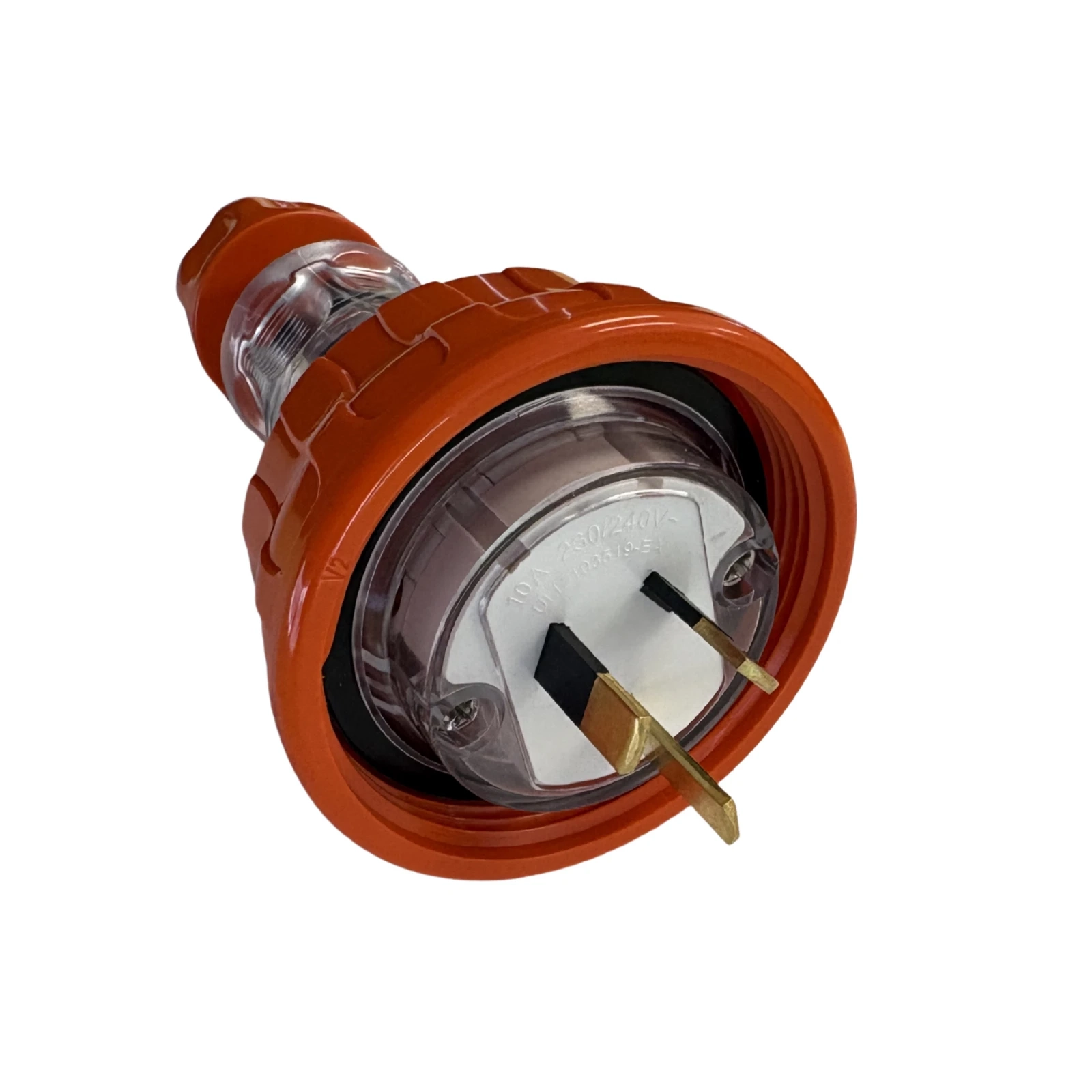

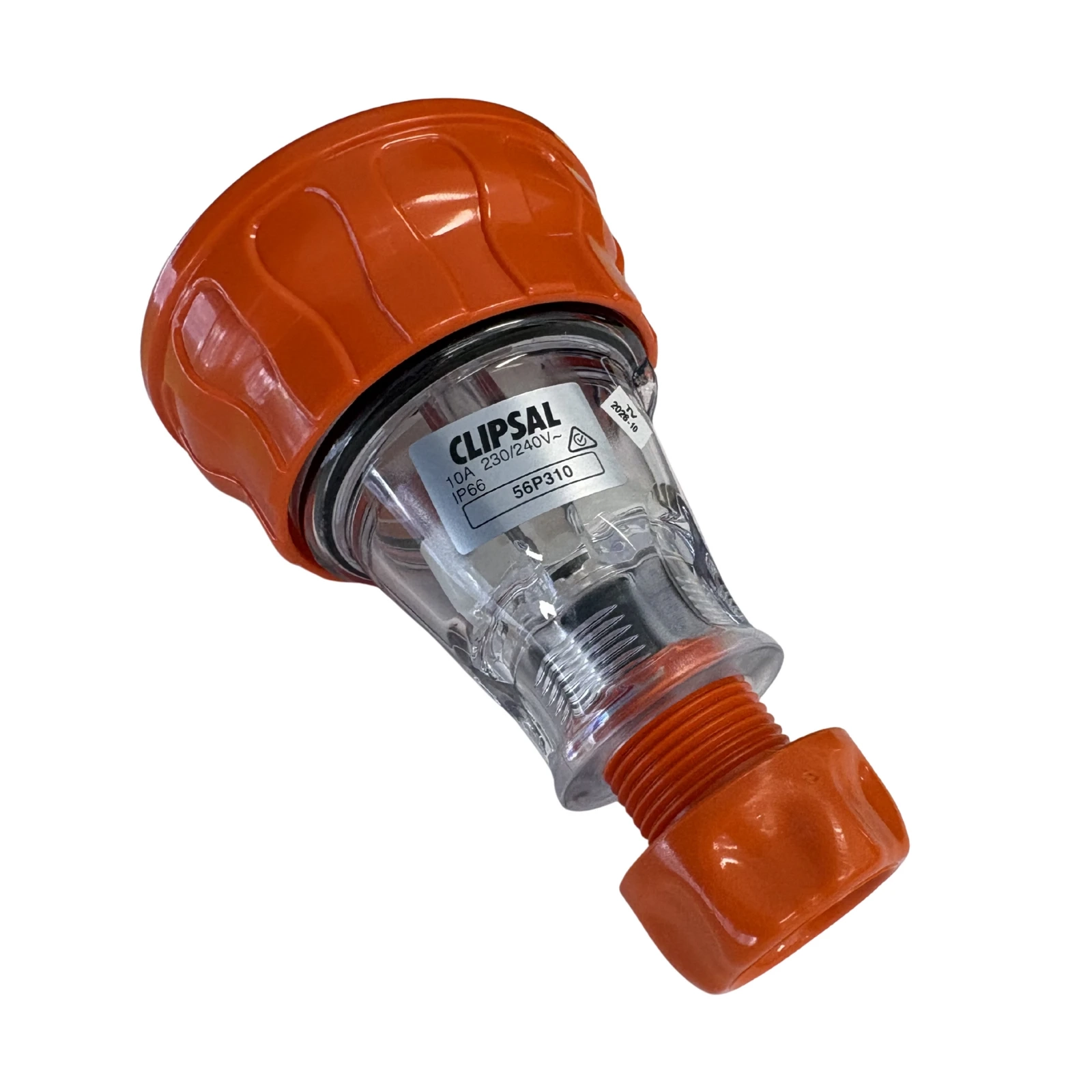

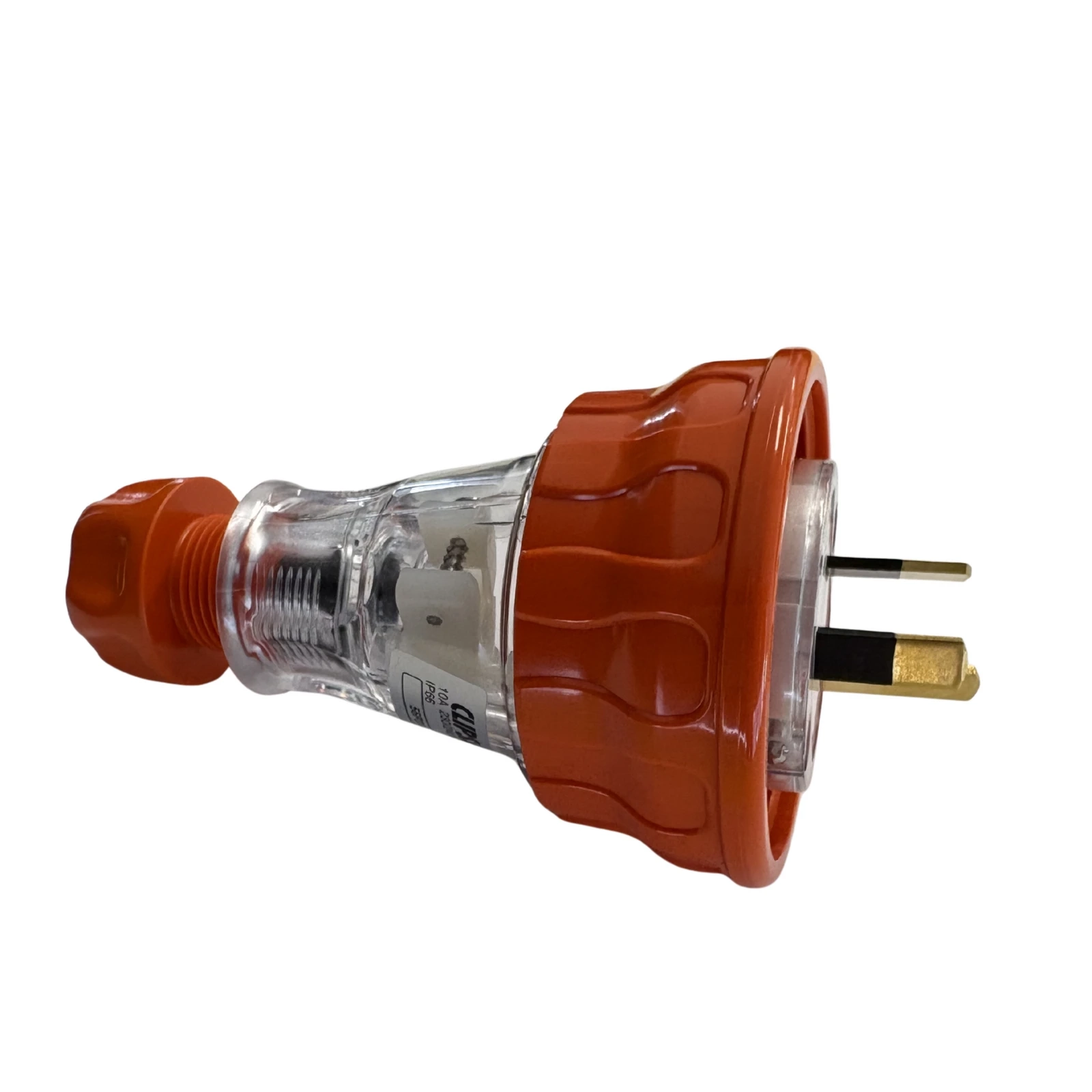

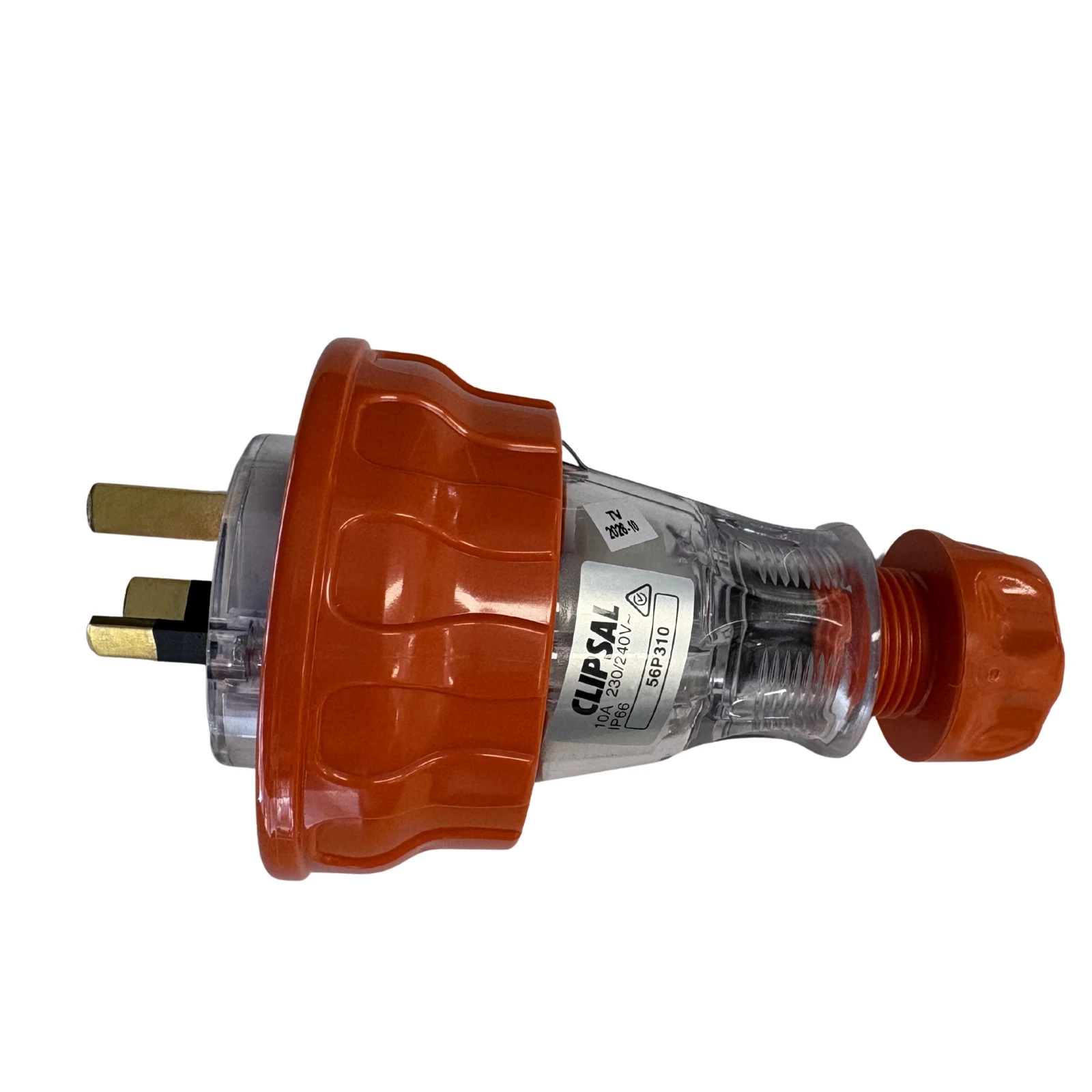

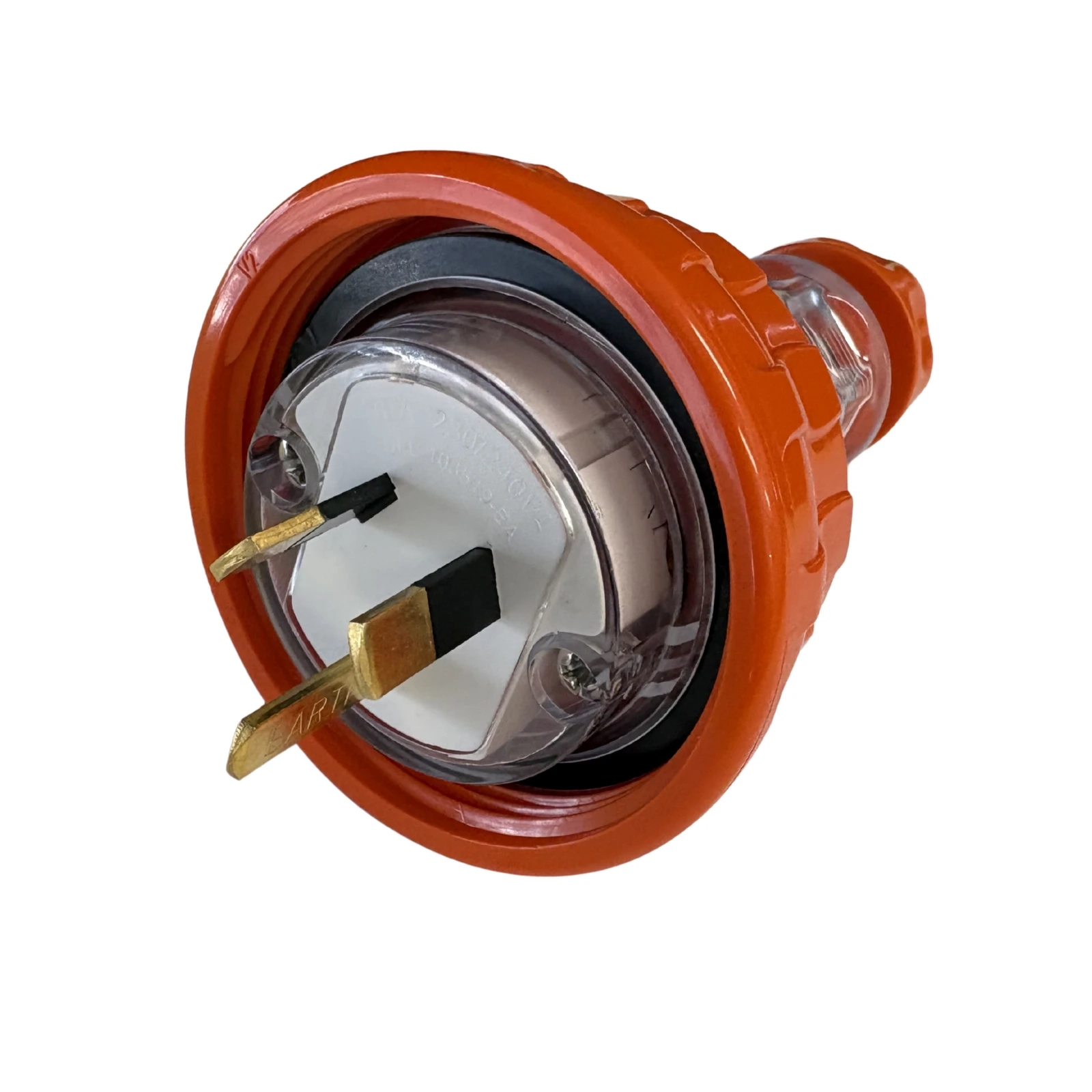

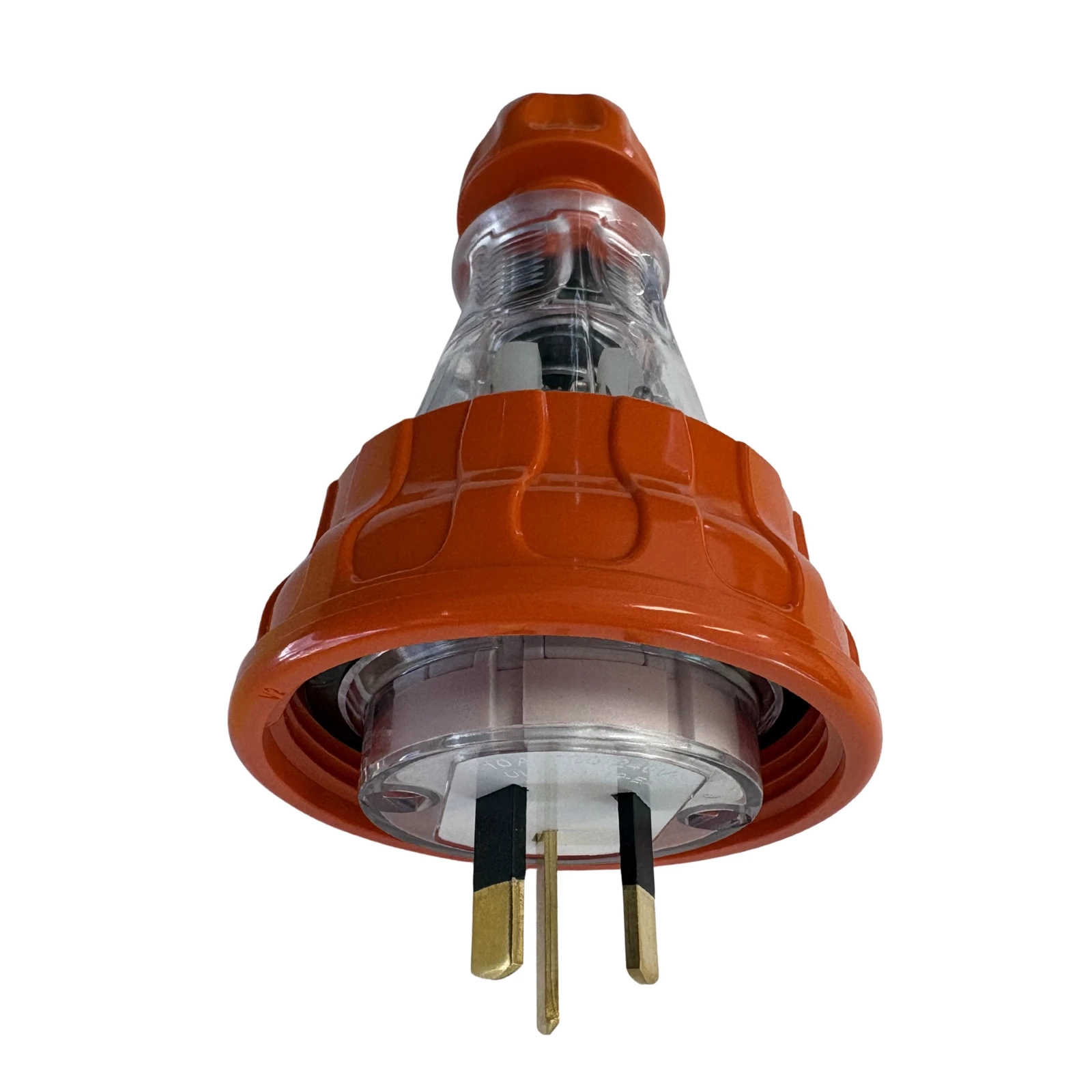

The Clipsal 56P310-EO is a 10A 250V three-flat-pin plug top from the 56 Series, built in high-visibility Electric Orange. It pairs the familiar Australian flat-pin layout with the 56 Series weatherproof polycarbonate body, sealing the connection against dust and water through an M20 cable gland.
Key Features
- 10A, 250V rated 3-flat-pin plug top
- 1P + N + E configuration (Active, Neutral, Earth)
- IP66 rated against dust and powerful water jets
- Tough polycarbonate housing in Electric Orange
- Brass contact pins for reliable conductivity
- M20 cable gland entry with screw terminals accepting 0.75–1 mm² conductors
- Dimensions 67mm W x 67mm H x 112.5mm D
- Straight body with cable gland entry
- Manufactured to AS/NZS 3112, RCM marked
Buy online and have it on its way.
Why it Matters
Built for Australian Conditions
Rated IP66 to AS 60529 and certified to AS/NZS 3112, this plug top keeps a standard flat-pin connection working where dust, moisture, and impact are part of the daily grind – a common requirement on industrial sites, outdoor installations, and washdown areas. The high-visibility Electric Orange finish makes the connection easy to spot.
Flat Pins in a Weatherproof Body

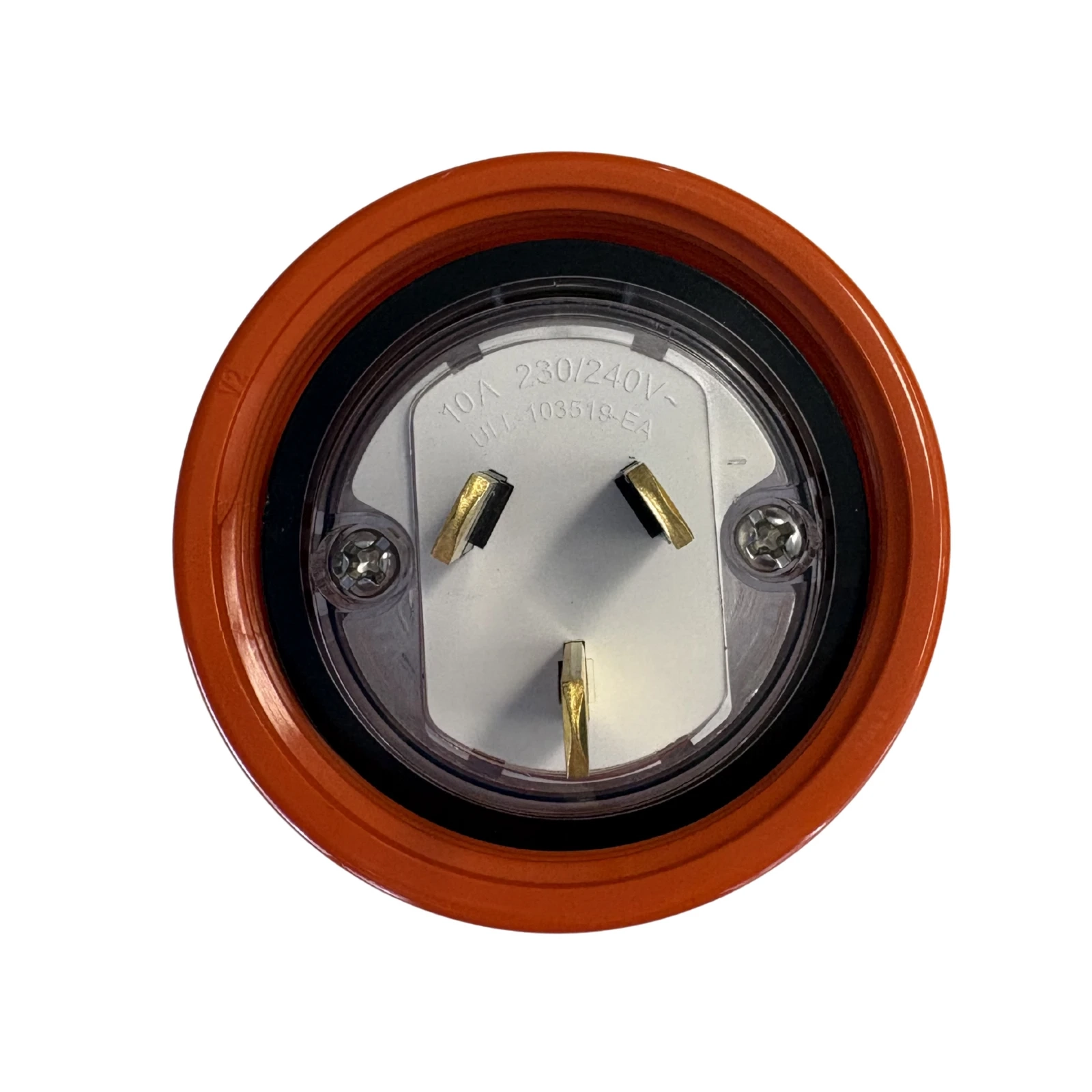

The 56P310-EO uses the standard Australian flat-pin layout in a 1P + N + E configuration – Active, Neutral, and Earth – so it accepts the same socket as a domestic plug while adding IP66 sealing. Rated to 250V and 10A, with screw terminals accepting conductors from 0.75 mm² to 1 mm² through an M20 cable gland.
What is the Clipsal 56P310-EO used for?
It is a 10A 250V three-flat-pin plug top, rated IP66, for weatherproof power connections that use a standard Australian flat-pin layout in tougher environments.
What cable size does it accept?
The screw terminals accept conductor sizes from 0.75 mm² to 1 mm², with cable entry through an M20 gland.
What is the pin configuration?
It has 3 flat pins in a 1P + N + E arrangement (Active, Neutral, Earth), rated 250V at 10A.
(cliextplu310.56)
Specifications
| General | |
| Brand | Clipsal |
| Range | 56 Series |
| Product Type | Plug Top |
| Model / MPN | 56P310-EO |
| Colour | Electric Orange (RAL 2004) |
| Device Application | Power supply |
| Electrical | |
| Rated Current | 10 A |
| Rated Operational Voltage | 250 V AC 50 Hz |
| Number of Pins | 3 flat pins |
| Number of Poles | 3 |
| Poles | 1P + N + E |
| Voltage Colour | Blue |
| Pin Arrangement | A |
| Connection | |
| Terminals | Screw terminal 0.75–1 mm² |
| Cable Entry | Cable gland |
| Thread Type | M20 |
| Wire Stripping Length | 35 mm / 10 mm |
| Physical | |
| Height | 67 mm |
| Width | 67 mm |
| Depth | 112.5 mm |
| Net Weight | 0.12 kg |
| Housing Material | Polycarbonate |
| Contact Material | Brass pins |
| Shape | Straight |
| Environmental & Compliance | |
| IP Rating | IP66 conforming to AS 60529 |
| Standards | AS/NZS 3112 |
| Quality Labels | RCM |
| Operating Temperature | -25 to 75 °C |
| Outlet Standard | Industrial |
| Mercury Free | Yes |
| Total Lifecycle Carbon Footprint | 6 kg CO₂ eq. |
| Environmental Disclosure | ENVPEP121020EN_V2 |
| SKU | cliextplu310.56 |
| Manfacturer Part Number | 56P310-EO |
| Barcode # | 9311554071547 |
| Brand | Clipsal |
