Clipsal 56E3-GY IP66 56 Series Mounting Back Box 3 Gang Grey (294 x 102 x 63mm)

Description

Tall, sealed housing for bigger 56 Series builds.

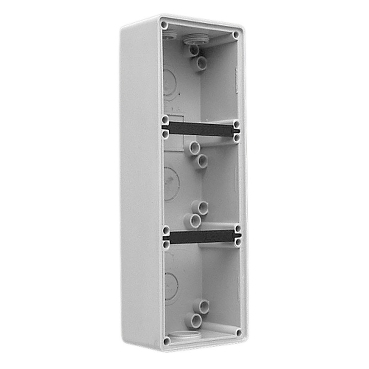

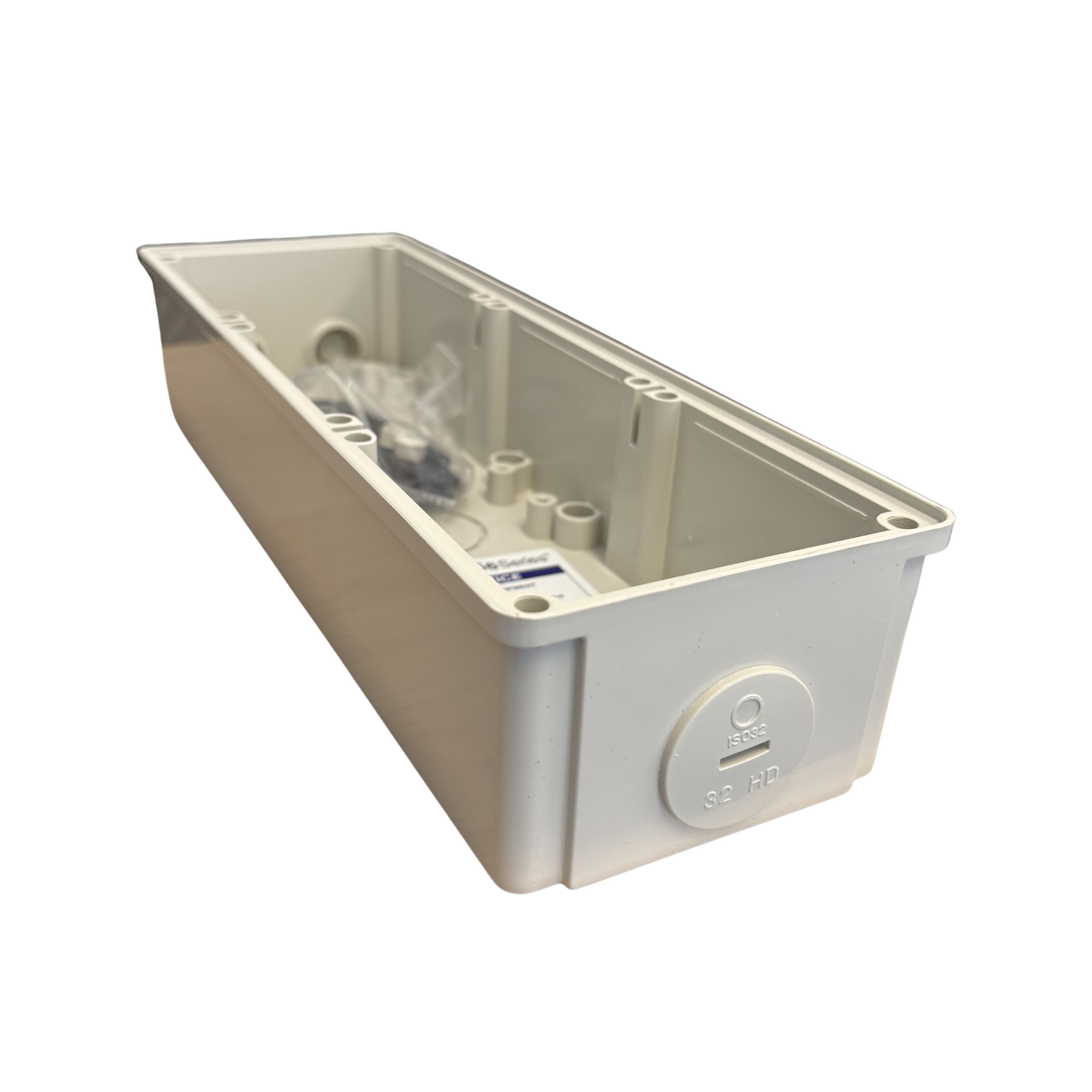

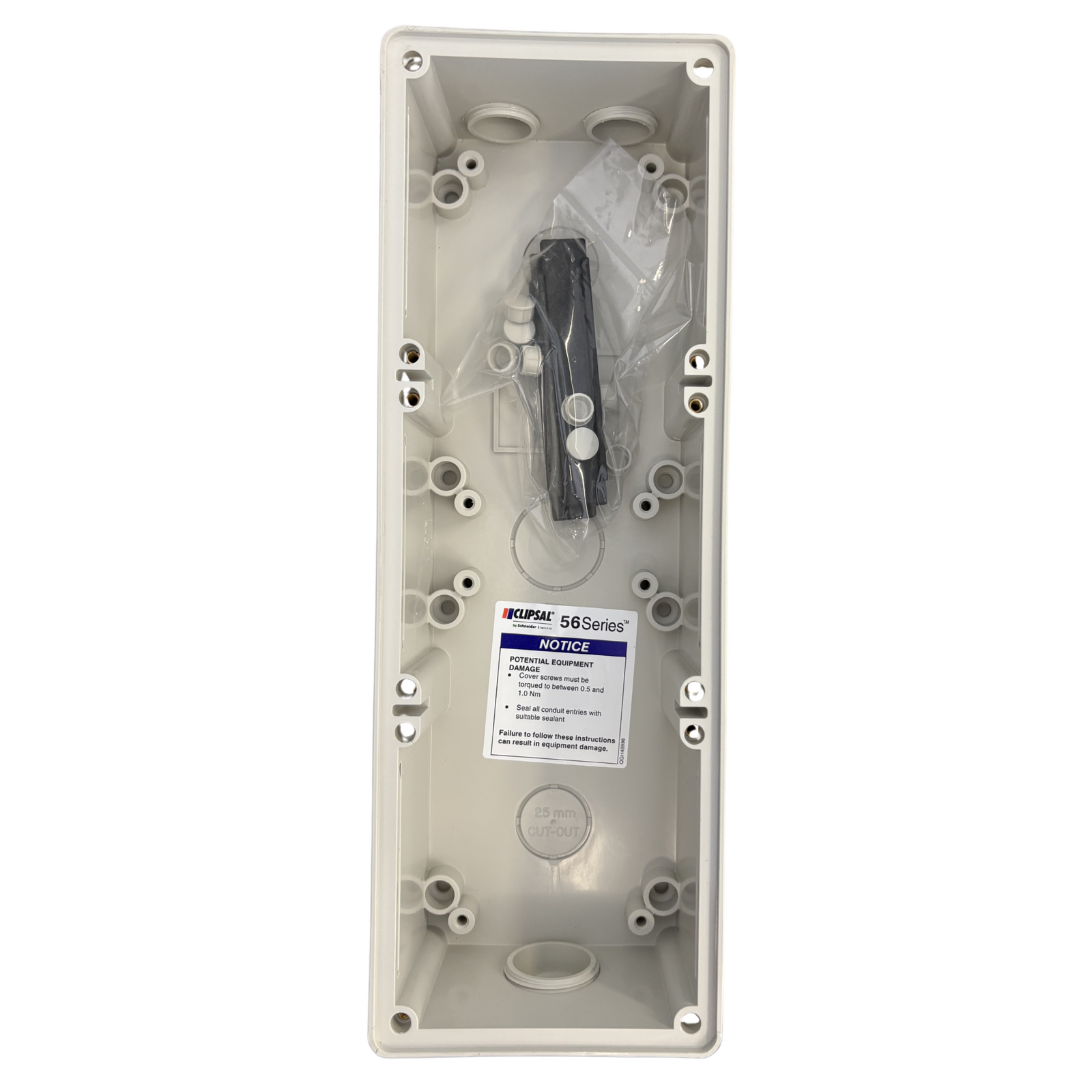

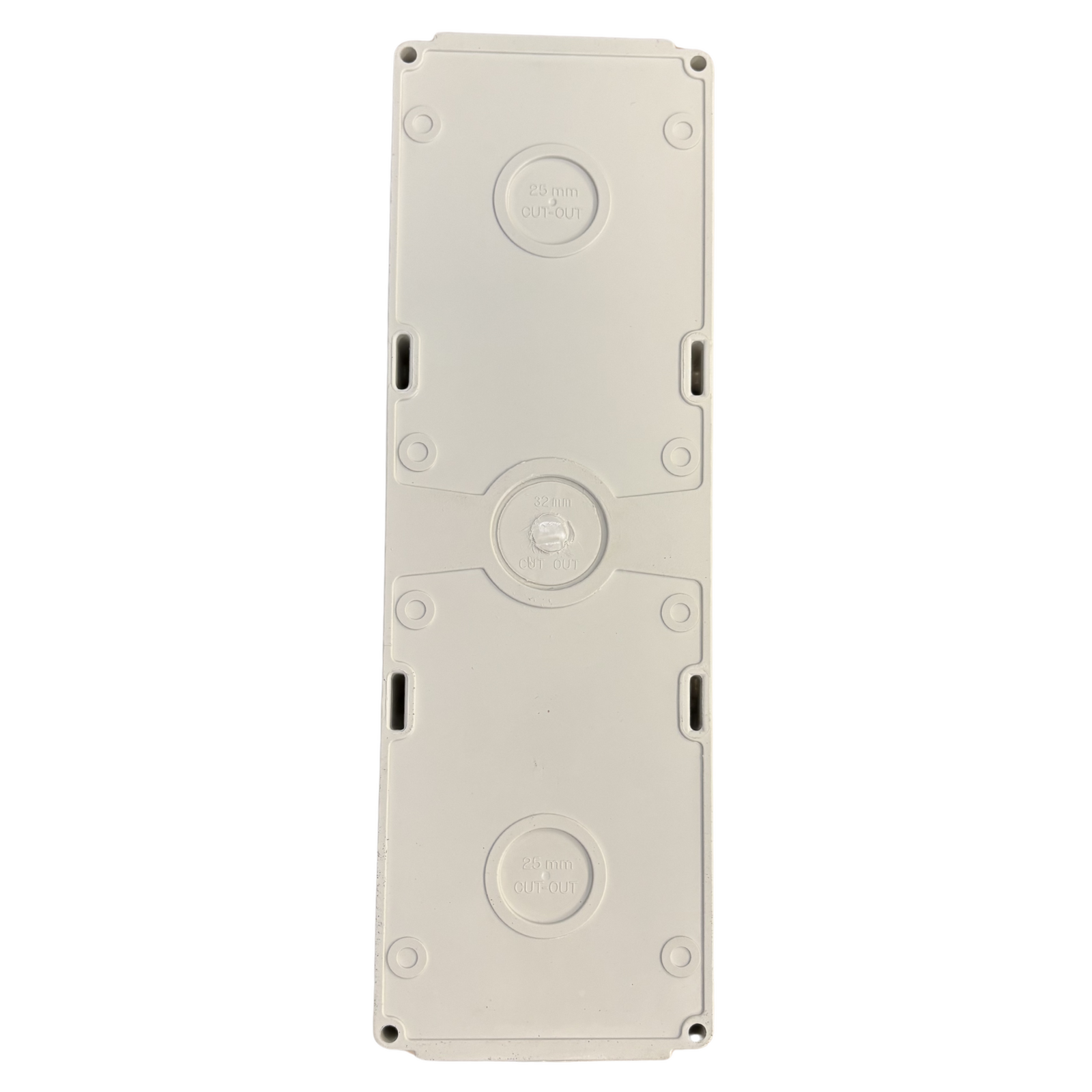

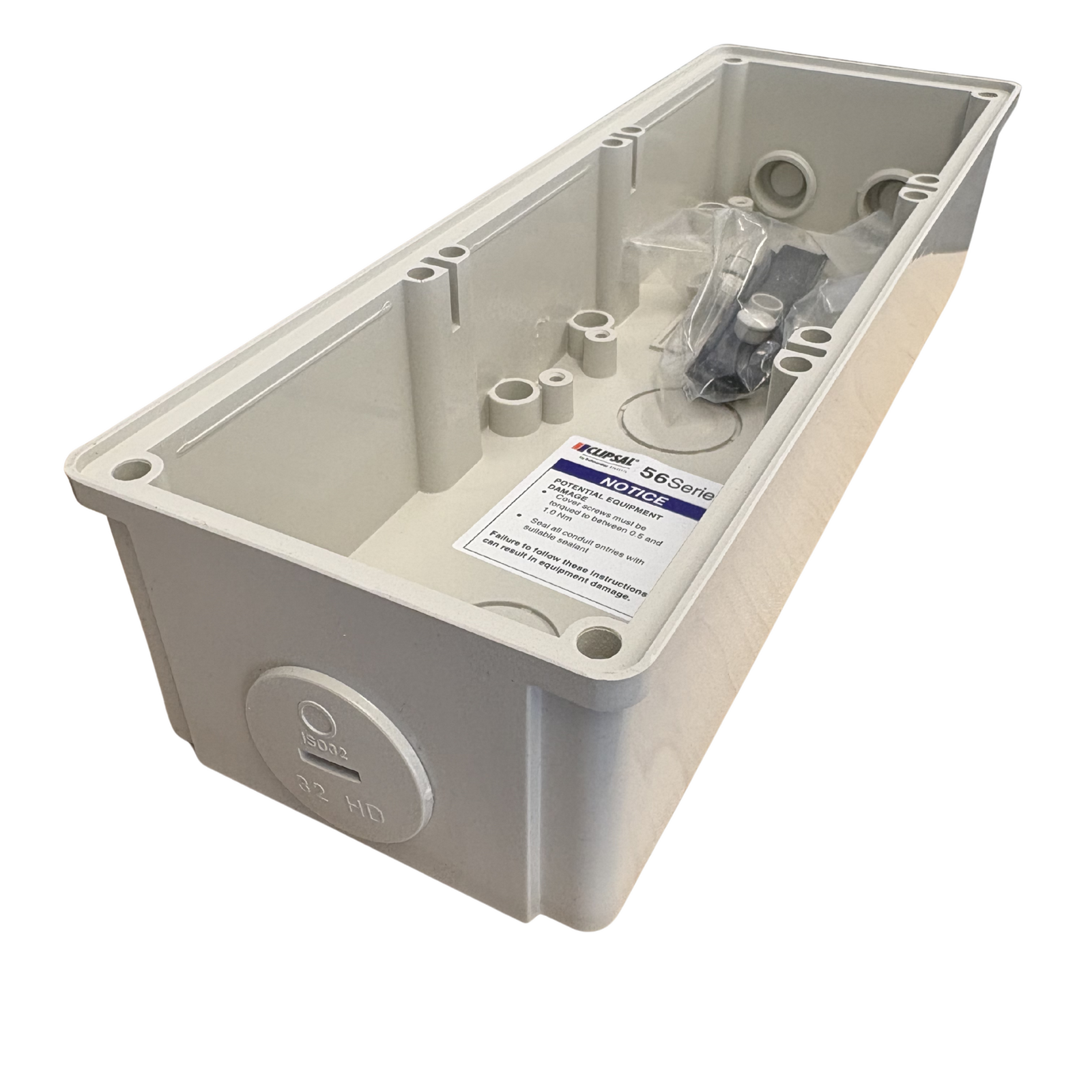

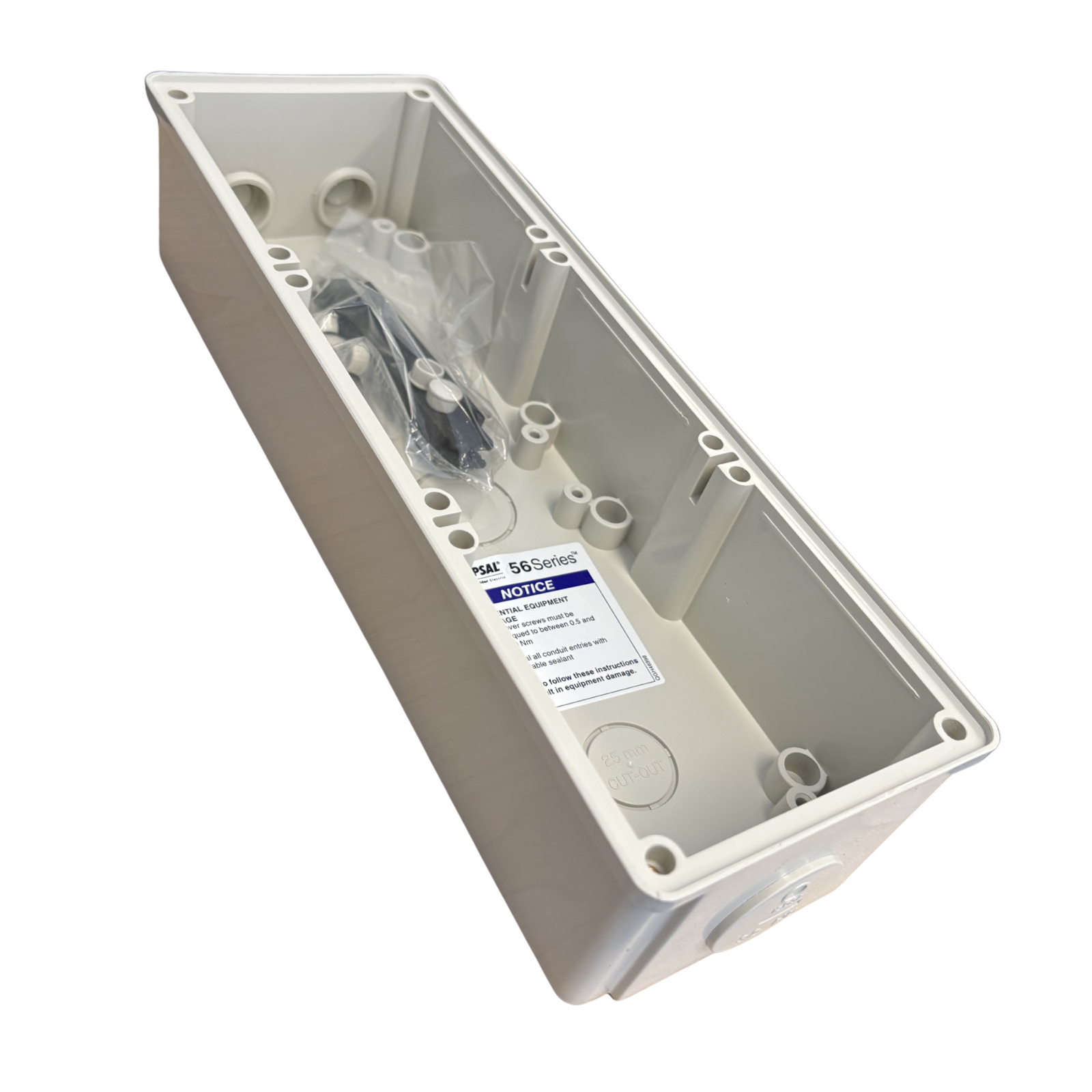

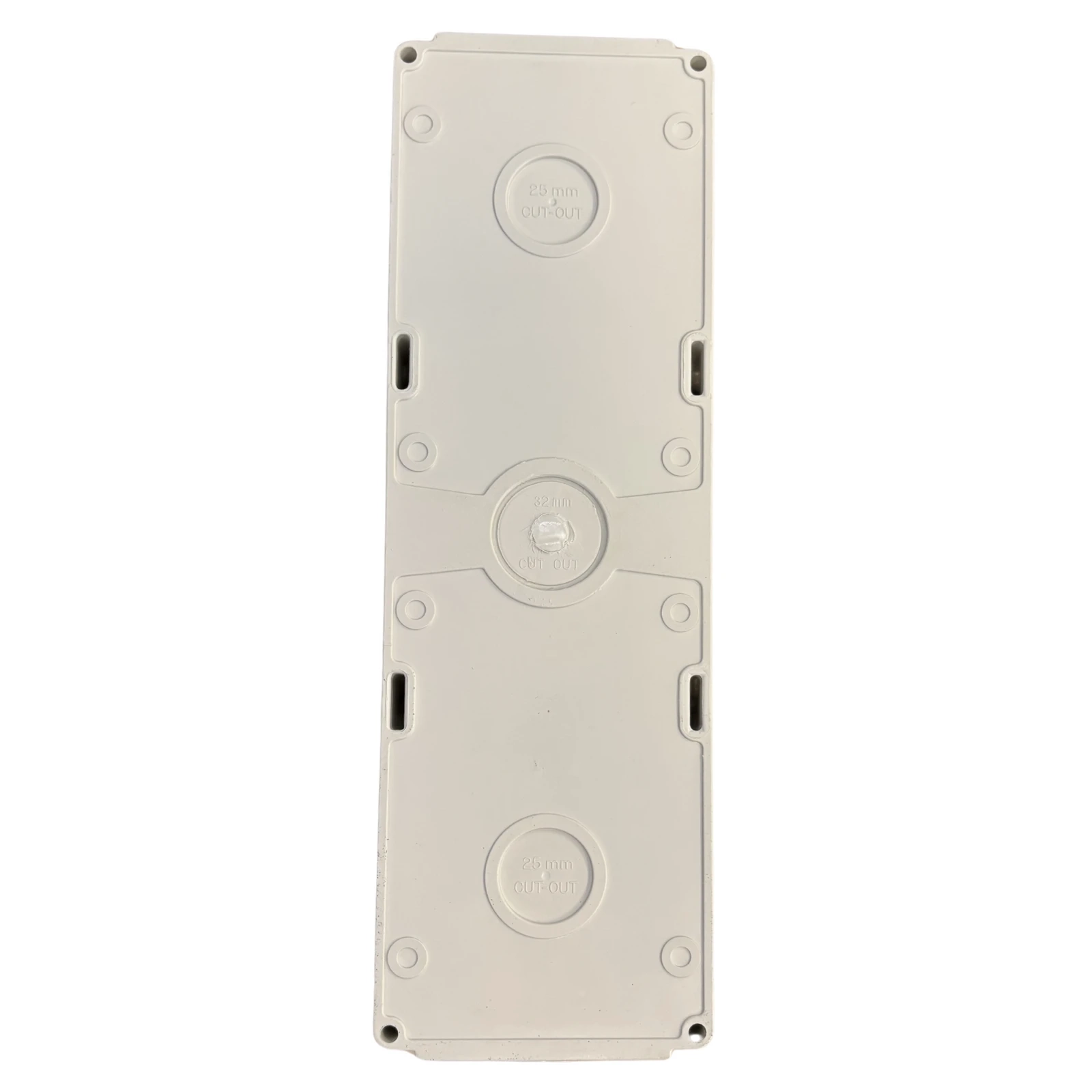

The Clipsal 56E3-GY Mounting Back Box steps up to 3 Gang capacity in a tall, narrow footprint, giving you a sealed, IP66-rated base for larger 56 Series component runs. It handles washdown areas, exposed outdoor runs and dusty job sites while keeping moisture and dust away from your wiring, so a bigger job doesn't mean juggling multiple enclosures.

• IP66 rated to AS 60529 - dust-tight and protected against powerful water jets
• 3 Gang enclosure, 294 x 102 x 63mm (H x W x D)
• Grey PVC housing built to AS 3100
• Surface, wall-mounted design with 16 mounting holes
• 3 cable entry points (2 x M25, 1 x M32)
• Compatible with the full range of 56 Series covers

Grab the 56E3-GY today and get a sealed base built for bigger 56 Series jobs.

Why it Matters

Built for Australian Conditions
Dust, moisture and big temperature swings are part of the job on Australian sites. The 56E3-GY holds an IP66 rating and a -25°C to 75°C operating range, so it performs on coastal sites, rural properties, workshops and busy trade vans alike, and it's built to AS 3100 for Australian compliance.

A Taller Format for 3 Gang Runs
At 294mm tall and just 102mm wide, the 56E3-GY keeps a narrow footprint while giving you room for a full 3 Gang run of components. Sixteen mounting holes and three cable entries (2 x M25, 1 x M32) keep installation straightforward, and it's compatible with the full 56 Series covers range so it slots directly into your existing setup.

Durable Housing, Backed by Warranty
The grey PVC housing is built to handle the daily knocks of a working site, and it's backed by an 18-month manufacturer warranty for extra peace of mind on every install.

Also Available
Beyond the standard grey finish, the 56E3 back box is also offered in Chemical Resistant Orange, Chemical Resistant White and Woolworths Grey for sites with specific colour-coding or chemical exposure requirements.

Is the Clipsal 56E3-GY mounting back box weatherproof?
Yes, it carries an IP66 rating to AS 60529, meaning it's dust-tight and protected against powerful water jets from any direction.

What size is the Clipsal 56 Series 3 Gang mounting back box?
It measures 294 x 102 x 63mm and weighs 0.547kg, with a grey PVC housing finished to RAL 7035.

How many mounting holes does the 56E3-GY have?
It has 16 mounting holes, double the 8 holes on the 1 Gang and 2 Gang 56 Series enclosures, to suit its larger 3 Gang format.
