SINDR G8E 8 Module Mounting Enclosure Base Series 56 Style IP66

Description

The weatherproof base for larger 56 Series layouts.

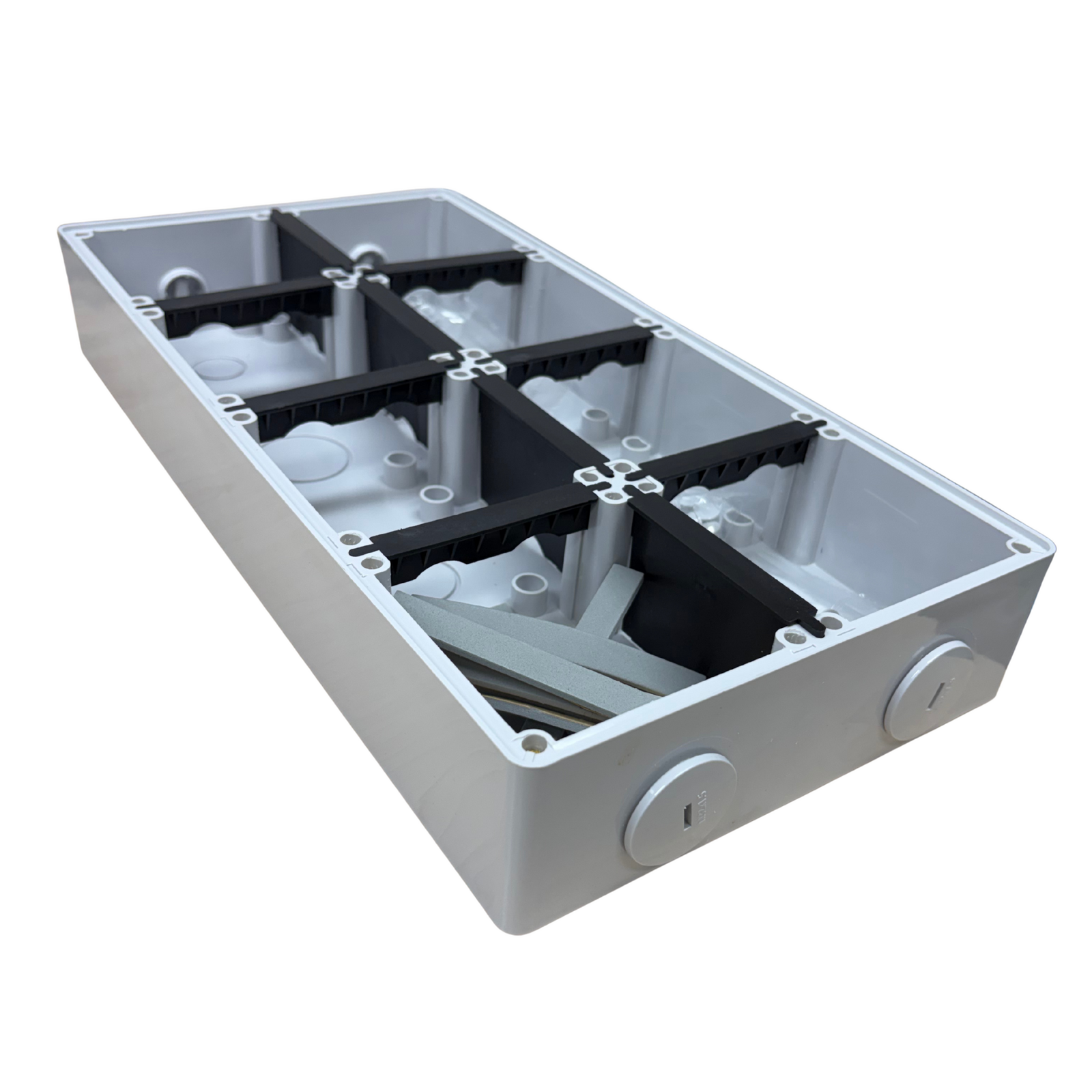

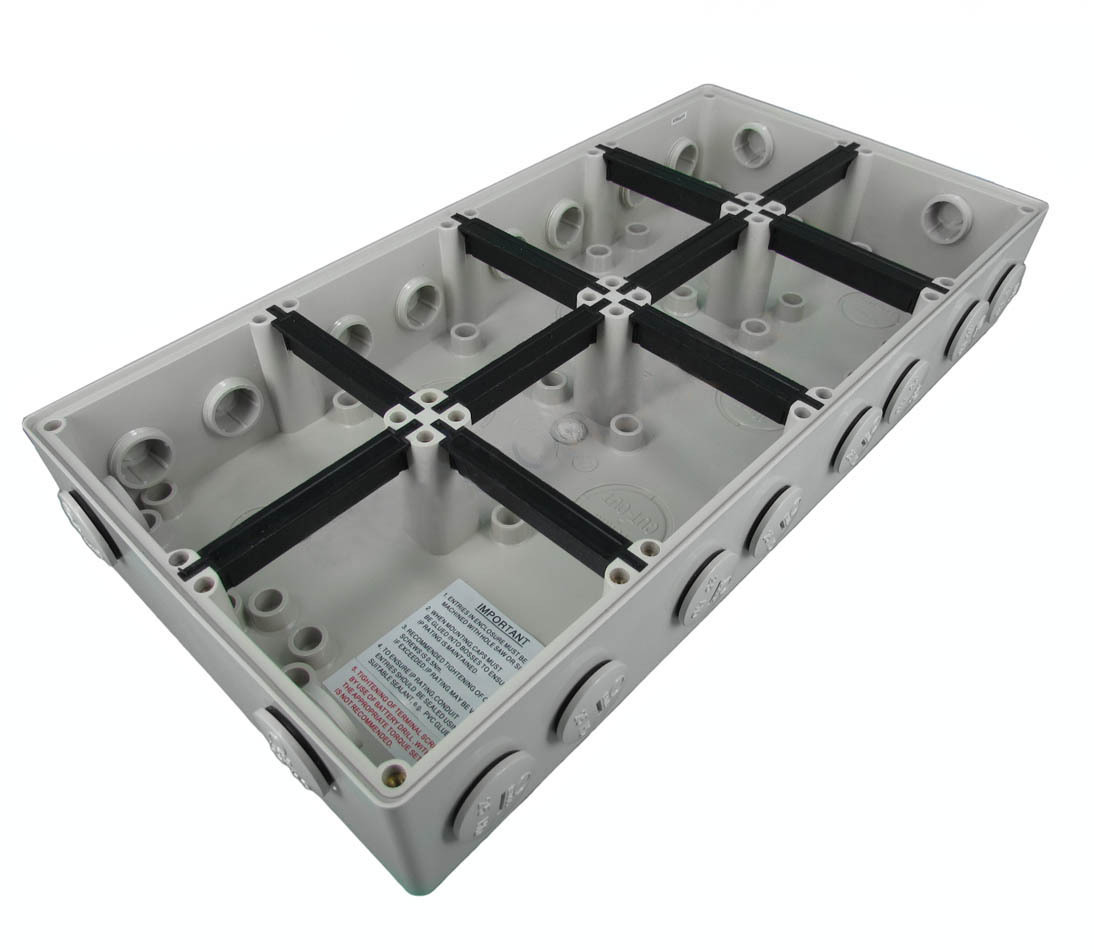

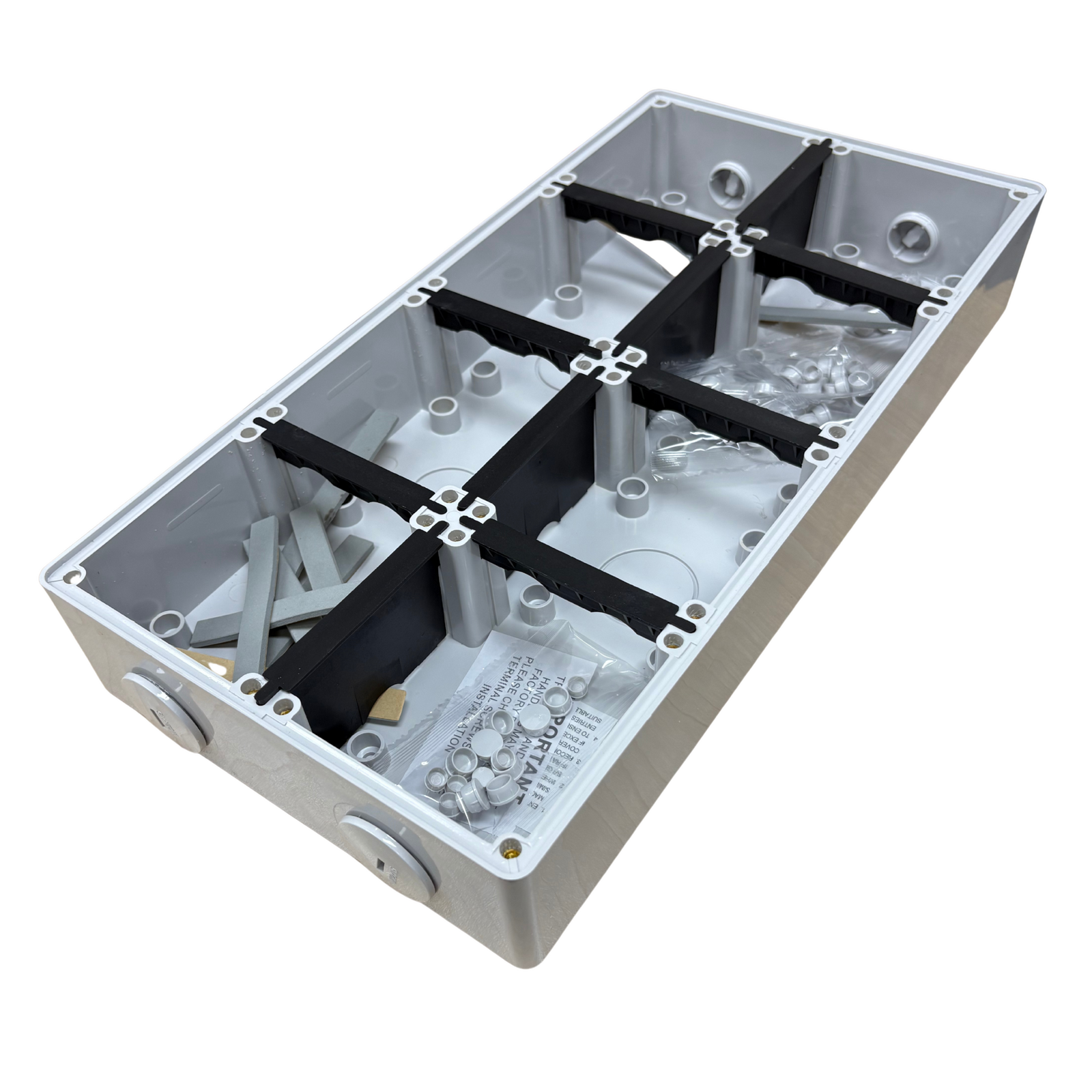

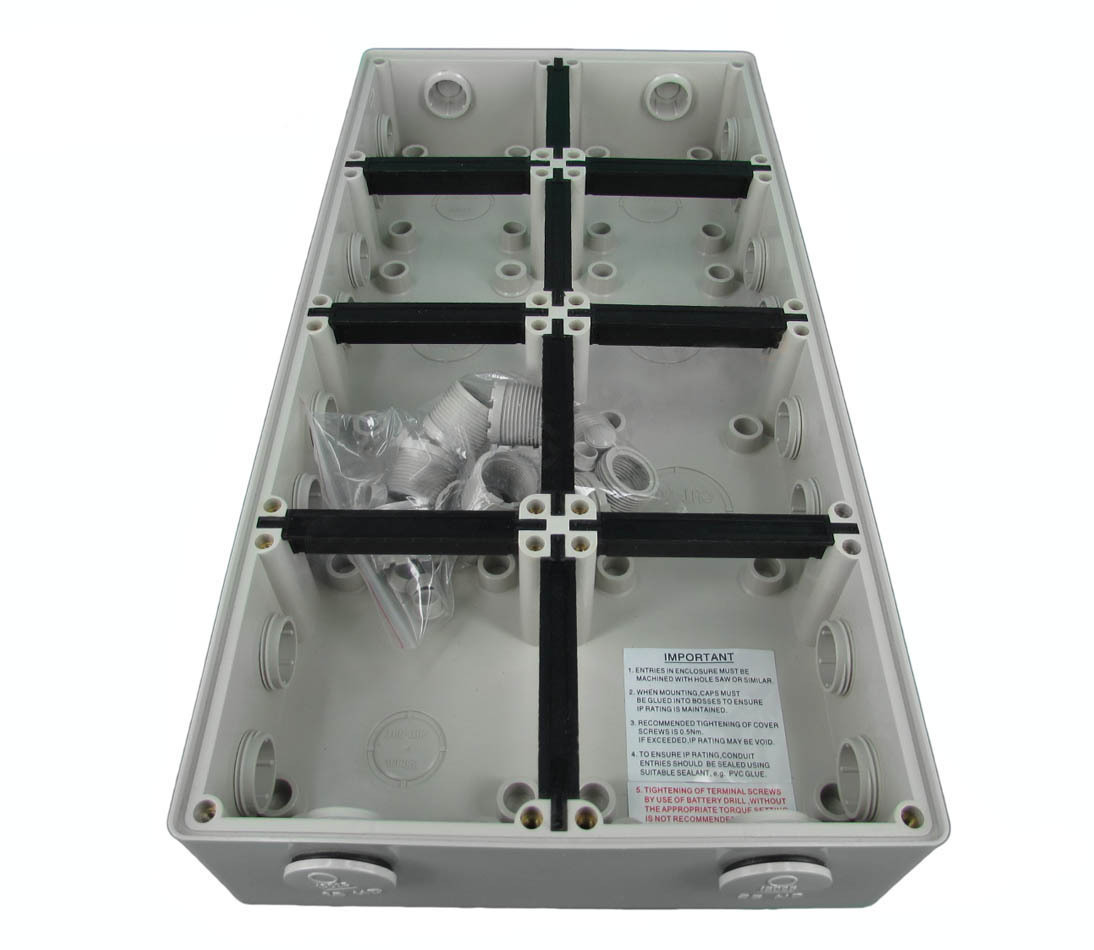

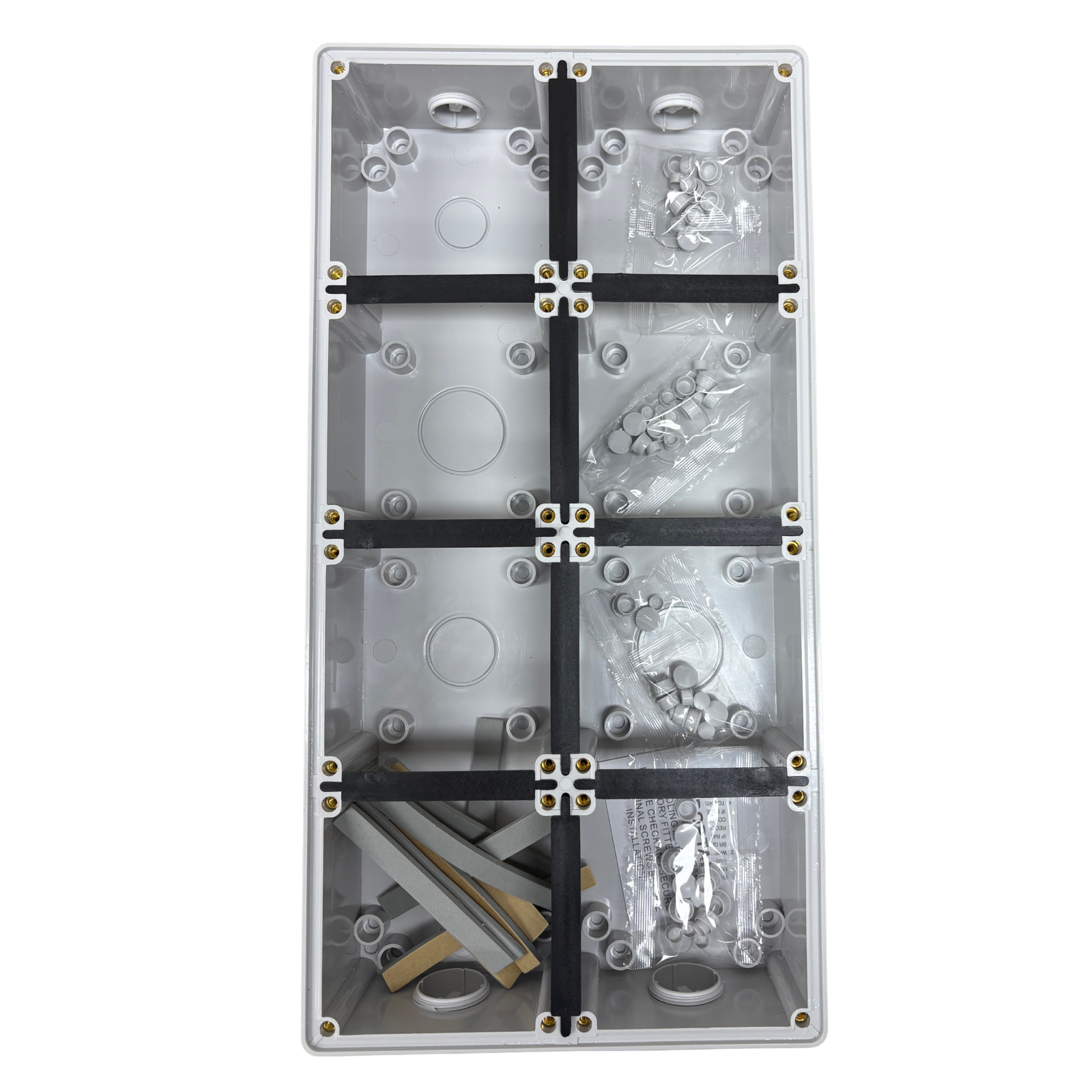

The SINDR G8E, also marketed as the 56E8, is an eight-module mounting enclosure base, rated IP66 for outdoor and wash-down use. It provides a durable, weatherproof surface-mount housing for Series 56 accessories such as socket outlets, switches and isolators, with cable entries on the sides and rear for flexible installation.

Key Features

• Eight-module (8 gang) mounting enclosure base
• Series 56 style – suits 56 Series sockets, switches and accessories
• IP66 weatherproof – dust-tight and protected against high-pressure water jets
• Side and rear cable entry points (no entries on the long edge)
• Body approximately 395 × 200 × 63mm
• Surface mount
• Interchangeable with other major 56 Series brands

Add to your order for fast dispatch across Australia.

A Solid Foundation for Weatherproof Wiring

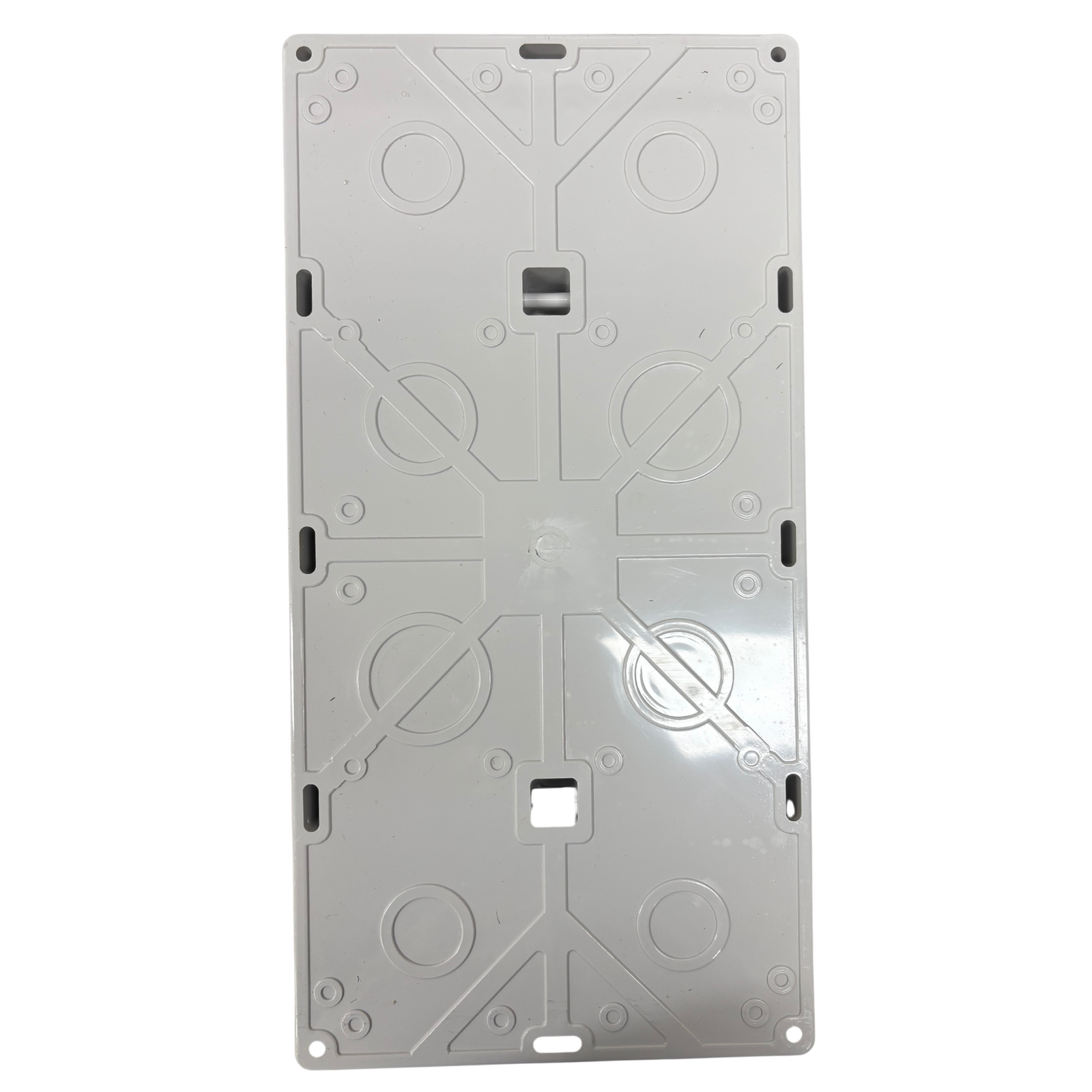

A mounting base is the enclosure that Series 56 accessories sit on, providing the wiring space and the sealed, weatherproof connection to the wall. With room for eight 56 Series modules, the G8E suits larger outdoor installations that group multiple sockets, switches and isolators together. Cable entries on the sides and rear let an electrician run conduit or cable in from those faces; note there are no entries on the long edge of the enclosure, so plan cable routing accordingly.

Built for the Outdoors

Rated IP66, the G8E is dust-tight and withstands high-pressure water jets, so it stands up to rain, dust and wash-down environments. It mounts on the surface and accepts 56 Series accessories, making it interchangeable with the wider 56 Series range from other major brands.

Q: What does the SINDR G8E mounting base do?
A: It is a weatherproof enclosure base that up to eight Series 56 accessories, such as sockets, switches or isolators, mount onto, providing the wiring space and a sealed connection to the wall.

Q: Where are the cable entries on the G8E?
A: On the sides and rear of the enclosure. There are no cable entry points on the long edge, so cable routing should be planned to enter from the sides or back.

Q: Can the G8E be installed outdoors?
A: Yes. It is rated IP66, meaning it is dust-tight and protected against high-pressure water jets, suitable for outdoor and wash-down environments.
