HS16Z 16mm Zinc Plated Half Saddle Conduit Clip Medium Duty

Description

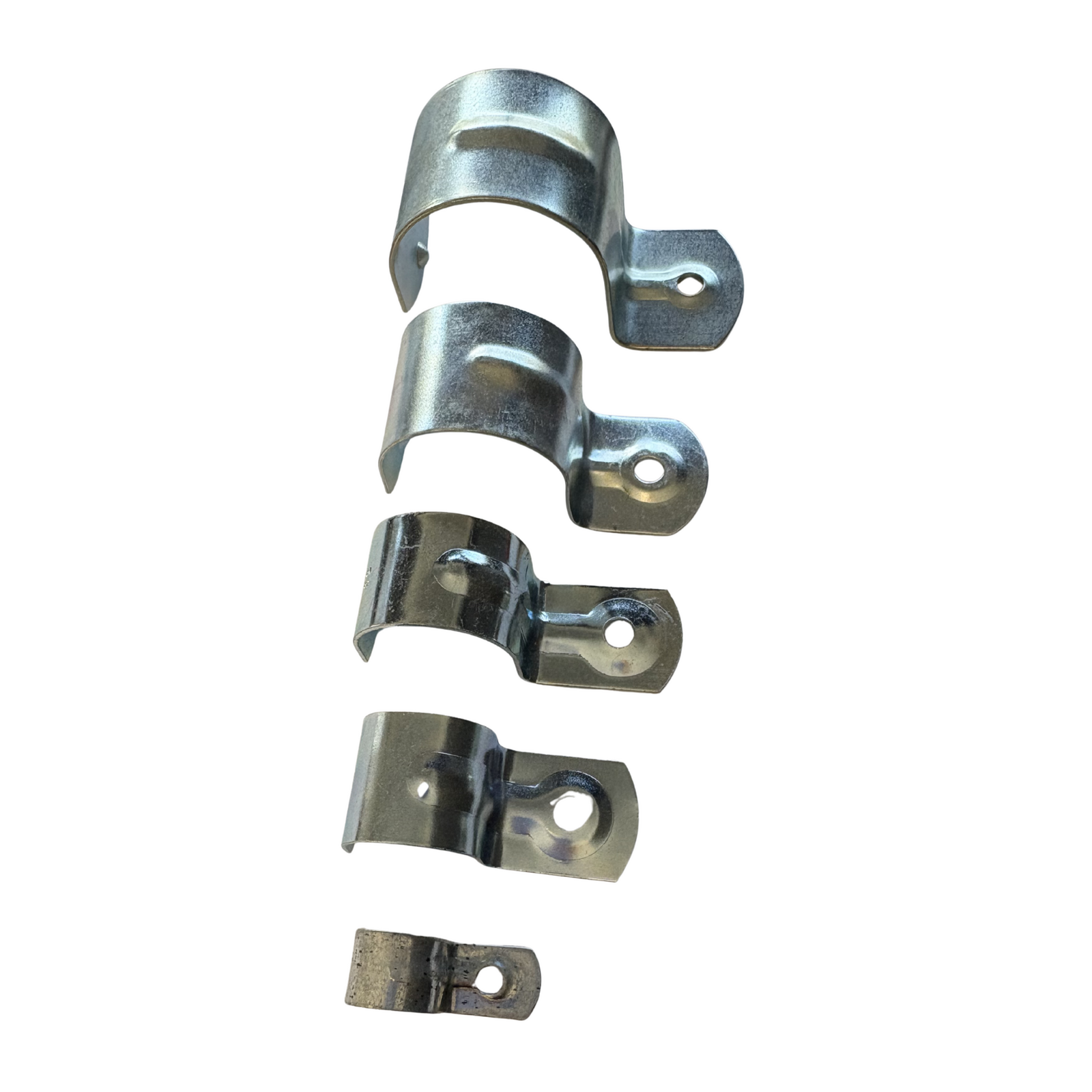

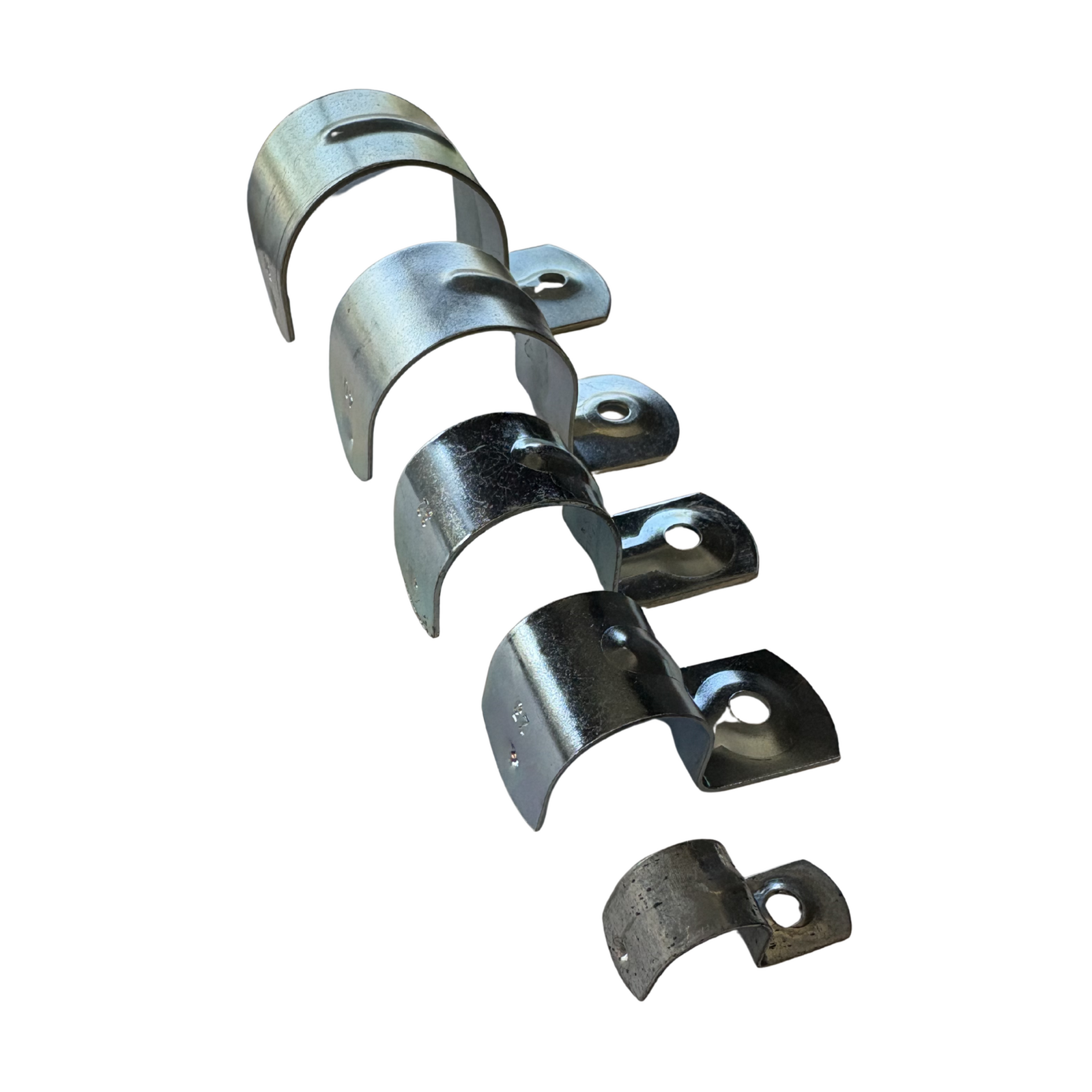

HS16Z. 16mm. Zinc Plated Half Saddle. Steel. Medium Duty. Reinforced Rib. Sold Individually.

The HS16Z is a 16mm zinc plated steel half saddle — used to clip and secure 16mm rigid or flexible electrical conduit to walls, ceilings, and structural surfaces. Steel construction with zinc plating for corrosion resistance. Reinforced rib for extra strength. 6.5mm mounting hole. Conforms to ASTM B117. Sold individually — minimum order 5.

• HS16Z — 16mm Zinc Plated Steel Half Saddle
• Size: 16mm — suits 16mm electrical conduit
• Width: 17.5mm
• Length: 40mm
• Mounting hole: 6.5mm
• Material thickness: 0.9mm
• Material: Steel — zinc plated, corrosion resistant
• Reinforced rib — extra strength for secure conduit fixing
• Operating temperature: -40°C to +70°C
• Hardness: 115 VPN max
• Conforms to ASTM B117
• Suits rigid PVC and flexible conduit — residential and commercial electrical installations
• Sold individually — minimum order 5

Order online now — fast dispatch Australia-wide.

About Zinc Plated Half Saddles

A half saddle (also called a conduit clip or conduit saddle) is a single-screw steel clip used to fix electrical conduit to a wall, ceiling, or structural surface. The saddle wraps around the lower half of the conduit and is secured through a single central mounting hole — providing a clean, low-profile conduit fixing point. Half saddles are the most common conduit fixing method used in Australian residential and commercial electrical installations.

Zinc plating provides corrosion resistance for both indoor and outdoor above-ground installations. The reinforced rib on the HS16Z saddle provides additional strength and rigidity to prevent deformation under load. The 6.5mm mounting hole suits standard M6 screws and coach screws commonly used in conduit fixing applications on timber, masonry, and metal substrates.

The HS16Z suits 16mm electrical conduit — the most commonly used conduit size in Australian residential electrical installations — and is supplied by Pacific Components. The full range covers 16mm through 50mm conduit sizes.

Q: What conduit size does the HS16Z suit?
A: The HS16Z suits 16mm electrical conduit — rigid PVC and flexible conduit.

Q: What fastener size suits the HS16Z mounting hole?
A: The HS16Z has a 6.5mm mounting hole — suited to M6 screws and coach screws.

Q: Is the HS16Z suitable for outdoor use?
A: Yes — zinc plating provides corrosion resistance for outdoor above-ground applications. Operating temperature range is -40°C to +70°C. Not suitable for underground or fully submerged installations.

Q: What is the minimum order quantity?
A: The HS16Z is sold individually with a minimum order of 5 units.
