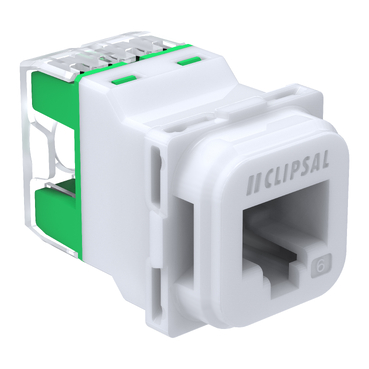

Clipsal Actassi 40RJ45SMA6C-TN RJ45 Cat6 UTP Connector Translucent

SKU: cli40rj45sma6ctn

Download Data Sheet

$12.97 (ex-GST)

$14.27 (inc-GST)

$14.27

$12.97

(inc-GST)

(ex-GST)

⚫︎ Only 2 Left!

Clipsal Actassi S-110 Cat6 UTP RJ45 connector, translucent. Gold-plated 8-pin, Gigabit and PoE up to 100W, gold contacts. Fits 40-series Iconic plates (sold separately).

Fast Shipping, Trusted by Government, Easy Returns, Free Shipping over $200

Inquire here

A Cat6 RJ45 data jack that fits your Iconic wall plates.

The Clipsal Actassi S-110 (40RJ45SMA6C-TN) is a Cat6 UTP RJ45 modular connector in translucent finish. Part of Clipsal's Actassi structured-cabling range, it terminates a Cat6 network cable at the wall and clips into a compatible 40-series Iconic plate – giving you a tidy, high-performance data point for computers, Wi-Fi access points, IP cameras, and more.

Key Features

Cat6 RJ45 connector, UTP (unshielded)
8 gold-plated contacts conforming to IEC 60603-7
Supports 1000BASE-T (Gigabit Ethernet)
Power over Ethernet ready – PoE, PoE+, and 4PPoE up to 100W
Transmission performance to 250 MHz
Two-piece design with IDC punch-down or quick-termination tooling
Suits AWG 24 to AWG 23 cable, 0.9–1.4mm conductor
Rated for 750 mating cycles
UL94-V0 flame retardant
UL Listed and RCM certified
Fits 40-series Clipsal Iconic plates (sold separately)
Translucent finish
18-month manufacturer warranty

Buy online and have it on its way.

Why it Matters

Gigabit and PoE Ready
With 1000BASE-T support and PoE capability up to 100W (4PPoE), this connector handles high-speed data and powers devices like IP cameras, wireless access points, and VoIP phones over the same cable – a versatile choice for modern home and commercial networks.

Built to Standards
The connector conforms to a range of international structured-cabling standards including ANSI/TIA-568-C.2, ISO/IEC 11801, and AS/NZS 3080, and is UL Listed and RCM certified – assurance of tested, compliant performance for a permanent installation.

Fits Your Iconic Plates
The 40-series footprint means it clips straight into compatible Clipsal Iconic plates and grids, so your data outlets can match the switches and sockets throughout the room. The plate is purchased separately.

What is the 40RJ45SMA6C-TN?
It is a Cat6 UTP RJ45 modular connector from Clipsal's Actassi range, used to terminate a network cable at a wall outlet. It fits 40-series Iconic plates.

Does it support Power over Ethernet?
Yes. It supports PoE, PoE+, and 4PPoE up to 100W, so it can carry power to connected devices as well as data.

Does it come with a wall plate?
No. This is the connector only. It clips into a compatible Clipsal Iconic 40-series plate or grid, which is purchased separately.

(cli40rj45sma6ctn)

Design
Range	Actassi
Product or component type	modular jack
Colour tint	connector housing: white (ABS + PC)top cover: transparent (PC)
Colour code	RAL 9010
Product compatibility	RJ45 plug
Warranty	18 months
Physical
Device presentation	two piece design
Type of packing	individual bag
Quantity per set	set of 1
Contact resistance	20 mOhm
Insulation resistance	initial insulation resistance: > 500 MOhm at 100 V DC
Connector type	RJ45
Awg gauge	AWG 24...AWG 23
Mechanical durability	750 cycles
Pin number	8 pins of copper alloy and gold plated conforming to IEC 60603-7
Tool type	punch down toolquick termination tool
Cable outer diameter	0.9...1.4 mm
Cable shielding type	UTP
Communication network category	6
Communication network type	1000BASE-T
Communication port protocol	PoE+ (Power over Ethernet)PoE 15W (Power over Ethernet)PoE+ 30W (Power over Ethernet Plus)4PPoE 100W (Power over Ethernet)
Connections - terminals	IDC
Transmission frequency	1...250 MHz
Type of footprint	40 mech
Height	22 mm
Length	36 mm
Width	16 mm
Net weight	0.008 kg
Ambient air temperature for operation	-10...60 ??C
Ambient air temperature for storage	-10...60 ??C
Climatic withstand	40/070/21 (21 days)
Product certifications	UL listedRCM
Standards	ANSI/TIA-568-C.2IEC 60603-7-4ISO/IEC 11801:2011 Ed.2.2AS/NZS 3080:2003UL 1863IEC 60512-99-001IEC 60512-99-002
Toxic heavy metal free	Yes
Mercury free	Yes
Environmental disclosure	ENVPEP2406004EN
Others
	Outside of Europe
Legacy weee scope	In
Average percentage of recycled plastic content	0 %
Weee label	N/A
Product name	Actassi S-110
Targeted region	Asia Pacific.
Flame retardance	UL94-V0
Unit type of package 1	PCE
Package 1 height	0.06 cm
Package 1 width	10.5 cm
Package 1 length	15.0 cm
Package 1 weight	10.0 g
Total lifecycle carbon footprint	0 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.0020664381796366353
Carbon footprint of the manufacturing phase [a1 to a3]	0 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.00018855332229135443
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.00004840483086135059
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0.004216500304389638
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Carbon footprint of the end-of-life phase [c1 to c4]	0.0007317464212986823
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Removable battery	N/A
Total lifecycle carbon footprint	0.003214978620980441
Average percentage of recycled metal content	0 %
End of life manual availability	N/A
