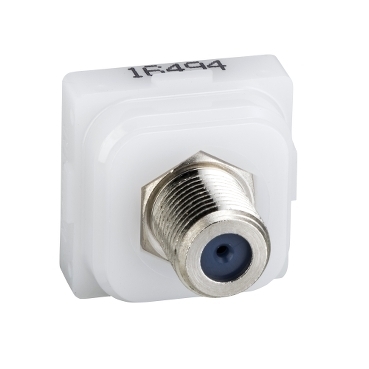

Clipsal Iconic 40PFM-TN F-Type TV Antenna Socket Foxtel Translucent

SKU: cli40pfmtn

Download Data Sheet

$5.93 (ex-GST)

$6.52 (inc-GST)

$6.52

$5.93

(inc-GST)

(ex-GST)

RRP $10.00 SAVE $3.48

⚫︎ Only 1 Left!

Clipsal Iconic F-Type TV antenna socket mechanism, translucent. F-to-F coaxial for 9mm cable, Foxtel approved, AS/NZS compliant. Mechanism insert; fits an Iconic plate (sold separately).

Fast Shipping, Trusted by Government, Easy Returns, Free Shipping over $200

Inquire here

A Foxtel-approved F-Type antenna outlet for the Iconic range.

The Clipsal Iconic 40PFM-TN is an F-Type TV antenna socket mechanism with a translucent tint. It provides an F-to-F coaxial connection suited to 9mm cable, giving you a clean, flush wall outlet for TV and antenna signals. The socket meets Australian and New Zealand standards and is Foxtel approved. This is the mechanism insert, designed to clip into a compatible Iconic plate or grid.

Key Features

F-Type TV antenna socket (F-to-F connector)
Coaxial connection for 9mm cable
Foxtel approved
Meets Australian and New Zealand standards
Single socket
Mechanism insert – fits a compatible Iconic plate/grid (sold separately)
Flush mount, clip-in fixing
Durable PC (polycarbonate) construction
Translucent tint

Order yours online now.

Why it Matters

F-Type for Modern TV and Pay-TV
The F-Type connection is the standard for satellite and many digital TV and pay-TV installations – and with Foxtel approval, this socket suits Foxtel setups specifically. The F-to-F design lets you terminate a coaxial run neatly at the wall.

Compliant and Approved
Meeting Australian and New Zealand standards and carrying Foxtel approval means this outlet is built for local installations and pay-TV requirements – a dependable choice for a new TV point.

A Mechanism, Not a Full Plate
This is the insert only, so it clips into an Iconic plate or grid you choose separately – letting you match the finish and combine it with other AV, data, or power modules in a multi-gang plate.

What is the 40PFM-TN used for?
It is an F-Type TV antenna socket that provides a wall-mounted, Foxtel-approved outlet for TV and antenna signals, connecting via F-to-F coaxial cable.

Does it come with a wall plate?
No. This is the mechanism only. It clips into a compatible Clipsal Iconic plate or grid, which is purchased separately.

What cable does it suit?
It is designed for 9mm coaxial cable with an F-Type connection at both ends.

(cli40pfmtn)

Design
Range	Clipsal Iconic
Product or component type	TV socket
Surface treatment	untreated
Colour tint	white
Physical
Device presentation	mechanism
Device mounting	flush
Fixing mode	clip-in
Tv socket type	TV
Tv connector	F-type to F-type
Type of cable	coaxial
Cable outer diameter	9 mm
Type of packing	polybag
Quantity per set	1
Sale per indivisible quantity	1
Height	23 mm
Width	23 mm
Depth	25 mm
Toxic heavy metal free	Yes
Mercury free	Yes
Environmental disclosure	ENVPEP1604002
Material
Material	PC (polycarbonate)
Others
Legacy weee scope	In
Average percentage of recycled plastic content	0 %
	Outside of Europe
Weee label	N/A
Outlet standard deviation	Australian/New Zealand
Main colour tint	white
Unit type of package 1	PCE
Package 1 height	2.0 cm
Package 1 width	7.6 cm
Package 1 length	12.7 cm
Package 1 weight	0.01 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	0.4 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.05803747176770968
Carbon footprint of the manufacturing phase [a1 to a3]	0.1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0013044094561908365
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.000429820255643965
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0.3444761182976235
Carbon footprint of the use phase [b2, b3, b4, b6]	0.3 kg CO2 eq.
Carbon footprint of the end-of-life phase [c1 to c4]	0.024202390806810182
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Removable battery	N/A
Total lifecycle carbon footprint	0.42845021058397814
Average percentage of recycled metal content	0 %
End of life manual availability	N/A
