Clipsal Iconic 40CSFM-VW Fan Controller Mechanism 3-Speed 250V Vivid White

Description

Set your ceiling fan speed with a simple rotary dial.

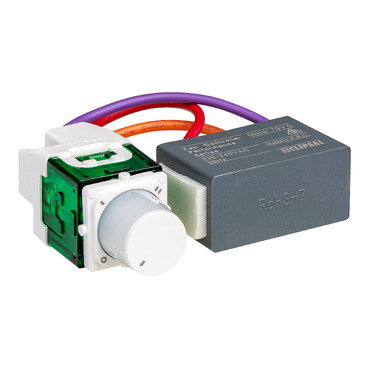

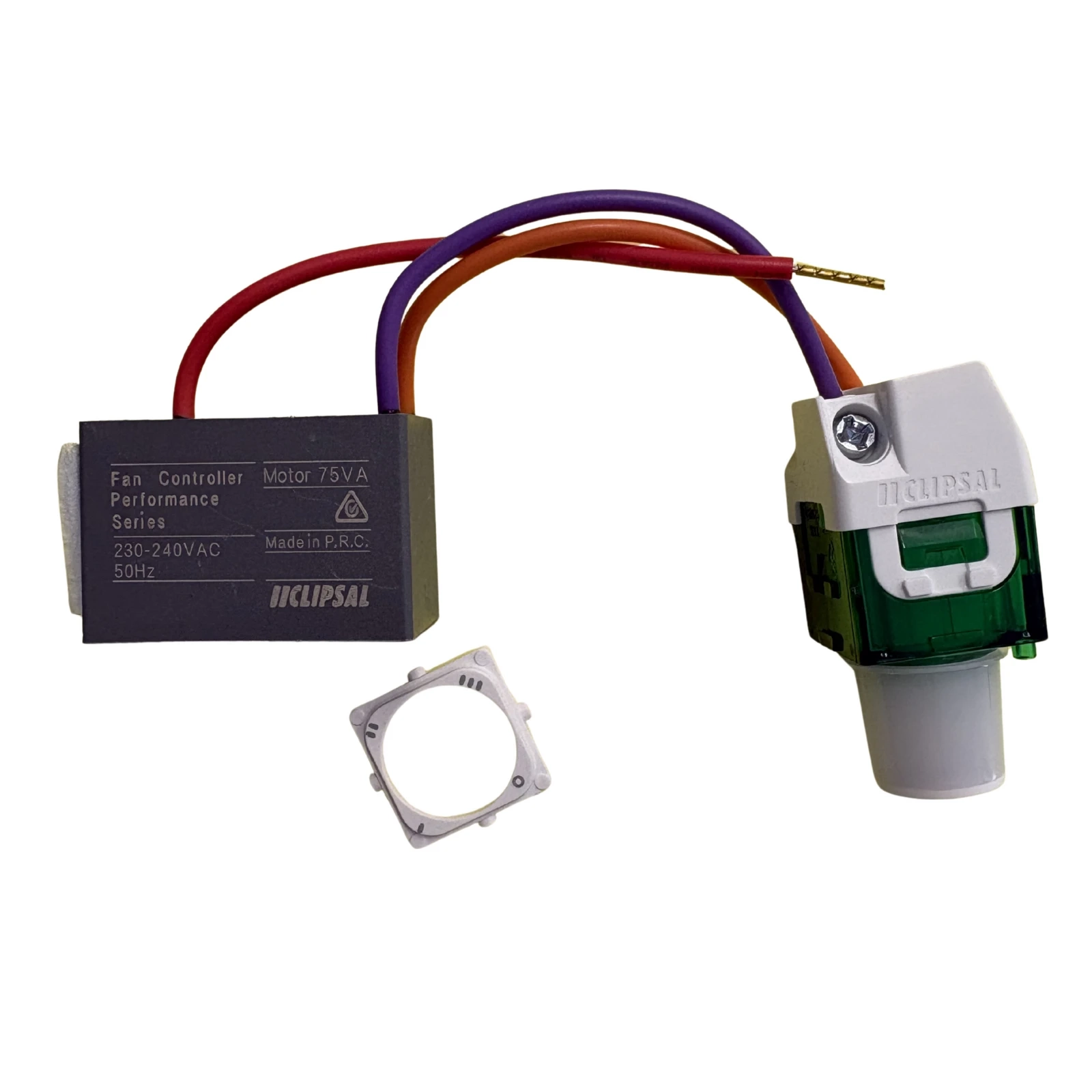

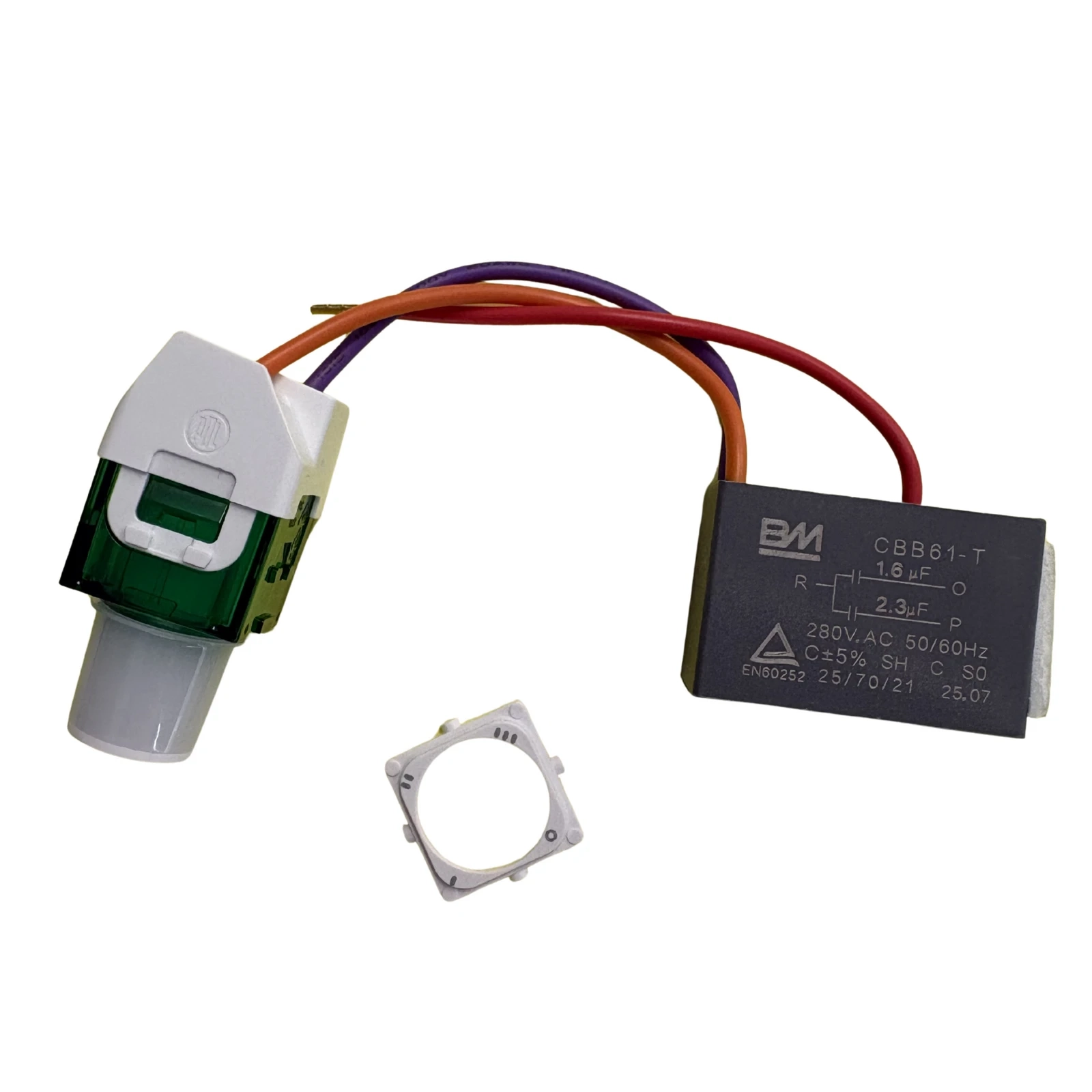

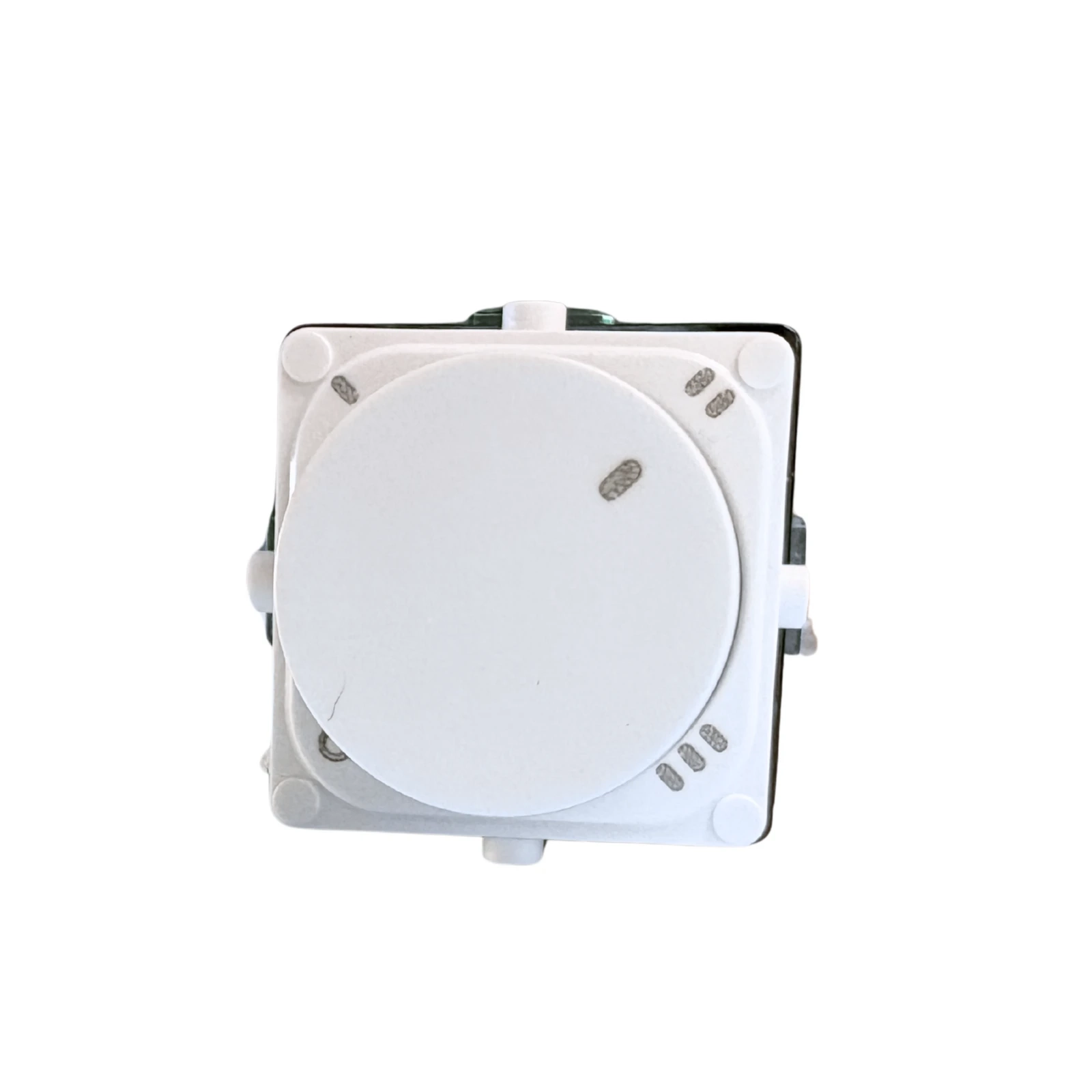

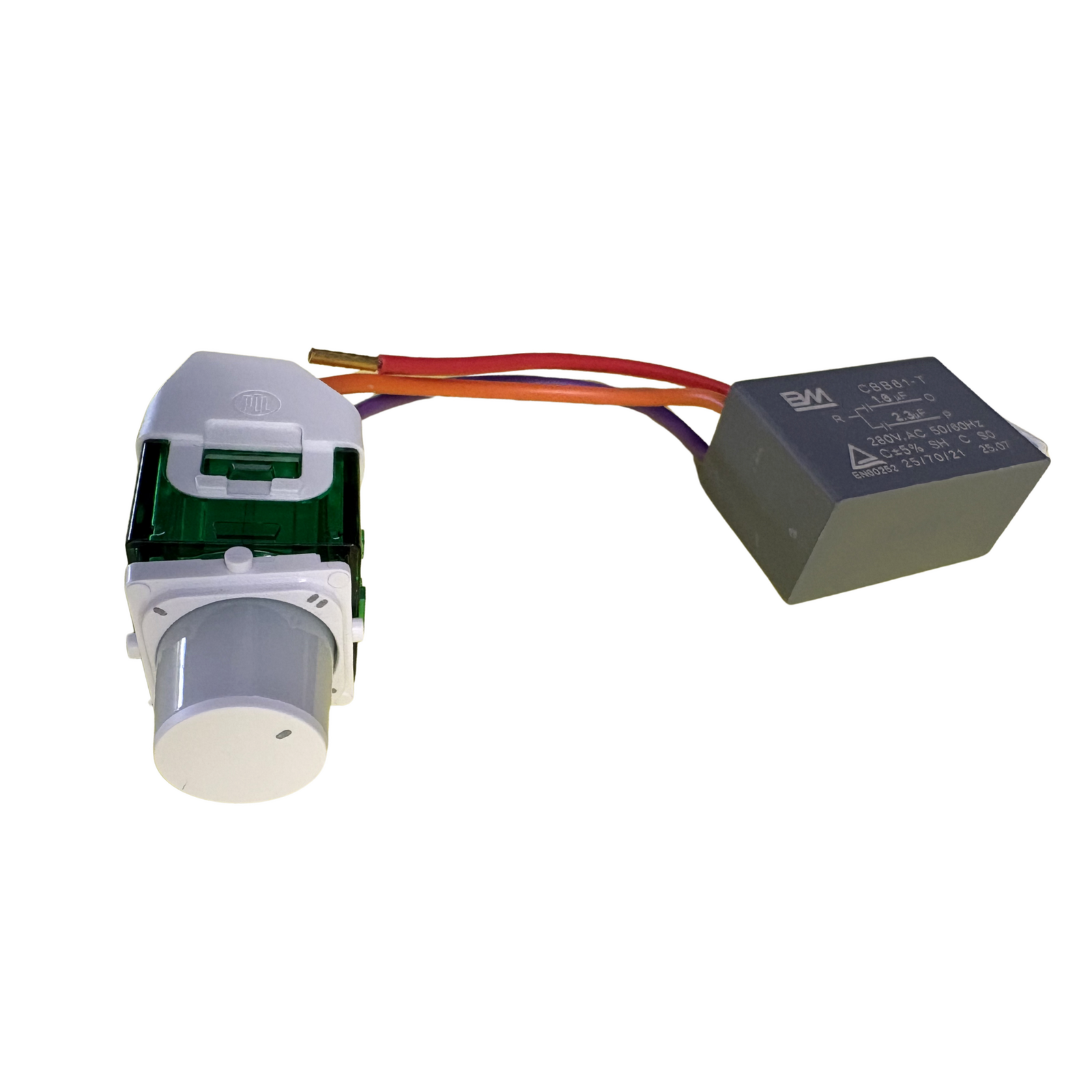

The Clipsal Iconic 40CSFM-VW is a 3-speed fan controller mechanism in Vivid White. Its rotary switch has four positions – Off, 1, 2, and 3 – letting you step a compatible ceiling fan through low, medium, and high speeds using a built-in 75VA capacitor. This is the mechanism insert, designed to fit an Iconic plate or grid.

Key Features

• 3-speed rotary fan controller mechanism
• Four positions: Off, 1, 2, 3
• 75VA capacitor-based speed control
• Rated 250V, 0.3A
• Rotary head operator
• Mechanism insert – fits a compatible Iconic plate/grid (sold separately)
• Vivid White finish
• 18-month manufacturer warranty

Buy online and have it on its way.

Why it Matters

Simple, Reliable Fan Speed Control
A capacitor-based rotary controller gives you distinct low, medium, and high speed settings with a positive click at each position – a straightforward, long-proven way to control a ceiling fan from the wall, with no electronics to configure.

Part of the Iconic System
As an Iconic mechanism, it drops into the same plates and grids as your Iconic switches and sockets, so fan control matches the look of the rest of the room. The plate is purchased separately, letting you choose the finish and gang configuration you need.

Check Fan Compatibility
Capacitor-type speed controllers suit many standard AC ceiling fans, but not all fans – some (particularly DC and certain modern fans) require their own controller. Confirm your fan is compatible with a 75VA capacitor-type wall controller before installing.

What does the 40CSFM-VW do?
It is a 3-speed fan controller mechanism. Its rotary switch selects Off, 1, 2, or 3 to run a compatible ceiling fan at low, medium, or high speed.

Is it a complete wall plate?
No. This is the mechanism only. It fits into a compatible Clipsal Iconic plate or grid, which is purchased separately.

Will it work with any ceiling fan?
It suits many standard AC fans that accept a 75VA capacitor-type controller, but not all fans. DC and some modern fans need their own controller, so check your fan's requirements first.
