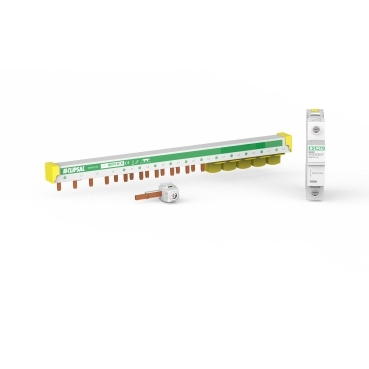

Clipsal MAX9 | MAXBAR Top Feed | 3P+N, 15 Modules, 100 A with N Block and Accessories
SKU: clibusmx9b315n
Product Image Gallery
Product Pricing
$68.75 (ex-GST)
$75.63 (inc-GST)
$75.63
$68.75
(inc-GST)
(ex-GST)
Stock and Availability
- ⚫︎ In Stock
Electrotraders USPs
Description
- Clipsal Busbar - MX9B315N
- MAX9
- MAXBAR Top Feed
- 3P+N, 15 Modules, 100 A with N Block and Accessories
(clibusmx9b315n)
Specifications
| Design | |
| Product brand | Clipsal |
| Range | MAX9 |
| Product or component type | comb busbar |
| Market segment | residential |
| Warranty | 7-year |
| Physical | |
| Device presentation | cuttable |
| Provided equipment | 1 connector5 tooth covers1 neutral terminal block |
| [ie] rated operational current | 100 A |
| [ue] rated operational voltage | 400 V AC |
| Mounting mode | horizontal |
| Standards | AS/NZS 61439-3AS/NZS 3000 |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Environmental disclosure | ENVPEP2206007EN |
| Others | |
| Legacy weee scope | In |
| Average percentage of recycled plastic content | 0 % |
| Outside of Europe | |
| Weee label | N/A |
| Weee applicability | Component |
| Weee exclusion rationale | Component not in scope – non independent function |
| Total number of 18 mm modules | 15 |
| Number of ways | outgoer: 11 ways N + Lincomer: 4 ways N + 3 L |
| Poles configuration for 1 way | outgoer: 3P + N |
| Connection pitch | incomer: 18 mmoutgoer: 9 mm |
| Insulation | insulated |
| [ui] rated insulation voltage | 500 V |
| [uimp] rated impulse withstand voltage | 4 kV |
| Mounting location | top |
| Fire resistance | 960 °C |
| Unit type of package 1 | PCE |
| Package 1 height | 4.0 cm |
| Package 1 width | 30.0 cm |
| Package 1 length | 12.5 cm |
| Package 1 weight | 250.0 g |
| Total lifecycle carbon footprint | 32 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [a1 to a3] | 1.7631610631982166 |
| Carbon footprint of the manufacturing phase [a1 to a3] | 2 kg CO2 eq. |
| Carbon footprint of the distribution phase [a4] | 0.11411755032309967 |
| Carbon footprint of the distribution phase [a4] | 0.1 kg CO2 eq. |
| Carbon footprint of the installation phase [a5] | 0.20498133492590587 |
| Carbon footprint of the installation phase [a5] | 0.2 kg CO2 eq. |
| Carbon footprint of the use phase [b2, b3, b4, b6] | 29.086132984252416 |
| Carbon footprint of the use phase [b2, b3, b4, b6] | 29 kg CO2 eq. |
| Carbon footprint of the end-of-life phase [c1 to c4] | 0.7039448267477106 |
| Carbon footprint of the end-of-life phase [c1 to c4] | 0.7 kg CO2 eq. |
| Pvc free | No |
| Halogen-free status | Halogen free product |
| Silicone-free | No |
| Removable battery | N/A |
| Total lifecycle carbon footprint | 31.87233775944735 |
| Average percentage of recycled metal content | 0 % |
| Halogen-free status | Halogen free product |
| Pvc free | No |
| Silicone-free | No |
| End of life manual availability | N/A |
| Warranty (in months) | 84 |
| SKU | clibusmx9b315n |
| Manfacturer Part Number | MX9B315N |
| Barcode # | 9311554814670 |
| Brand | Clipsal |
