Clipsal Iconic 3025XUA-VW Double GPO Extra Switch Provision 10A 250V White
SKU: cli3025xuavw

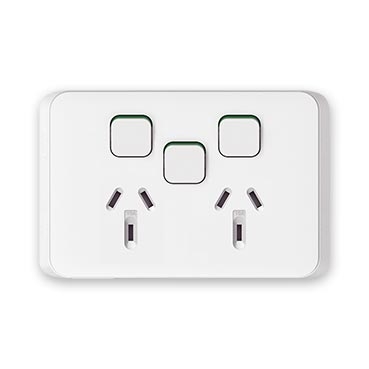

Product Image Gallery
Product Pricing
$25.23 (ex-GST)
$27.75 (inc-GST)
$27.75
$25.23
Stock and Availability
- ⚫︎ Ships in 24 hours
Clipsal Iconic double switched power point with provision for an extra switch. Two 10A sockets, grid plate and cover included; extra mechanism purchased separately. Vivid White.
Electrotraders USPs
Description
A double power point ready for an extra switch – when you need it.
The Clipsal Iconic 3025XUA-VW is a complete double switched power point with provision for an extra switch mechanism. The two 10A sockets and their switches are ready to wire; the extra mechanism is purchased separately, so you can add a third switch later or leave the provision blank.
Key Features
- Complete double switched power point – grid plate and cover included
- Two switched sockets rated 10A
- Provision for an extra switch mechanism (purchased separately – not included)
- Horizontal flush mount, fixed by screws
- Screw terminals accepting 2.5–4 x 2.5mm² rigid, stranded, or flexible cable
- Vivid White finish
- Slim 31mm mounting depth
- Halogen-free construction
- 18-month manufacturer warranty
Add it to your order online today.
Why it Matters
Flexibility to Add a Switch Later
The extra-switch provision means you can fit this now as a standard double power point and add a third switch mechanism down the track – useful when a future load (a light, fan, or rangehood) might be added but isn't wired yet. The extra mechanism is bought separately.
Please Note: Extra Mechanism Not Supplied
This is the "less mechanism" version. The two sockets and their switches are included, but the extra switch position is supplied blank – you'll need to order the extra mechanism separately if you want to use it.
Does this power point include the extra switch?
No. The 3025XUA-VW includes the two sockets and their switches, but the extra switch mechanism is purchased separately. This is the "less mechanism" version.
Is it supplied with the grid plate and cover?
Yes. The Iconic grid plate and cover are included, so the double power point is ready to wire and mount.
Can I add the extra switch later?
Yes. The provision is built in, so an extra switch mechanism can be added at any time by a licensed electrician.
(cli3025xuavw)
Specifications
| Design | |
| Range | Clipsal Iconic |
| Product or component type | switched socket |
| Surface treatment | untreated |
| Physical | |
| Device presentation | complete product |
| Socket number | 2 |
| Connections - terminals | screw terminals |
| Installation direction | horizontal |
| Device mounting | flush |
| Number of rocker | 2 |
| Rated current | 10 A |
| [ue] rated operational voltage | 230/240 V |
| Fixing mode | by screws |
| Clamping connection capacity | 1 x 2.5...4 x 2.5 mm?? for rigid cable(s)1 x 2.5...4 x 2.5 mm?? for stranded cable(s)1 x 2.5...4 x 2.5 mm?? for flexible cable(s) |
| Wire stripping length | 16 mm |
| Net weight | 100 g |
| Ambient air temperature for operation | 0...45 ??C |
| Height | 78 mm |
| Width | 120 mm |
| Depth | 31 mm |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Environmental disclosure | ENVPEP1607004EN |
| Quantity per set | set of 10 |
| Others | |
| Legacy weee scope | In |
| Average percentage of recycled plastic content | 0 % |
| Outside of Europe | |
| Weee label | N/A |
| Weee applicability | Finished product |
| Main colour tint | vivid white |
| Unit type of package 1 | PCE |
| Package 1 height | 4 cm |
| Package 1 width | 7.6 cm |
| Package 1 length | 12 cm |
| Package 1 weight | 119 g |
| Green premium status for reporting | Green Premium product |
| Total lifecycle carbon footprint | 13 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [a1 to a3] | 0.9482196930878339 |
| Carbon footprint of the manufacturing phase [a1 to a3] | 0.9 kg CO2 eq. |
| Carbon footprint of the distribution phase [a4] | 0.03411900029403516 |
| Carbon footprint of the distribution phase [a4] | 0 kg CO2 eq. |
| Carbon footprint of the installation phase [a5] | 0.024197178277858476 |
| Carbon footprint of the installation phase [a5] | 0 kg CO2 eq. |
| Carbon footprint of the use phase [b2, b3, b4, b6] | 11.76325 |
| Carbon footprint of the use phase [b2, b3, b4, b6] | 12 kg CO2 eq. |
| Carbon footprint of the end-of-life phase [c1 to c4] | 0.2792064256305744 |
| Carbon footprint of the end-of-life phase [c1 to c4] | 0.3 kg CO2 eq. |
| Pvc free | No |
| Halogen-free status | Halogen free product |
| Silicone-free | No |
| Removable battery | N/A |
| Total lifecycle carbon footprint | 13.048992297290301 |
| Average percentage of recycled metal content | 0 % |
| Halogen-free status | Halogen free product |
| Pvc free | No |
| Silicone-free | No |
| End of life manual availability | N/A |
| SKU | cli3025xuavw |
| Manfacturer Part Number | 3025XUA-VW |
| Barcode # | 9311554785451 |
| Brand | Clipsal |
