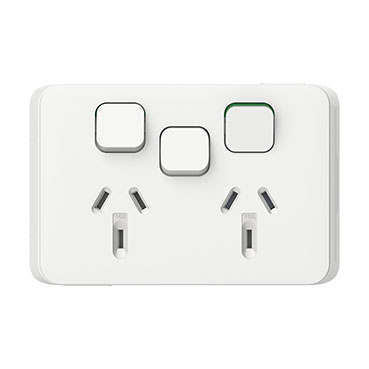

Clipsal Iconic 3025XA-VW Double GPO Extra Switch 10A 250V Vivid White

SKU: cli3025xavw

Download Data Sheet

$30.19 (ex-GST)

$33.21 (inc-GST)

$33.21

$30.19

(inc-GST)

(ex-GST)

RRP $77.00 SAVE $43.79

⚫︎ Ships in 24 hours

Clipsal Iconic complete double power point with an extra removable switch. Two 10A sockets, widely spaced for larger plugs, three rockers total. Vivid White.

Fast Shipping, Trusted by Government, Easy Returns, Free Shipping over $200

Inquire here

Two sockets, two switches, plus a spare switch – all in one plate.

The Clipsal Iconic 3025XA-VW combines a double switched power point with an extra removable switch, giving you socket and switch functions in a single fitting. The two sockets are widely spaced to take larger plugs, and the extra switch can control a separate load such as a light or exhaust fan.

Key Features

Complete product – grid plate, cover, and mechanism included
Two switched sockets rated 10A
Includes an extra removable switch (three rockers total)
Widely spaced sockets to fit larger plugs and adaptors
Horizontal flush mount, fixed by screws
Screw terminals accepting 2.5–4 x 2.5mm² rigid, stranded, or flexible cable
Vivid White finish
Halogen-free construction
18-month manufacturer warranty

Add it to your order online today.

Why it Matters

Socket and Switch in One
The extra switch means a single plate can power two appliances and control a separate load – handy above a kitchen bench for a rangehood, in a bathroom for an exhaust fan, or anywhere you'd otherwise need a separate switch plate alongside the sockets.

Room for Bigger Plugs
The two sockets are spaced wider than a standard double, so bulky plug-packs and adaptors sit side by side without fouling each other – a practical touch on benches and workbenches where chargers and appliances compete for space.

Does the 3025XA-VW come as a complete power point?
Yes. It is supplied complete with the grid plate, cover, and mechanism, ready to wire and mount.

What is the extra switch for?
The extra removable switch can control a separate load such as a light, rangehood, or exhaust fan, independent of the two power sockets.

Why are the sockets spaced wider apart?
The wider spacing lets larger plugs and adaptors sit side by side without overlapping, which is useful for bulky chargers and appliances.

(cli3025xavw)

Design
Range	Clipsal Iconic
Product or component type	switched socket
Surface treatment	untreated
Physical
Device presentation	complete product
Socket number	2
Connections - terminals	screw terminals
Installation direction	horizontal
Device mounting	flush
Number of rocker	3
Rated current	10 A
[ue] rated operational voltage	230/240 V
Fixing mode	by screws
Clamping connection capacity	1 x 2.5...4 x 2.5 mm?? for stranded cable(s)1 x 2.5...4 x 2.5 mm?? for flexible cable(s)1 x 2.5...4 x 2.5 mm?? for rigid cable(s)
Wire stripping length	16 mm
Net weight	92 g
Ambient air temperature for storage	0...60 ??C
Ambient air temperature for operation	0...45 ??C
Height	78 mm
Width	120 mm
Depth	37 mm
Toxic heavy metal free	Yes
Mercury free	Yes
Environmental disclosure	ENVPEP1607004EN
Quantity per set	set of 10
Others
Legacy weee scope	In
Average percentage of recycled plastic content	0 %
	Outside of Europe
Weee label	N/A
Weee applicability	Finished product
Main colour tint	vivid white
Unit type of package 1	PCE
Package 1 height	4.4 cm
Package 1 width	8.7 cm
Package 1 length	14.4 cm
Package 1 weight	132 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	13 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.0518067183831434
Carbon footprint of the manufacturing phase [a1 to a3]	1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.037846286040442365
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.026840567501490074
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	11.76325
Carbon footprint of the use phase [b2, b3, b4, b6]	12 kg CO2 eq.
Carbon footprint of the end-of-life phase [c1 to c4]	0.30970796792635147
Carbon footprint of the end-of-life phase [c1 to c4]	0.3 kg CO2 eq.
Pvc free	No
Halogen-free status	Halogen free product
Silicone-free	No
Removable battery	N/A
Total lifecycle carbon footprint	13.189451539851428
Average percentage of recycled metal content	0 %
Halogen-free status	Halogen free product
Pvc free	No
Silicone-free	No
End of life manual availability	N/A
