Braided Flex Cable 2 Core & Earth 2.5mm Clear - 10m Cut

Description

When it comes to high-demand electrical environments, electromagnetic interference (EMI) can wreak havoc on sensitive electronics and automated systems. At Electrotraders, we provide professional-grade solutions like the EMC / VSD Heavy Duty Multi-Core Screened Flexible Cable. Specifically engineered for use with Variable Speed Drives (VSD) and high-interference applications, this cable ensures your machinery operates with precision and without signal degradation.

This 2.5mm² cable is built to handle the rigors of industrial power distribution. Whether you are wiring a motor drive in a factory or setting up specialized equipment for a mine site, the integrated tinned copper braided screen (80% coverage) acts as a high-performance shield. This construction effectively contains the electromagnetic noise generated by VSDs, protecting nearby control circuits and data lines.

Heavy-Duty Construction for Extreme Reliability

Designed for durability and ease of installation, this cable features Class 5 flexibility with plain annealed copper conductors. This makes it an ideal choice for electricians working in tight enclosures or routing cable through complex machinery. With a robust voltage rating of 0.6/1kV, it is significantly more heavy-duty than standard control cables, making it suitable for direct power supply to motors and industrial drives.

The cable features a Clear V75 PVC outer sheath, which not only provides UV resistance and protection against the elements but also allows for easy visual verification of the internal screening. Inside, the V75 insulation ensures the cable can operate reliably in temperatures up to 75°C.

Advanced Safety and Technical Design

Compliance is non-negotiable in the Australian electrical industry. This cable is manufactured in accordance with AS/NZS 3808 and AS/NZS 1125, ensuring it meets strict safety standards for flame retardancy and electrical performance. For larger power requirements, we offer the Split Earth configuration (available in sizes 6.0mm² and above), which further enhances the cable's ability to manage high-frequency interference and improve grounding performance in VSD applications.

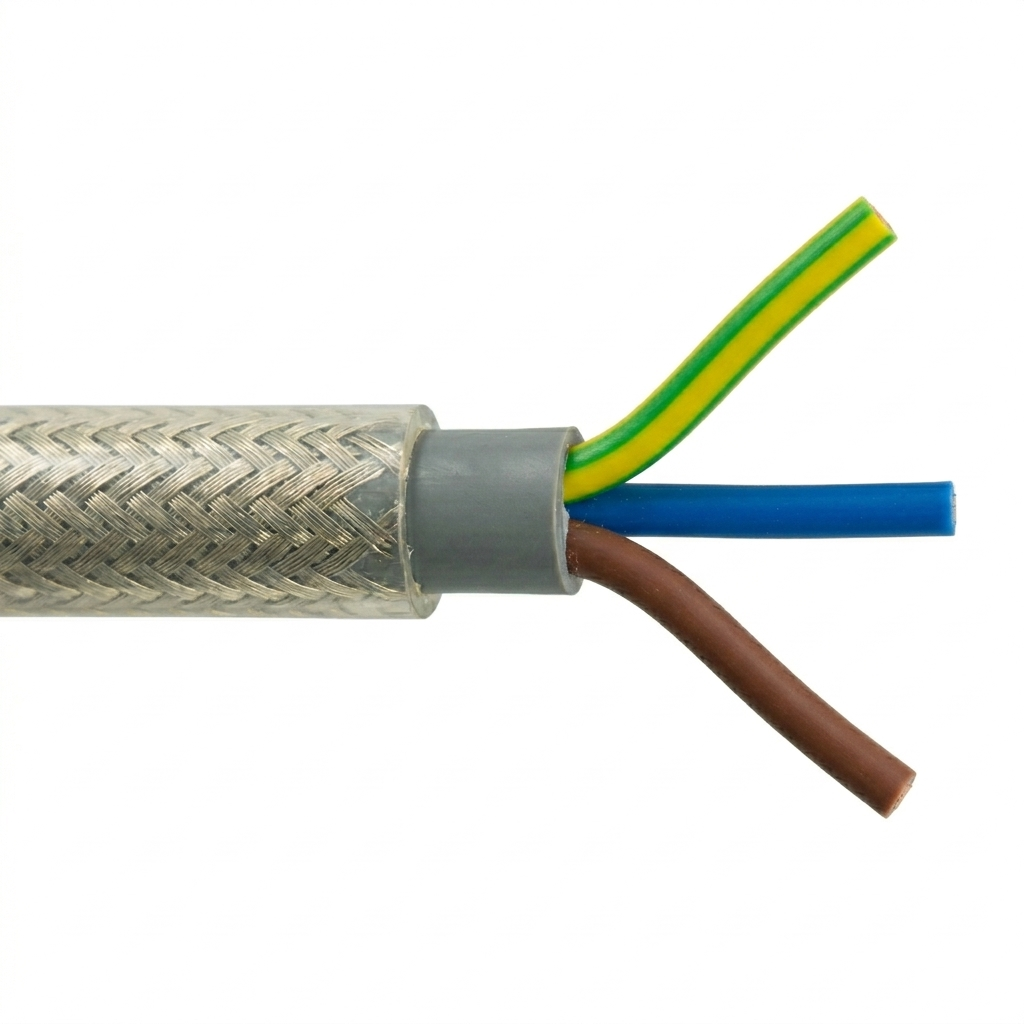

Identification is simple and standard:

• 3 Core: Green/Yellow, Blue, Brown
• 4 Core: Green/Yellow, Brown, Black, Grey

Typical Applications

• Variable Speed Drives (VSD): The primary choice for connecting frequency converters to motors to mitigate EMI.
• Industrial Automation: Used in conveyor systems, pump stations, and CNC machinery.
• Braided Extension Leads: Ideal for constructing heavy-duty, screened extension leads for sensitive site equipment.
• Mining and Heavy Industry: Robust enough for harsh environments requiring high-voltage, flexible power solutions.
• Film and Audio-Visual: Excellent for power runs near sensitive signal cables to prevent hum and interference.

The Electrotraders Advantage

As a team led by experienced electricians, we don't just sell cable; we sell the right solution for the job. We know that downtime costs money, so we only stock cables that are built to last and fully compliant with Australian standards. This cable is available in various lengths, ensuring you only pay for what you need.

• Voltage Rating: 0.6/1kV—suitable for power and control.
• Shielding: 80% Tinned Copper Braid for superior EMC performance.
• Flexibility: Class 5 conductors for easy handling and tight bending radii.
• UV Resistant: Rated for use in various environments, including outdoor applications.

Ensure your next VSD installation is up to code and interference-free. If you need help calculating current carrying capacity (rated at 25 Amps for this specific size) or choosing between standard and split-earth options, contact the Electrotraders technical team today.
