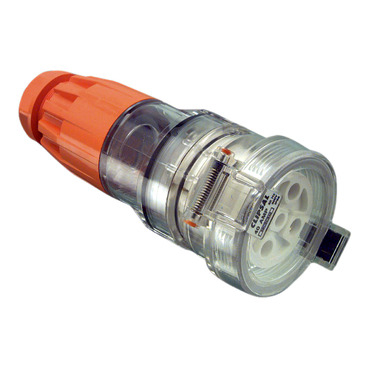

IP66 Clipsal 56 Series - Cord Extension Socket - 5 Round PIN 500V 40A - Electric Orange - 56CSC540-EO
SKU: cliextsoc540
Product Image Gallery
Product Pricing
$267.31 (ex-GST)
$294.04 (inc-GST)
$294.04
$267.31
(inc-GST)
(ex-GST)
Stock and Availability
- ⚫︎ In Stock
Clipsal - World-class design, premium materials, and precision engineering come together.
Electrotraders USPs
Description
Heavy duty 40A 5 pin extension socket with high impact enclosure.
- 500V, 40A rated
- 5 Round pins
- Electric orange
- Supplier Item Code: 56CSC540-EO
- Handling Time: 3 - 5 Days
(cliextsoc540)
Specifications
| Design | |
| Range of product | Series 56 |
| Range | Clipsal - 56 Series |
| Product brand | Clipsal |
| Product or component type | socket |
| Device application | power supply |
| Market segment | industrysmall commercialutility |
| Physical | |
| Mounting mode | external mounting |
| [in] rated current | 40 A |
| [ue] rated operational voltage | 500 V AC 50 Hz conforming to EN 60309-2 |
| Connections - terminals | screw terminals 2.5-25 mm² |
| Connections - terminals | screw terminal |
| Socket number | 1 |
| Outlet standard | industrial |
| Cable outer diameter | 9...29 mm |
| Cable entry | cable gland |
| Net weight | 0.395 kg |
| Depth | 180 mm |
| Length | 184 mm |
| Width | 90 mm |
| Height | 90 mm |
| Ip degree of protection | IP66 conforming to AS 60529 |
| Ambient air temperature for operation | -25...75 °C |
| Standards | AS/NZS 3120 |
| Mercury free | Yes |
| Environmental disclosure | ENVPEP121020EN |
| Circularity profile | N/A |
| Material | |
| Material | polycarbonate: housing |
| Contacts material | sleeves: brass |
| Others | |
| Plug, socket category | low voltage |
| Plug, socket, control station shape | straight |
| Poles description | 3P + N + E |
| Voltage colour | black |
| Socket-outlet type | T |
| Thread type | M40 |
| Targeted country | Australia |
| Unit type of package 1 | PCE |
| Package 1 height | 19.6 cm |
| Package 1 width | 9.0 cm |
| Package 1 length | 9.0 cm |
| Package 1 weight | 0.536 kg |
| Recycled metal content at cr level | 0 |
| Removable battery | N/A |
| Minimum percentage of recycled plastic content | 0 |
| SKU | cliextsoc540 |
| Manfacturer Part Number | 56CSC540-EO |
| Barcode # | 9311554235802 |
| Brand | Clipsal |
