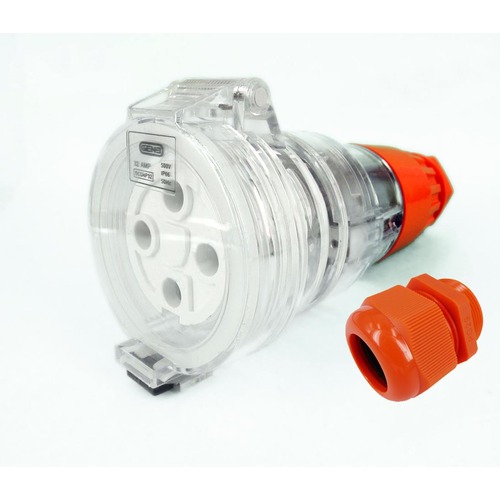

GEN3 4 Pin 32 Amp Industrial Electrical Extension Socket SCO4P32

SKU: genextsoc432

$32.00 (ex-GST)

$35.20 (inc-GST)

$35.20

$32.00

(inc-GST)

(ex-GST)

32 Amp 3 Phase 4 Pin Extension Socket 32A Industrial Electrical IP66 GEN3

GEN3
Item Code: SCO4P32
32 AMP 3 Phase 4 Pin Round Straight Female Extension Socket
500 Volt
Oversize gland included for larger cables 18-25mm Diameter
All GEN3 Industrial Switch Gear is IP66 Rated
All GEN3 plastics are PCA18 virgin grade (No regrind)
All GEN3 products use 316 Stainless Steel Springs and Mounting Screws.
All Brass internal components are greater than 85% copper (less heat rise component due to high copper content).
All GEN3 products have Australian/NZ Approval Certificates or Australian/NZ Compliance Certificates.
All GEN3 products are interchangeable with other major brands.
All GEN3 plug tops have compression glands for quick cable termination.
All GEN3 switch sockets have mounting templates for fast and easy installation.
GEN3 Operating Temperature range -25 Degrees Celsius to +70 Degrees Celsius

(genextsoc432)

General Specifications
SKU	genextsoc432
Supplier Code	SCO4P32
Style	Series 56 Style
Rating	IP66
Electrical Specifications
Volts	500V
Amps	32Amp
Pins	4 Pin
Pin Type	Round
Material Specifications
Plastics	PCA18 virgin grade (No regrind)
Springs and Screw	316 Stainless Steel
Brass Components	Brass internal components are greater than 85% copper.
Dimensions & Packaging
Length (mm)	196.8
Width (mm)	76.5
Height (mm)	91.9
Box Length (cm)	20.5
Box Width (cm)	9
Box Height (cm)	10
Box Qty	1
Box Weight (kg)	0.5
Carton Qty	24
Compliance & Approvals
Approvals	Products have Australian/NZ Approval Certificates.
Compatibility
Compatibility	Products are interchangeable with other major brands.
