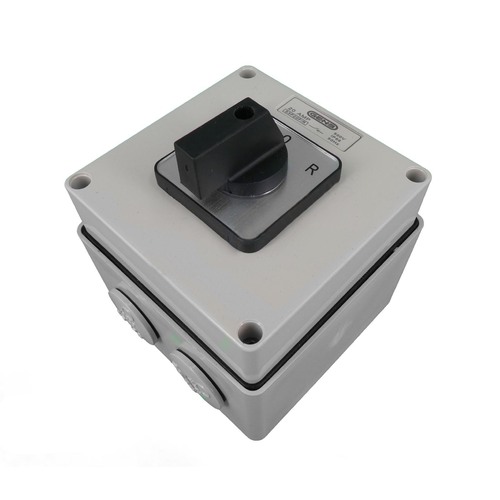

GEN3 S3P20F-R 20A 3 Pole Forward Reverse Switch 500V IP66 F-0-R

Description

Forward, off and reverse control for three-phase gear.

The GEN3 S3P20F-R is a 20 amp, 500V three-pole reversing switch, marked F-0-R for clear forward, off and reverse selection. Built into a rugged IP66 weatherproof enclosure, it is designed to control the direction of three-phase equipment such as motors, conveyors and pumps in demanding industrial and outdoor settings.

Key Features

• 20A, 500V three-pole reversing switch for three-phase equipment
• Marked F – 0 – R for forward, off and reverse selection
• IP66 rated against dust ingress and high-pressure water jets
• Accepts cable from 1.5mm² up to 6mm²
• 316 stainless steel springs and mounting screws for corrosion resistance
• PCA18 virgin-grade plastics (no regrind) for consistent strength
• Brass internal components over 85% copper for lower heat rise
• Australian/NZ approval or compliance certificates held
• Interchangeable with other major brands

Add to cart for fast dispatch across Australia.

Direction Control, Built Tough

A reversing switch lets an operator change the rotational direction of a three-phase motor by swapping two of the supply phases, with a positive centre-off position to stop the equipment between changes. The F-0-R marking makes selection unambiguous on site, while the IP66 enclosure keeps dust and water out in wash-down, outdoor and dusty environments. High-copper brass contacts help manage heat rise under sustained 20A loads.

Reliable, Site-Ready Construction

The S3P20F-R terminates cable from 1.5mm² to 6mm² and is built from PCA18 virgin-grade plastics with 316 stainless steel hardware, so it stands up to repeated operation in harsh conditions. As a GEN3 product it is interchangeable with other major brands and is covered by Australian/NZ approval or compliance certificates.

Q: What does the F-0-R marking on the GEN3 S3P20F-R mean?
A: It indicates the three switch positions: Forward, Off (0) and Reverse. The centre-off position stops the equipment before changing direction.

Q: What is a three-pole reversing switch used for?
A: It reverses the rotational direction of a three-phase motor by swapping two phases, which suits equipment such as conveyors, pumps and machinery that needs to run in either direction.

Q: Is the GEN3 S3P20F-R suitable for outdoor use?
A: It is rated IP66, meaning it is protected against dust and high-pressure water jets, which suits exposed outdoor and wash-down industrial environments.
