4mm Garden Lighting Cable Twin Sheath Red Black 2 Core 030m Roll
SKU: cabgarlig4.30m
Product Image Gallery
Product Pricing
$59.09 (ex-GST)
$65.00 (inc-GST)
$65.00
$59.09
Stock and Availability
- ⚫︎ Only 4 Left!
4mm Garden Lighting Cable Twin Sheath Red Black
Electrotraders USPs
Description

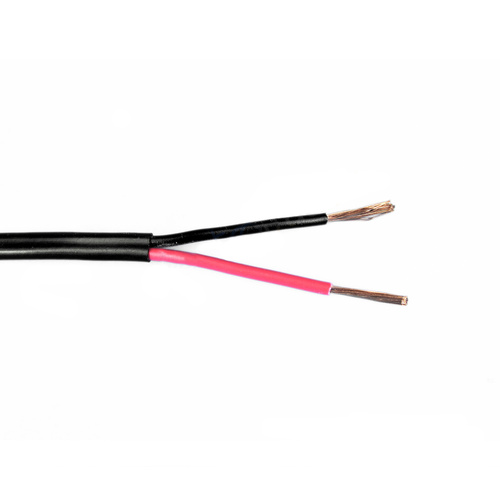

4mm Garden Lighting Cable – 30m Roll, Twin Sheath (Red/Black)
Get the right cable for your outdoor lighting projects with our 30m roll of 4mm Garden Lighting Cable. Built for low-voltage installations (12V or 24V), it’s ideal for powering and linking garden lights, pathway lighting, spotlights, and landscape features.
Note on sizing: In the garden lighting industry, “4mm” refers to the standard size classification used for fittings and accessories — it does not indicate the cable’s cross-sectional area (CSA) or nominal conductor size. Always check the specification table for exact measurements if required.
With tough, UV-stabilised twin-sheath insulation, this cable stands up to the elements year-round, providing dependable power delivery even in challenging weather. The red and black cores make polarity easy to identify, helping speed up installation.
Why Choose This Cable:
-
Supplied as a 30m roll for medium-to-large projects
-
Designed for low-voltage outdoor lighting (12V/24V)
-
Twin-core (red/black) for quick, accurate connections
-
UV-stabilised sheath resists sun and moisture damage
-
Flexible and easy to handle during installation
Perfect for landscapers, electricians, and DIY projects where reliable, outdoor-ready cable is essential.
Please choose cable type and length carefully, as there are no refunds or exchanges available on cable.
(cabgarlig4.30m)
Specifications
| Product Details | |
| Product Code | ATS22603 |
| Strands | 26/0.30 mm |
| Nominal Area | 1.84 mm² |
| Industry Equivalent | 4.0 mm |
| Amperage Rating | 22 A |
| Sheath Thickness | 0.55 mm |
| Max DC Resistance @ 20°C | 10.65 Ω/km |
| Nominal OD | 3.90 × 6.6 mm |
| Mass | 5.70 kg/100m |
| Construction | |
| Conductor Type | Plain Annealed Copper (PCW) to AS/NZS1125 |
| Insulation | |
| Insulation | PVC V90HT (UV Stabilised) to AS3808:2000 |
| Features | |
| Voltage Rating | Automotive AC 50V / DC 120V |
| Temperature Rating | +90°C |
| RoHS Compliant | Yes |
| UV Resistant | Yes |
| Application Note | |
| Note | Not suitable for connections to mains power |
| Standards | |
| Standards | JASO D609:2001 @ 30°C ambient |
| SKU | cabgarlig4.30m |
| Colour | Black |
| Brand | Generic |
| Shipping Weight | 1.7100kg |
