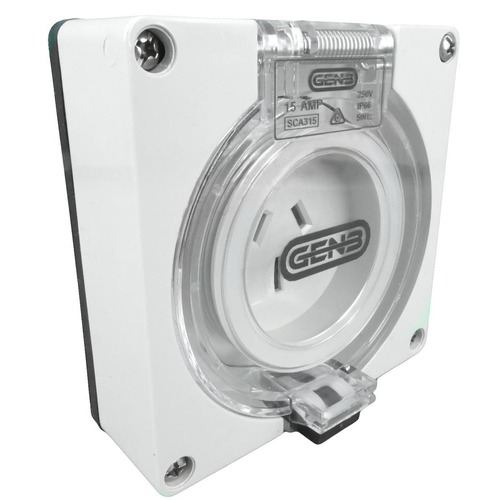

GEN3 SCA315LB 15A 3 Pin Flat Auto Switched Socket Less Base IP66

Description

An automatic-switching socket outlet, supplied less base.

The GEN3 SCA315LB is a 15A, 3-pin flat auto-switched fixed socket outlet rated 250V single phase and IP66. As an auto-switched outlet it automatically connects power when a plug is inserted and disconnects when the plug is withdrawn, so there are no live pins exposed when nothing is plugged in – a useful safety feature in exposed and public locations. It is supplied less base, meaning the socket front is provided without a back box, ready to be fitted into an existing enclosure or a separately-purchased base. Moulded in the Series 56 style from durable PCA18 virgin-grade plastic, it suits outdoor, industrial and wash-down environments.

Key Features

• 15A, 3-pin flat auto-switched socket outlet
• 250V single phase
• Automatic switching – connects on plug insertion, disconnects on withdrawal
• No live pins exposed when unplugged
• Supplied less base – socket front only, no back box
• Fits an existing enclosure or a separately-purchased base
• IP66 weatherproof – dust-tight and protected against high-pressure water jets
• Series 56 style
• Surface mount (with base)
• Compact front – approximately 95 × 95 × 33mm
• Durable PCA18 virgin-grade plastic (no regrind)
• 316 stainless steel springs and screws
• Brass internal components, greater than 85% copper
• Australian/NZ approval or compliance certificates held

Add to your order for fast dispatch across Australia.

Automatic Switching

The SCA315LB's auto-switching mechanism connects power only when a plug is inserted and cuts it when the plug is removed. This means the socket has no live pins exposed when nothing is plugged in, improving safety in outdoor, industrial and public-access locations where a standard always-live socket would be less suitable.

Supplied Less Base

This version is supplied less base – the socket front is provided without its back box. It is intended for fitting into an existing enclosure or a separately-purchased base, making it a cost-effective option where a base is already in place or sourced separately. Note that a suitable base or enclosure is required to install it.

Built for the Outdoors

Rated IP66 when installed, the SCA315LB is dust-tight and protected against high-pressure water jets. Moulded from PCA18 virgin-grade plastic with 316 stainless steel springs and screws and high-copper brass internals, it is built for long service in exposed and demanding locations, and is covered by Australian/NZ approval or compliance certificates.

Q: What does auto switched mean on the GEN3 SCA315LB?
A: The socket automatically connects power when a plug is inserted and disconnects when it is withdrawn, so there are no live pins exposed when nothing is plugged in.

Q: What does less base mean?
A: The socket front is supplied without a back box. It is designed to fit an existing enclosure or a separately-purchased base, which you will need to install it.

Q: Is the SCA315LB suitable for outdoor use?
A: Yes, when installed in a suitable base or enclosure it is rated IP66 – dust-tight and protected against high-pressure water jets.
