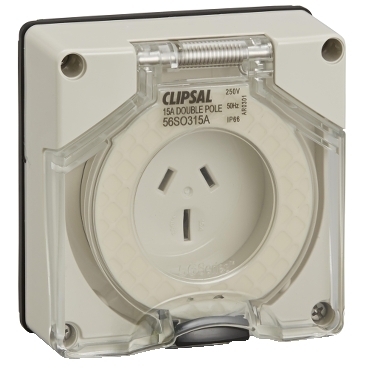

IP66 Clipsal 56 Series - Socket Outlet - Surface Auto 3 Pole 15A Less Enclosure - Grey
SKU: clisoalb315
Product Image Gallery
Product Pricing
$81.45 (ex-GST)
$89.59 (inc-GST)
$89.59
$81.45
(inc-GST)
(ex-GST)
Stock and Availability
- ⚫︎ In Stock
Clipsal - World-class design, premium materials, and precision engineering come together.
Electrotraders USPs
Description
Surface auto socket outlet, IP66 rated, 3 pole, 15A, 250V without enclosure.
- Grey finish suited for industrial applications.
- Automatic shutter mechanism for enhanced safety.
- Designed without enclosure for compactness.
- Supplier Item Code: 56SO315ALE-GY
- Handling Time: 3 - 5 Days
(clisoalb315)
Specifications
| Design | |
| Range of product | Series 56 |
| Range | Clipsal - 56 Series |
| Product brand | Clipsal |
| Product or component type | socket-outlet |
| Device application | power supply |
| Market segment | industrysmall commercialutility |
| Physical | |
| Number of poles | 2 |
| Device mounting | surface |
| Mounting mode | external mounting |
| [in] rated current | 15 A |
| [ue] rated operational voltage | 250 V AC 50 Hz conforming to EN 60309-2 |
| Connections - terminals | screw terminals 2.5-6 mm² rigid or stranded cable |
| Socket number | 1 |
| Outlet standard | industrial |
| Net weight | 0.22 kg |
| Depth | 64 mm |
| Width | 101 mm |
| Height | 107 mm |
| Ambient air temperature for operation | -25...75 °C |
| Standards | AS/NZS 4417.1AS/NZS 3112 |
| Mercury free | Yes |
| Environmental disclosure | ENVPEP2406017EN |
| Circularity profile | ENVEOLI2406017EN |
| Material | |
| Material | polycarbonate: cover |
| Contacts material | screws: brass |
| Others | |
| Outlet standard deviation | Australian/New Zealand |
| Plug, socket category | low voltage |
| Poles description | 1P + N + E |
| Voltage colour | blue |
| Tightening torque | 0.8 N.m |
| Socket-outlet type | B |
| Targeted country | Australia |
| Unit type of package 1 | PCE |
| Package 1 height | 7.65 cm |
| Package 1 width | 9.95 cm |
| Package 1 length | 9.95 cm |
| Package 1 weight | 228.0 g |
| Recycled metal content at cr level | 0 |
| Removable battery | N/A |
| Global warming ; total life cycle | 56 kg CO2 eq. |
| Minimum percentage of recycled plastic content | 0 |
| SKU | clisoalb315 |
| Manfacturer Part Number | 56SO315ALE-GY |
| Barcode # | 9311554238452 |
| Brand | Clipsal |
