SBN32 32mm Snap Bushing Nylon 66 Low Smoke — Pack of 100

Description

SBN32. 32mm Hole. Snap Bushing. Nylon 66. Low Smoke. Halogen Free. Pack of 100.

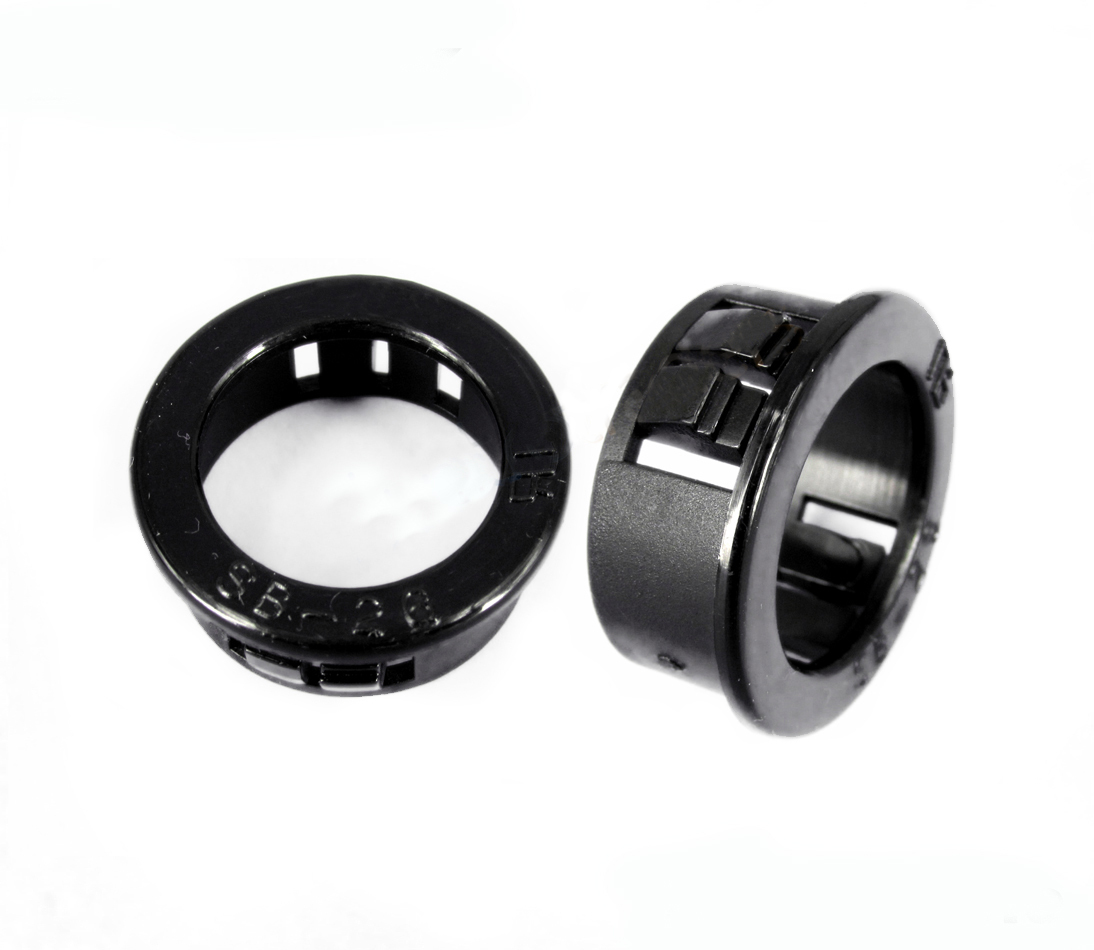

The SBN32 is a 32mm snap bushing — snaps into a 32mm chassis hole to protect cables, wires, and conduit from the sharp edges of the hole. Nylon 66 construction. Low smoke, halogen free. Conforms to RoHS. Pack of 100.

• SBN32 — Snap Bushing, 32mm mounting hole
• Mounting hole: 32mm
• Inner diameter: 23.8mm — cable/wire passage opening
• Outer diameter: 34.6mm — flange outer edge
• Total height: 11.4mm
• Flange height: 1.5mm
• Maximum chassis thickness: 3.5mm
• Snap fit — no tools required, installs by hand into panel hole
• Material: Nylon 66 — halogen free, low smoke
• Flame rating: 94V-2
• Compliance: RoHS
• Protects cable insulation from chassis hole sharp edges — automotive, caravan, marine, electrical, industrial
• Pack of 100

Buy online now — fast dispatch Australia-wide.

About Snap Bushings

A snap bushing (also called a snap bush, cable grommet, or panel bushing) is a one-piece nylon fitting that snaps into a drilled or punched hole in a chassis, panel, or enclosure wall — providing a smooth, rounded passage for cables, wires, and conduit to pass through without contact with the sharp metal edges of the hole. Without a bushing, cable insulation is at risk of abrasion damage from sharp hole edges, which can lead to insulation failure, short circuits, and electrical faults over time — particularly in vibrating environments such as vehicles and machinery.

Snap bushings install without tools — the bushing is pushed into the hole by hand and the flexible flange snaps over the panel edge to hold the bushing in place. The inner diameter determines the maximum cable bundle or conduit that can pass through; the mounting hole dimension determines the chassis hole size required. Maximum chassis thickness must be within the specified limit for the bushing to snap and retain correctly.

The SBN32 is constructed from Nylon 66 — a high-strength engineering nylon with low smoke and halogen free properties. It is supplied by Pacific Components and conforms to RoHS.

Q: What hole size does the SBN32 fit?
A: The SBN32 fits a 32mm chassis hole.

Q: What is the maximum cable or conduit that passes through the SBN32?
A: The SBN32 has a 23.8mm inner diameter — this is the maximum cable bundle or conduit outer diameter that can pass through the bushing.

Q: What is the maximum chassis thickness for the SBN32?
A: The SBN32 suits chassis panels up to 3.5mm thick.

Q: Does the SBN32 require tools to install?
A: No — the SBN32 snaps into the chassis hole by hand. No tools required.

Q: How many bushings are in a pack?
A: The SBN32 is sold in a pack of 100 bushings.
