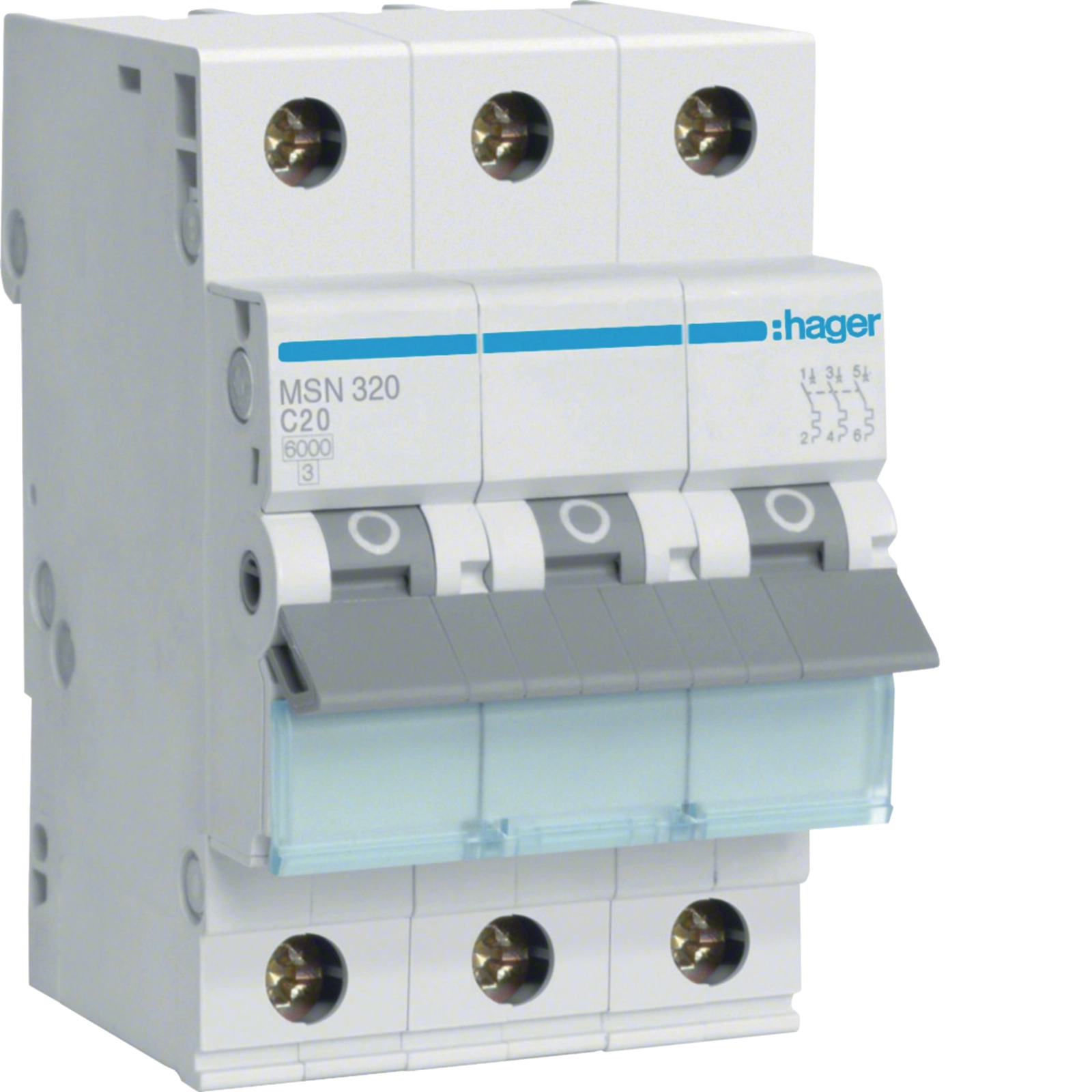

Hager MSN320 20 Amps 3 Pole MCB Circuit Breaker 6kA
SKU: hagmcb3206k
Product Image Gallery
Product Pricing
$42.00 (ex-GST)
$46.20 (inc-GST)
$46.20
$42.00
(inc-GST)
(ex-GST)
Stock and Availability
- ⚫︎ In Stock
Trusted premium Hager product - reliable and safe electrical solutions for professionals
Electrotraders USPs
Description
- Hager MSN320
- 3 Pole MCB 6kA
- 20 Amps
(hagmcb3206k)
Specifications
| Electric current | |
| Rated current | 20 A |
| Rated current -15DegC | 24,4 A |
| Rated current -10DegC | 24 A |
| Rated current -5DegC | 23,5 A |
| Rated current at 0DegC | 23,1 A |
| Rated current 5DegC | 22,6 A |
| Rated current 10DegC | 22,1 A |
| Rated current 15DegC | 21,6 A |
| Rated current at 20DegC | 21,1 A |
| Rated current 25DegC | 20,5 A |
| Rated current 30DegC | 20 A |
| Rated current 35DegC | 19,4 A |
| Rated current at 40DegC | 18,7 A |
| Rated current at 45DegC | 18 A |
| Rated current at 50DegC | 17,3 A |
| Rated current 55DegC | 16,6 A |
| Rated current 60DegC | 15,8 A |
| Rated current 65DegC | 15 A |
| Rated current 70DegC | 14,1 A |
| Architecture | |
| Type of pole | 3P |
| Curve | C |
| Capacity | |
| Number of modules | 3 |
| Installation, mounting | |
| Nominal tightening torque top terminal | 2,80 - 2,80 Nm |
| Nominal tightening torque down terminal | 2,80 - 2,80 Nm |
| Nominal tightening torque | 2,80 - 2,80 Nm |
| Type of bottom connection for modular devices | biconnect |
| Type of top connection for modular devices | Screw terminal |
| 360?ø mounting position possible | Yes |
| Main electrical attributes | |
| Rated short-circuit breaking capacity Icn AC according to IEC 60898-1 | 6 kA |
| Voltage | |
| Rated operational voltage Ue | 415 - 415 V |
| Type voltage supply | AC |
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | 4000 V |
| Frequency | |
| Frequency | 50 - 60 Hz |
| Connection | |
| Cross-section of input and output with screws, for massive conductors | 1 - 35 mm^2 |
| Cross-section of input and output with screws, for flexible conductors | 1 - 25 mm^2 |
| Cross-section of input with screws, for flexible conductors | 1 - 25 mm^2 |
| Cross-section of input with screws, for massive conductors | 1 - 35 mm^2 |
| Cross-section flexible conductor | 1 - 25 mm^2 |
| Cross-section rigid conductor | 1 - 35 mm^2 |
| Safety | |
| Ingress Protection (IP) class | IP20 |
| Use conditions | |
| Degree of pollution according to IEC 60664 / IEC 60947-2 | 2 |
| Class of energy limitation I^2t | 3 |
| Air humidity protection | For all climates |
| Operating temperature | -25 - 70 DegC |
| Power | |
| Total power loss under IN | 8,9 W |
| Connectivity | |
| Type of connection | Screw terminal |
| Top connection alignment for modular devices | Aligned terminal |
| Down connection alignment for modular devices | Aligned terminal |
| Dimensions | |
| Height | 83 mm |
| Width | 52,50 mm |
| Depth | 70 mm |
| SKU | hagmcb3206k |
| Manfacturer Part Number | MSN320 |
| Barcode # | 3250614324031 |
| Brand | Hager |
