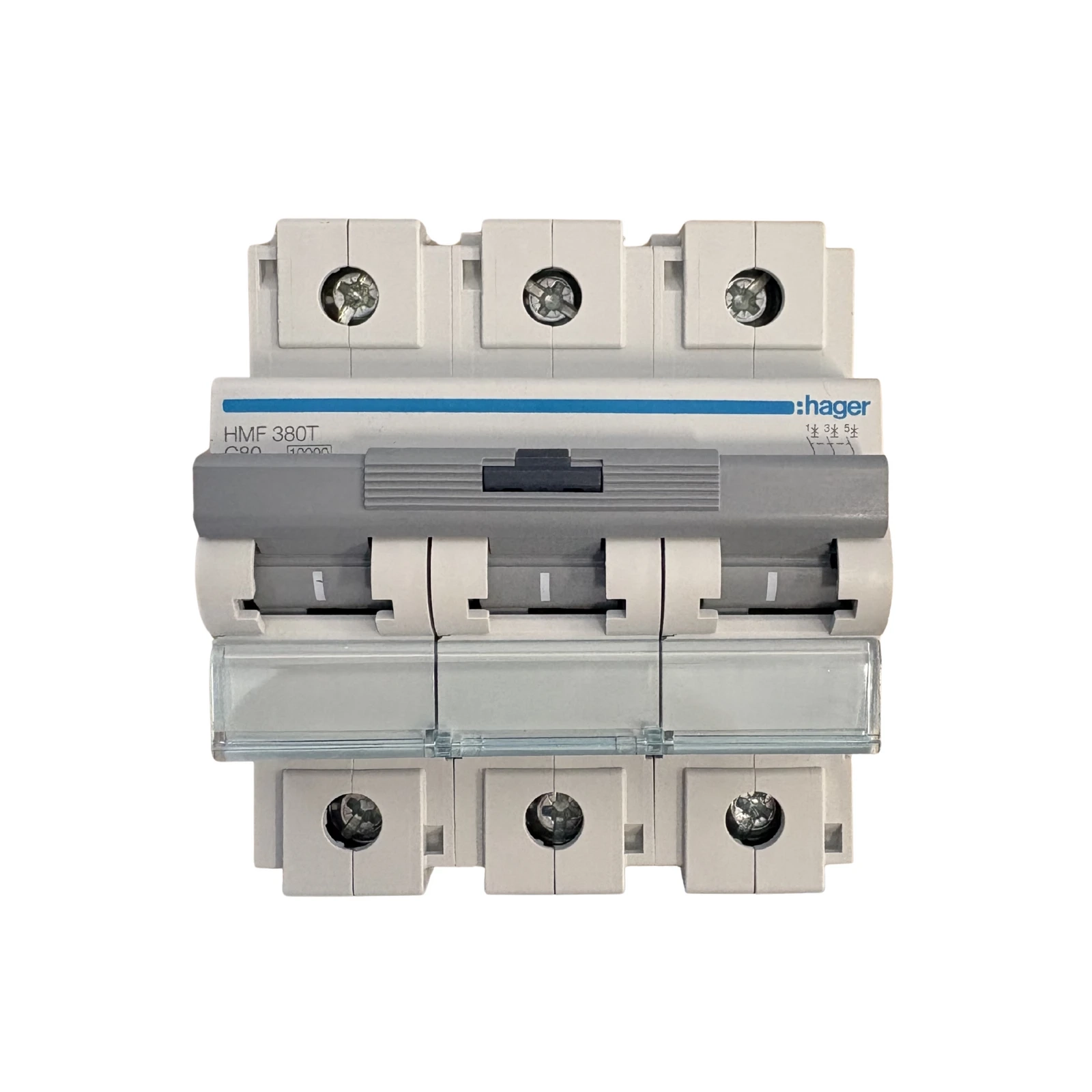

Hager HMF380T 80 Amps 3 Pole MCB Circuit Breaker 10kA

SKU: hagmcb38010k

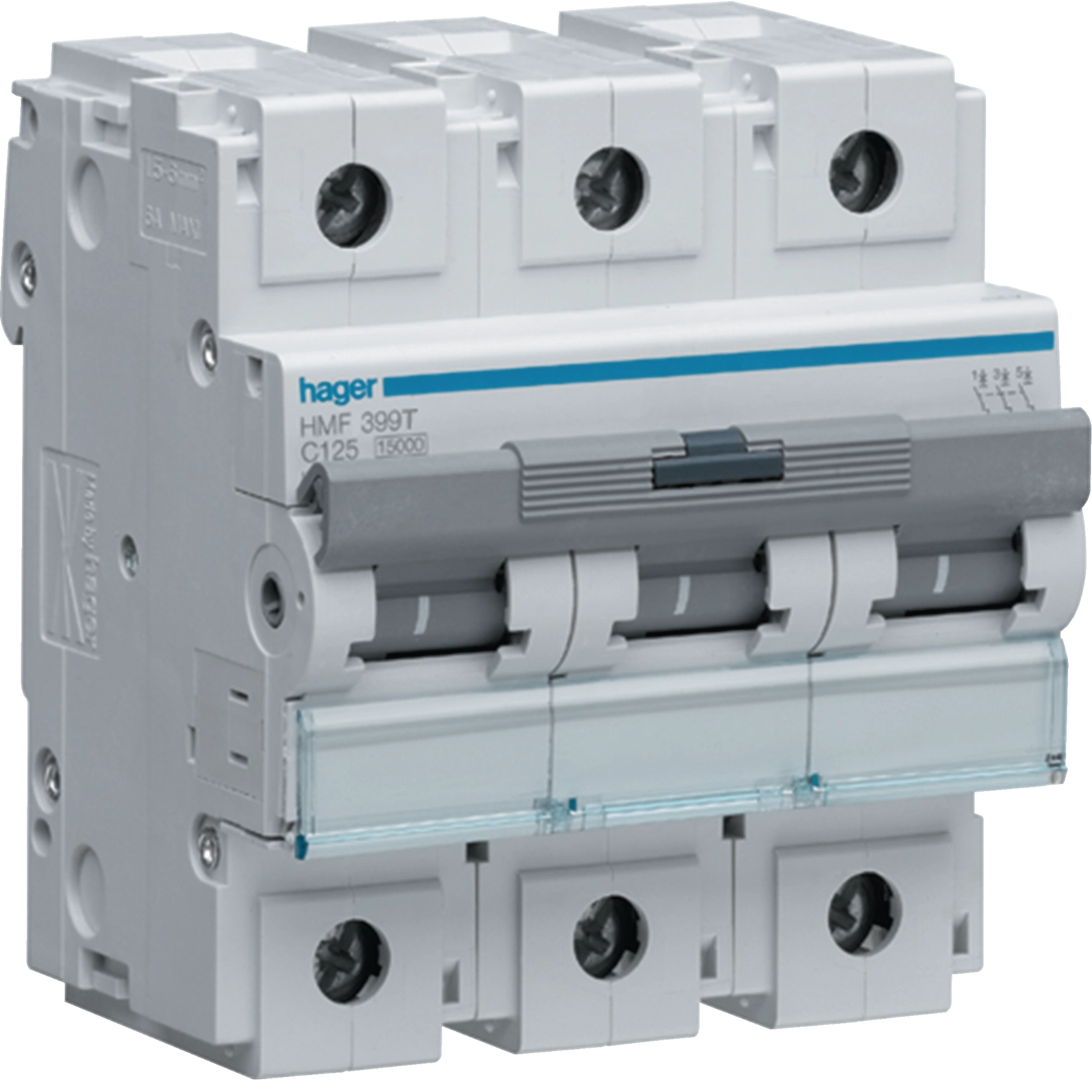

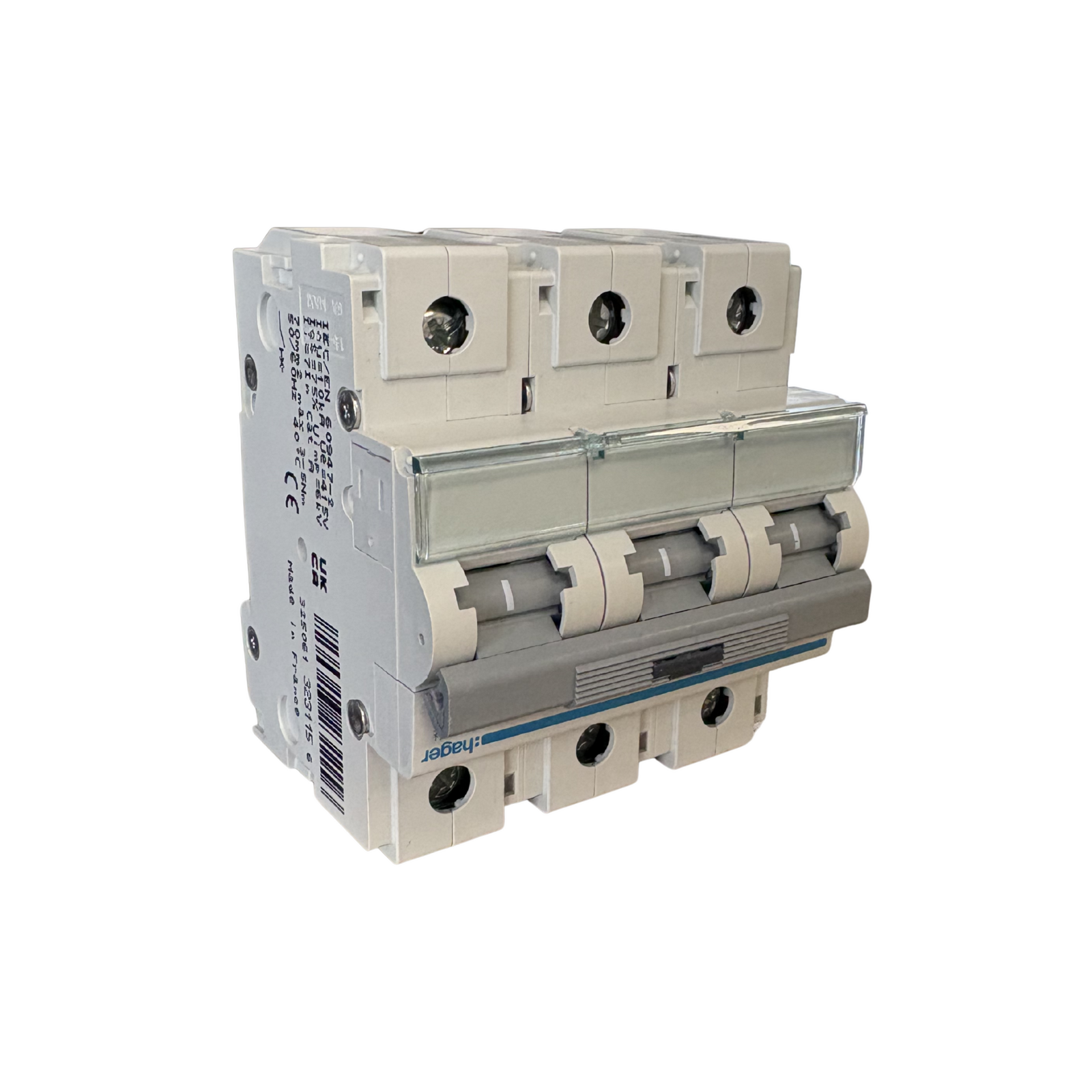

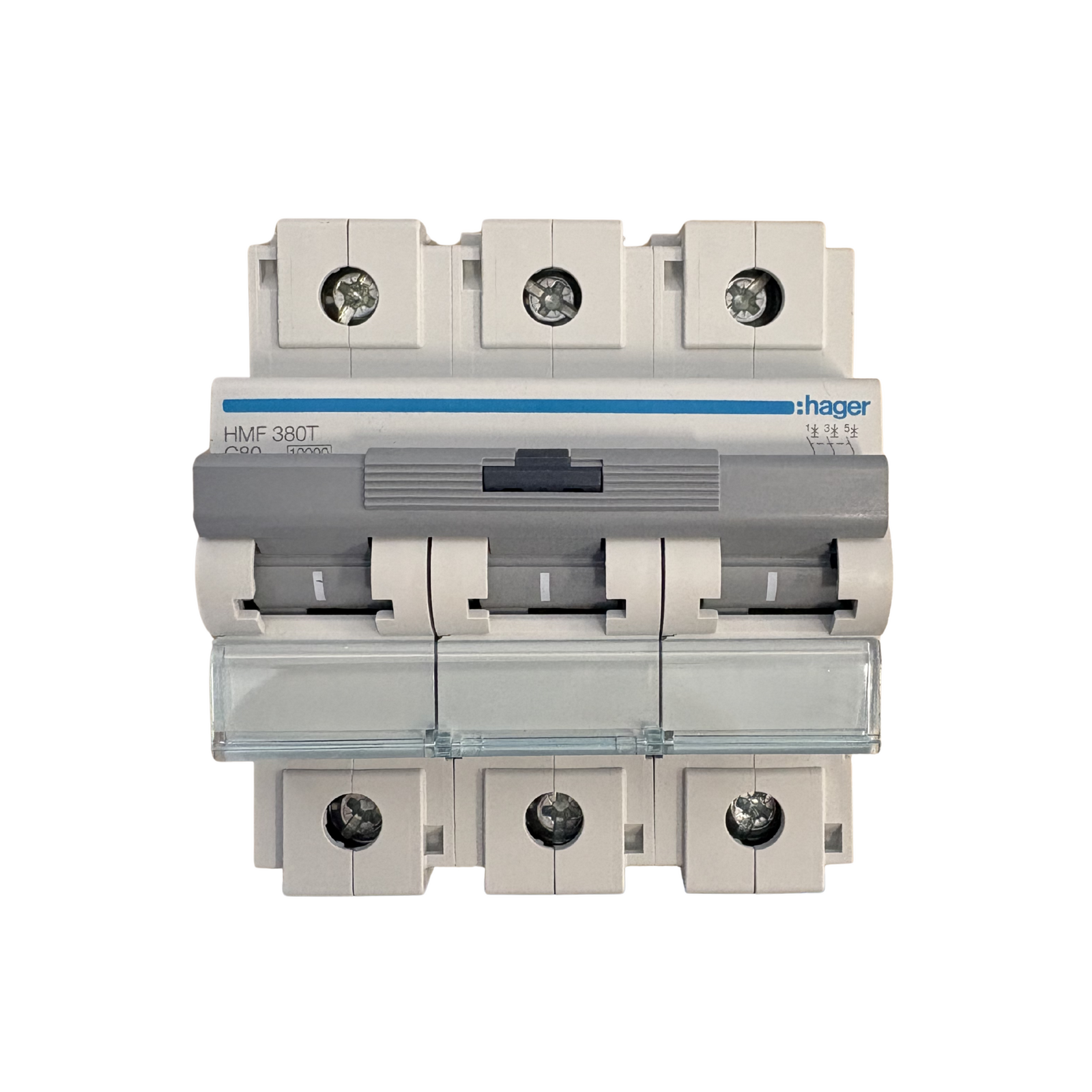

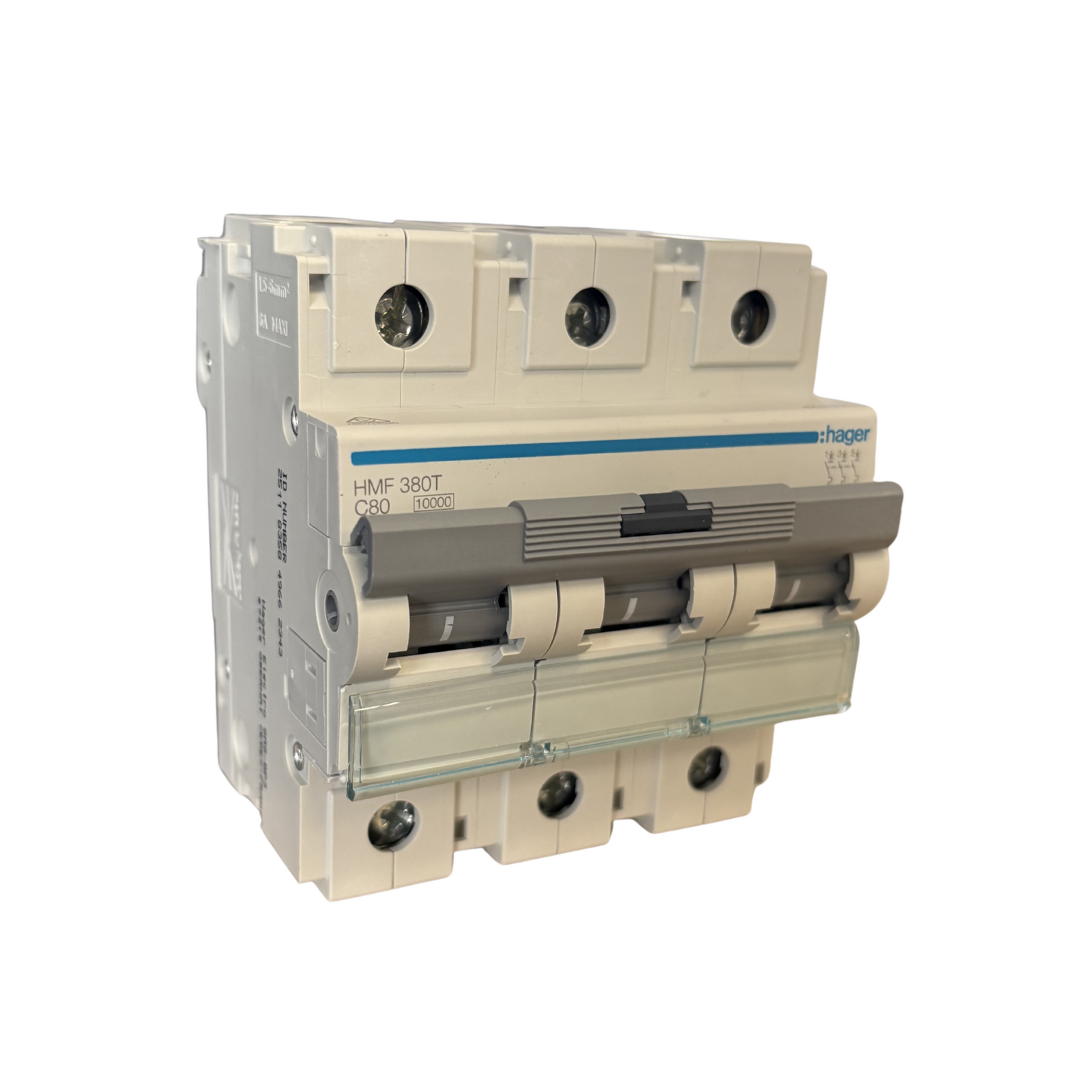

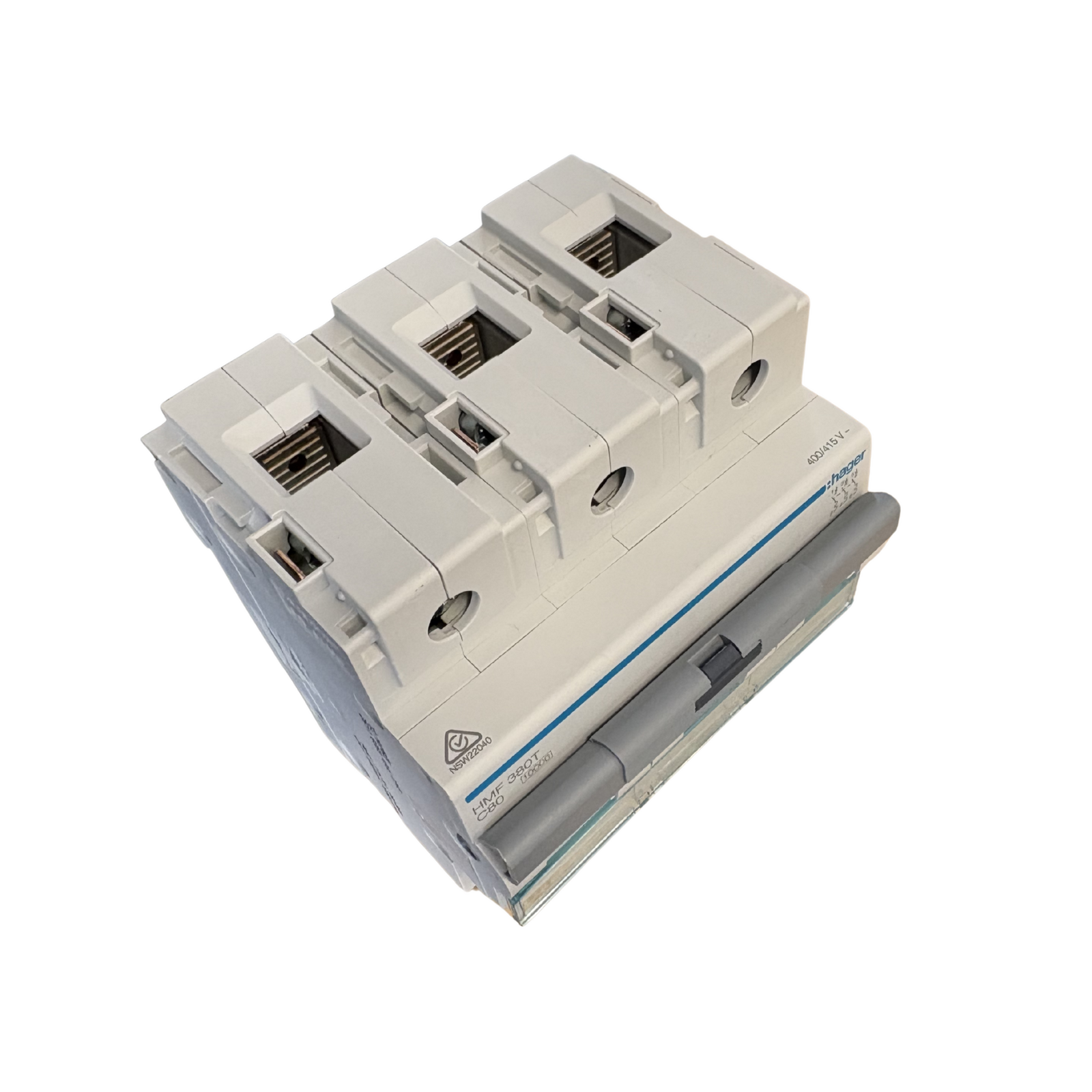

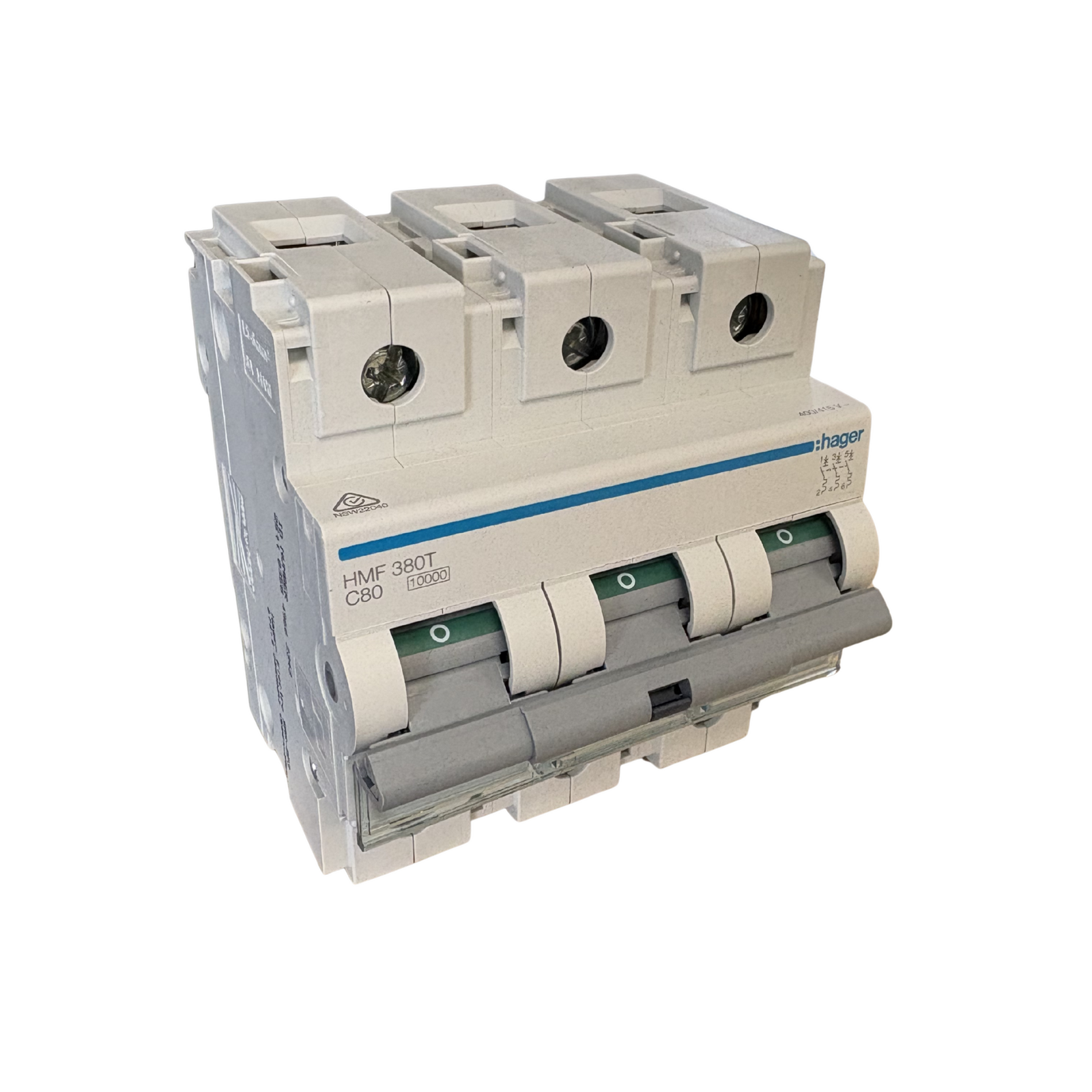

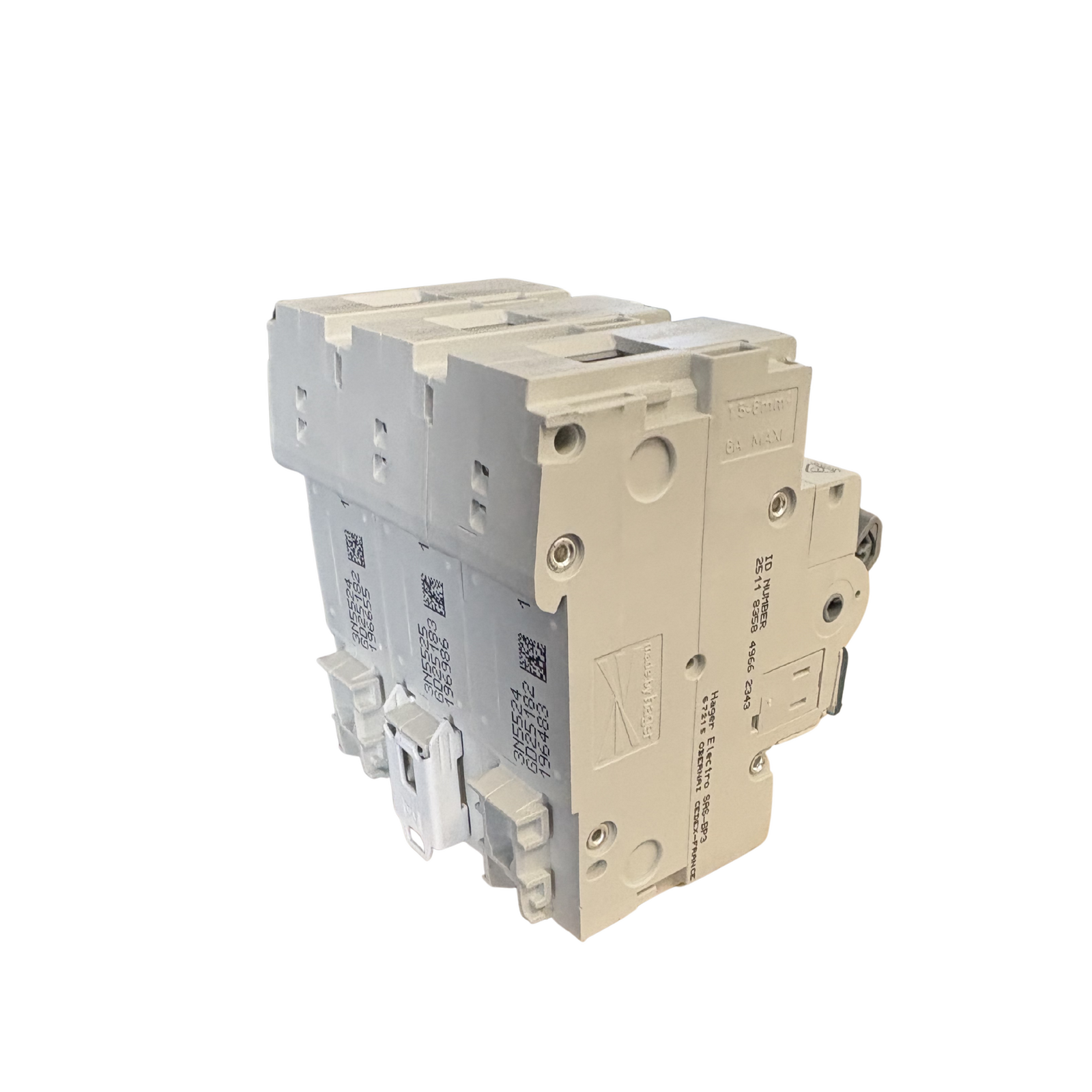

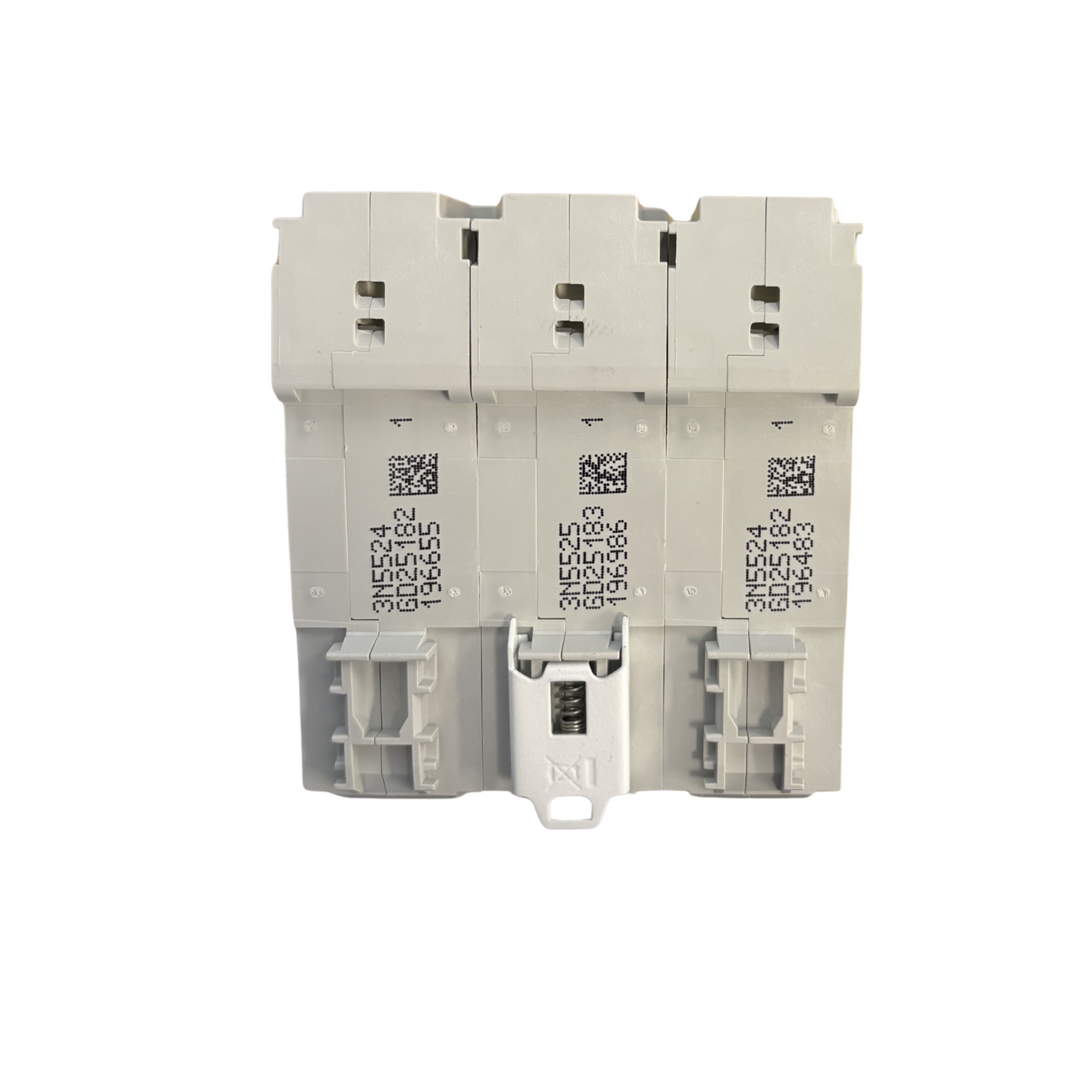

Product image thumbnail for SKU hagmcb38010k

Download Data Sheet

$245.00 (ex-GST)

$269.50 (inc-GST)

$269.50

$245.00

(inc-GST)

(ex-GST)

⚫︎ Ships in 24 hours

Trusted premium Hager product - reliable and safe electrical solutions for professionals

Fast Shipping, Trusted by Government, Easy Returns, Free Shipping over $200

Inquire here

Hager HMF380T
3 Pole MCB 10kA
80 Amps

(hagmcb38010k)

Architecture
Type of pole	3P
Curve	C
Voltage
Rated operational voltage Ue	400 - 415 V
Type voltage supply	AC
Rated insulation voltage Ui	500 V
Rated impulse withstand voltage Uimp	6000 V
Frequency
Frequency	50 - 60 Hz
Electric current
Rated current	80 A
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-1	10 kA
Rated ultimate short-circuit breaking capacity Icu under 230 V AC IEC 60947-2	10 kA
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2	10 kA
Installation, mounting
Nominal tightening torque	3,5 - 5,0 Nm
Type of top connection for modular devices	Screw terminal
Type of bottom connection for modular devices	Screw terminal
Nominal tightening torque down terminal	3,60 - 3,60 Nm
Nominal tightening torque top terminal	3,60 - 3,60 Nm
Main electrical attributes
Rated short-circuit breaking capacity Icn AC according to IEC 60898-1	10 kA
Power
Total power loss under IN	20,32 W
Endurance
Electric endurance in number of cycles	4000
Number of mechanical operations	20000
Connection
Cross-section of input and output with screws, for massive conductors	1 - 70 mm^2
Cross-section of input and output with screws, for flexible conductors	1 - 50 mm^2
Cross-section flexible conductor	50 mm^2
Cross-section rigid conductor	70 mm^2
Use conditions
Degree of pollution according to IEC 60664 / IEC 60947-2	3
Air humidity protection	For all climates
Operating temperature	-25 - 70 DegC
Capacity
Number of modules	4,50
Connectivity
Top connection alignment for modular devices	Aligned terminal
Down connection alignment for modular devices	Aligned terminal
Dimensions
Height	90 mm
Width	80 mm
Depth	70 mm

SKU	hagmcb38010k
Manfacturer Part Number	HMF380T
Barcode #	3250613231156
Brand	Hager
