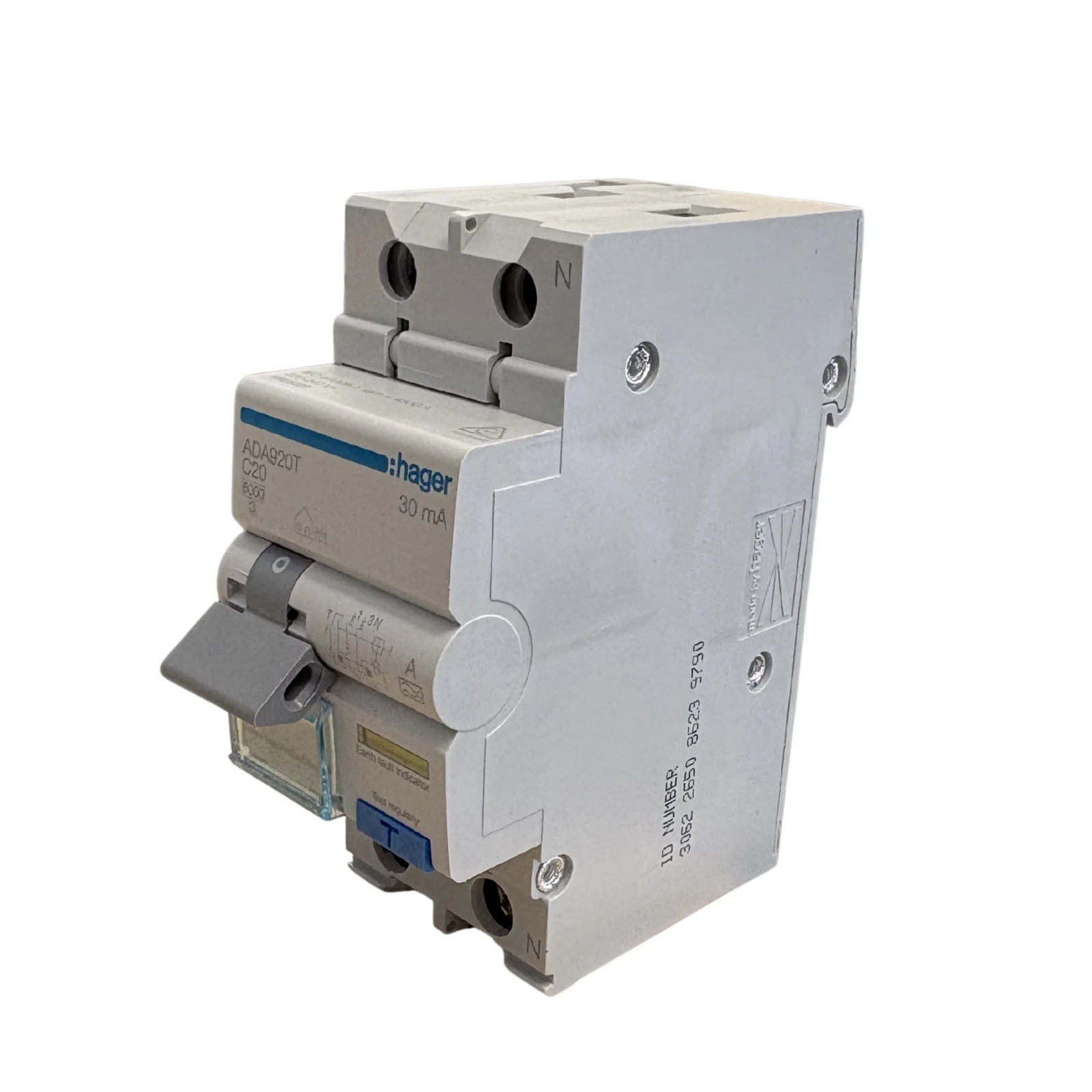

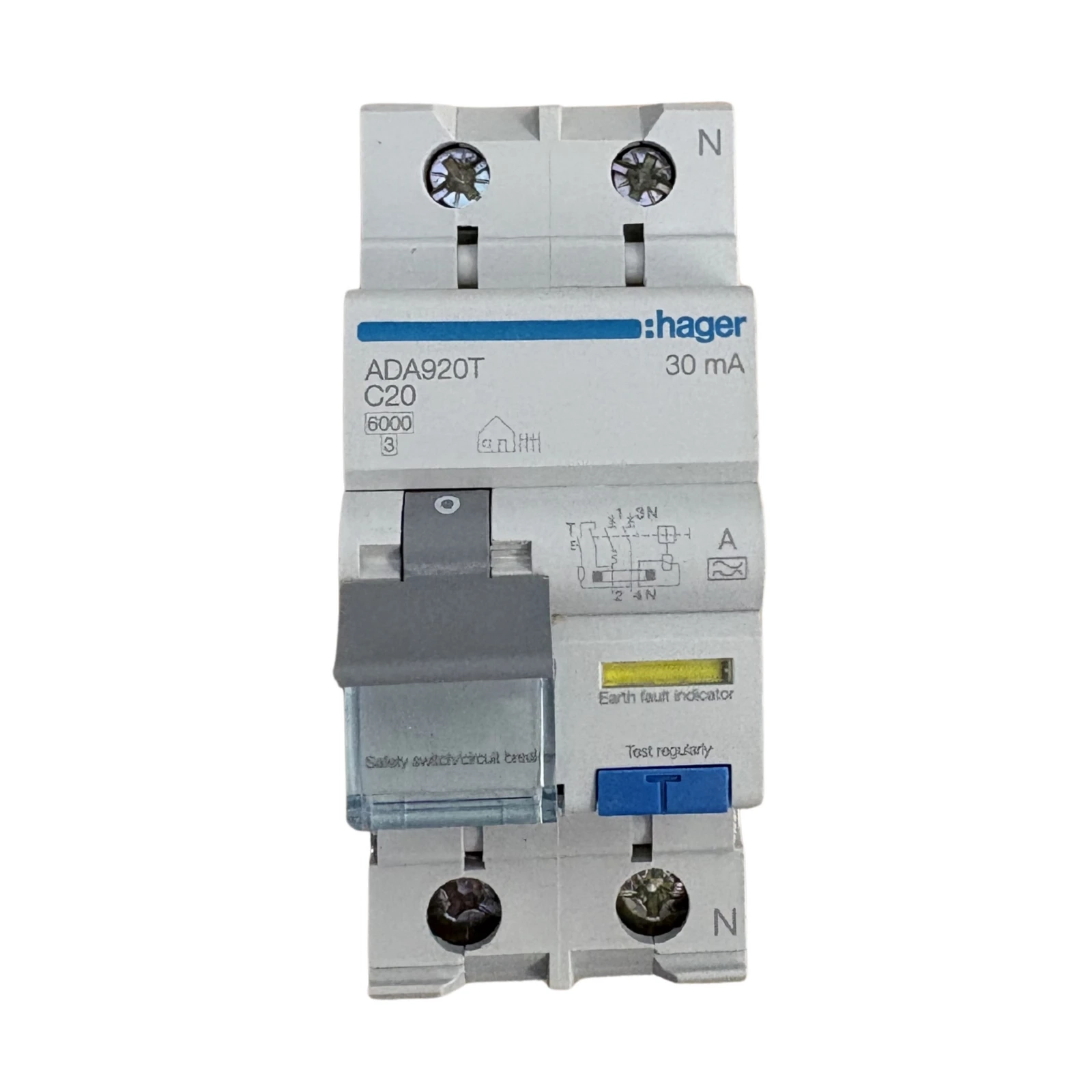

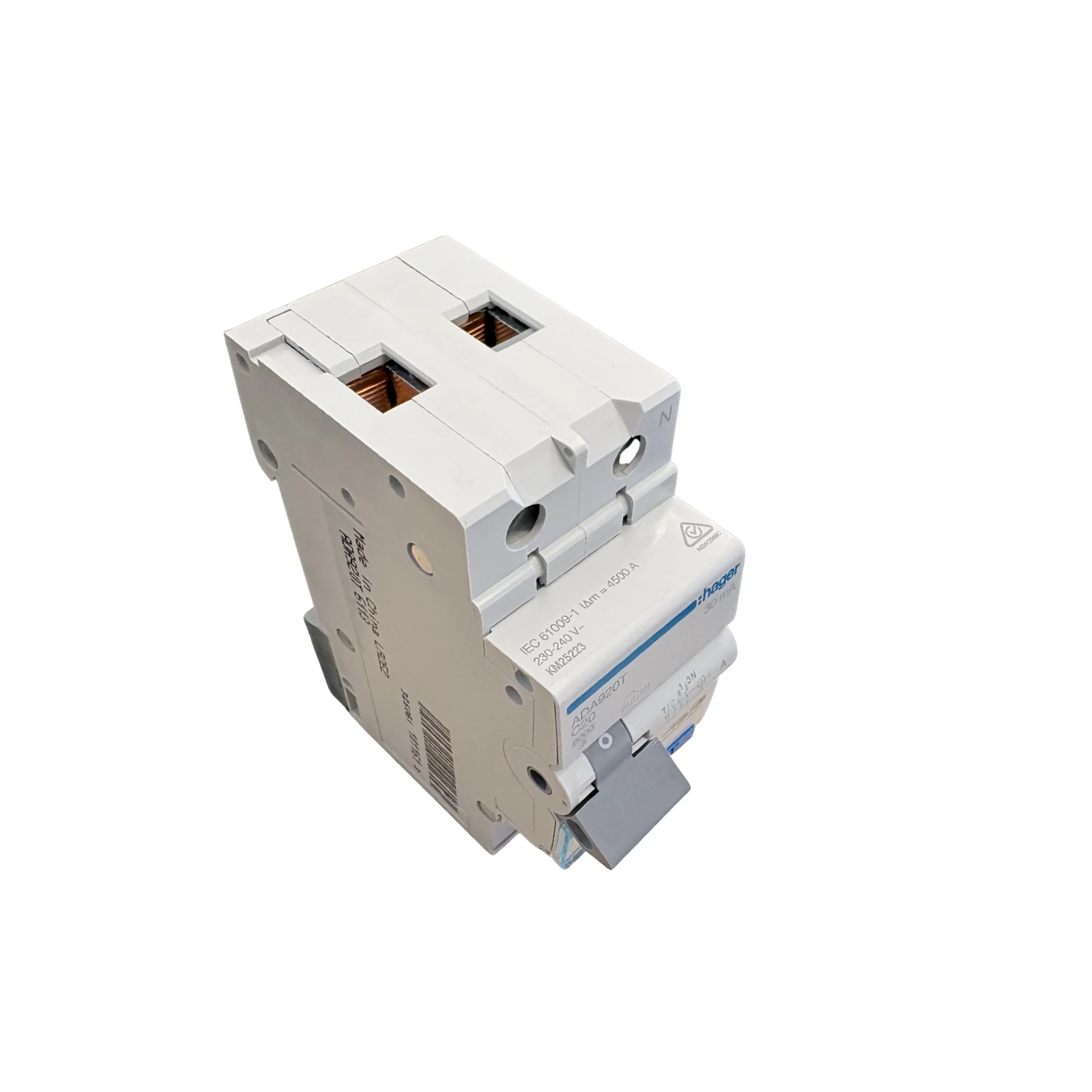

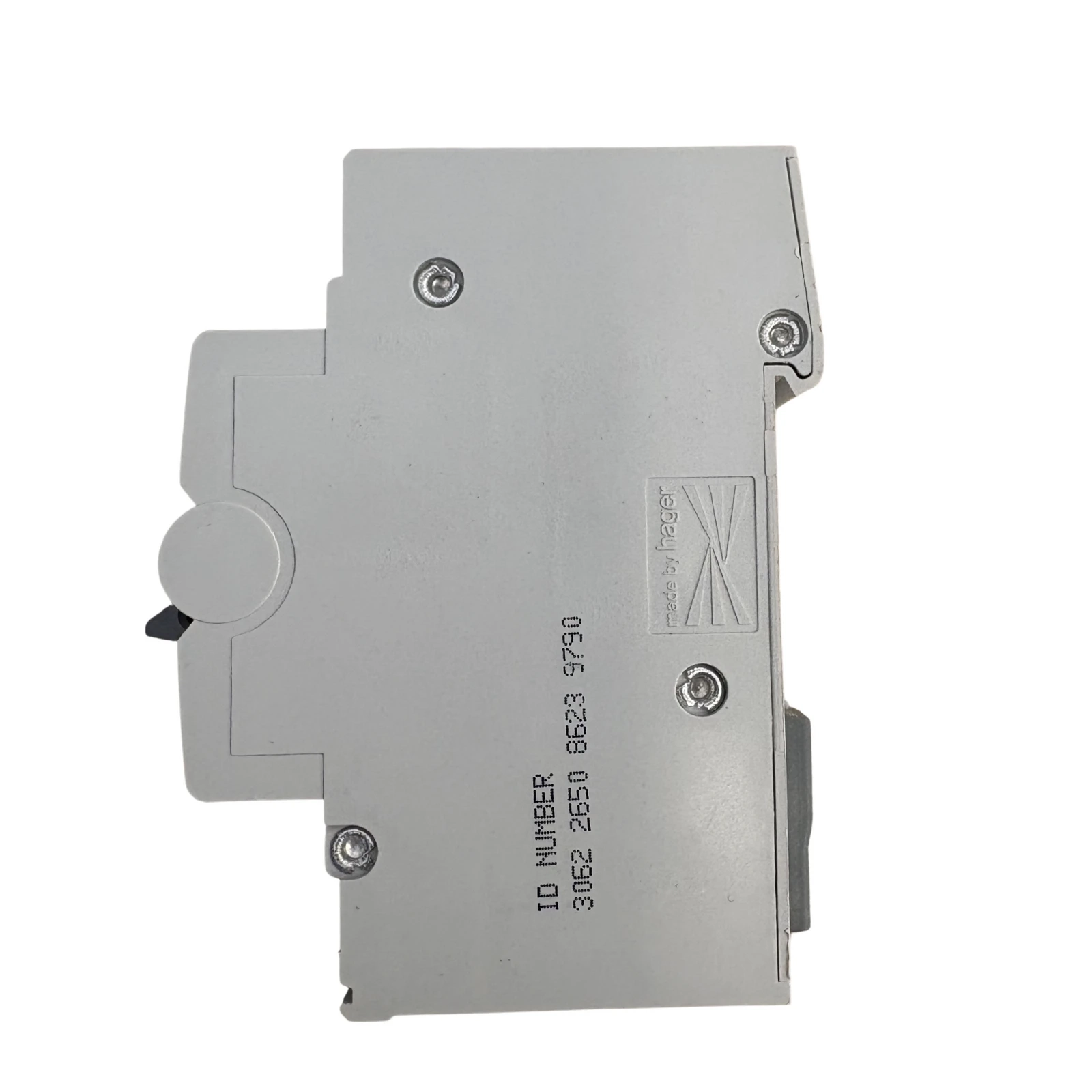

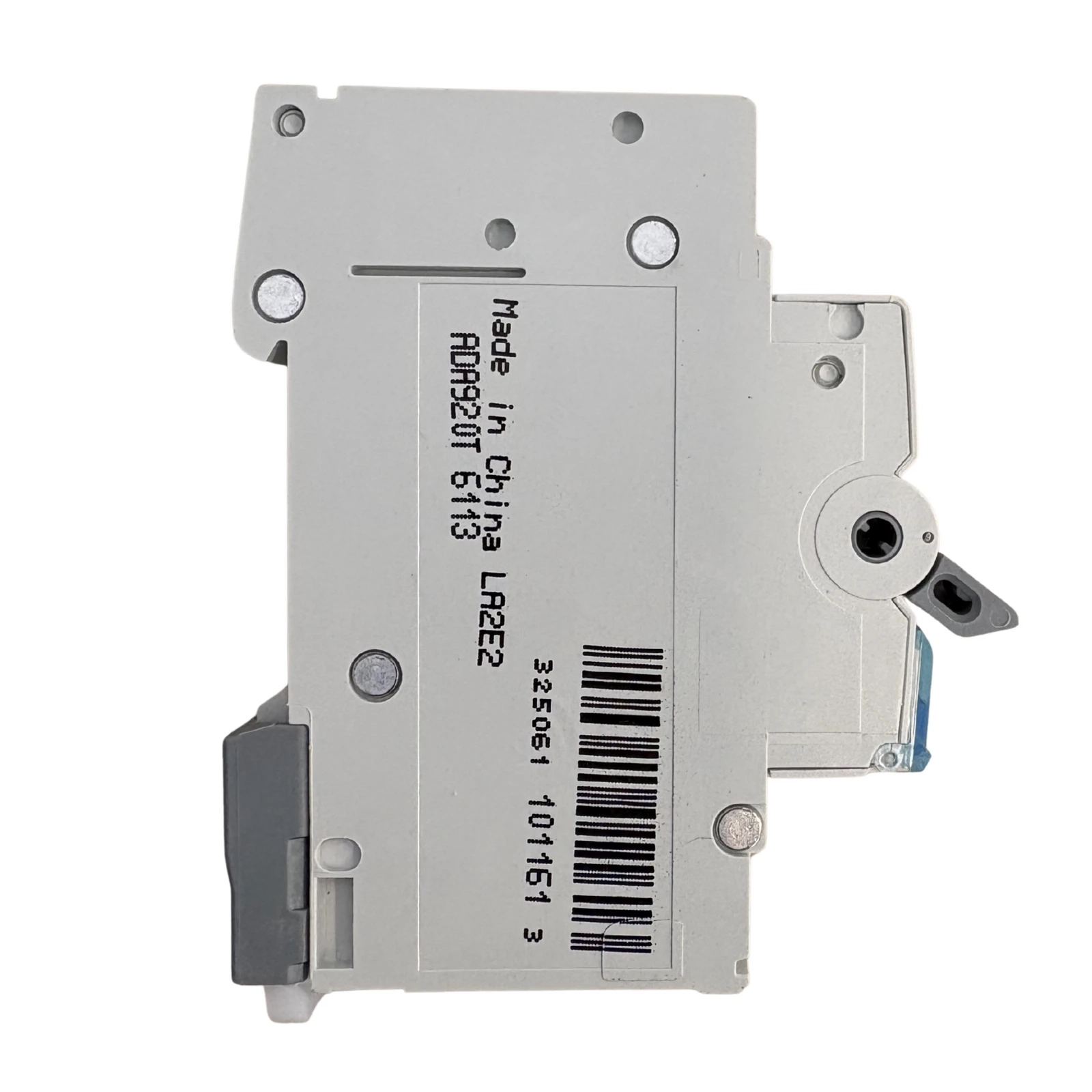

Hager ADA920T 20 Amps 2 Pole RCBO Safety Switch 6kA (2 Module width)

SKU: hagrcb2206k

Product image thumbnail for SKU hagrcb2206k

Download Data Sheet

$39.31 (ex-GST)

$43.24 (inc-GST)

$43.24

$39.31

(inc-GST)

(ex-GST)

⚫︎ Only 1 Left!

Trusted premium Hager product - reliable and safe electrical solutions for professionals

Fast Shipping, Trusted by Government, Easy Returns, Free Shipping over $200

Inquire here

Hager ADA920T
2 Pole RCBO 6kA
20 Amps
2 Module Width

(hagrcb2206k)

Architecture
Type of pole	1P+N
Curve	C
Electric current
Rated current	20 A
Rated residual operating current Idn	30 mA
Rated current -25DegC	22,70 A
Rated current at -20DegC	22,50 A
Rated current -15DegC	22,20 A
Rated current -10DegC	22 A
Rated current -5DegC	21,80 A
Rated current at 0DegC	21,50 A
Rated current 5DegC	21,30 A
Rated current 10DegC	21 A
Rated current 15DegC	20,80 A
Rated current at 20DegC	20,50 A
Rated current 25DegC	20,30 A
Rated current 30DegC	20 A
Rated current 35DegC	19,80 A
Rated current at 40DegC	19,60 A
Rated current at 50DegC	19,20 A
Rated current 55DegC	19 A
Rated current 60DegC	18,80 A
Correction factor of rating current for 2 devices placed side by side	1
Correction factor of rating current for 3 devices placed side by side	0,95
Correction factor of rating current for 4 and 5 devices placed side by side	0,90
Correction factor of rating current for 6 devices placed side by side	0,85
Min./max. threshold value of the AC thermal operation	1,13 - 1,45 A
Safety
Residual current type	A
Ingress Protection (IP) class	IP2X
Main electrical attributes
Rated short-circuit breaking capacity Icn AC according to IEC 60898-1	6 kA
Connectivity
Type of connection	Screw terminal
Voltage
Rated insulation voltage Ui	500 V
Rated impulse withstand voltage Uimp	4000 V
Max. operating voltage	240 V
Rated operational voltage Ue	230 - 240 V
Overvoltage category according to IEC 60947-1	3
Power
Total power loss under IN	6,60 W
Frequency
Frequency	50 - 50 Hz
Use conditions
Max. Altitude	2000 m
Class of energy limitation I^2t	3
Operating temperature	-25 - 40 DegC
Storage/transport temperature	-25 - 70 DegC
Endurance
Electric endurance in number of cycles	2000
Number of mechanical operations	2000
Connection
Cross-section flexible conductor	1 - 16 mm^2
Cross-section rigid conductor	1 - 25 mm^2
Cross-section of input with screws, for flexible conductors	1 - 16 mm^2
Cross-section of input with screws, for massive conductors	1 - 25 mm^2
Cross-section of output with screws, for flexible conductors	1 - 16 mm^2
Cross-section of output with screws, for massive conductors	1 - 25 mm^2
Cross-section of input and output with screws, for flexible conductors	1 - 16 mm^2
Cross-section of input and output with screws, for massive conductors	1 - 25 mm^2
Installation, mounting
Nominal tightening torque	2,10 - 2,10 Nm
Type of top connection for modular devices	Screw terminal
Type of bottom connection for modular devices	biconnect, Bypass
Capacity
Number of modules	2
Dimensions
Height	83 mm
Width	35 mm
Depth	68 mm
Compatibility
Suitable for DIN Rail	Yes
