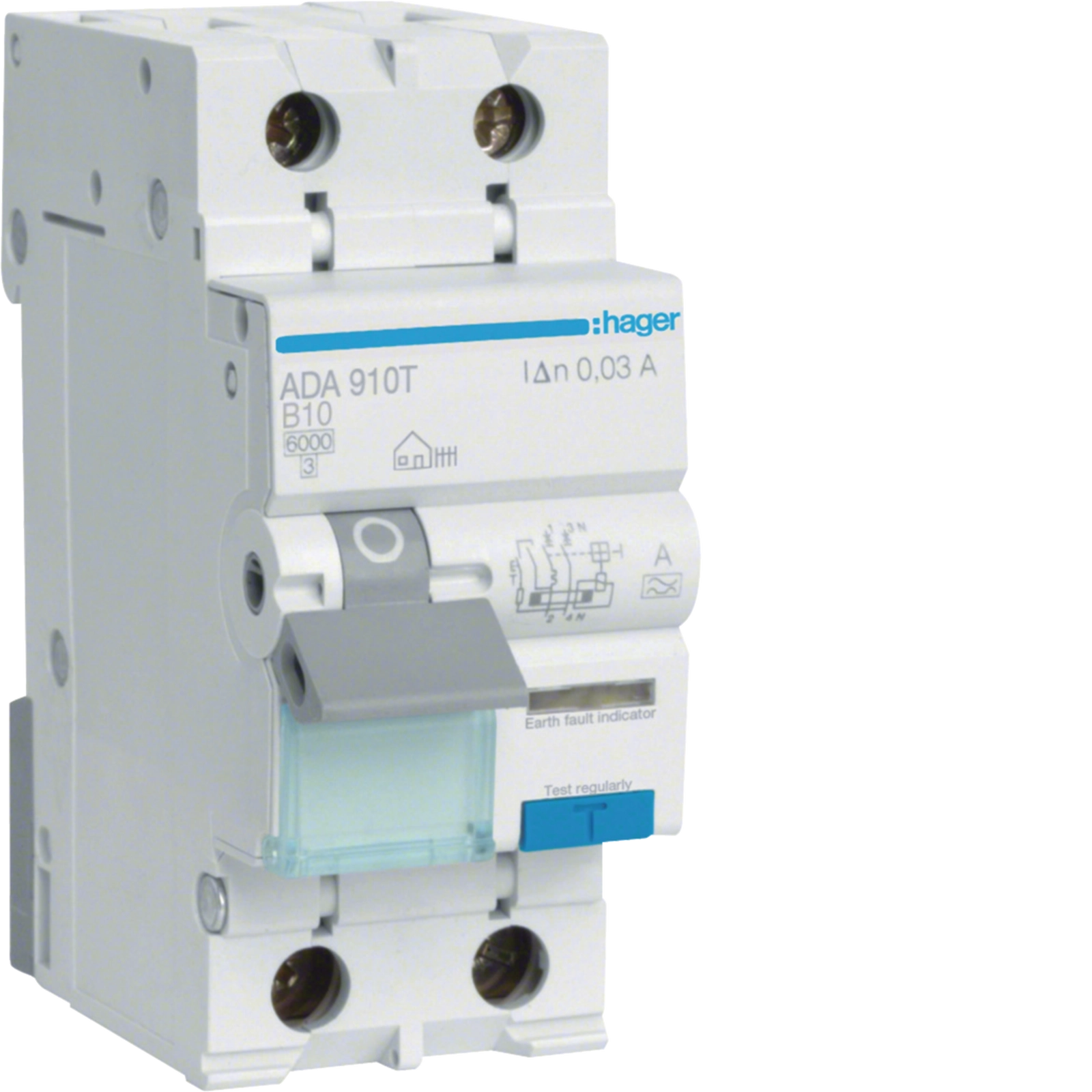

Hager ADA910T 10 Amps 2 Pole RCBO Safety Switch 6kA (2 Module width)

SKU: hagrcb2106k

Product Image Gallery

Product image thumbnail for SKU hagrcb2106k

Product Pricing

$39.31 (ex-GST)

$43.24 (inc-GST)

$43.24

$39.31

(inc-GST)
(ex-GST)

Stock and Availability

  • ⚫︎ In Stock

Trusted premium Hager product - reliable and safe electrical solutions for professionals

Electrotraders USPs

Fast Shipping, Trusted by Government, Easy Returns, Free Shipping over $200


Description

  • Hager ADA910T
  • 2 Pole RCBO 6kA
  • 10 Amps
  • 2 Module Width

(hagrcb2106k)

Specifications

Architecture
Type of pole1P+N
CurveC
Electric current
Rated current10 A
Rated residual operating current Idn30 mA
Rated current -25DegC12 A
Rated current at -20DegC11,80 A
Rated current -15DegC11,70 A
Rated current -10DegC11,50 A
Rated current -5DegC11,30 A
Rated current at 0DegC11,10 A
Rated current 5DegC11 A
Rated current 10DegC10,80 A
Rated current 15DegC10,60 A
Rated current at 20DegC10,40 A
Rated current 25DegC10,20 A
Rated current 30DegC10 A
Rated current 35DegC9,90 A
Rated current at 40DegC9,70 A
Rated current at 50DegC9,40 A
Rated current 55DegC9,30 A
Rated current 60DegC9,10 A
Correction factor of rating current for 2 devices placed side by side1
Correction factor of rating current for 3 devices placed side by side0,95
Correction factor of rating current for 4 and 5 devices placed side by side0,90
Correction factor of rating current for 6 devices placed side by side0,85
Min./max. threshold value of the AC thermal operation1,13 - 1,45 A
Safety
Residual current typeA
Ingress Protection (IP) classIP2X
Main electrical attributes
Rated short-circuit breaking capacity Icn AC according to IEC 60898-16 kA
Connectivity
Type of connectionScrew terminal
Voltage
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp4000 V
Max. operating voltage240 V
Rated operational voltage Ue230 - 240 V
Overvoltage category according to IEC 60947-13
Power
Total power loss under IN3,40 W
Frequency
Frequency50 - 50 Hz
Use conditions
Max. Altitude2000 m
Class of energy limitation I^2t3
Operating temperature-25 - 40 DegC
Storage/transport temperature-25 - 70 DegC
Endurance
Electric endurance in number of cycles2000
Number of mechanical operations2000
Connection
Cross-section flexible conductor1 - 16 mm^2
Cross-section rigid conductor1 - 25 mm^2
Cross-section of input with screws, for flexible conductors1 - 16 mm^2
Cross-section of input with screws, for massive conductors1 - 25 mm^2
Cross-section of output with screws, for flexible conductors1 - 16 mm^2
Cross-section of output with screws, for massive conductors1 - 25 mm^2
Cross-section of input and output with screws, for flexible conductors1 - 16 mm^2
Cross-section of input and output with screws, for massive conductors1 - 25 mm^2
Installation, mounting
Nominal tightening torque2,10 - 2,10 Nm
Type of top connection for modular devicesScrew terminal
Type of bottom connection for modular devicesbiconnect, Bypass
Capacity
Number of modules2
Dimensions
Height83 mm
Width35 mm
Depth68 mm
Compatibility
Suitable for DIN RailYes
SKU hagrcb2106k
Manfacturer Part Number ADA910T
Barcode # 3250611011583
Brand Hager
