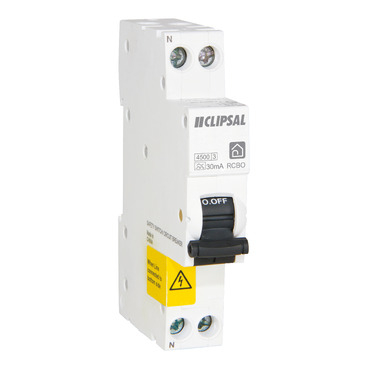

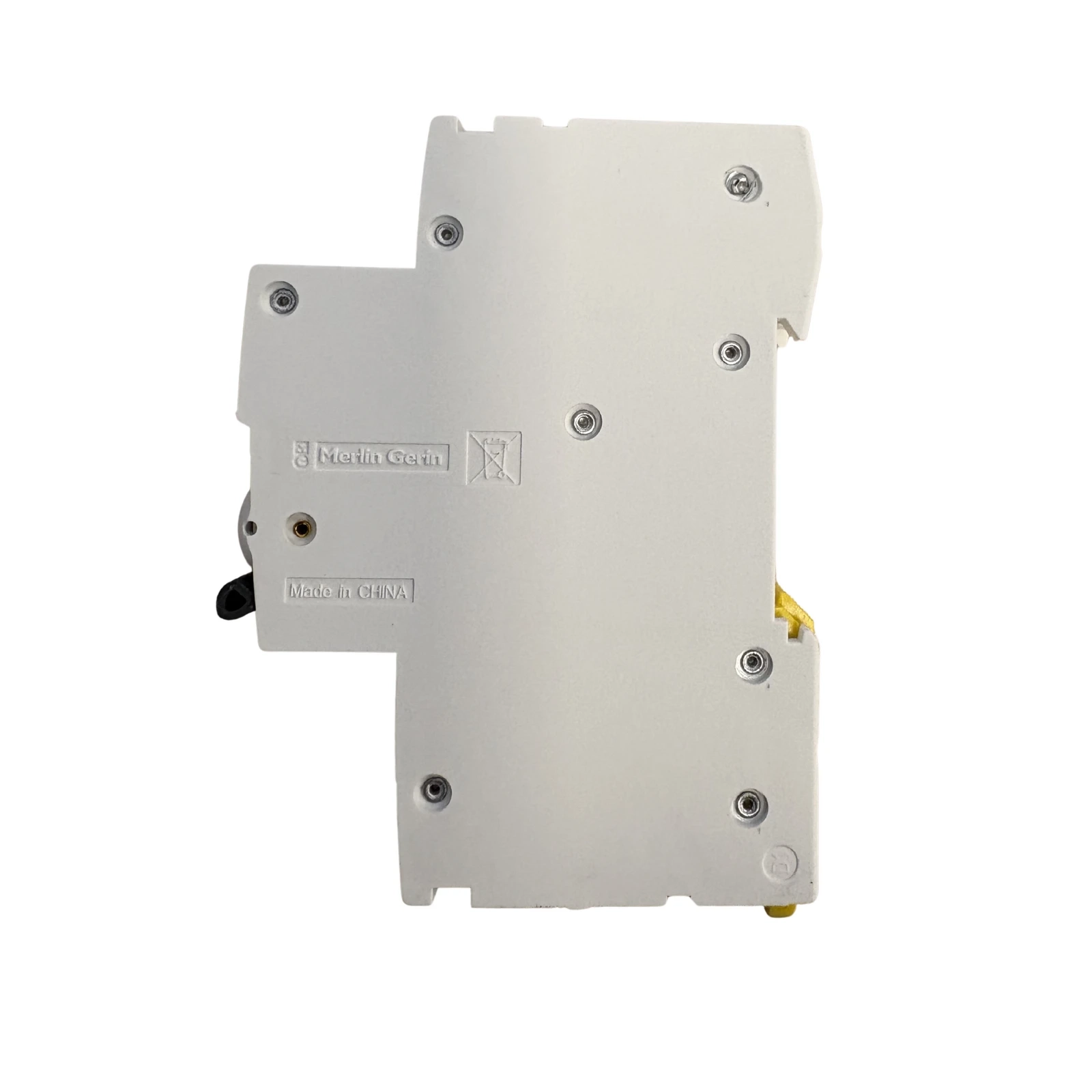

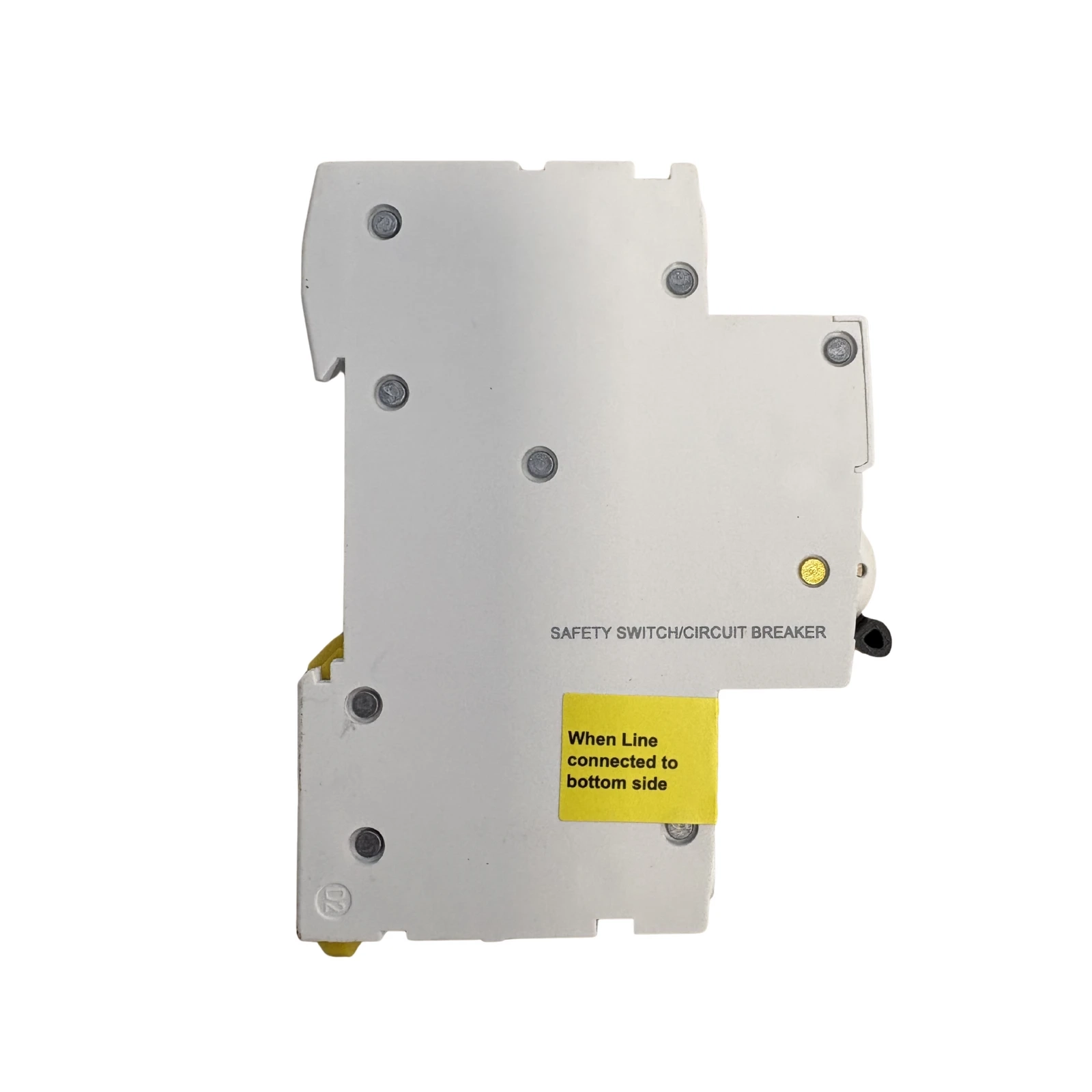

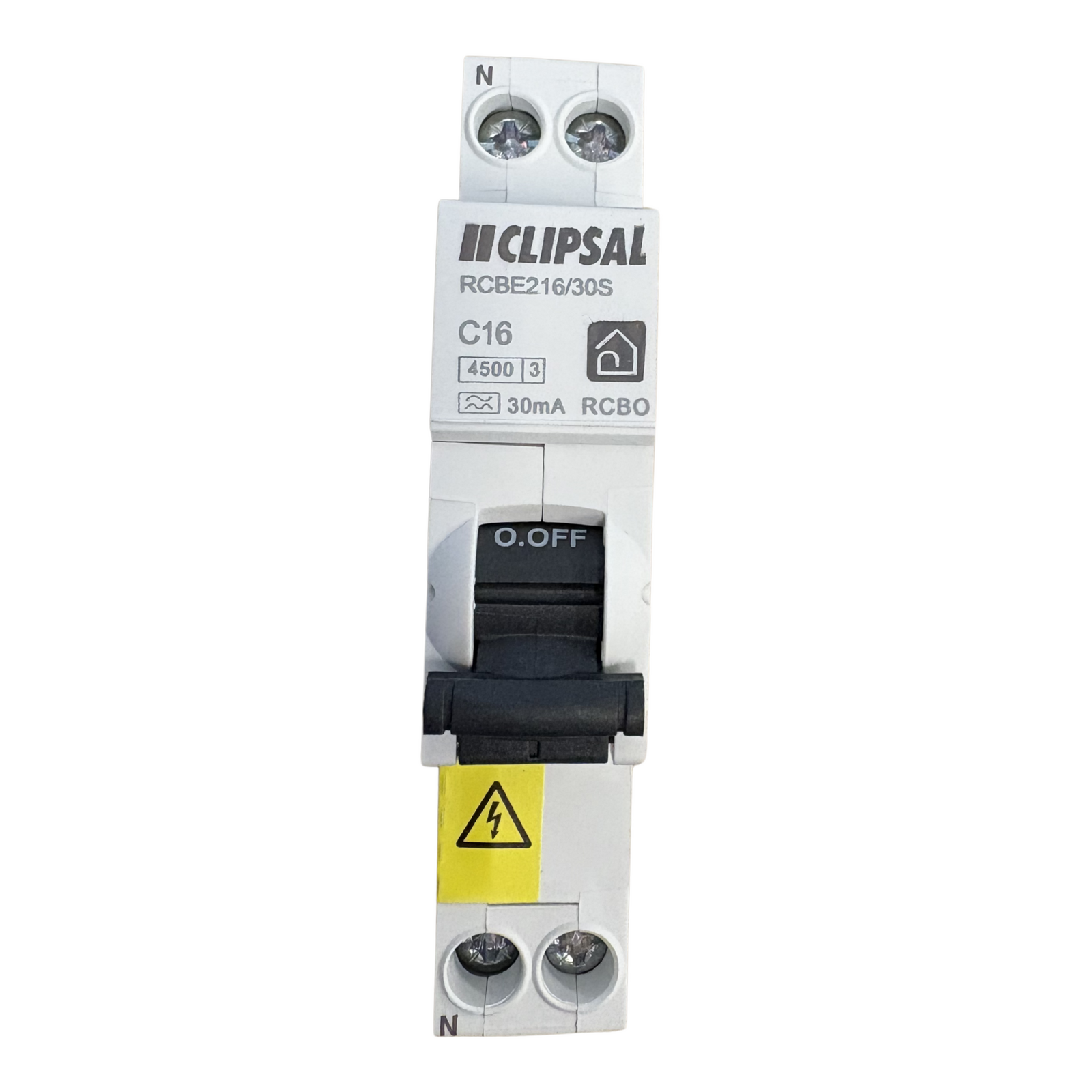

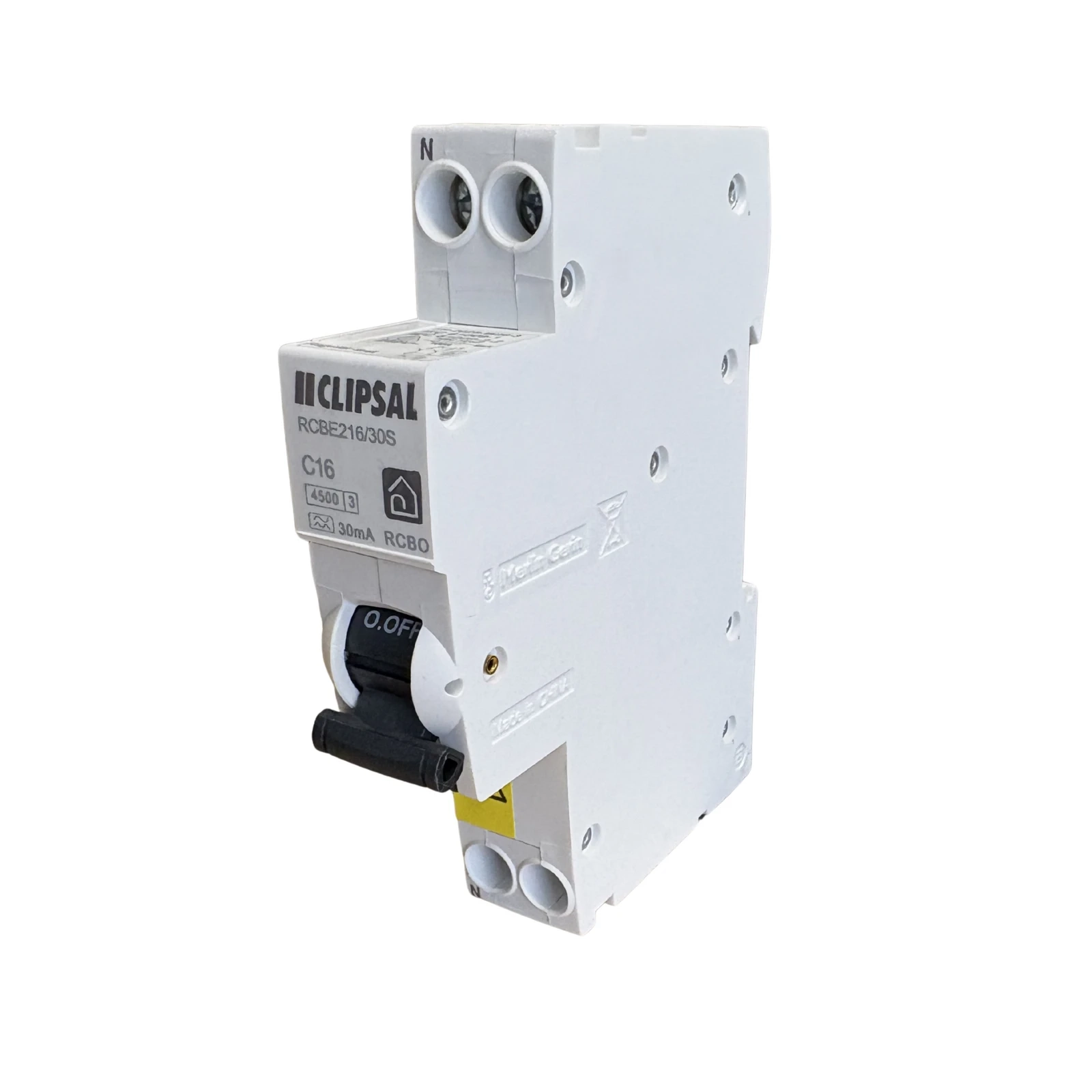

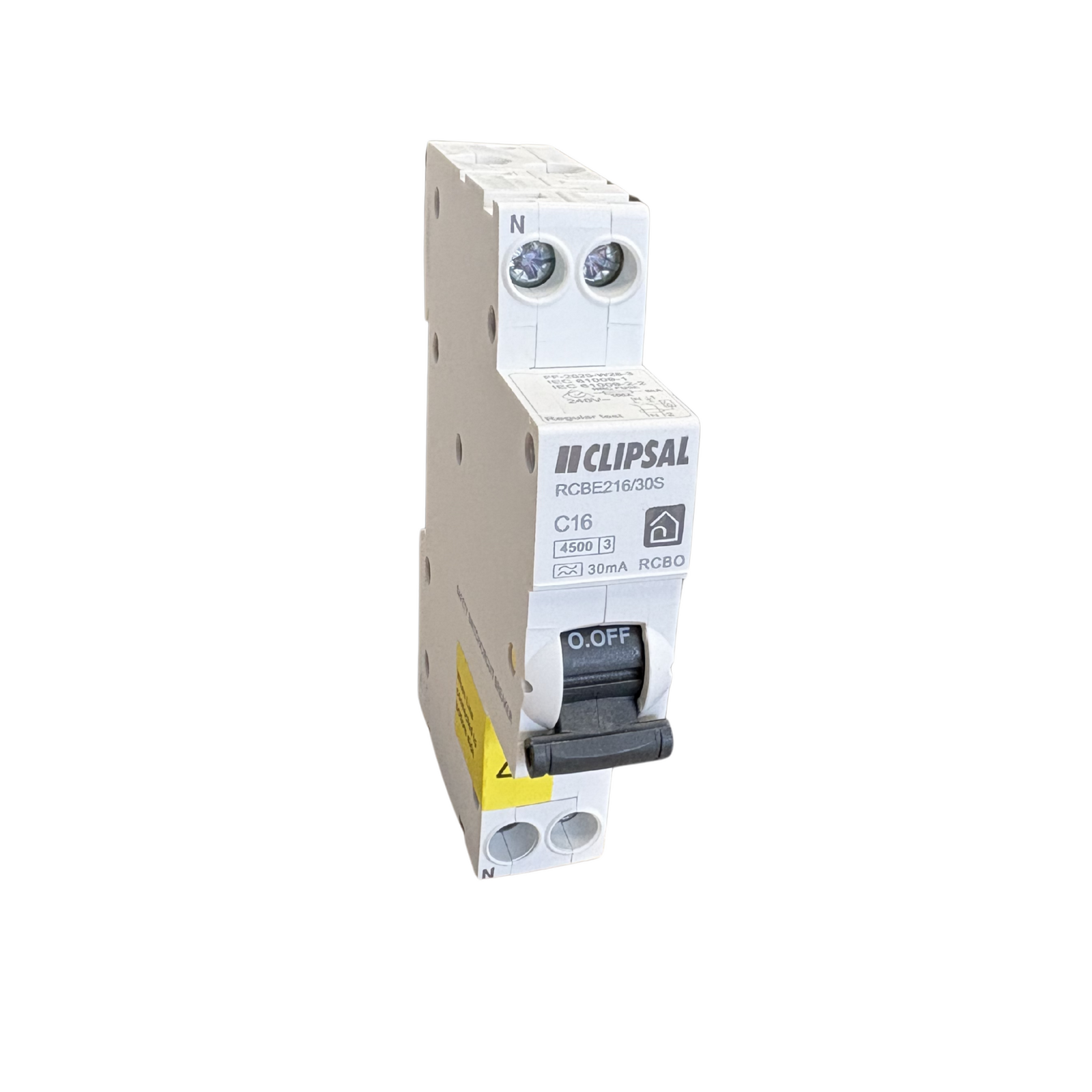

Clipsal Resi MAX | RCBO SLIM | 1PN 16A C curve 30mA Type A 4500A
SKU: clircbe21630s
Product Image Gallery
Product Pricing
$35.00 (ex-GST)
$38.50 (inc-GST)
$38.50
$35.00
(inc-GST)
(ex-GST)
Stock and Availability
- ⚫︎ In Stock
Electrotraders USPs
Description
- Clipsal RCBO - RCBE216/30S
- Resi MAX
- RCBO SLIM
- 1PN 16A C curve 30mA Type A 4500A
(clircbe21630s)
Specifications
| Design | |
| Range | Resi MAX |
| Product or component type | residual current breaker with overcurrent protection (RCBO) |
| Product brand | Clipsal |
| Device application | distribution |
| Market segment | residential |
| Physical | |
| [in] rated current | 16 A |
| [ue] rated operational voltage | 240 V AC |
| Control type | ON/OFF locking with trip free mechanism |
| Local signalling | ON/OFF indication |
| Mounting mode | clip-on |
| Mounting support | DIN rail |
| Standards | AS/NZS 61009 |
| Ip degree of protection | IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529 |
| Mercury free | Yes |
| Environmental disclosure | ENVPEP2209021 |
| Others | |
| Legacy weee scope | In |
| Average percentage of recycled plastic content | 0 % |
| Outside of Europe | |
| Weee label | N/A |
| Poles description | 1P + N |
| Neutral position | left |
| Number of modules | 1 |
| Number of protected poles | 1 |
| Network type | AC |
| Trip unit technology | thermal-magnetic |
| Curve code | C |
| Earth-leakage sensitivity | 30 mA |
| Earth-leakage protection class | type A |
| Breaking capacity | 4.5 kA |
| Size | 92.5 x 18 x 71.5 mm conforming to DIN 43880 |
| Unit type of package 1 | PCE |
| Package 1 height | 6.6 cm |
| Package 1 width | 2.2 cm |
| Package 1 length | 9.8 cm |
| Package 1 weight | 140 g |
| Green premium status for reporting | Green Premium product |
| Total lifecycle carbon footprint | 53 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [a1 to a3] | 2.0631001958 |
| Carbon footprint of the manufacturing phase [a1 to a3] | 2 kg CO2 eq. |
| Carbon footprint of the distribution phase [a4] | 0.0180497597 |
| Carbon footprint of the distribution phase [a4] | 0 kg CO2 eq. |
| Carbon footprint of the installation phase [a5] | 0.000241381 |
| Carbon footprint of the installation phase [a5] | 0 kg CO2 eq. |
| Carbon footprint of the use phase [b2, b3, b4, b6] | 51.314 |
| Carbon footprint of the use phase [b2, b3, b4, b6] | 51 kg CO2 eq. |
| Carbon footprint of the end-of-life phase [c1 to c4] | 0.0209848016 |
| Carbon footprint of the end-of-life phase [c1 to c4] | 0 kg CO2 eq. |
| Halogen-free status | Halogen free plastic parts product |
| F-gas free | N/A |
| Removable battery | N/A |
| Total lifecycle carbon footprint | 53.4163761381 |
| Average percentage of recycled metal content | 0 % |
| Halogen-free status | Halogen free plastic parts product |
| End of life manual availability | N/A |
| Warranty (in months) | 18 |
| SKU | clircbe21630s |
| Manfacturer Part Number | RCBE216/30S |
| Barcode # | 9311554758929 |
| Brand | Clipsal |
