Clipsal Iconic 3015/4-VW Quad Switched Power Point | Horizontal, Vivid White

Description

Four outlets, one plate, no powerboard.

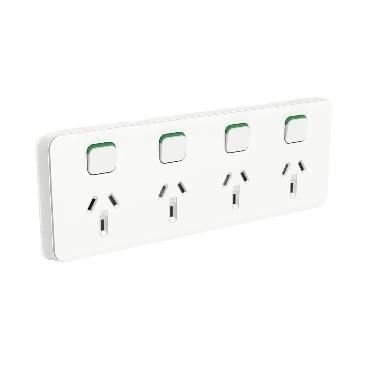

The Clipsal Iconic 3015/4-VW is a complete quad switched power point in Vivid White, rated 10A for horizontal flush mounting. Four switched sockets on a single plate – plus two extra removable switch apertures for adding mechanisms later.

Key Features

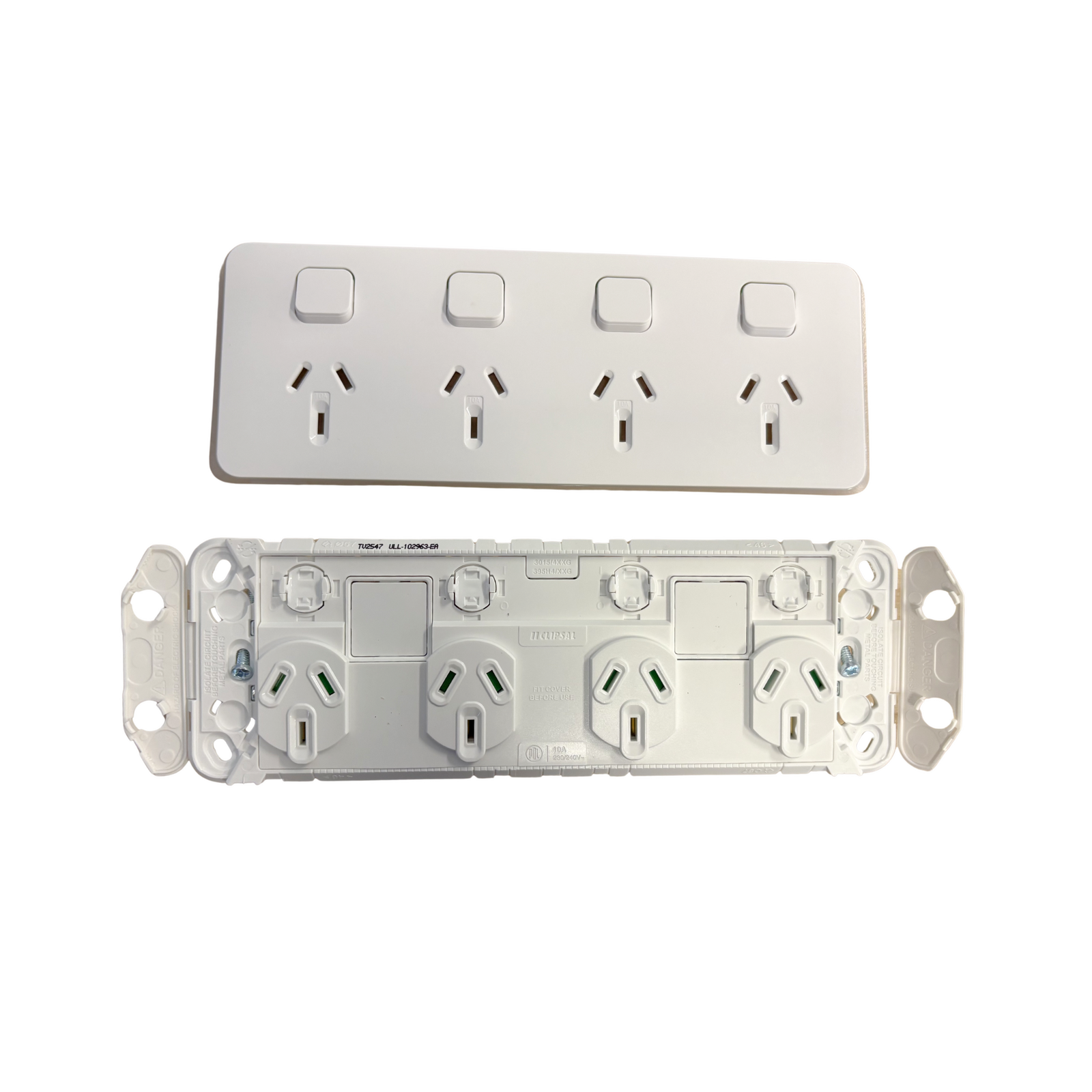

• Complete product – grid plate, skin, and mechanisms included
• Four switched sockets rated 10A at 230/240V AC
• Two extra removable switch apertures for additional mechanisms
• Horizontal installation, flush mount, fixed by screws
• Screw terminals accepting 2.5–4 x 2.5mm² rigid, stranded, or flexible cable
• 216 x 78 x 27mm, 216g – cut-out template available from Clipsal
• Operating range 0–45°C
• 18-month manufacturer warranty

Order today while this line is still available.

Why it Matters

Four Outlets Where One Plate Fits
Clipsal positions the quad as the choice when multiple power outlets are needed within a specific area, naming the smart home office and entertainment areas. It is the fitting that removes the daisy-chained powerboard from behind the desk or media unit – four hardwired, switched outlets in the wall instead of an extension lead on the floor.

Two Spare Apertures, Already There
The 3015/4 ships with two extra removable switch apertures. That means additional switch mechanisms can be added into the same plate later without cutting a second opening or running a separate plate – useful when the fitout scope grows after the wall is closed.

Wired the Way Sparkies Expect

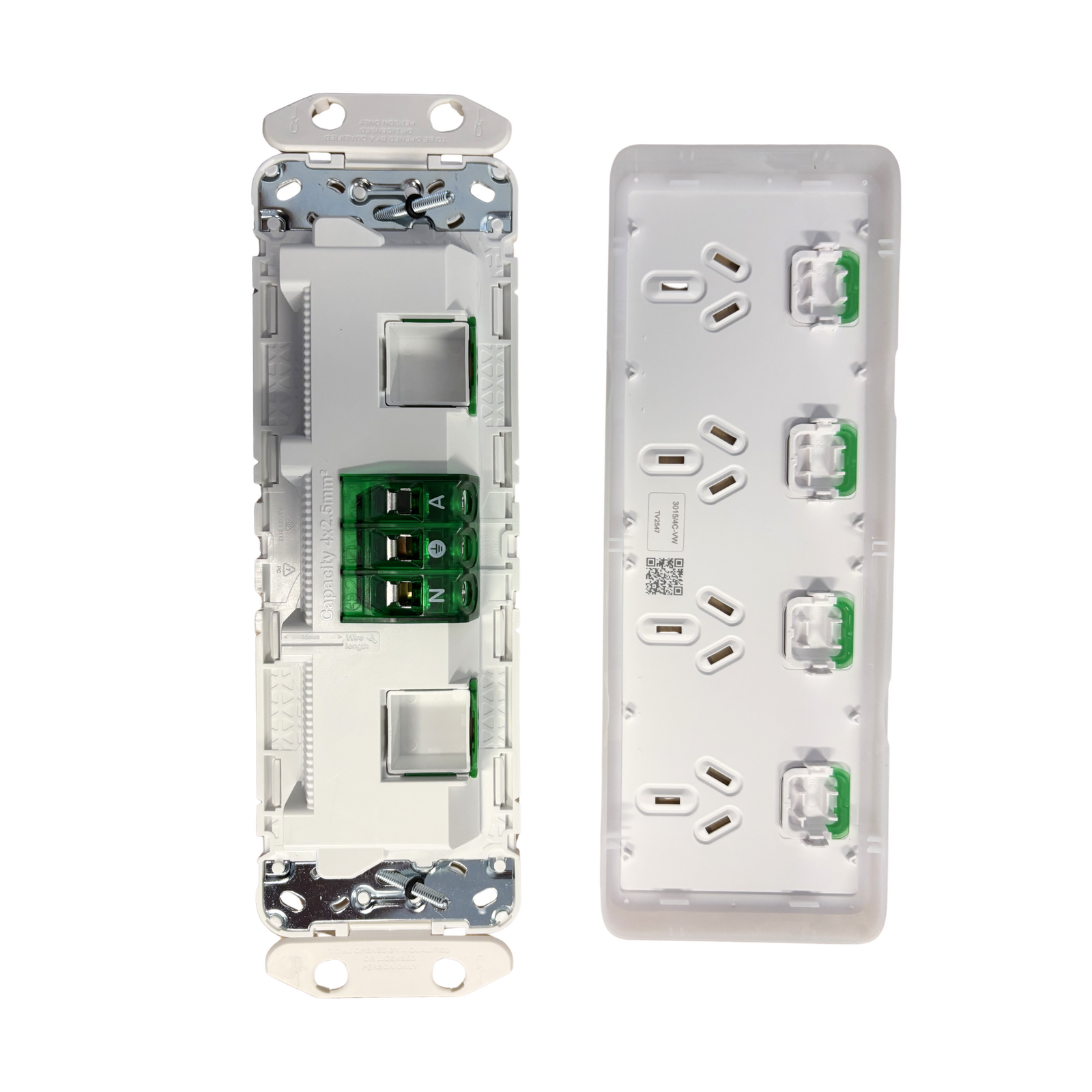

Screw terminals take rigid, stranded, or flexible cable from 2.5mm² up to four conductors, with a 16mm strip length. Clipsal publishes a 4 gang socket cut-out template for the wall opening.

Does the 3015/4-VW come as a complete power point?
Yes. Clipsal lists it as a complete product – grid plate, skin, and mechanisms together, ready to wire and mount. This is not a skin-only or cover-only item.

What are the extra apertures for?
The quad includes two extra removable switch apertures, so additional switch mechanisms can be fitted into the same plate rather than requiring a separate switch plate alongside it.

How wide is a quad power point?
The 3015/4 is 216mm wide, 78mm high, and 27mm deep. A cut-out template for the wall opening is available from Clipsal.
