Clipsal 415VF-WE Caravan Socket Outlet 10A 250V IP34 White

SKU: clicarout10

Product image thumbnail for SKU clicarout10

Download Data Sheet

$73.32 (ex-GST)

$80.65 (inc-GST)

$80.65

$73.32

(inc-GST)

(ex-GST)

⚫︎ Only 1 Left!

Clipsal 10A 250V caravan socket outlet in white, IP34 with plug inserted. Hinged lid, flush mount, sealing gasket and shroud included. AS/NZS 3112.

Fast Shipping, Trusted by Government, Easy Returns, Free Shipping over $200

Inquire here

A weatherproof 10A power outlet for caravans, RVs, and motorhomes.

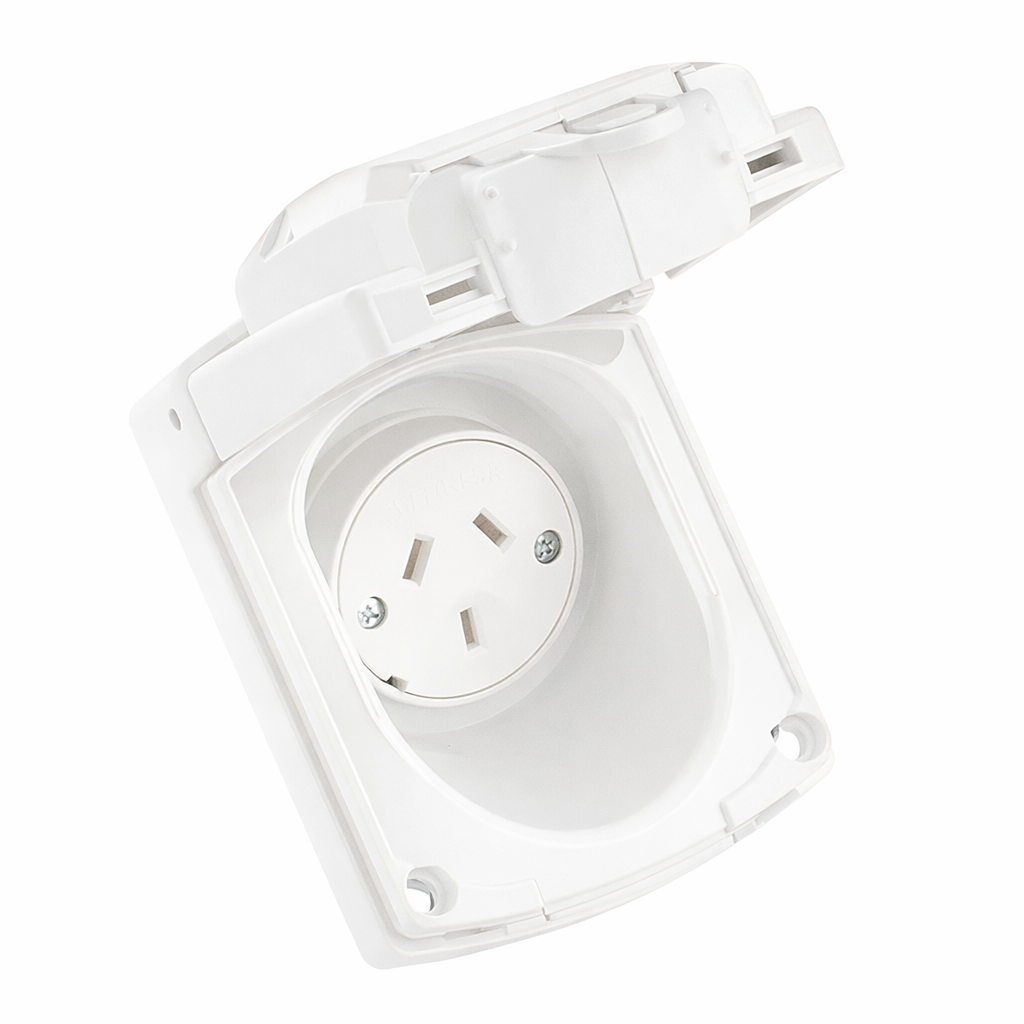

The Clipsal 415VF-WE is a flush-mounted caravan socket outlet rated 10A at 250V, in white. Its hinged lid keeps the socket covered when nothing's plugged in, and the unit carries an IP34 rating with a plug inserted – giving you a protected 240V outlet on the outside of a van, camper, or motorhome.

Key Features

10A, 250V AC caravan socket outlet
Auto-switched, Standard Series

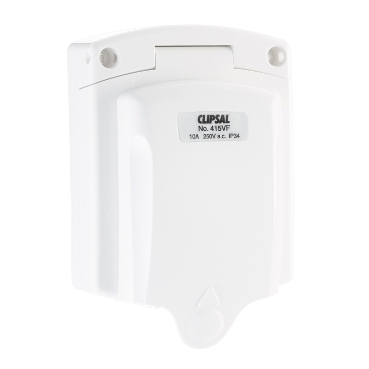

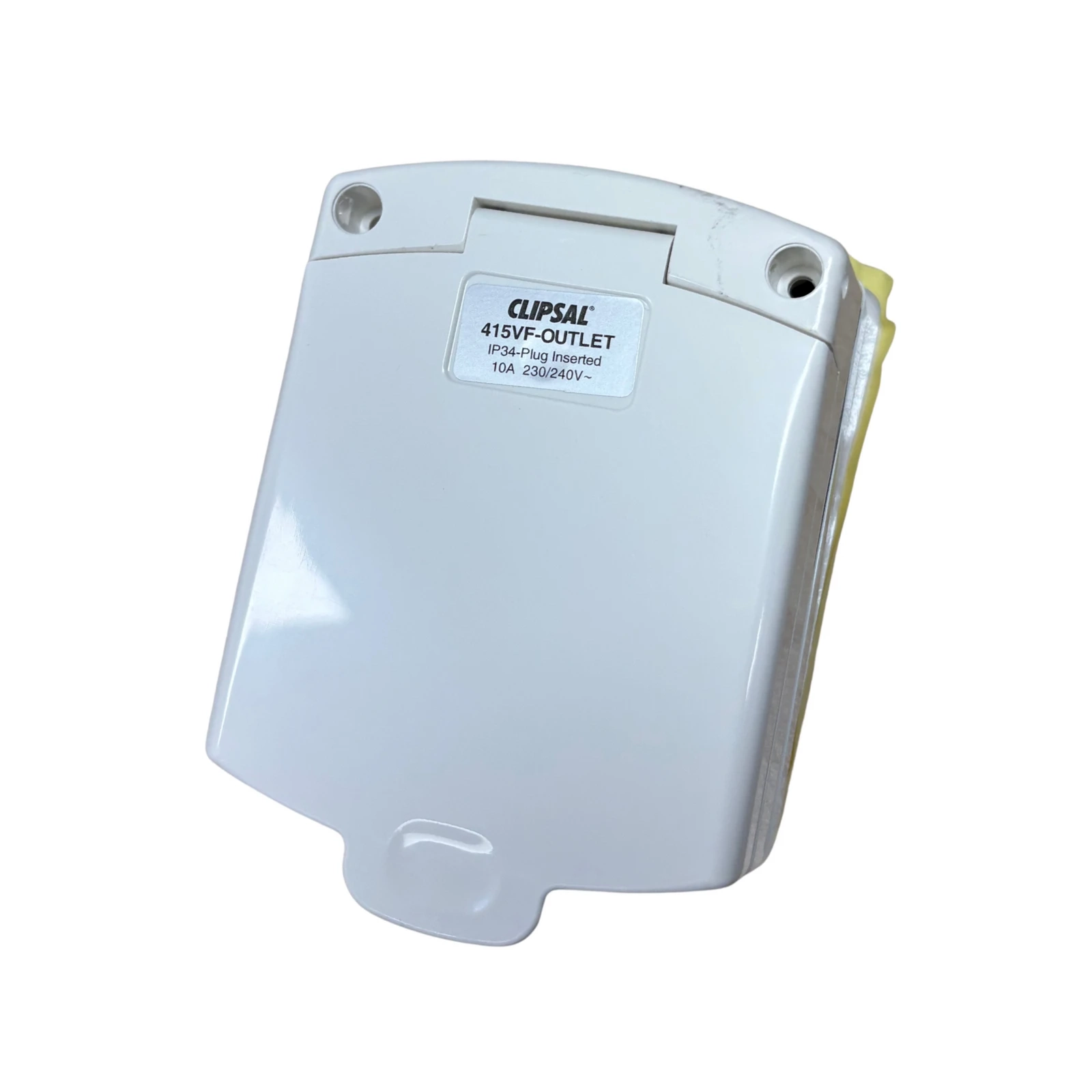

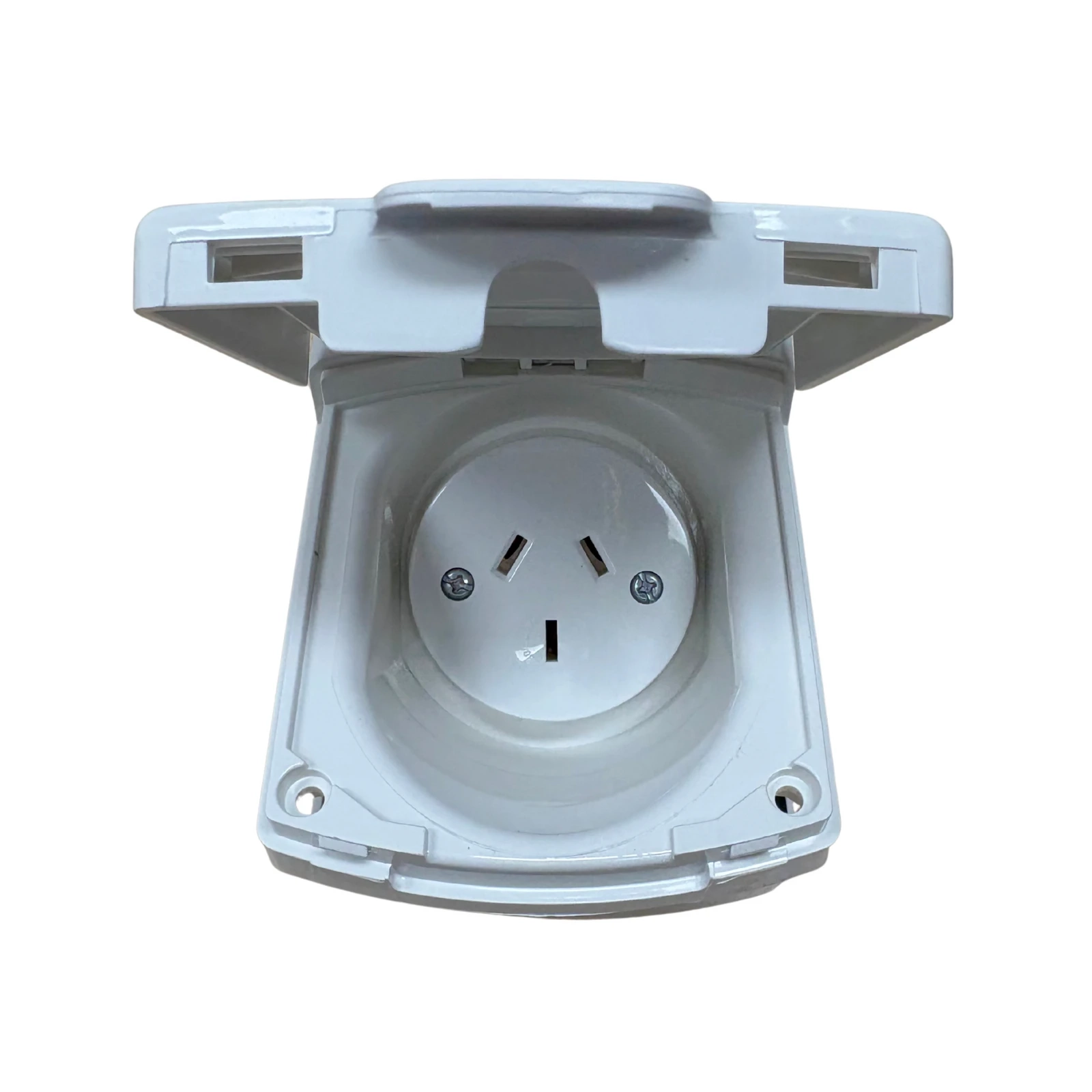

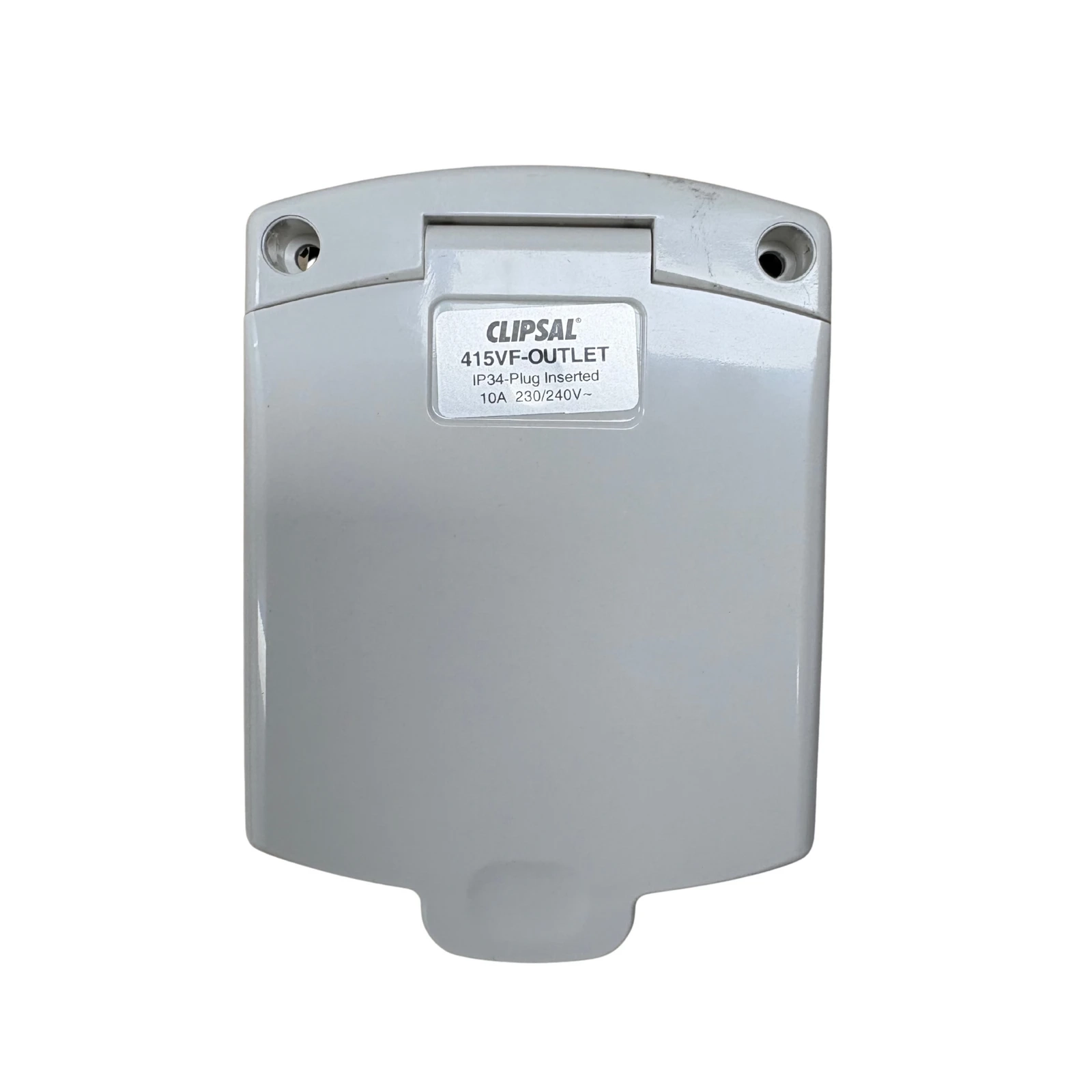

Hinged lid to cover the socket when not in use
Rated IP34 with plug inserted

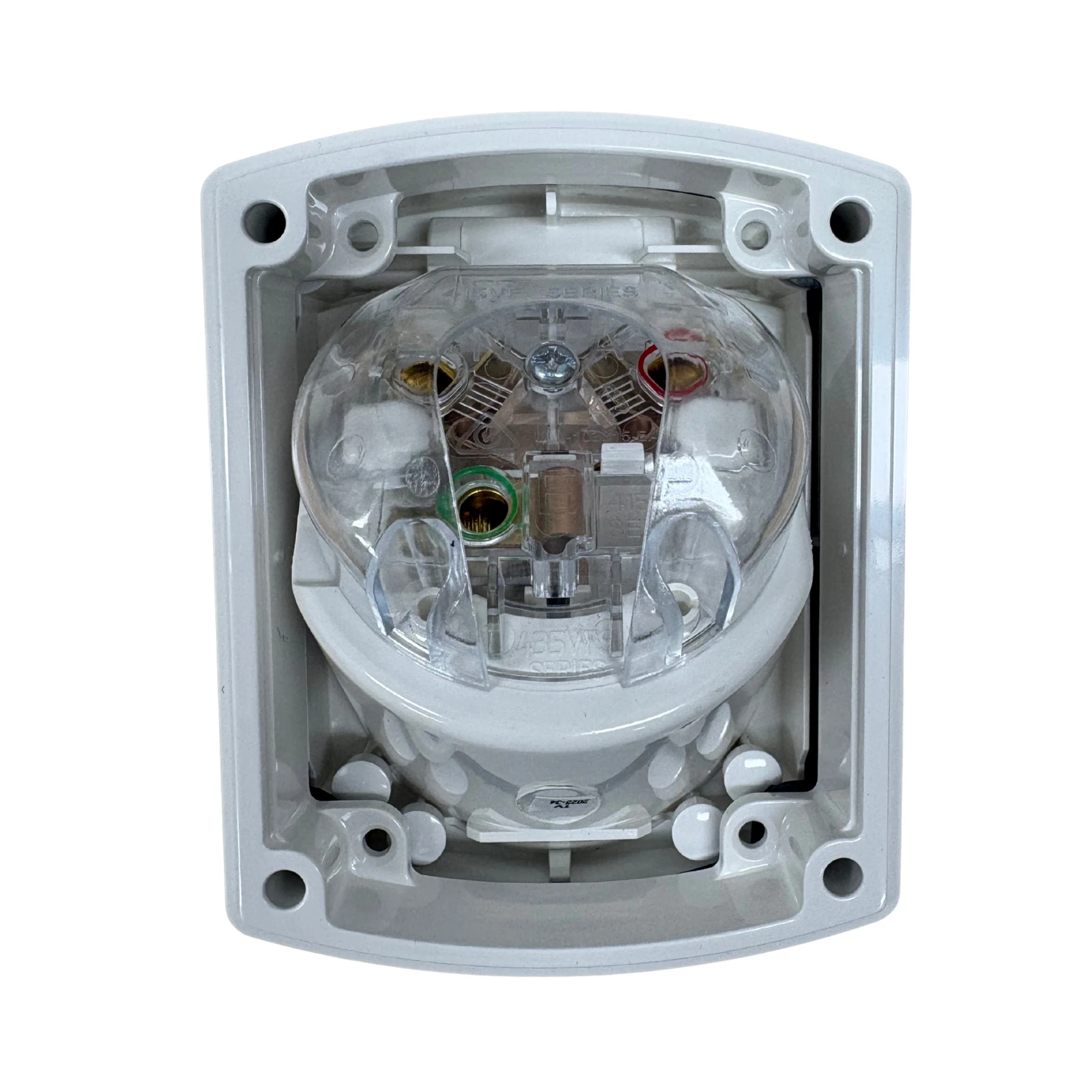

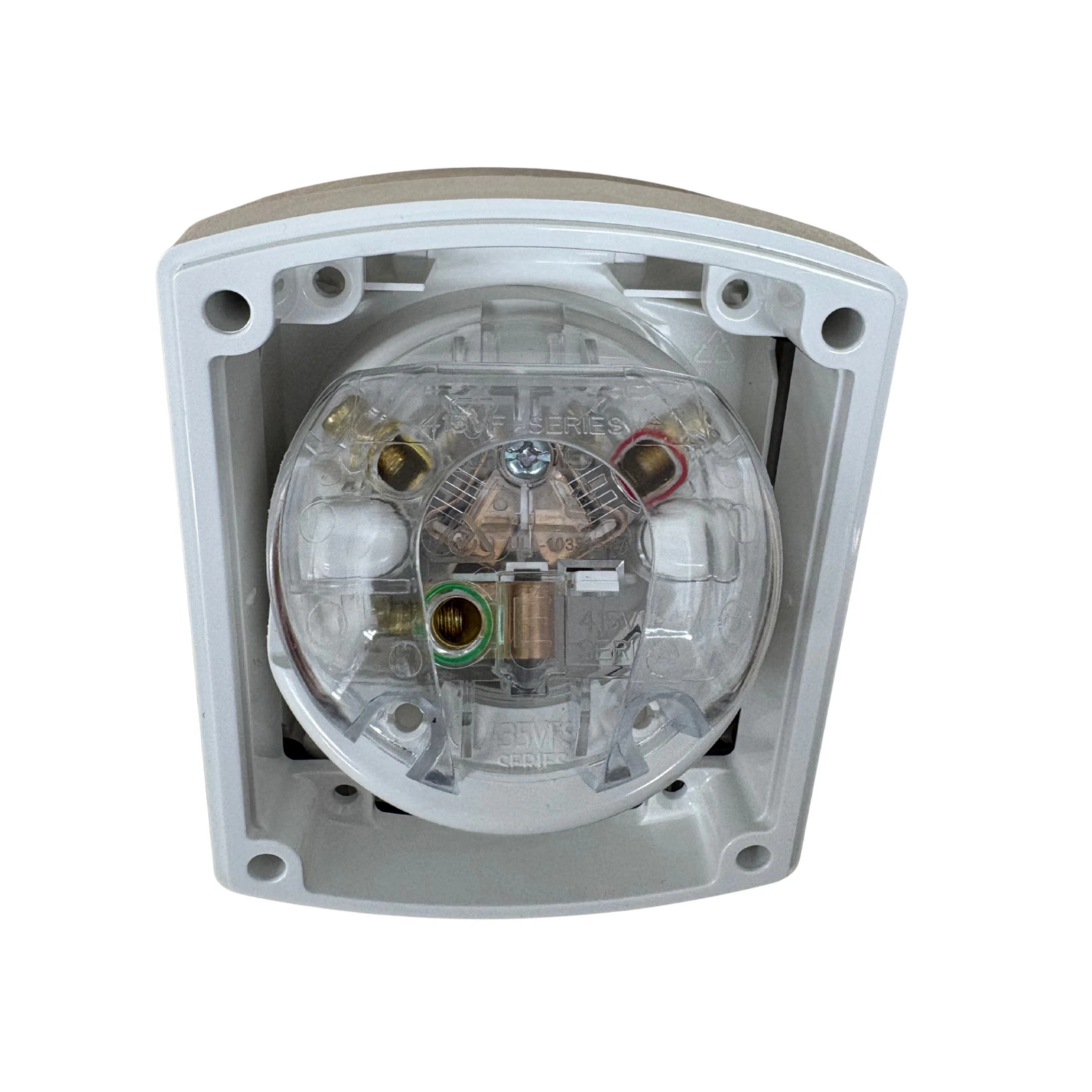

Complete with sealing gasket and rear connection shroud
Full cover plate, flush mount, fixed by screws
Dimensions 101mm H x 80mm W x 38mm D
Fixing centres 76 x 65mm
White finish
Made to AS/NZS 3112, AS 3100, AS 3109, and AS/NZS 3122
Wiring and installation instructions included

Buy online and have it on its way.

Why it Matters

Covered When Not in Use
The hinged lid closes over the socket when nothing's plugged in, keeping dust, grit, and splashing water out of the contacts – the difference between an outlet that lasts and one that corrodes on the road.

Weatherproof to IP34
With a plug inserted the outlet is rated IP34, protecting against solid objects over 2.5mm and splashing water – suited to an exterior van wall where the socket sees weather.

Everything You Need to Fit It
The outlet ships complete with its sealing gasket and rear connection shroud, plus wiring and installation instructions – so a licensed electrician has what's needed to make the connection without sourcing extras.

Built to Australian Standards
Manufactured to AS/NZS 3112, AS 3100, AS 3109, and AS/NZS 3122 (approval number S/1), so it meets the requirements for a fixed 240V outlet in an Australian installation.

What is the Clipsal 415VF-WE?
It is a flush-mounted 10A 250V caravan socket outlet with a hinged lid, for caravans, RVs, motorhomes, and trailers.

What does the IP34 rating cover?
The IP34 rating applies with a plug inserted, giving protection against solid objects over 2.5mm and splashing water.

What size is it?
101mm high, 80mm wide, and 38mm deep, with fixing centres at 76 x 65mm.

(clicarout10)

Design
Brand	Clipsal (Schneider Electric)
Range	Standard Series
Product name	Caravan Socket Outlet, Standard Series, Auto-Switched
Product type	Socket-outlet
Colour	White
Colour code	WE
Cover type	Full cover plate
Socket feature	With hinged lid
Marking	Without marking
Local signalling	Without light indicator
Electrical
Rated current	10 A
Rated operational voltage	250 V AC
Protection & Physical
IP rating	IP34
Device mounting	Flush
Fixing mode	By screws
Height	101 mm
Width	80 mm
Depth	38 mm
Fixing centres	76 x 65 mm
Supplied With
Included	Sealing gasket, rear connection shroud, wiring and installation instructions
Packing
Unit type	PCE
Units per package	1
Package height	6.3 cm
Package width	8.9 cm
Package length	11.6 cm
Package weight	156 g
Compliance
Standards	AS/NZS 3112, AS 3100, AS 3109, AS/NZS 3122 (approval S/1)
Environmental compliance	EU RoHS compliant, REACH free of SVHC, mercury free
Sustainability
Sustainability rating	Green Premium product
Recyclability potential	Approx. 40%
Packaging	Recycled cardboard
Identification
Manufacturer Part Number	415VF-WE
