UBL100L 10.0mm² Uninsulated Bootlace Ferrule 18mm — Pack of 100

Description

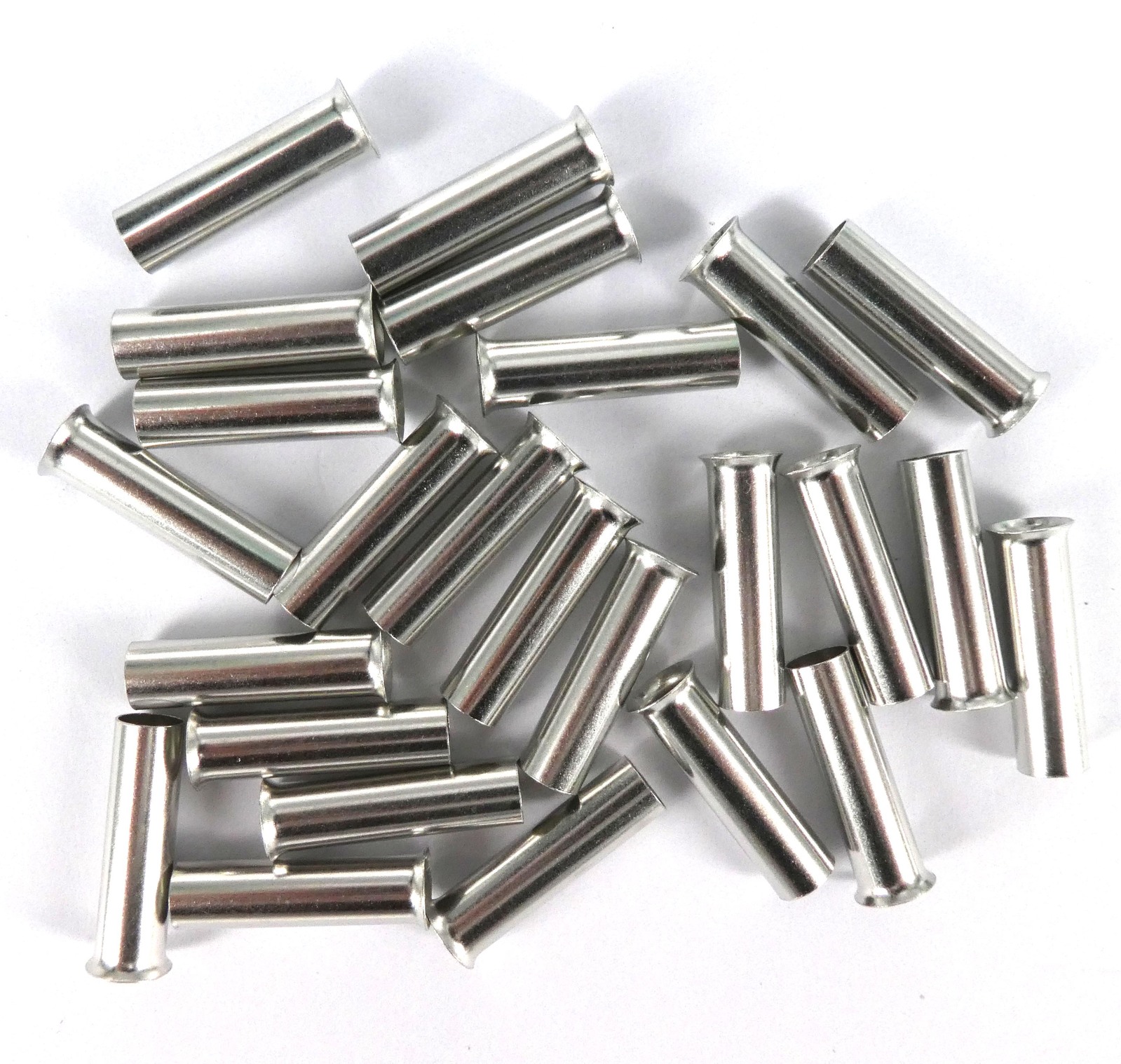

UBL100L. 10.0mm². Uninsulated Bootlace Ferrule. 18mm Pin. Tin Plated Copper. DIN 46228/4. Pack of 100.

The UBL100L is a 10.0mm² uninsulated bootlace ferrule — used to terminate 10.0mm² stranded conductors into screw terminals, busbar connections, and terminal blocks, providing a clean, solid crimped pin that prevents wire splaying and strand damage under screw pressure. 18mm pin length. Tin plated copper tube. No insulation collar — suited to applications requiring a bare metal termination. Conforms to DIN 46228/4. Pack of 100.

• UBL100L — 10.0mm² Uninsulated Bootlace Ferrule, 18mm Pin
• Wire range: 10.0mm² (7 AWG)
• Pin length (L): 18mm
• Outer diameter (D): 4.9mm
• Inner diameter (C): 4.5mm
• Opening (W): 5.8mm
• Material: Copper tube — tin plated
• Uninsulated — no insulation collar, bare metal termination
• Operating temperature: -40°C to +105°C
• Standard: DIN 46228/4
• Applied with standard ratchet or hydraulic crimping tool — 10.0mm² die required
• Pack of 100

Order online now — fast dispatch Australia-wide.

About Uninsulated Bootlace Ferrules

An uninsulated bootlace ferrule (also called a bare wire end ferrule or pin terminal) is a tin plated copper sleeve crimped onto the end of a stranded conductor to consolidate the strands into a solid pin — preventing individual strands from splaying, breaking under screw torque, or cold-flowing over time. Unlike insulated ferrules, uninsulated ferrules have no nylon collar — providing a low-profile, all-metal termination suited to applications where insulation at the terminal entry is not required or where the terminal block provides its own insulation.

The UBL100L is the 18mm pin length variant of the 10.0mm² uninsulated ferrule — a longer pin suited to deeper terminal entries and busbars where a longer engagement length is specified. The standard pin length version (12mm) is available as the UBL100. Conforms to DIN 46228/4. Supplied by Pacific Components.

Q: What wire size does the UBL100L suit?
A: The UBL100L suits 10.0mm² stranded conductors (7 AWG).

Q: What is the pin length of the UBL100L?
A: The UBL100L has an 18mm pin length. The standard 12mm pin length version is available as the UBL100.

Q: What is the difference between insulated and uninsulated ferrules?
A: Insulated ferrules (BL range) have a nylon collar over the barrel — providing insulation at the terminal entry point. Uninsulated ferrules (UBL range) have no collar — providing a bare metal termination. Select based on the terminal block type and installation requirement.

Q: What crimping tool is required for the UBL100L?
A: A ratchet or hydraulic crimping tool with a 10.0mm² die is required for correct crimping of the UBL100L.

Q: How many ferrules are in a pack?
A: The UBL100L is sold in a pack of 100 ferrules.
