Clipsal L4T35R 4 Hole T-Type Active Link 140A 500V Red Cover
SKU: cliactlin4-q
Product Image Gallery
Download Data Sheet
Product Pricing
$25.00 (ex-GST)
$27.50 (inc-GST)
$27.50
$25.00
(inc-GST)
(ex-GST)
Stock and Availability
- ⚫︎ Only 1 Left!

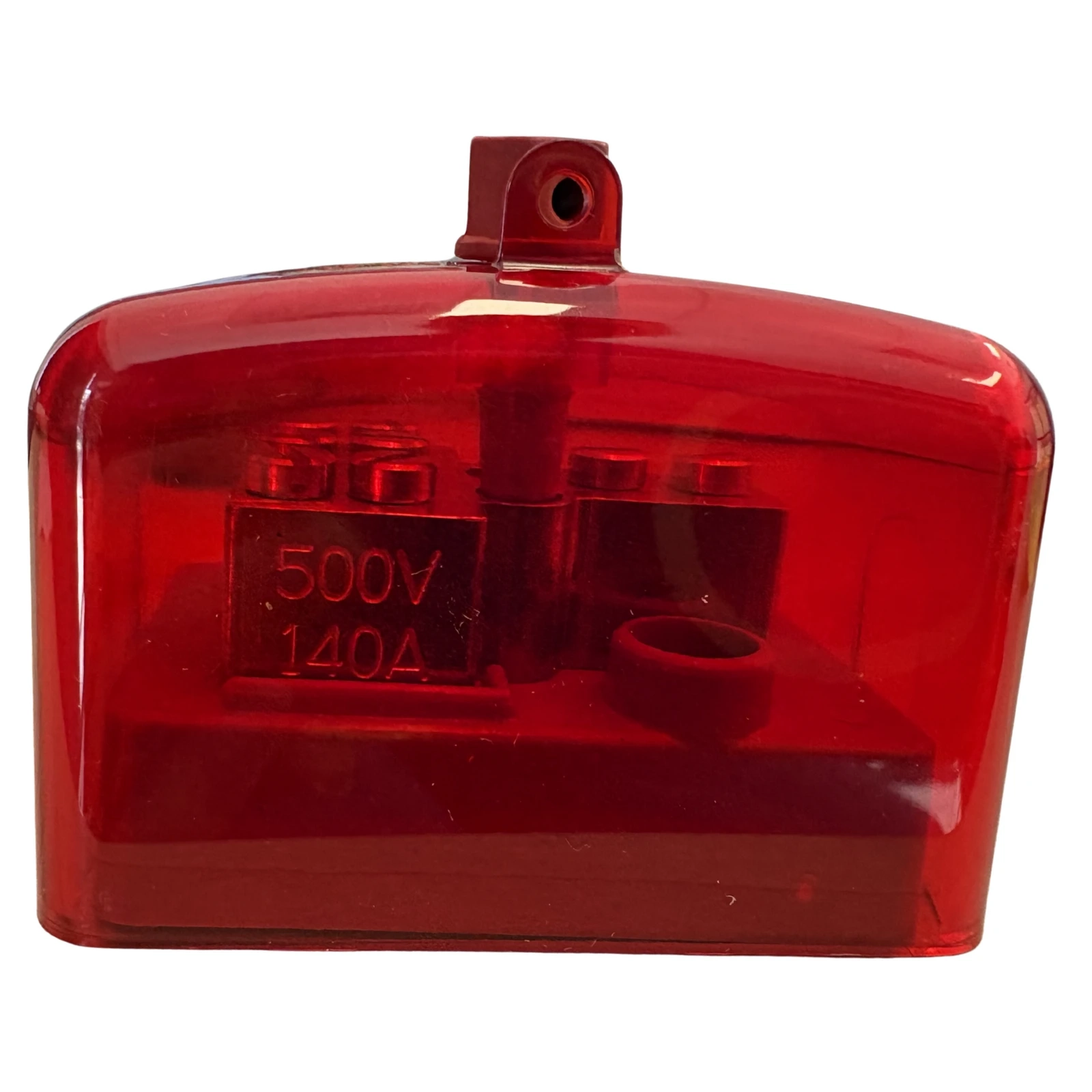

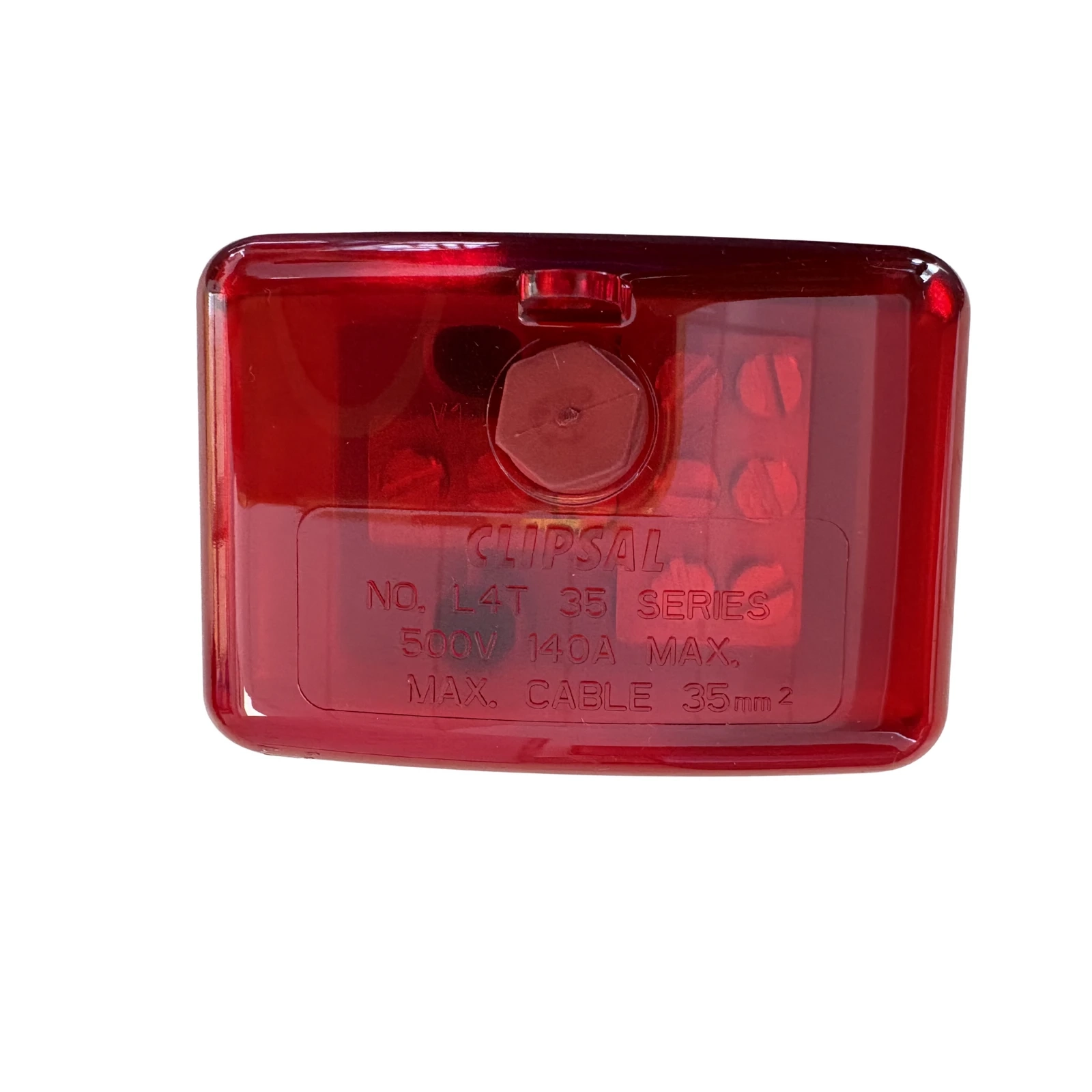

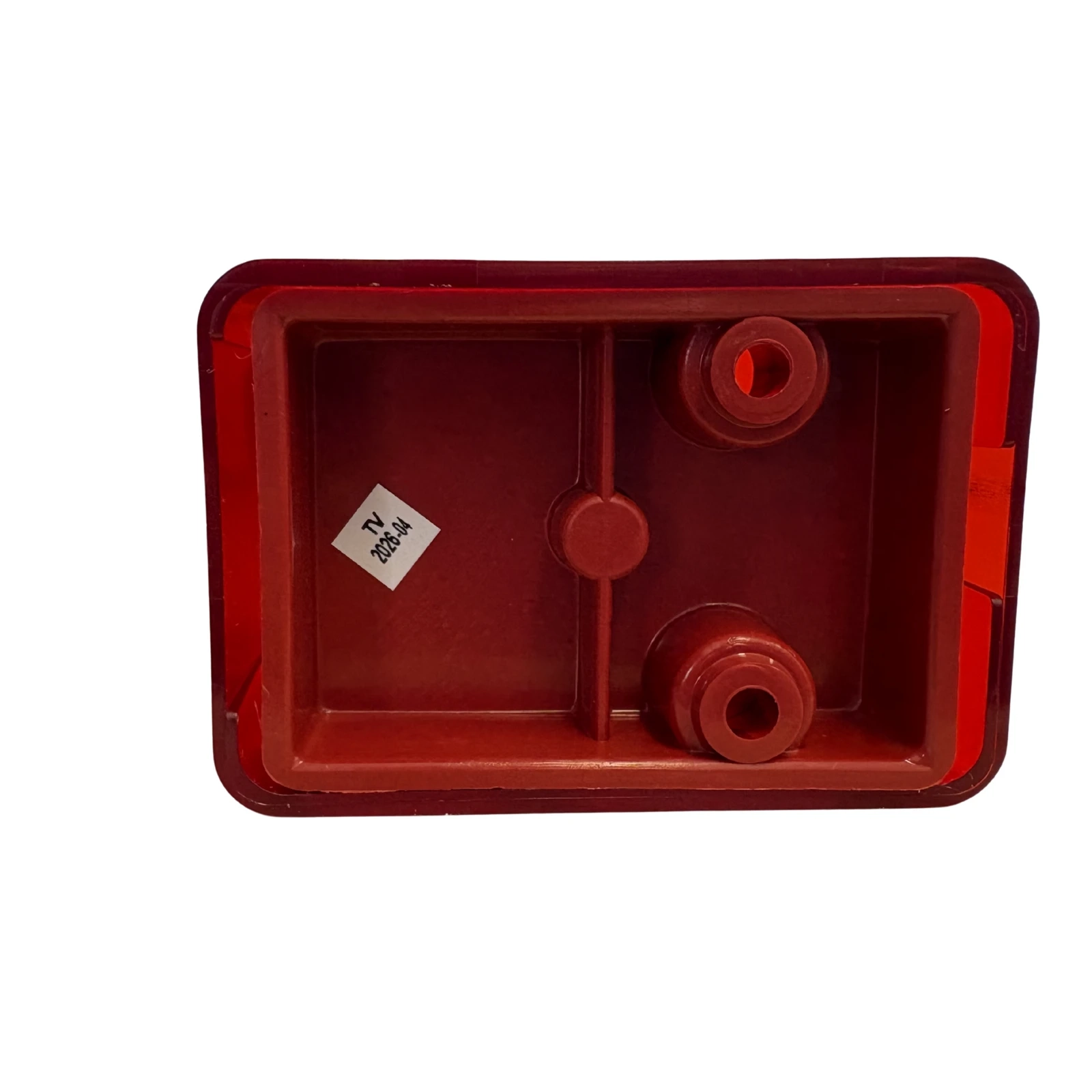

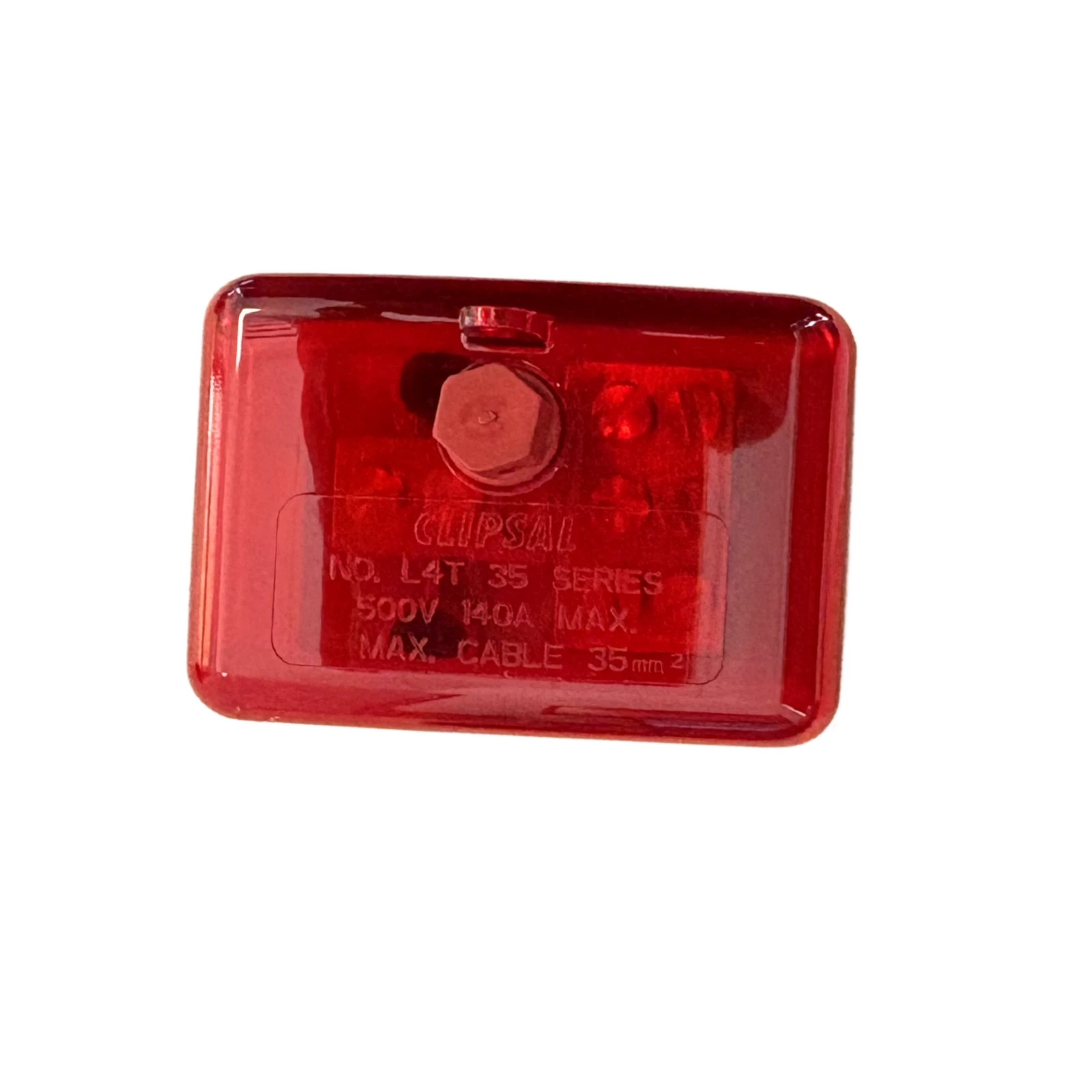

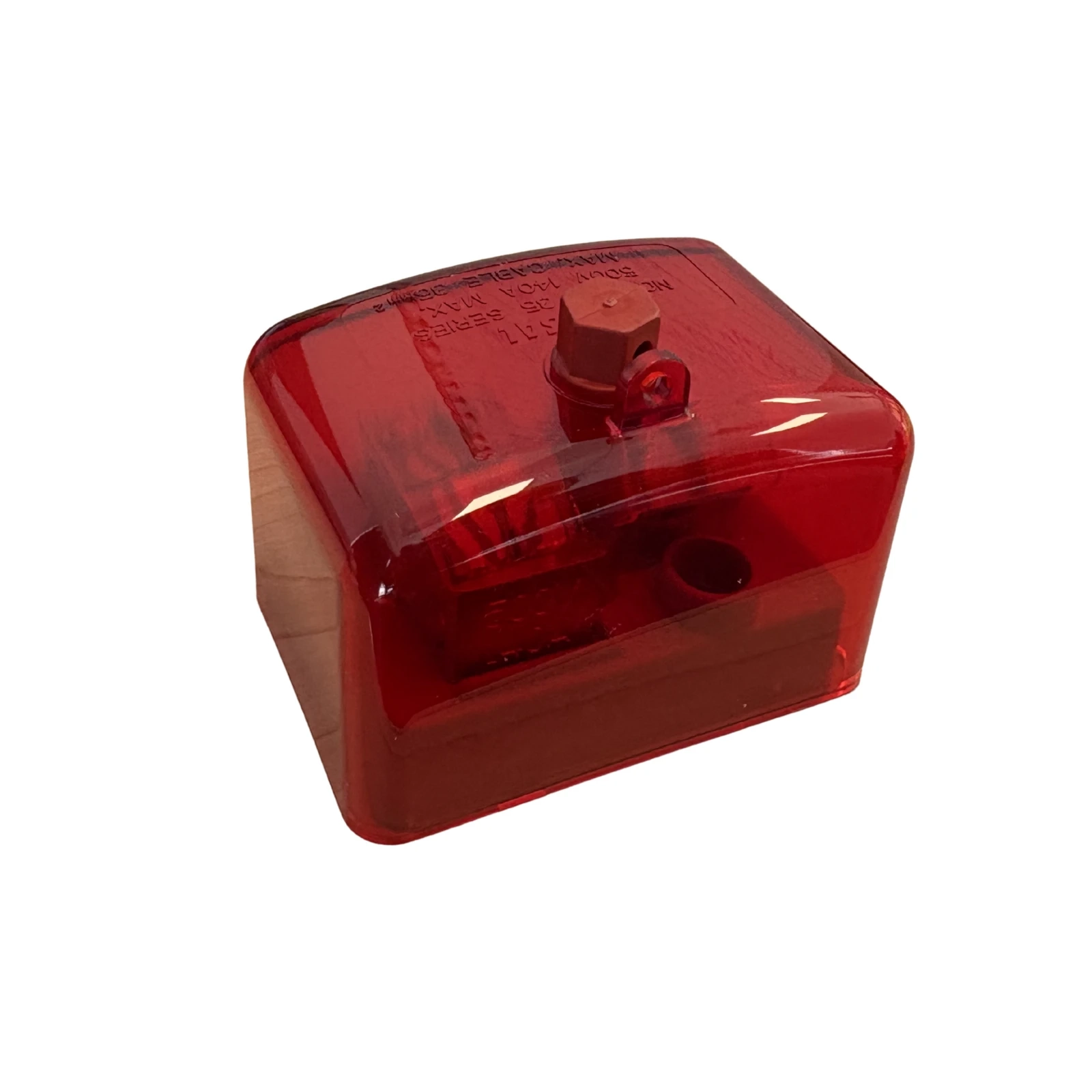

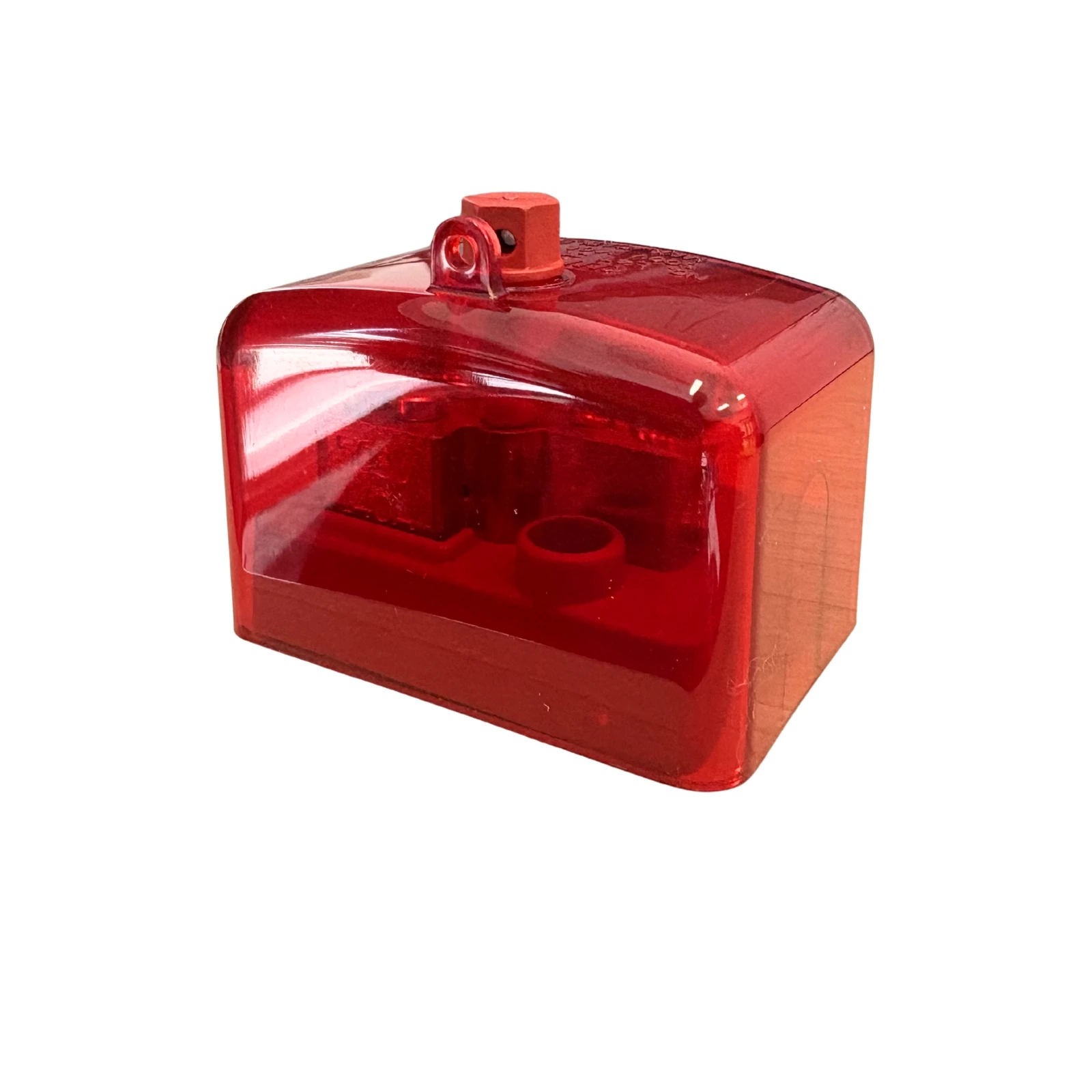

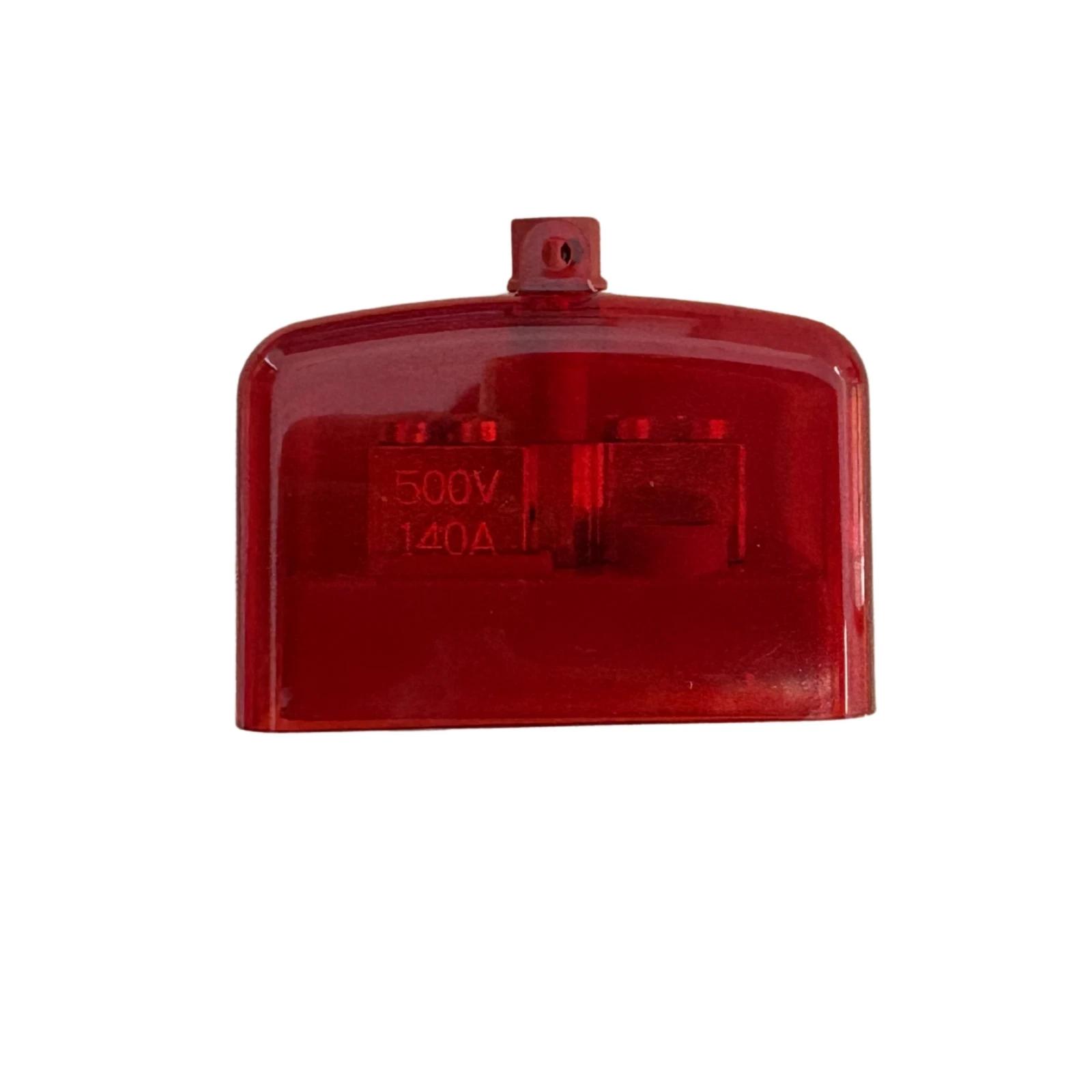

Clipsal L4T35R T-Type mini active link, four terminals, 140A 500V. Sealable transparent red cover, screw terminals, 25mm² max cable. MAX9 Blue Point range.
Electrotraders USPs
Description
A higher-current T-Type active link with a sealable red cover.
The Clipsal L4T35R is a T-Type mini active link with four terminals, rated 140A at 500V. Part of the MAX9 Blue Point range, it distributes an active connection across circuits in a switchboard, with a transparent red cover that allows visual inspection while keeping the terminals protected. The cover is sealable for tamper-evidence.
Key Features
- T-Type mini active link, four terminals
- Rated 140A at 500V
- Screw terminals
- Accepts cable up to 25mm²
- Transparent red cover for visual inspection
- Sealable cover for tamper-evidence
- Single pole
- Part of the Clipsal MAX9 Blue Point range
Buy online and have it on its way.
Why it Matters
Higher Current Capacity
Rated to 140A and accepting cable up to 25mm², this link suits heavier switchboard duties than a standard link – a solid choice where higher current distribution is needed.
See-Through and Sealable
The transparent red cover lets an electrician check the terminals at a glance without removing it, while the sealable design supports tamper-evident installations – useful where connections need to be secured against unauthorised access.
What is the Clipsal L4T35R?
It is a T-Type mini active link with four terminals, rated 140A at 500V, accepting cable up to 25mm², with a sealable transparent red cover.
What is the maximum cable size?
Each terminal accepts cable up to 25mm², connected via front-wired screw terminals.
Why is the cover red?
The red cover denotes an active link and is transparent for inspection, with a sealable design for tamper-evidence.
(cliactlin4-q)
Specifications
| Design | |
| Range | MAX9 |
| Product brand | Clipsal |
| Range of product | Blue Point |
| Product or component type | active link |
| Physical | |
| [in] rated current | 140 A |
| [ue] rated operational voltage | 500 V |
| Connector type | screw terminals |
| Number of poles | 1 |
| Height | 65 mm |
| Width | 46 mm |
| Depth | 43 mm |
| Mercury free | Yes |
| Circularity profile | N/A |
| Others | |
| Cable cross section | 25 mm² |
| Number of mounting holes | 4 |
| Unit type of package 1 | PCE |
| Package 1 height | 5.2 cm |
| Package 1 width | 4.6 cm |
| Package 1 length | 6.6 cm |
| Package 1 weight | 106 g |
| Removable battery | N/A |
| SKU | cliactlin4-q |
| Manfacturer Part Number | L4T35R |
| Colour | Red |
| Barcode # | 9318793006248 |
| Brand | Clipsal |
